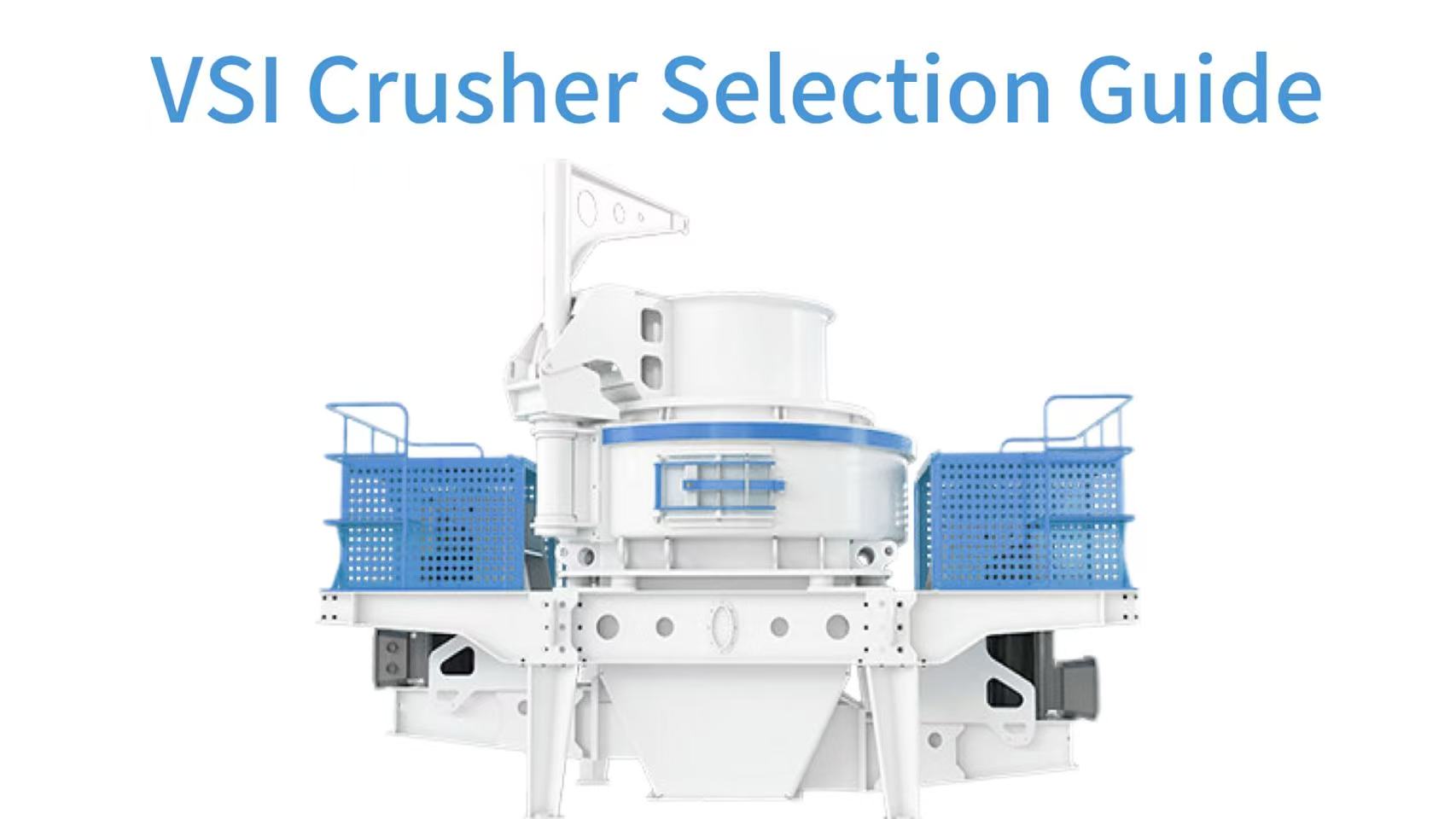

VSI Crusher Selection Guide: Core Principles for Vertical Shaft Impact Crushers

This guide provides a detailed exploration of Vertical Shaft Impact (VSI) crushers, essential machinery in modern material processing. We will dissect the core principles of how these machines function, breaking down the complex physics into understandable concepts. The discussion will cover the critical technical specifications that define a crusher's performance and the various industrial applications where they are indispensable. Furthermore, we will establish a logical framework for selecting the right equipment based on specific material properties, desired production output, and adherence to environmental standards. This information is designed to empower professionals in the mining and construction sectors to make informed decisions, leading to more efficient and sustainable crushing operations.

Technical Principles and Crushing Mechanisms of VSI Crushers

The operational heart of a VSI crusher lies in its unique method of breaking down material through high-speed impact. Unlike other crushers that use compression, such as a jaw crusher, the VSI crusher accelerates material within a chamber to generate destructive forces. This process involves a central rotor spinning at immense speeds, propelling rocks outward against either other rocks or metal anvils. The resulting collisions cause the rocks to fracture along their natural fault lines, producing aggregates with a distinctive cubical shape that is highly valued in construction applications.

Analyzing the trajectory of material inside the crushing chamber reveals the efficiency of the design. Particles are fed into the center of the spinning rotor, which then imparts kinetic energy to them, flinging them towards the perimeter. The internal geometry of the chamber is meticulously designed to maximize the number and intensity of these collisions. Two primary configurations govern this interaction: the "rock-on-rock" model, where material breaks against a bedrock of other particles, and the "rock-on-iron" model, where impact occurs against stationary metal anvils. Each mode offers distinct advantages in terms of wear and final product shape.

Crushing Chamber Design and Energy Conversion Efficiency

The design of the crushing chamber is a critical factor in determining the efficiency of energy transfer from the rotor to the material. A deep chamber design increases the retention time of particles inside the crusher, allowing for more impacts and consequently, a finer and more consistent product. The angle of the ejection ports from the rotor is precisely calculated to optimize the collision path, ensuring that the maximum amount of kinetic energy is converted into fracturing force. This efficient energy use directly translates to lower operational costs for a given output.

Over time, the wear on the internal liners of the chamber can alter its geometry, gradually reducing the efficiency of the crushing process. As liners wear down, the predetermined paths of material flow are disrupted, leading to decreased impact velocity and a less predictable product gradation. Regular monitoring and maintenance of these wear parts are therefore essential to sustain peak performance. The choice of liner material must be compatible with the abrasiveness of the feed material to balance longevity and cost.

Optimized Configuration of the Power Transmission System

The power transmission system is the muscle behind the VSI crusher's operation, responsible for delivering the necessary energy to the rotor. Selecting a motor with the correct power rating is paramount; it must be matched to the rotor's designed speed and the anticipated load from the feed material. An underpowered motor will struggle to maintain speed under load, leading to poor performance, while an overpowered motor is inefficient and costly. The relationship between motor power and rotational speed is a fundamental engineering consideration.

Two main methods are employed to transmit power: traditional belt drives and modern direct drives. Belt drives offer some flexibility and can act as a simple shock absorber, but they are subject to slippage and wear. Direct drives, often facilitated by a coupling, provide a more efficient and direct transfer of power with less energy loss. Furthermore, the integration of variable frequency drive (VFD) technology allows for precise control over the rotor's speed, enabling operators to fine-tune the crusher's performance for different materials and instantly reduce power consumption during less demanding periods.

Technical Implementation of Particle Size Control

Controlling the final size of the crushed product is a primary function of any crushing circuit, and VSI crushers achieve this through several integrated mechanisms. The crusher features an adjustable discharge opening, which acts as a gate, determining the maximum size of particle that can exit the chamber. By mechanically altering the size of this gap, operators can exert coarse control over the product's top size, ensuring that oversize material is retained for further breakage.

For more precise control, many VSI crushers are equipped with an internal screening system or cascading grate. This grate, positioned before the final discharge, features openings of a specific size that allow only adequately crushed material to pass. The selection of the grate's aperture is a direct reflection of the target product specification. Some advanced systems also incorporate a pre-screening unit before the crusher to remove fines that do not require further processing, thereby increasing the overall capacity of the circuit and improving the final product yield.

Working Principles of Overload Protection Devices

To safeguard the expensive internal components from catastrophic damage caused by uncrushable objects, VSI crushers are equipped with sophisticated overload protection systems. These systems are designed to detect a sudden and dangerous increase in pressure within the crusher, typically caused by tramp iron or extremely hard, oversized material. A common method uses hydraulic cylinders to hold critical components in place; these cylinders are set to a specific pressure threshold.

When an overload event occurs, the pressure exceeds the pre-set threshold, forcing the hydraulic system to relieve pressure by allowing the components to move slightly, creating a larger discharge opening for the uncrushable object to pass through. Once the threat has passed, the system can be designed to automatically reset to its original operating position, minimizing downtime. The responsiveness of this system, whether hydraulic or mechanical like a spring buffer, is crucial for preventing damage and ensuring operational reliability.

Material Properties and Equipment Compatibility Analysis

The effectiveness of a VSI crusher is heavily dependent on the physical characteristics of the feed material. Not all rocks or ores break in the same manner; their composition, hardness, and structure present unique challenges. A comprehensive analysis of these properties is the first step in selecting the appropriate crusher model and configuring its operating parameters. This ensures that the machine can handle the specific duty without excessive wear or energy consumption, leading to a sustainable and economical operation.

For instance, the processing of brittle limestone differs significantly from the crushing of tough and abrasive granite. Furthermore, materials like recycled concrete introduce variables such as hidden reinforcement bar and variable hardness. Understanding these differences allows for the pre-selection of the right liner materials, the optimal rotor speed, and even the choice between "rock-on-rock" and "rock-on-iron" crushing. This tailored approach maximizes both the quality of the end product and the lifespan of the machine's components.

The Influence Mechanism of Rock Mohs Hardness

The Mohs hardness scale provides a basic but valuable reference for predicting the energy required to fracture a material and the abrasive wear it will inflict on the crusher. Softer rocks like limestone, with a lower Mohs rating, require less energy to crush and cause minimal wear on liners and impellers. In contrast, hard rocks like granite or basalt demand significantly higher impact forces, which translates directly to higher power consumption. The constant bombardment of these abrasive particles drastically shortens the service life of wear parts.

For extremely hard or abrasive feed materials, a simple cost-benefit analysis might show that direct crushing is uneconomical due to the frequency of part replacement. In such cases, a pre-processing stage using a different type of crusher, like a cone crusher, might be recommended. This primary crusher would perform the initial size reduction, allowing the VSI crusher to act as a secondary or tertiary unit focused on shaping the aggregate, thereby reducing its wear burden and improving overall system efficiency.

Handling Solutions for Sticky Metal Ores

Ores, particularly metal ores, often present challenges beyond mere hardness. Moisture content is a critical factor; damp or sticky ores, such as certain types of iron ore, can adhere to the interior surfaces of the crushing chamber. This buildup, known as packing, reduces the available volume for crushing and can eventually lead to clogging and unplanned shutdowns. Therefore, establishing strict moisture control standards for the feed material is a key operational requirement.

Some ores, like copper, may have a plate-like or flaky structure that makes them difficult to break into a cubicle shape. The crushing technique must be aggressive enough to fracture these layers. Furthermore, the presence of clay or other fine, sticky materials within the ore feed can severely hamper the crushing efficiency by cushioning impacts and promoting chamber buildup. Pre-washing or screening to remove these fines might be a necessary step in the overall process flow to ensure the VSI crusher operates effectively.

Managing the Composition Complexity of Construction Waste

Recycling construction and demolition waste into valuable aggregate requires managing a highly heterogeneous feed material. This stream can contain concrete chunks, bricks, wood, plastics, and metals, most notably reinforcing steel bar (rebar) embedded in concrete. Effective processing requires a VSI crusher that is robust enough to handle the concrete but also equipped with systems to manage contaminants. A powerful magnet is almost always installed over the discharge conveyor to remove ferrous metals like rebar after the crushing process.

Controlling the final particle size of softer materials like bricks and tiles is another challenge, as they can be over-crushed into excessive fines if the impact energy is not properly calibrated. The goal is to achieve a consistent, high-quality product from a variable feed. This often involves a comprehensive system that includes pre-sorting, crushing, screening, and multiple material handling steps to separate and homogenize the different components of the waste stream, turning a disposal problem into a resource.

Capacity Planning and Equipment Selection Parameters

Selecting the correct VSI crusher model for a project requires a careful and mathematical approach to capacity planning. This process involves balancing the desired hourly production rate with the machine's power consumption, the size of the feed material, and the expected wear on components. It is not merely about choosing the largest machine available, but about finding the most efficient unit that meets the specific production goals while operating within the constraints of the project's budget and infrastructure.

A fundamental concept in this selection is the crushing ratio, which is the relationship between the size of the feed material and the size of the finished product. A higher ratio often requires more energy and can increase wear. Furthermore, the lifetime of wear parts like liners and impellers must be factored into the operational costs. A detailed cost calculation that considers the price of these parts and their expected replacement frequency is essential for understanding the true cost of ownership over the crusher's lifespan.

Calculation Methods for Core Parameters

Several key mathematical relationships guide the selection of a VSI crusher. The diameter of the rotor is a primary determinant of the crusher's potential capacity; a larger rotor can process a greater volume of material per revolution. The speed of the impeller, usually measured in meters per second, dictates the kinetic energy imparted to the rocks. There is a direct conversion coefficient between this impact energy and the resulting fracturing force, which influences the final product size and the amount of fines generated.

Another critical balance point is between screening efficiency and product yield. An internal or external screen with very tight apertures will produce a high-quality, in-spec product but may reject a portion of material back to the crusher for reprocessing, which can limit the net output. A more open screen will increase throughput but may allow some oversize material to pass. Finding the optimal setup requires understanding the relationship between the crusher's action and the screening process, often through pilot testing or simulation.

Optimization Strategies for Electrical Configuration

The electrical demands of a VSI crusher are significant, and the plant's power infrastructure must be designed to support them. The crusher's motor has a peak power draw, especially during startup or when encountering a tough section of feed, that must be within the capacity of the site's electrical grid or generator system. Failure to account for these peak loads can lead to voltage drops, tripped breakers, and operational interruptions.

For remote sites or operations where grid power is unreliable, a common strategy is to employ a large diesel generator set as a primary or backup power source. This generator must be sized to handle the combined load of the crusher and all auxiliary equipment. Additionally, conducting an energy audit of the entire crushing plant can reveal opportunities for savings, such as installing capacitors for power factor correction. This improves the efficiency of power usage and can reduce electricity costs.

Engineering Constraints of Spatial Layout

The physical installation of a VSI crusher involves more than just placing the machine on a foundation. The entire material flow system must be designed with careful attention to gravity and transfer points. The feed system, often a conveyor or a feeder, must be positioned at a height that provides sufficient vertical head to ensure a consistent and steady flow of material into the crusher's center feed tube. Insufficient head can cause feed interruptions and uneven chamber loading.

Similarly, the discharge conveyor must be designed with an appropriate incline to carry away the crushed material without spillage. The area around the crusher itself must include adequate space for safe and easy maintenance access. This includes clearances for lifting equipment to remove worn liners and the rotor assembly. Standardized minimum dimensions for walkways, platforms, and headroom are defined by safety regulations and must be strictly adhered to in the plant layout.

Integration of Automated Control Systems

Modern VSI crushers are increasingly equipped with sophisticated automation systems that optimize performance and protect the equipment. These systems rely on a network of sensors that provide real-time data to a central processor. For example, level sensors monitor the amount of material in the crushing chamber, ensuring it is running at optimal capacity—neither empty (which causes wear without production) nor overloaded.

Current sensors on the main motor can detect an impending overload condition before it becomes severe, triggering an adjustment to the feed rate or a warning to the operator. The most advanced systems allow for the remote adjustment of key parameters, such as rotor speed and feed rate, via industrial communication protocols. This enables centralized control and data collection, facilitating predictive maintenance and consistent product quality.

Industry Application Scenarios and Tailored Solutions

The versatility of VSI crushers allows them to be deployed in a wide array of industrial contexts, each with its own unique set of requirements. From the massive scale of open-pit mining to the precise demands of a concrete plant, the core technology is adapted to provide the most effective solution. Understanding these different applications helps in appreciating the design features of various VSI crusher models and how they are integrated into larger production systems.

In a typical multi-stage crushing plant, a VSI crusher is rarely the first machine in the line. It usually follows a primary jaw crusher or a cone crusher that has done the initial coarse reduction. The VSI's role is then to refine the material, improving its shape and producing the specific gradations required by the market. In some recycling applications, a specially reinforced VSI might serve as the primary crusher for processing demolition concrete.

Process Optimization in Open-Pit Mines

In open-pit mining, efficiency is measured in thousands of tons per hour. The crushing circuit is a critical link in the chain, and its design must seamlessly connect the mining operation with the processing plant. The first consideration is the size of the rock delivered from the blast site; the primary crusher must be able to accept these large fragments. The VSI crusher, acting as a secondary or tertiary stage, must then be perfectly matched to the output capacity of the primary crusher to avoid bottlenecks.

A major challenge in these environments is dust control. The high-speed impact action of a VSI crusher can generate significant dust, requiring the integration of comprehensive dust suppression systems. This often involves strategically placed water spray nozzles at feed and discharge points and sometimes enclosing the crusher in a housing connected to a large baghouse filtration system. This not only protects the environment and worker health but also reduces material loss.

Aggregate Preparation for Ready-Mix Concrete Plants

The quality of aggregate is paramount in the production of high-strength concrete. Ready-mix concrete specifications often demand a continuous and well-graded particle size distribution, typically between 5mm and 25mm, with a high percentage of cubical particles for optimal workability and strength. The VSI crusher is uniquely suited to produce this shaped, high-quality aggregate, making it a preferred choice in this industry.

Beyond particle shape, the moisture content of the aggregate can affect the crushing process and the final concrete mix. While some moisture can help with dust suppression, excessive water can lead to chamber buildup. Therefore, managing the aggregate's moisture content before crushing is important. The final product is also often tested for its shape index—a measure of how many particles are elongated or flaky—and VSI crushers consistently produce a superior result in this metric compared to other compression-based crushers.

Special Designs for Mobile Crushing Stations

The advent of mobile crushing stations has revolutionized on-site processing, and VSI technology has been successfully adapted to this format. A mobile VSI crusher integrates the core vertical shaft impactor onto a single chassis, complete with its own feeding conveyor, onboard screening, and discharge conveyors. This mobility allows contractors to bring the crusher directly to the raw material source, such as a demolition site or a remote quarry, eliminating the cost and environmental impact of transporting material to a fixed plant.

These mobile units are available on either tire or track chassis, each offering distinct advantages. Track-mounted crushers provide excellent mobility over rough terrain directly on the job site. A key design feature is the folding feed hopper and conveyors, which reduce the width and height of the unit for safe and efficient transport on public roads between sites. Some advanced models even offer a dual-power option, able to run on an external electrical grid when available for quiet, zero-emission operation, or switch to an onboard diesel generator for complete independence.

Maintenance Strategies and Total Lifecycle Cost

Owning a VSI crusher is a long-term investment, and its total cost is defined not just by the purchase price but by the expenses incurred over its entire operational life. A proactive and intelligent maintenance strategy is the most effective tool for minimizing these costs and maximizing the return on investment. This involves predicting wear, preventing failures, and planning repairs in a way that minimizes disruption to production.

The largest recurring cost is typically the replacement of wear parts, such as liners, impellers, and anvils. Developing a predictive model for their replacement cycle, based on historical data and material abrasiveness, allows for parts to be ordered in advance and changed during planned shutdowns, avoiding costly emergency downtime. Furthermore, upgrading lubrication systems to automatic, centralized greasing ensures that bearings receive the correct amount of lubricant at the right time, dramatically extending their life and preventing failures.

Monitoring Technologies for Liner Wear

Regularly measuring the thickness of wear liners is crucial for planning maintenance and preventing catastrophic damage. While manual measurement with calipers is common, more advanced techniques are becoming standard. Ultrasonic thickness gauges provide a quick and accurate way to measure remaining liner thickness without the need for direct contact or disassembly, allowing for more frequent checks and better data collection.

The pattern of wear on a liner can also provide valuable diagnostic information about the crusher's operation and the nature of the feed material. Asymmetric wear might indicate an uneven feed distribution or a problem with the rotor. For complex liner shapes, 3D scanning technology can be used to create a perfect digital model of a worn part. This model can then be used to manufacture a precise replacement or to analyze the wear patterns in detail to improve future liner designs and materials.

Maintenance Protocols for the Bearing System

The rotor bearings are among the most critical and heavily stressed components in a VSI crusher. Their failure almost always results in extended, unplanned downtime. Therefore, their condition is vigilantly monitored. Temperature sensors are installed on the bearing housings, with alarm thresholds set to alert operators to any abnormal heat rise, which is a primary indicator of impending failure caused by lack of lubrication or overloading.

A proper lubrication regimen is the best defense against bearing failure. The type of grease, the quantity injected, and the interval between lubrications must be strictly followed as per the manufacturer's specifications. In addition to this, advanced maintenance departments use vibration spectrum analysis. By regularly taking vibration readings from the bearing housings and analyzing the frequencies, technicians can diagnose specific problems like imbalance, misalignment, or rolling element defects long before they cause a breakdown.

Key Maintenance Points for the Electrical System

The electrical components that power and control the VSI crusher require their own scheduled maintenance to ensure reliability. The insulation on the windings of the main electric motor can degrade over time due to heat and vibration. Periodically testing the insulation resistance with a megohmmeter is a standard practice to predict motor failure. A declining insulation resistance value is a clear warning that the motor should be serviced or replaced during the next planned shutdown.

The cabinet containing the motor starter and, if equipped, the variable frequency drive (VFD), must be kept clean and dry. VFDs generate significant heat and are cooled by internal fans. The filters for these fans and the fans themselves must be cleaned regularly to prevent overheating. The control cabinet's seals and gaskets should be inspected to ensure they are intact, protecting the sensitive electronics inside from moisture and dust, which are common in crushing plant environments.

Environmental Standards and Sustainable Development

The modern industrial operation must align with stringent environmental regulations and a commitment to sustainable development. VSI crusher manufacturers and operators have made significant strides in reducing the environmental footprint of crushing activities. This encompasses the control of noise and dust emissions, the efficient use of energy, and the broader contribution to a circular economy by processing recycled materials.

Regulatory bodies worldwide impose limits on noise levels at the site boundary and on dust particulate matter. Beyond compliance, controlling these emissions is a matter of social responsibility, ensuring the health and safety of workers and maintaining good relations with the surrounding community. Furthermore, tracking and reducing energy consumption not only lowers operating costs but also reduces the operation's carbon footprint, which is increasingly important for corporate environmental, social, and governance (ESG) reporting.

Engineering Practices for Acoustic Optimization

Noise from a VSI crusher originates from several sources: the high-speed impact of rock, the electric motor, the drive systems, and vibrating panels. A multi-faceted approach is required for effective noise control. The first line of defense is often at the source: installing the crusher on a vibration-damping foundation to prevent the transmission of structure-borne noise.

For airborne noise, enclosing the crusher in a specially designed housing is highly effective. These housings are constructed from panels with sound-deadening insulation and lined with acoustic absorbing materials. The design must also allow for adequate ventilation and maintenance access. To monitor the effectiveness of these measures, noise level monitoring is conducted at standardized points around the site, providing data to ensure continuous compliance with regulations.

Graded Control for Dust Collection

Dust control is managed through a tiered or graded approach, applying different solutions at various stages of the material flow. At the primary feed point, simple water spray systems are highly effective at suppressing dust by adding moisture to the material, causing fine particles to adhere to larger rocks. These spray systems use nozzles that create a fine mist, maximizing coverage while minimizing water consumption.

For finer dust generated inside the crusher and at conveyor transfer points, more advanced solutions are required. Enclosing these points and connecting them to a central dust collection system is common. These systems use powerful fans to draw dust-laden air through ductwork to a collection unit, most often a baghouse. Inside the baghouse, fabric filter bags capture the dust particles, allowing clean air to be exhausted. The collected dust can often be recycled back into the process or sold, turning a waste product into a revenue stream.

Energy Auditing and Carbon Footprint Tracking

With energy being a major operational cost, conducting regular energy audits is a smart business practice. These audits measure the power consumption of every major piece of equipment, including the VSI crusher, screens, and conveyors, to identify areas of waste and opportunities for improvement. Modern practices might involve using blockchain technology to create a secure and immutable record of energy data, ensuring its accuracy for reporting and analysis.

This data is also fundamental for calculating the operation's carbon footprint. By understanding energy consumption, companies can quantify their greenhouse gas emissions. This information is crucial for participating in carbon trading markets, if available, and is a key component of ESG reports. Quantifying the positive contribution of equipment, such as a crusher processing recycled concrete (which reduces the need for virgin aggregate and its associated mining emissions), demonstrates a commitment to sustainable development beyond mere compliance.

Application of the Circular Economy Model

VSI crushers are powerful enablers of the circular economy, a model designed to eliminate waste and continually reuse resources. Their primary role in this model is to transform construction and demolition waste, which would otherwise be landfilled, into high-quality recycled aggregate. This processed material can replace virgin aggregate in many applications, such as road base, drainage layers, and even new concrete, thereby conserving natural resources and reducing the environmental impact of quarrying.

Beyond processing materials, innovative business models are emerging around equipment itself. Instead of every contractor owning a crusher, equipment sharing platforms allow multiple users to access a machine, maximizing its utilization and reducing the total number of units that need to be manufactured. Furthermore, governments often provide subsidies, tax incentives, or grants for businesses that invest in recycling technology, improving the financial viability of sustainable practices and encouraging wider adoption across the industry.
