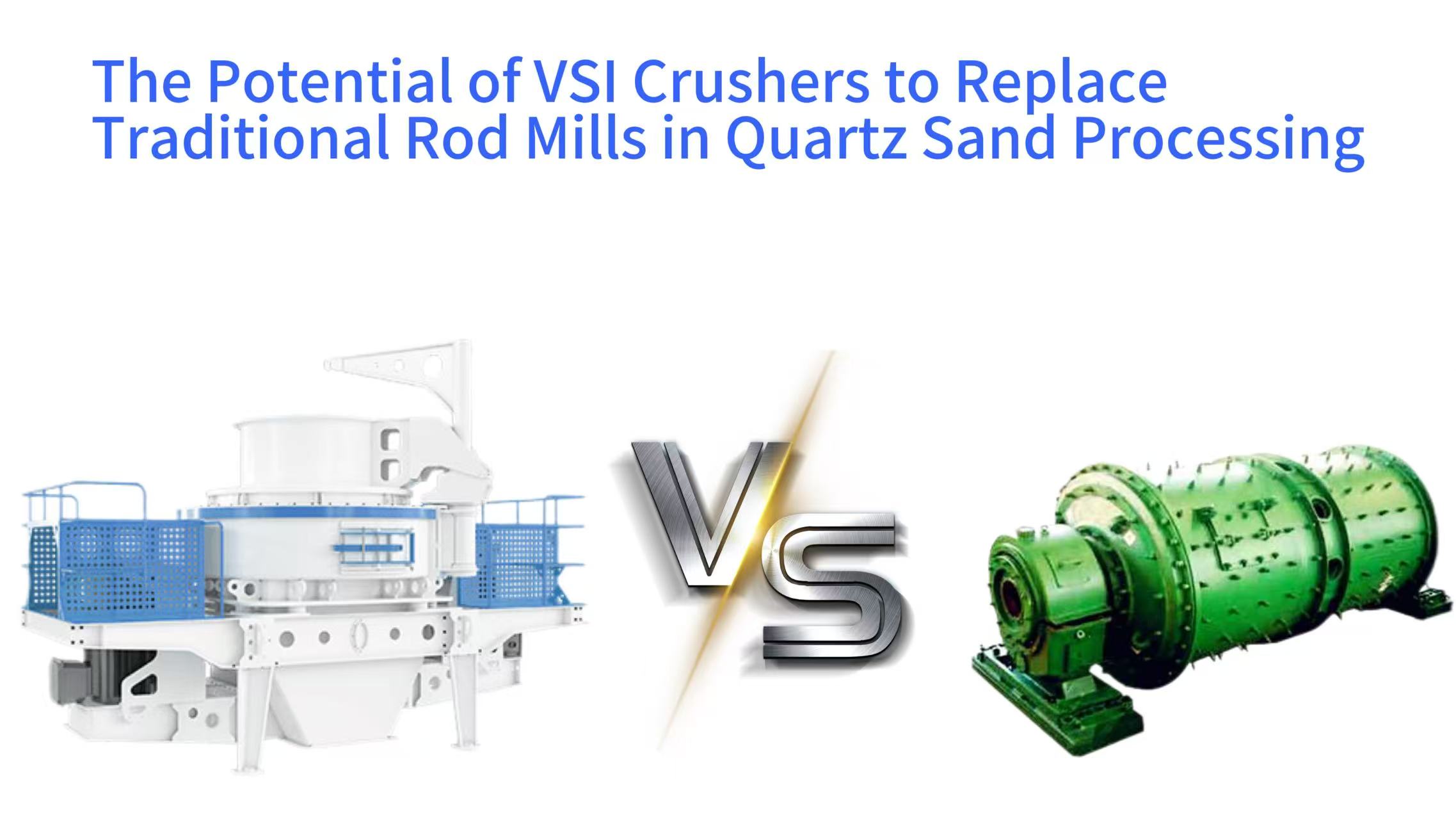

The Potential of VSI Crushers to Replace Traditional Rod Mills in Quartz Sand Processing

This comprehensive analysis examines the technical feasibility and economic viability of implementing Vertical Shaft Impact crushers as modern alternatives to conventional rod mills in quartz sand production facilities. The comparative assessment encompasses multiple operational dimensions including energy consumption patterns, product quality characteristics, and total cost of ownership considerations. Technological advancements in VSI crusher design now enable these machines to perform duties traditionally reserved for grinding mills, particularly in the size reduction of highly abrasive materials like quartz. Industry data indicates potential energy savings of 30-50% when substituting impact crushing for grinding processes, while simultaneously improving particle shape characteristics critical for premium sand applications. The transition represents a practical application of the "more crushing, less grinding" principle that has gained significant traction in modern mineral processing operations seeking to optimize energy utilization and reduce environmental impact.

Fundamental Challenges in Quartz Sand Processing

Quartz sand production presents unique operational challenges stemming from the material's high hardness, abrasiveness, and purity requirements across various industrial applications. Traditional processing circuits typically employ multiple crushing stages followed by rod mills that grind the material to the required fineness specifications. The comminution process accounts for the majority of energy consumption in silica sand plants, with rod mills alone contributing 40-60% of total power usage in conventional configurations. This energy intensity has prompted extensive research into alternative processing methods that can maintain product quality while reducing operational costs and environmental impact. The search for more efficient quartz processing technologies has accelerated as energy prices fluctuate and environmental regulations become increasingly stringent worldwide.

Traditional Rod Mill Operation in Quartz Applications

Rod mills function through a cascading motion where long cylindrical grinding media tumble within a rotating shell, applying primarily line contact forces to feed material through a combination of impact and abrasion mechanisms. In quartz processing applications, these machines typically receive feed material ranging from 5-20mm and reduce it to sand products between 0.5mm and 2mm, with the grinding action producing characteristically angular particles with rough surface textures. The grinding efficiency of rod mills decreases significantly as product size diminishes, creating inherent limitations for operations requiring fine sands below 0.5mm. This technological constraint becomes particularly problematic for high-purity quartz applications where chemical purity must be maintained alongside precise physical specifications.

The operational characteristics of rod mills include relatively high noise levels, significant vibration transmission, and substantial foundation requirements to support heavy rotating assemblies. Maintenance demands involve regular replacement of worn liners and grinding rods, with typical intervals ranging from 6-18 months depending on operational intensity and quartz abrasiveness. The grinding process inherently generates heat that can necessitate cooling systems in continuous operations, adding to both capital and operational expenses. These cumulative factors have motivated processors to investigate alternative technologies that offer improved efficiency and reduced operational complexity.

The "More Crushing, Less Grinding" Efficiency Principle

The mineral processing industry has increasingly adopted the operational philosophy that advocates maximizing size reduction through crushing methods while minimizing energy-intensive grinding operations. This approach recognizes the fundamental efficiency disparity between compression/impact crushing mechanisms that typically operate at 20-30% energy utilization compared to grinding processes that rarely exceed 5% efficiency in converting electrical energy to particle breakage. The implementation strategy involves configuring processing circuits to achieve the finest possible product from crushing equipment before transferring material to grinding mills for final size adjustment. This methodology can reduce total comminution energy requirements by 25-40% while simultaneously decreasing media consumption and maintenance costs associated with traditional grinding circuits.

Modern VSI crusher technology has proven particularly suitable for implementing this principle in quartz processing applications, with advanced models capable of producing sand products with top sizes below 3mm directly from secondary crushing circuits. The technological evolution of impact crushers has progressively narrowed the historical gap between crushing and grinding applications, enabling processors to reconsider traditional circuit configurations. Operational data from multiple quartz processing facilities indicates that implementing VSI crushers as tertiary or quaternary reduction units can reduce subsequent grinding energy requirements by 50-70% while maintaining or improving final product quality specifications.

Energy Consumption Patterns in Traditional Quartz Circuits

Conventional quartz processing circuits typically demonstrate specific energy consumption ranging from 15-30 kWh per ton of final product, with significant variation depending on feed characteristics and product specifications. Rod mill operations alone account for 8-20 kWh/ton in these configurations, representing the single largest energy consumer in most silica sand plants. The inefficiency stems primarily from the conversion of electrical energy to heat and sound rather than productive particle breakage, with only a minor fraction actually contributing to size reduction. This energy utilization profile has become increasingly problematic as electricity costs represent growing proportions of total production expenses in many regions.

The energy consumption characteristics of rod mills follow distinctive patterns where power draw remains relatively constant regardless of feed rate variations, creating inefficiencies during periods of reduced throughput. This operational characteristic contrasts with crushing equipment where power consumption correlates more directly with actual production rates, enabling better energy utilization during variable operation. The fundamental energy efficiency limitations of tumbling mills have prompted extensive research into alternative comminution technologies that can achieve similar size reduction through more energy-efficient mechanisms.

Technological Evolution of VSI Crushers

Vertical Shaft Impact crushers have undergone substantial technological refinement since their initial development, evolving from basic aggregate shaping machines to sophisticated comminution devices capable of processing highly abrasive materials like quartz. Modern VSI crushers incorporate numerous design improvements including advanced rotor geometries, enhanced wear protection systems, and sophisticated control technologies that collectively enable their application in duties traditionally reserved for grinding mills. The technological progression has been particularly evident in machines specifically engineered for hard rock applications, with demonstrated capabilities in producing finely graded products with controlled particle shape characteristics. This evolution has positioned VSI crushers as viable alternatives to conventional grinding equipment in specific applications, particularly where product shape requirements align with the characteristic cubical output produced by impact crushing mechanisms.

High-Energy Rotor Design and Wear Resistance Innovations

Contemporary VSI crushers feature advanced rotor designs that optimize energy transfer efficiency while maximizing wear component longevity in abrasive applications. Modern rotors typically operate at peripheral speeds between 60-85 meters per second, generating sufficient impact energy to fracture quartz particles through preferential cleavage along natural crystal boundaries. The latest generation of rotors incorporates progressive wear protection systems utilizing tungsten carbide inserts and specialized composite alloys that maintain operational geometry despite continuous exposure to highly abrasive quartz particles. These material advancements have extended wear component service life by 300-500% compared to early VSI designs, significantly reducing operating costs and improving equipment availability.

The evolution of rotor technology has included the development of multi-port configurations that enable material recirculation within the crushing chamber, increasing the number of impact events per particle and producing finer product gradations. This design approach effectively creates multiple crushing stages within a single machine, achieving reduction ratios exceeding 20:1 in specific configurations. The operational flexibility of modern rotors allows producers to modify performance characteristics through simple component changes rather than complete machine replacement, providing adaptability to changing market requirements or feed material variations. These collective advancements have fundamentally transformed VSI crushers from simple shaping devices into sophisticated comminution machines capable of competing with traditional grinding technologies.

Precise Particle Size Control Capabilities

Modern VSI crushers offer extensive control over product gradation through adjustable operational parameters including rotor speed, feed rate, and crushing chamber configuration. The interrelationship between these variables enables operators to produce sand products with specific size distributions tailored to particular application requirements, including the narrow particle bands required for high-value industrial quartz sands. Advanced control systems can maintain consistent product specifications despite variations in feed characteristics through real-time parameter adjustments based on continuous performance monitoring. This operational stability represents a significant advantage over traditional grinding mills that often produce fluctuating product gradations in response to feed variations.

The fundamental crushing mechanism in VSI crushers produces characteristically steep product gradation curves with minimal ultra-fine generation when properly configured, contrasting with the broad size distributions typical of rod mill products. This characteristic proves particularly valuable for applications requiring precise control over fine particle content, such as specialty sands for glass manufacturing or filtration media. Operational data demonstrates that modern VSI crushers can consistently produce products with fineness modulus values between 2.3 and 3.2, encompassing the majority of commercial quartz sand specifications without requiring additional classification equipment. This capability to target specific product gradations directly from the crushing process represents a significant advancement over earlier comminution technologies.

Adaptation for High-Purity Quartz Applications

The processing of high-purity quartz presents unique challenges regarding contamination control, particularly iron introduction from wear components during comminution. Modern VSI crushers address this concern through specialized designs that minimize metal-to-rock contact through optimized rock-on-rock crushing configurations and ceramic-lined components. Advanced models incorporate comprehensive wear protection systems utilizing polyurethane, ceramic, and specialized composite materials that reduce iron contamination by 70-90% compared to conventional steel components. These material innovations enable VSI crushers to produce quartz sands meeting stringent chemical specifications for applications in semiconductor, solar, and high-clarity glass manufacturing.

Additional contamination control measures include magnetic separation systems integrated directly into crusher discharge paths and air classification systems that remove fine particles potentially containing elevated impurity levels. The latest VSI crusher designs incorporate completely sealed bearing arrangements that prevent lubricant contamination of processed material, a critical consideration for high-purity applications. These collective features position modern VSI crushers as viable options for premium quartz processing applications where product purity requirements historically favored grinding technologies with perceived lower contamination risks.

Performance Comparison Between Technologies

The operational comparison between VSI crushers and rod mills reveals distinct performance characteristics that influence their suitability for specific quartz processing applications. Modern VSI crushers typically demonstrate specific energy consumption between 0.8-1.5 kWh/ton for size reduction from 10mm to 2mm, contrasting with rod mill consumption of 8-12 kWh/ton for similar reduction duties. This substantial energy differential stems from the fundamental efficiency of impact crushing mechanisms compared to the abrasive grinding action of tumbling mills. Additional operational advantages include significantly reduced water consumption in dry processing configurations, smaller physical footprints, and faster response times to operational adjustments. These performance characteristics collectively position VSI technology as a compelling alternative to traditional grinding approaches in appropriate applications.

Energy Consumption Comparison per Ton Processed

Comprehensive energy analysis reveals that VSI crushers typically operate at 20-30% of the energy consumption of rod mills for equivalent size reduction duties in quartz processing applications. This efficiency advantage stems from the direct transfer of kinetic energy to rock particles in VSI crushers compared to the multiple energy conversions inherent in tumbling mill operation where electrical energy transforms to rotational energy, then to potential energy, before finally fracturing particles. The efficiency differential becomes most pronounced in applications requiring products between 1mm and 3mm, where VSI crushers operate near their optimal performance range while rod mills function with diminishing efficiency as product size decreases.

Operational data from multiple quartz processing facilities indicates that circuits incorporating VSI crushers as primary sand producers demonstrate total energy savings of 35-55% compared to traditional rod mill configurations. These savings result from both the inherent efficiency of impact crushing mechanisms and the reduced energy requirements for ancillary systems like dust collection, ventilation, and material handling. The economic impact of these energy savings varies with local electricity costs but typically represents 40-60% of total operating cost reductions when implementing VSI technology in quartz processing applications.

Particle Shape and Surface Characteristics Analysis

VSI crushers produce characteristically cubical particles with smooth fracture surfaces and minimal internal microcracking, contrasting with the angular, irregular particles typically generated by rod mill grinding action. This particle shape distinction proves particularly significant for quartz sands used in industrial applications where packing density, resin demand, and flow characteristics influence final product performance. The cubical particles produced by VSI crushers demonstrate 15-25% higher packing density than angular rod mill products, potentially reducing binder requirements in applications like epoxy systems and foundry molds. The improved particle shape also enhances flow characteristics in dry applications, reducing handling and transportation challenges.

Microscopic analysis reveals that VSI-crushed quartz particles exhibit conchoidal fracture surfaces similar to naturally weathered sands, while rod mill products show more irregular fracture patterns with increased surface roughness. This surface characteristic difference influences performance in applications where particle surface area affects chemical reactions or coating requirements. The controlled fracture mechanism of VSI crushers also produces fewer ultra-fine particles than the abrasive grinding action of rod mills, reducing the proportion of material below 75μm that often requires removal through air classification in premium sand applications.

System Complexity and Footprint Requirements

VSI crusher installations typically require 40-60% less floor space than equivalent-capacity rod mill systems, including associated feed and discharge arrangements. This space efficiency stems from the vertical orientation and compact design of VSI crushers compared to the horizontal configuration and substantial foundations required for tumbling mills. The reduced physical footprint can significantly impact facility design and construction costs, particularly in retrofitting applications where space constraints limit equipment options. The structural requirements for VSI crushers involve less massive foundations than rod mills, potentially reducing civil engineering costs by 25-40% in new construction projects.

Operational complexity comparisons favor VSI technology through reduced requirements for ancillary systems like grinding media handling, mill lubrication systems, and specialized maintenance equipment. Rod mill operations necessitate regular media addition and classification systems to remove broken grinding rods, introducing additional operational complexities not required for VSI crushers. The control systems for modern VSI crushers typically integrate more seamlessly with plant automation platforms than traditional mill controls, facilitating implementation in highly automated facilities. These factors collectively reduce both capital and operational expenses while improving overall system reliability.

Potential Limitations and Mitigation Strategies

Despite their numerous advantages, VSI crushers present specific limitations in quartz processing applications that require careful consideration during technology evaluation. The primary concerns involve contamination risks from wear components, control of ultra-fine generation, and capacity limitations for high-tonnage operations. These potential constraints have prompted the development of specialized VSI configurations and operational approaches that effectively mitigate the limitations while preserving the technology's fundamental advantages. Understanding these potential challenges and their corresponding solutions enables informed decision-making when considering VSI implementation in quartz processing circuits.

Iron Contamination Control in High-Purity Applications

The potential for iron introduction from wear components represents the most significant concern for VSI crushers processing high-purity quartz. Traditional steel components can increase iron content by 50-200 ppm depending on quartz abrasiveness and component metallurgy, potentially exceeding specifications for premium applications. Modern mitigation approaches include specialized rotor designs that maximize rock-on-rock crushing action, ceramic liners for critical wear areas, and composite components incorporating non-metallic materials in high-wear locations. These design features can reduce iron contamination to 10-30 ppm, meeting specifications for most high-value quartz applications.

Additional contamination control measures include external magnetic separation systems installed in crusher discharge streams and operational protocols that minimize metal-to-rock contact during start-up and shutdown sequences. The latest VSI crusher designs incorporate comprehensive wear monitoring systems that alert operators before component deterioration reaches levels that might increase contamination risks. These integrated approaches enable VSI crushers to process high-purity quartz while maintaining chemical specifications historically associated only with ceramic-lined grinding mills or natural sand sources.

Ultra-Fine Generation Control Methodologies

VSI crushers operating at optimal parameters typically generate 5-12% of product as sub-75μm material, compared to 15-25% from rod mills processing similar quartz feed. While this represents a significant reduction, certain applications require even lower fine content, necessitating additional control measures. Modern approaches include air classification systems integrated directly with crusher discharge, adjustable internal airflow control that selectively removes fines during the crushing process, and operational modifications that optimize rotor speed and feed distribution to minimize unnecessary attrition. These techniques can reduce ultra-fine generation to 3-8% while maintaining production efficiency.

Advanced VSI configurations employ multi-stage processing within a single machine, where initial impact fractures particles followed by controlled abrasion in secondary chambers that generate fewer fines than conventional grinding. This approach produces well-graded sands with minimal ultra-fine content while maintaining the energy efficiency advantages of impact crushing. Operational data demonstrates that properly configured VSI crushers can produce sands with fineness modulus values between 2.6 and 3.0 with less than 5% passing 75μm, meeting specifications for most industrial sand applications without additional classification.

Capacity Considerations for High-Tonnage Operations

VSI crushers traditionally faced capacity limitations compared to large rod mills, restricting their application in high-tonnage quartz processing operations. Modern machine designs have substantially addressed this constraint through increased rotor diameters, higher power ratings, and improved material flow characteristics that collectively enable throughput rates exceeding 500 tons per hour in specific configurations. This capacity progression has positioned VSI crushers as viable options for medium to large-scale quartz processing facilities, particularly when configured in parallel arrangements for maximum production flexibility.

The evolution of crushing capacity in VSI technology has included the development of specialized models specifically engineered for high-tonnage abrasive applications, with demonstrated capabilities in processing over 1.5 million tons of quartz between major component replacements. These production rates compete effectively with traditional rod mill installations while offering the inherent advantages of impact crushing technology. The scalability of VSI systems through multiple machine configurations provides operational flexibility not typically available with grinding mill installations, enabling producers to match capacity precisely with production requirements.

Economic Analysis of Technology Implementation

The financial evaluation of VSI crusher implementation versus traditional rod mills encompasses both capital investment requirements and long-term operational cost structures. Modern VSI crushers typically command 20-40% higher initial purchase prices than equivalent-capacity rod mills, though this premium diminishes when considering complete system installation costs including foundations, ancillary equipment, and electrical infrastructure. The economic advantage emerges more clearly in operational cost comparisons, where VSI crushers demonstrate 35-55% lower operating expenses through reduced energy consumption, decreased maintenance requirements, and lower wear component costs. This economic profile positions VSI technology as particularly attractive for operations with high electricity costs or stringent product quality requirements that benefit from the technology's inherent advantages.

Capital Investment and Operational Cost Comparison

Comprehensive economic analysis must consider total installation costs rather than simply equipment purchase prices when evaluating VSI crushers against traditional rod mills. Complete VSI systems typically require 15-30% lower capital investment than equivalent rod mill installations when factoring in reduced foundation requirements, simplified material handling arrangements, and eliminated ancillary systems like grinding media storage and handling equipment. This capital cost advantage becomes more pronounced in remote locations or sites with challenging soil conditions where massive mill foundations represent significant construction challenges. The modular nature of modern VSI installations also facilitates future expansion or relocation, preserving capital investment value better than permanent mill installations.

Operational cost differentials emerge from multiple factors including energy consumption (50-70% lower for VSI), maintenance expenses (30-50% lower), and consumable components (40-60% lower). These cumulative operational advantages typically produce payback periods of 12-24 months for VSI crusher installations replacing functional rod mills, with the economic benefit accelerating as energy costs increase. Lifecycle cost analysis spanning 10-year operational periods typically demonstrates 25-45% lower total costs for VSI-based circuits compared to traditional rod mill configurations, making compelling economic cases for technology conversion in appropriate applications.

Maintenance Requirements and Operational Availability

VSI crushers typically demonstrate 85-92% operational availability in quartz processing applications, compared to 80-87% for rod mills of equivalent duty. This availability advantage stems from reduced maintenance frequency, quicker component replacement procedures, and fewer ancillary systems that potentially cause operational interruptions. The maintenance requirements for VSI crushers primarily involve periodic replacement of wear components through procedures typically requiring 8-24 hours, compared to rod mill relining projects that often necessitate 3-5 days of downtime. This maintenance time differential significantly impacts annual production capacity, particularly in continuous operation facilities.

The maintenance cost structure for VSI crushers proves more predictable than rod mills, with wear component consumption following linear patterns based on tonnage processed rather than the variable wear rates common in grinding media. This predictability facilitates accurate operational budgeting and inventory management for replacement components. Modern VSI designs incorporate advanced wear monitoring systems that provide early notification of component deterioration, enabling planned maintenance during scheduled downtime rather than emergency repairs. These maintenance characteristics contribute to higher overall equipment effectiveness compared to traditional grinding technologies.

Product Value Enhancement Through Quality Improvements

The economic analysis of VSI implementation must consider potential product value enhancement alongside operational cost reduction. Quartz sands produced through VSI crushing typically command 10-25% price premiums over rod mill products in applications where particle shape characteristics influence performance, such as foundry sands, filtration media, and specialty concrete applications. This value enhancement stems from the cubical particle shape, controlled surface texture, and optimized gradation produced by modern VSI crushers compared to the angular, irregular particles characteristic of grinding mill products. The economic impact of this quality differential can exceed operational savings in specific market segments.

Additional value creation occurs through reduced processing requirements for downstream operations, particularly in applications where VSI-produced sands require less classification or washing to meet product specifications. The inherent control over fine particle generation reduces the tonnage reporting to waste streams, increasing overall product yield by 3-8% compared to traditional grinding circuits. This yield improvement compounds the economic advantages of VSI technology through both increased saleable product and reduced waste handling costs. These quality-related economic benefits often receive insufficient consideration in traditional technology evaluation methodologies focused primarily on operational cost reduction.

Implementation Strategy and Transition Methodology

The successful implementation of VSI crushers as replacements for traditional rod mills requires systematic planning, comprehensive testing, and phased execution to minimize operational disruption and technical risk. The transition methodology typically progresses through sequential stages beginning with laboratory testing, advancing to pilot-scale verification, and culminating in full-scale implementation with appropriate performance guarantees. This structured approach enables processors to validate technology performance with their specific quartz varieties before committing to capital investment, while simultaneously developing operational expertise that facilitates smooth technology transition. The implementation strategy must also consider potential hybrid approaches that leverage the complementary strengths of both technologies for optimal circuit performance.

Pilot-Scale Testing for Performance Verification

Comprehensive pilot testing represents a critical implementation phase that enables processors to evaluate VSI crusher performance with their specific quartz feed material before committing to full-scale technology conversion. Modern pilot testing facilities typically employ transportable VSI crushers with capacities of 10-50 tons per hour, sufficient to generate representative product samples for complete quality assessment and market evaluation. The testing protocol should encompass the full range of anticipated feed characteristics and operational parameters to develop comprehensive performance models that predict full-scale operation. This empirical approach minimizes technical risk while providing essential data for equipment sizing and circuit design.

Effective pilot testing extends beyond simple product quality assessment to include detailed wear component evaluation, energy consumption verification, and operational characteristic documentation. The testing duration should sufficiently establish wear rates and maintenance requirements, typically spanning 100-500 operating hours depending on quartz abrasiveness and target product specifications. The resulting data enables accurate economic modeling and operational planning while identifying potential challenges before full-scale implementation. This methodological approach has proven particularly valuable for quartz processors considering first-time implementation of VSI technology in duties traditionally reserved for grinding mills.

Hybrid Circuit Configuration Opportunities

Many quartz processing operations benefit from hybrid circuit configurations that leverage both VSI crushing and rod mill grinding technologies to optimize overall circuit performance. The most common approach utilizes VSI crushers for primary sand production followed by shorter rod mills for final product adjustment and oversize processing. This configuration typically reduces total grinding energy requirements by 40-60% while maintaining operational flexibility to accommodate feed variations and product specification changes. The hybrid approach proves particularly advantageous for operations processing multiple quartz types with different breakage characteristics or facilities requiring frequent product changes to meet diverse market requirements.

Alternative hybrid configurations employ VSI crushers for specific product fractions while retaining rod mills for alternative products, maximizing overall plant flexibility. This approach enables processors to leverage the inherent advantages of each technology for specific applications, potentially maximizing both operational efficiency and product value. The economic analysis of hybrid configurations must consider both capital and operational costs alongside product value enhancement opportunities that might not be available with single-technology approaches. These hybrid solutions often represent optimal transition strategies for operations hesitant to completely abandon proven grinding technology while exploring modern crushing alternatives.

Systematic Implementation Planning for Existing Facilities

The implementation of VSI technology in existing quartz processing facilities requires meticulous planning to minimize production disruption during the transition period. The most effective approach typically involves constructing the new crushing circuit parallel to existing operations before executing a planned transition during scheduled maintenance periods. This methodology requires careful integration planning regarding material handling systems, electrical infrastructure, and control system interfaces to ensure seamless operation following implementation. The planning process should include detailed risk assessment addressing potential technical challenges and establishing contingency plans for critical implementation phases.

Successful implementation necessitates comprehensive operator training covering both theoretical principles and practical operational aspects of the new technology. Modern VSI crushers incorporate sophisticated control systems that differ significantly from traditional mill controls, requiring updated operational approaches and troubleshooting methodologies. The training program should encompass normal operation, routine maintenance procedures, and emergency response protocols to ensure safe and efficient operation following implementation. This systematic approach to technology transition has proven essential for maximizing operational performance while minimizing implementation risks in quartz processing facilities.
