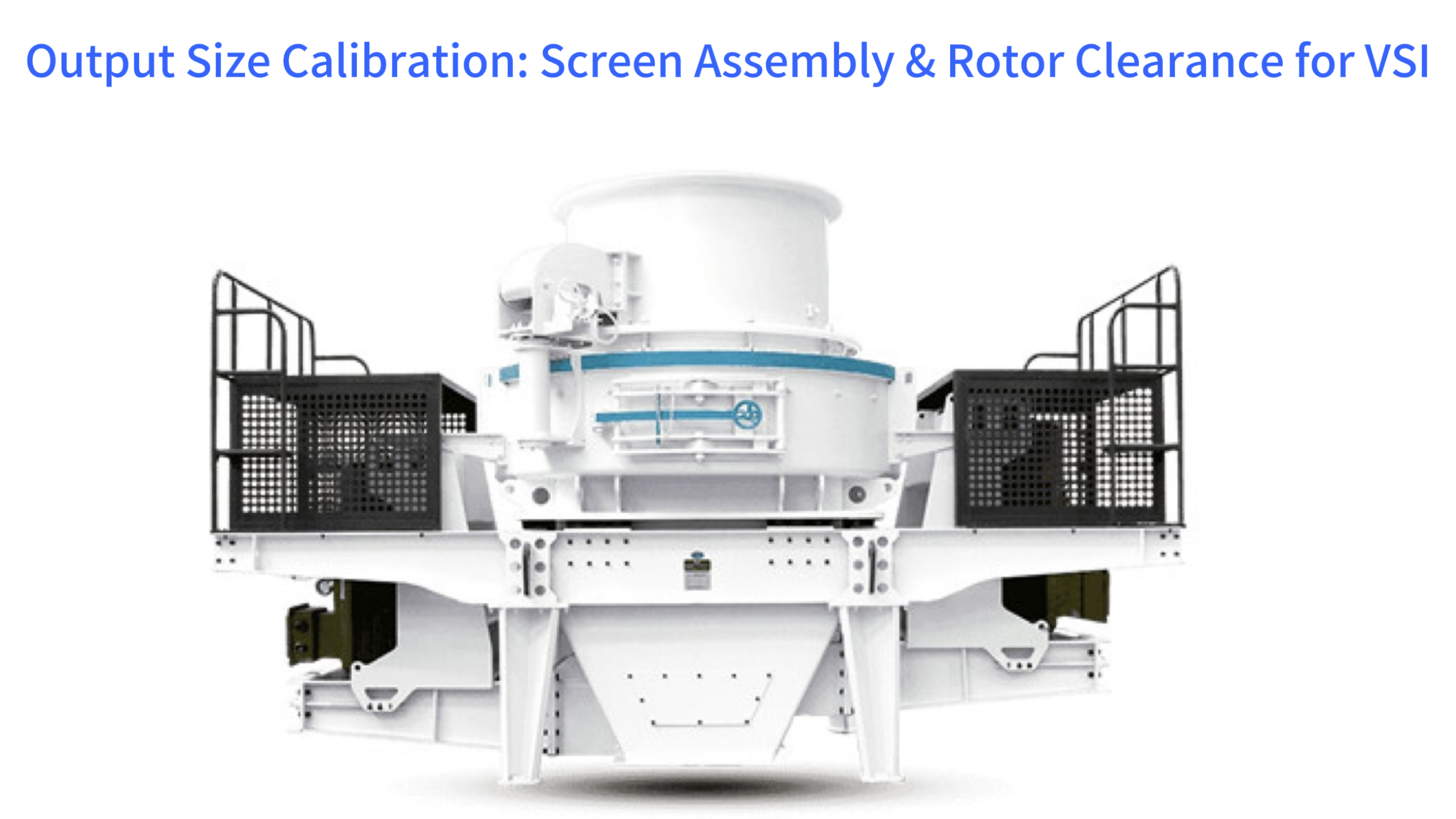

Output Size Calibration: Screen Assembly & Rotor Clearance for VSI

This comprehensive guide delves into the core technology behind calibrating the output size of Vertical Shaft Impact (VSI) crushers. It explores the critical, synergistic relationship between the screen assembly and rotor clearance, detailing the mechanisms that govern final product size. From foundational theoretical calculations to practical engineering applications, this resource provides a complete framework for achieving precise particle size control, ultimately leading to significant gains in production efficiency and product quality.

The Technical Principles and Key Parameters of Output Size Calibration

Calibrating a VSI crusher is a precise science that balances multiple interacting forces. The desired final product size is not determined by a single setting but emerges from the dynamic interplay between the crushing action and the screening process. Understanding the fundamental principles governing material flow, impact fracture, and particle separation is essential for effective operation.

Key parameters such as rotor tip speed, feed rate, and material characteristics all play a role, but the screen assembly and rotor clearance are the primary levers for controlling granulometry. The calibration process involves establishing a dynamic equilibrium where the energy imparted by the rotor is perfectly matched to the screening capacity of the assembly, ensuring consistent output without overloading the system or causing premature wear.

The Mathematical Relationship Between Screen Aperture and Crushed Particle Size

The screen or grate assembly acts as the final arbiter of particle size in many VSI configurations. While it might seem logical that the screen aperture directly defines the maximum product size, the reality is more nuanced. Particles must orient themselves correctly to pass through the openings, and near-size particles can cause blinding, effectively reducing the available open area.

Therefore, the screen aperture is typically smaller than the nominal top size of the product. A well-established rule of thumb exists, but precise calibration requires understanding the specific material's shape and size distribution. For a more cubical product, the relationship between rotor action and screen size becomes even more critical, as the crusher must generate enough well-shaped particles that can efficiently pass through the grates.

The Influence of Rotor Clearance on Material Pass-Through Rate

Rotor clearance, the distance between the tip of the rotor blades and the anvil or feed ring, is a master control for the intensity of the crushing action. A smaller clearance results in a higher velocity impact and greater compression, yielding more fines and a finer overall product. Conversely, a larger clearance allows for more inter-particle collision and attrition, often producing a better-shaped product but with a larger top size.

This setting directly influences the pass-through rate of the screen. A finer product generated by a tight clearance will pass through the screen more easily, potentially increasing capacity. A coarser product from a larger clearance may have more difficulty passing, leading to recirculation and increased wear within the crushing cavity. Finding the optimal clearance for a given screen size is the essence of calibration.

Dynamic Balancing Mechanisms in the Calibration Process

Calibration is not a one-time, set-and-forget operation. It is a dynamic process of maintaining balance. As wear occurs on the rotor tips and the liners, the effective clearance changes, subtly shifting the product size distribution. Modern crushers are equipped with monitoring systems that track power consumption and vibration, providing data to operators so they can make incremental adjustments to maintain the desired output.

This dynamic balancing act ensures consistent product quality over time. By understanding the relationship between wear, clearance, and product size, operators can anticipate necessary adjustments, moving from reactive maintenance to a proactive, predictive operational model that maximizes uptime and product consistency.

Design Optimization and Engineering Practice of Screen Assembly

The screen assembly is far more than a simple sieve; it is a high-wear, structural component that must withstand tremendous abrasive forces. Its design directly influences the crusher's capacity, product shape, and operational costs. Optimizing its construction involves selecting the right materials, engineering for maximum open area without sacrificing strength, and implementing designs that resist clogging and facilitate easy maintenance.

Advanced engineering practices, including Computer Fluid Dynamics (CFD) simulations, are now used to model material flow through the screen openings. This allows designers to create profiles that guide material through the grates more efficiently, reducing turbulence and wear while increasing throughput. The goal is to achieve a perfect harmony between structural integrity, material flow, and wear resistance.

Wear Resistance Enhancement of Screen Materials

The battle against abrasion is constant in a VSI crusher. Screen materials have evolved from standard manganese steel to specialized alloys and composites. High-manganese steel screens work-harden under impact, developing a hardened surface layer that resists abrasion, while their tough core absorbs energy without cracking.

For less severe applications or where noise reduction is important, polyurethane screens offer excellent resistance to abrasion and high elasticity, which helps prevent blinding. In the most abrasive environments, ceramic composites or screens with welded-in carbide tiles provide unparalleled service life, significantly reducing change-out frequency and downtime, despite a higher initial investment.

Fluid Dynamic Design of Screen Openings

The shape and layout of screen openings have a profound effect on performance. Traditional round holes are simple to manufacture but can be prone to plugging, especially with moist or clay-rich materials. Elongated or slotted openings offer a higher open area for a given thickness and can be more efficient at passing flaky or elongated particles.

Progressive or graduated aperture designs, where the hole size changes across the screen, can help in achieving better classification within a single deck. Furthermore, incorporating flared or funnel-shaped openings on the feed side can guide particles through, reducing peening (where material is hammered into the holes, closing them off) and dramatically improving throughput and service life.

Rapid Locking Systems for Screen Replacement

Minimizing downtime for screen changes is a critical aspect of crusher design. Traditional bolted assemblies are labor-intensive and pose safety risks. Modern crushers feature rapid-locking systems that allow a full set of screens to be replaced in a fraction of the time. Hydraulic tensioning rods are a common solution, allowing operators to secure and release screens with minimal effort.

Modular designs, where sections of screen are pre-assembled into frames that simply slide into place, further accelerate the process. Some advanced systems even incorporate RFID tags on wear parts to automatically track service hours and predict remaining life, integrating screen management into the plant's overall predictive maintenance strategy.

Precise Control and Adjustment Strategy of Rotor Clearance

The ability to precisely control and adjust rotor clearance is what separates modern VSI crushers from their predecessors. This parameter is the primary determinant of the energy transfer to the rock and thus the fracture characteristics. Modern machines offer external adjustment mechanisms that allow operators to change the clearance without entering the crusher, facilitating quick and safe changes to meet different product specifications.

The precision of this adjustment is paramount. Even a few millimeters of variance can significantly alter the product gradation. Therefore, the mechanical systems responsible for moving the rotor or adjusting the anvil ring must be robust and free of backlash, ensuring that the set clearance is the clearance that is actively used during operation.

Dynamic Balance Design of Rotor Structure

The rotor is the heart of the VSI crusher, rotating at extremely high speeds to impart kinetic energy to the feed material. Any imbalance in the rotor assembly creates destructive vibrations that can damage bearings, the shaft, and the crusher structure itself. Achieving a high level of dynamic balance (e.g., to ISO standard G2.5 or better) is non-negotiable for reliable operation.

This is accomplished through precise manufacturing and a meticulous balancing process. Rotors are balanced statically and then dynamically using specialized machines. Adjustable counterweights or balancing plugs are used to fine-tune the mass distribution. A well-balanced rotor operates smoothly, transmitting energy efficiently into crushing rock rather than shaking the machine, leading to longer component life and more consistent performance.

Mechanical Actuators for Clearance Adjustment

The mechanism for adjusting clearance must be both powerful and precise. Hydraulic cylinders are widely used for this purpose due to their ability to generate immense force in a compact package. A closed-loop hydraulic system with precise servo-valves can position the rotor or anvil with sub-millimeter accuracy, and the system can often be automated based on feedback from the crusher's control system.

Alternatively, some designs use motorized screw jacks or similar mechanical actuators. These systems offer excellent positional accuracy and are self-locking, meaning they hold their position without needing constant hydraulic pressure. The choice of system often depends on the crusher size and the desired level of automation for the rotor adjustment process.

Wear Protection Solutions for Rotor Clearance

Maintaining the designated clearance is a battle against wear. The tips of the rotor, where the linear speed is highest, are subject to extreme abrasion. To combat this, they are typically fitted with replaceable carbide tips. These tips are made from tungsten carbide, a material renowned for its hardness and wear resistance, vastly outlasting steel in abrasive environments.

Beyond replaceable tips, critical wear surfaces on the rotor itself can be protected with hardfacing. Techniques like arc welding with abrasion-resistant electrodes or more advanced methods like laser cladding are used to build up a protective layer that resists wear and maintains the rotor's aerodynamic profile, which is crucial for efficient energy transfer.

Calibration Schemes for Multi-Material Scenarios

No single calibration setting is optimal for all materials. The physical properties of the feed stock—such as hardness, abrasiveness, moisture content, and feed gradation—dictate the ideal configuration of rotor speed, clearance, and screen selection. A calibration scheme that produces perfect aggregate from limestone will likely be ineffective and cause rapid wear when processing granite or basalt.

Therefore, developing a library of calibration profiles for different materials is a best practice for any operation processing multiple rock types. This involves documented testing to establish the relationship between crusher parameters and product outcomes for each material, allowing operators to quickly switch between proven recipes to maintain quality and efficiency.

Special Requirements for Iron Ore Calibration

Crushing iron ore presents unique challenges due to its high density and abrasiveness. The calibration must focus on achieving the required size for beneficiation processes like magnetic separation while minimizing the generation of ultra-fines, which can be difficult to handle and may be lost as tailings. The high density also means greater stress on the rotor and screens, requiring robust settings and wear protection.

Furthermore, the presence of moisture or clay can cause significant handling and blinding issues. Calibration might involve running with a slightly larger clearance or a more open screen to prevent plugging, even if it means a slightly coarser initial product that may require further processing in a different crusher type, such as a cone crusher for secondary reduction.

Homogenization Treatment of Construction Waste

Recycling construction and demolition (C&D) waste requires dealing with a highly heterogeneous mix of concrete, bricks, wood, and metals. Effective calibration must first address the removal of contaminants before fine crushing. The goal is often to produce a clean, well-graded aggregate product.

Calibration for C&D waste focuses on maximizing liberation—breaking apart composite materials—without over-pulverizing the softer components. A larger rotor clearance might be used initially to break down large chunks through inter-particle collision, followed by a tighter setting and specific screen to shape and size the final concrete aggregate, ensuring it meets specifications for new construction applications.

Integrated Application of Intelligent Calibration Systems

The future of VSI crusher operation lies in intelligent, automated calibration systems. These systems leverage a network of sensors, powerful algorithms, and cloud connectivity to move from manual control to autonomous optimization. The crusher can continuously adjust its own parameters in real-time to maintain a target product size, compensating for wear and changes in feed material without operator intervention.

This is achieved by creating a digital twin of the physical crusher—a virtual model that simulates its operation. The real-world sensor data (power, pressure, vibration) is fed into the model, which then predicts the optimal settings to achieve the desired output, creating a closed-loop control system that ensures peak performance at all times.

Development of Adaptive Calibration Algorithms

The brain of an intelligent calibration system is its adaptive algorithm. These sophisticated software programs do more than just follow a pre-set recipe; they learn and adapt. By analyzing historical data on feed stock, machine parameters, and final product quality, machine learning algorithms can identify complex, non-linear relationships that are not obvious to human operators.

For example, an algorithm might learn that a specific combination of a slight decrease in rotor speed and a small increase in feed rate results in a more cubical product when processing a particular quarry's granite, even as the liners wear. This allows for proactive and highly precise adjustments that constantly push the operation towards its key performance indicators, such as maximum yield of a premium product fraction.

Functional Design of Remote Operation and Maintenance Platforms

Intelligent calibration enables true remote operation and maintenance. All critical parameters, historical calibration data, and machine health metrics are stored in a secure cloud platform. Specialists can monitor the performance of a global fleet of crushers from a central location, identifying trends and potential issues before they cause unplanned downtime.

These platforms often feature dashboards that display a holistic "health index" for each crusher, combining data from multiple sources into a single, easy-to-understand score. They can automatically generate work orders for parts replacement based on actual wear rather than time-based schedules, and they can even guide local technicians through complex calibration or repair procedures using augmented reality (AR) interfaces overlaying instructions onto a live view of the machine.

Selection and Maintenance Strategy for Calibration Equipment

Choosing the right tools and implementing a robust maintenance strategy are foundational to successful long-term calibration. The selection process involves a careful technical and economic analysis, weighing factors like initial cost, expected wear life, ease of adjustment, and compatibility with existing control systems. The goal is to select equipment that provides the required precision and reliability without introducing unnecessary complexity or cost.

Once selected, a proactive maintenance strategy is essential to preserve calibration accuracy. This involves scheduled inspections of critical wear parts, verification of measurement tools, and systematic record-keeping of all adjustments and their outcomes. A well-maintained crusher holds its calibration longer, produces a more consistent product, and has a lower total cost of ownership.

Predictive Models for Screen Replacement Cycles

Replacing screens too early wastes money, while replacing them too late risks unplanned downtime and off-spec product. Predictive models aim to find the perfect timing. These models use data such as total tons processed, the abrasiveness of the material (e.g., its AI or Si index), and direct measurement of wear from laser scans or other methods to forecast the remaining useful life of a screen panel.

By integrating this with the crusher's operating calendar, maintenance software can generate a forecast for screen replacements weeks or months in advance. This allows for optimal planning, ensuring new screens are on hand when needed and that changes are scheduled during planned maintenance periods, not in the middle of a critical production run.

Ensuring Long-Term Stability of Rotor Clearance

The long-term stability of the rotor clearance setting is a function of the entire mechanical system's integrity. It's not enough to set it correctly once; the system must resist drifting due to thermal expansion, vibration, or wear in the adjustment mechanism itself. This requires high-quality components, such as precision-ground screw threads and wear-resistant bushings.

Regular inspection protocols are necessary to verify that the set clearance remains true. This can involve periodic checks using manual methods like feeler gauges or, in more advanced setups, using non-contact discharge size sensors that indirectly monitor the crusher's output, providing feedback that can signal a need for clearance adjustment long before the product goes off-spec.
