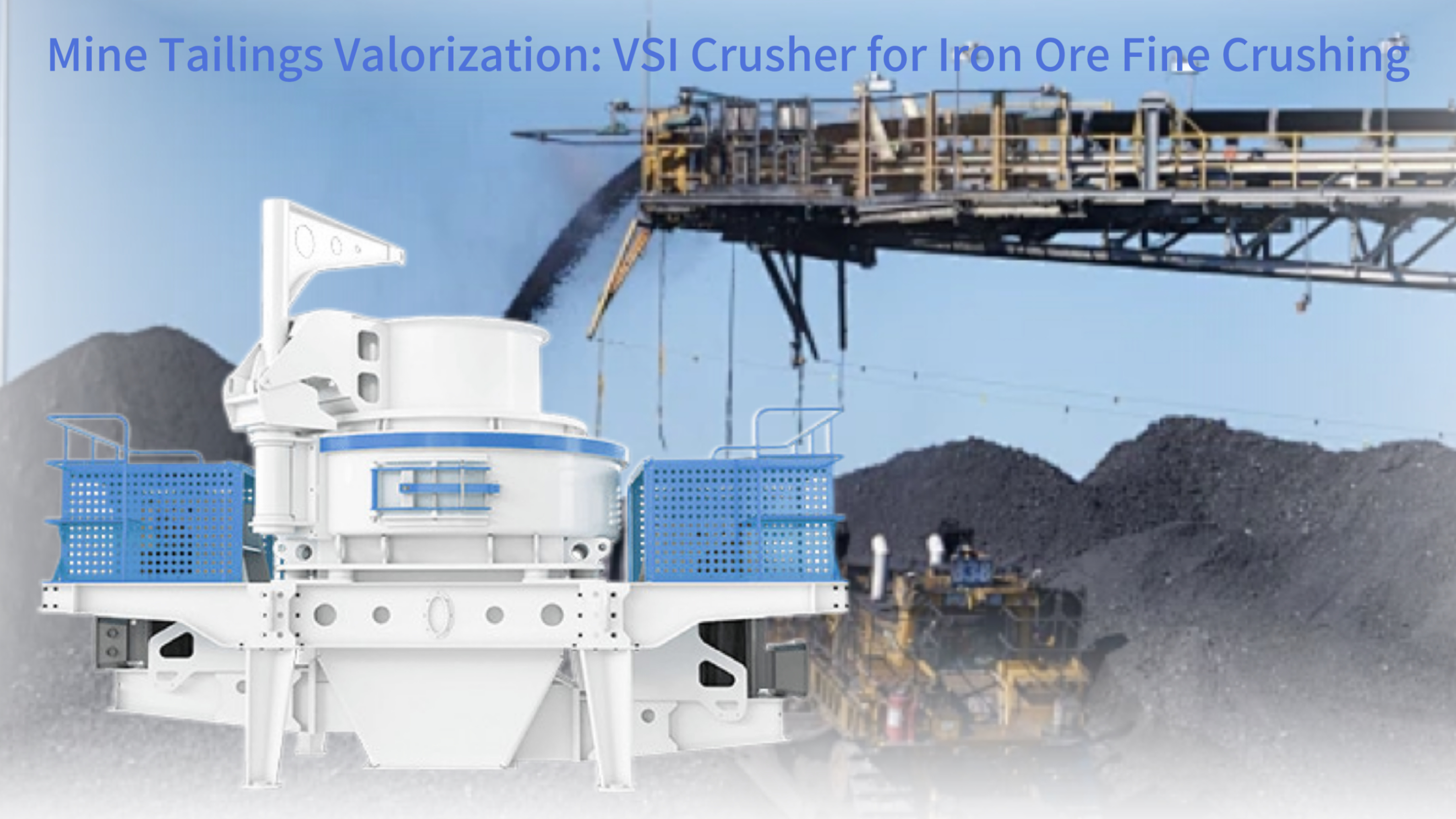

Mine Tailings Valorization: VSI Crusher for Iron Ore Fine Crushing

This resource delves into the specialized application of Vertical Shaft Impact (VSI) crushers in the critical processes of iron ore fine crushing and mine tailings valorization. We will explore the core technological principles that make these machines exceptionally effective for liberating valuable minerals from previously discarded waste rock. The discussion will cover how innovative engineering in crushing chamber design, coupled with advanced environmental controls and smart automation, transforms tailings from an environmental liability into a valuable resource. This approach provides a tangible technical solution for the mining industry, promoting a more sustainable and circular economic model by maximizing resource recovery and minimizing waste.

Technical Principles and Fine Crushing Mechanisms for Iron Ore

The application of a VSI crusher to iron ore processing leverages a unique combination of impact and attrition forces to achieve effective size reduction. The core mechanism involves a high-speed rotor that propels iron ore particles against either a stationary anvil ring or a bed of other ore particles. This violent collision causes the ore to fracture, preferentially breaking along the boundaries between the valuable iron minerals and the surrounding gangue, a process known as liberation. This is crucial for the subsequent separation stages, as a well-liberated material allows for more efficient extraction of iron content.

The choice between the "rock-on-rock" and "rock-on-iron" crushing configurations is particularly significant for iron ore. The "rock-on-rock" method, where ore is thrown against a cascade of other falling rocks, is excellent for achieving a cubical product shape with lower wear on the crusher's metal components. Conversely, the "rock-on-iron" method, which involves impact against metal anvils, can deliver higher reduction ratios and is sometimes preferred for harder or more abrasive ores, though at the cost of accelerated wear part consumption. The geometry of the crushing chamber itself is meticulously engineered to control the particle trajectory, ensuring optimal impact angles and maximizing the energy transfer for efficient fracturing.

Crushing Chamber Structure and Energy Conversion Efficiency

The design of the crushing chamber is paramount for processing iron ore efficiently. A deep chamber design increases the residence time of the ore particles, allowing for multiple impacts and resulting in a more consistent and finer product gradation. The angle of the ejection ports from the rotor is precisely calibrated to determine the trajectory and velocity of the expelled material. A steeper angle can create a more direct and forceful impact, which is beneficial for breaking tougher iron ore fragments, while a shallower angle might promote more inter-particle attrition.

As the process continues, the wear on the chamber's internal liners gradually alters its geometry, which can diminish the crushing efficiency over time. Worn liners disrupt the predetermined material flow, leading to reduced impact energy and a less predictable product size distribution. For abrasive iron ore, selecting liner materials with exceptional abrasion resistance, such as high-chrome white iron, is essential to maintain performance and extend the interval between maintenance shutdowns, thereby reducing operational costs.

Adaptive Optimization of the Power Transmission System

The power transmission system must be robust enough to handle the demanding task of fracturing hard iron ore. The motor's power rating must be meticulously matched to the rotor's mass and target operational speed to ensure it can maintain momentum under full load without stalling. An undersized motor will be unable to achieve the necessary impact forces, while an oversized one is inefficient and increases capital and energy costs unnecessarily.

Two primary drive systems are common: belt drives and direct drives. Belt drives offer some flexibility and can absorb minor shock loads, but they are prone to slippage and require regular tensioning and replacement. Direct drives, often employing a gearbox, provide a more efficient and reliable transfer of power with minimal energy loss. The integration of Variable Frequency Drive (VFD) technology adds a layer of control, allowing operators to precisely adjust the rotor speed. This enables fine-tuning of the crushing action for different ore characteristics and immediate reduction of power consumption during feeder interruptions or when processing softer material.

Technical Implementation of the Particle Size Control Module

Precise control over the final product size is a critical requirement in iron ore processing to meet specific pellet or sinter feed specifications. VSI crushers achieve this through an integrated discharge size control system. The primary mechanism is an adjustable discharge opening, often regulated by a hydraulic cylinder, which sets the maximum size of particle that can exit the crushing chamber. This provides coarse control over the product's top size.

For more refined control, many crushers are fitted with an internal cascading grate or an external closed-circuit screen. The grate's aperture size is selected based on the target product specification, ensuring that only properly sized material is discharged. Oversize material is recirculated back into the rotor for further crushing. Some advanced systems incorporate pre-screening to remove fines that already meet size requirements before they enter the crusher. This boosts the system's effective capacity by preventing unnecessary re-crushing of already compliant material, which can lead to over-grinding and energy waste.

Response of Overload Protection in Iron Ore Crushing

Iron ore feed can occasionally contain uncrushable objects, such as tramp metal or extremely hard conglomerates, which pose a significant risk of catastrophic damage to the crusher's internal components. To mitigate this risk, VSI crushers are equipped with sophisticated overload protection systems. These systems are designed to detect a sudden, abnormal pressure spike within the crushing chamber. A common design utilizes hydraulic cylinders to maintain the position of critical components.

When an overload event occurs, the pressure exceeds a pre-set safety threshold. The hydraulic system responds by allowing the cylinders to yield, which opens the discharge gap and permits the uncrushable object to pass through harmlessly. Once cleared, the system can often automatically reset to its original operating position, ensuring minimal disruption to the production process. The reliability and rapid response time of this system, whether hydraulic or a mechanical spring buffer, are vital for protecting the machinery and ensuring high availability for continuous operation.

Characteristics of Iron Ore Tailings and Valorization Challenges

Iron ore tailings, the fine-grained waste material left over after the extraction of valuable minerals, represent a significant management challenge and a potential opportunity. Their composition is highly complex, consisting not just of leftover iron minerals but also of various silicate gangue minerals like quartz and clays. The physical and chemical properties of these tailings, such as their particle size distribution, moisture content, and mineralogy, create substantial bottlenecks for efficient valorization, making traditional processing methods either inefficient or economically unviable.

The primary challenge lies in the low concentration and fine dissemination of the remaining iron particles within the tailings. Conventional separation techniques struggle to recover these values economically. Furthermore, the handling and storage of tailings come with stringent environmental compliance requirements concerning dust emissions, water usage, and chemical stability. Overcoming these hurdles requires innovative approaches to liberate the remaining minerals and process them in an environmentally sound manner, turning a long-term liability into a source of revenue.

Physical Characteristics of Iron Ore Tailings

The physical nature of tailings is a major factor influencing their processability. A common issue is the locked-particle or intergrown structure, where small grains of iron minerals are physically embedded within quartz or other gangue particles. This requires further size reduction to liberate the values before they can be separated. Some iron ores, like oolitic egg-shaped ores, have a complex concentric structure that is notoriously difficult to break apart efficiently, often requiring specialized crushing techniques.

Another critical physical property is moisture content. Tailings are often stored in slurry form with high water content. This moisture can lead to handling issues in the crusher, such as material packing and clogging within the crushing chamber and on feed chutes. dewatering the tailings to an optimal moisture level is often a necessary pre-processing step to ensure efficient crushing and subsequent dry separation processes, which has direct implications for the overall energy balance of the valorization plant.

Recovery Strategies for Valuable Elements in Tailings

Several beneficiation strategies can be employed to recover valuable content from tailings. Magnetic separation is a highly effective and common method for recovering residual iron minerals, especially magnetite, due to its natural magnetic properties. This process is efficient and relatively low-cost, making it a first choice for many operations. For non-magnetic iron oxides or more complex mineralogies, froth flotation may be used, where chemicals are added to make the desired minerals hydrophobic so they can be skimmed off the top of a slurry.

In cases where tailings contain hazardous elements like arsenic or trace chemicals from previous processing (e.g., cyanide), more advanced and costly treatment methods are required. Chemical leaching processes can be used to dissolve and remove these contaminants, but they involve significant operational costs for chemicals, water treatment, and environmental management. The choice of recovery strategy is always an economic decision, weighing the value of the recovered material against the capital and operating costs of the extraction process.

Environmental Standard Requirements for Tailings Processing

Any operation aimed at processing tailings must adhere to rigorous environmental standards. Dust emissions are a primary concern, as the fine, dry material can easily become airborne. Regulatory limits for particulate matter are strict, requiring the implementation of comprehensive dust suppression systems, including enclosures, water sprays, and baghouse filters, to ensure emissions remain within legal thresholds.

Noise pollution from crushing equipment must also be controlled, especially if the processing site is near residential areas. This often involves acoustic enclosures around machinery and strategic site planning. Furthermore, the carbon footprint of the entire valorization process is increasingly subject to scrutiny. Companies must now often track and report energy consumption and greenhouse gas emissions, driving the adoption of more energy-efficient technologies and practices to meet sustainability goals and comply with emerging carbon regulations.

Adaptive Design of VSI Crusher for Iron Ore Fine Crushing

Successfully applying a VSI crusher to the demanding task of iron ore and tailings processing requires specific design adaptations. Standard off-the-shelf configurations may not suffice due to the high abrasiveness, variable hardness, and often moist nature of the feed material. The crusher must be engineered to withstand extreme wear while delivering the precise impact forces needed to liberate minerals without generating excessive, unusable fines. This involves optimizing every major subsystem, from the rotor and chamber geometry to the material of construction for wear parts.

The selection criteria extend beyond mere durability. The crusher's design must facilitate the desired product shape and size distribution that is optimal for downstream beneficiation processes like magnetic separation. A cubical product, which is a hallmark of VSI crushing, often packs better and behaves more predictably in separation processes compared to flaky or elongated particles. Therefore, the adaptive design focuses on maximizing liberation, controlling product shape, and ensuring mechanical reliability in a harsh operating environment.

Targeted Optimization of the Crushing Chamber Type

The heart of the adaptive design lies in the configuration of the crushing chamber. For iron ore applications, a multi-port rotor design is often preferred. This design features multiple discharge outlets, creating several stone cascades within the chamber. This increases the number of impact events each particle experiences, improving the probability of complete liberation of iron minerals from the gangue matrix and resulting in a more uniform product gradation.

The angle of the impact surface, such as the anvils or the chamber walls, is carefully designed to optimize the fracture mechanics for iron ore. A steeper angle may be chosen to deliver a more direct and shattering blow to harder particles. The curvature of these surfaces is also critical in the "rock-on-iron" mode to ensure that the material is deflected in a way that promotes further inter-particle collisions and attrition, maximizing the efficiency of the crushing process and reducing the wear load on any single component.

Energy-Saving Modifications to Power Configuration

Given that crushing is an energy-intensive process, optimizing power consumption is a key goal in adaptive design. The adoption of high-efficiency motors, such as Permanent Magnet Synchronous Motors PMSMs, can significantly reduce electricity usage compared to standard induction motors. These motors offer higher power density and maintain a high efficiency even under partial loads, which is common in crushing circuits where feed rates fluctuate.

Further efficiency gains can be found in the drive train. Replacing traditional V-belt drives with a direct gearbox connection eliminates slip losses and reduces maintenance. Some innovative system designs even explore capturing and reusing waste energy. For instance, the significant amount of heat generated by the crusher's motor and during the crushing process itself can be captured via heat exchangers and repurposed for other plant needs, such as heating buildings or drying the feed material, thereby lowering the overall site energy footprint.

Innovations in the Particle Size Control Module

Advanced control over product size is achieved through innovation in the sizing module. One development is the use of dynamic or adjustable screening grates. Instead of a fixed aperture, these systems can automatically adjust the size of the openings based on real-time feedback, allowing for quick changes to product specification without requiring a physical shutdown and manual replacement of screens.

To prevent the generation of excessive fines over-crushing, which can be detrimental to subsequent separation processes, intelligent pre-screening systems are integrated. These systems remove fine particles before they enter the crusher. Furthermore, the integration of online particle size analyzers provides real-time data on the product stream. This data can be fed into a closed-loop control system that automatically adjusts crusher parameters, such as rotor speed and feed rate, to maintain a consistent product size despite variations in the feed material, ensuring optimal performance at all times.

Environmental Standards and Sustainable Development

The operation of industrial machinery like VSI crushers is increasingly governed by a framework of environmental standards aimed at promoting sustainable development. Beyond regulatory compliance, adopting eco-friendly practices is a strategic imperative for mining companies to maintain their social license to operate and appeal to environmentally conscious investors. This involves a holistic approach that addresses the immediate impacts of noise and dust, as well as the broader footprint of energy consumption and carbon emissions associated with crushing operations.

Modern VSI crusher designs incorporate sustainability at their core. This is achieved not only through energy-efficient components but also via integrated systems that minimize environmental release of pollutants. The goal is to create a crushing process that is as contained and clean as possible, reducing the need for end-of-pipe treatment solutions. By doing so, the industry can demonstrate a clear commitment to reducing its environmental impact while still achieving its production objectives, aligning industrial activity with the principles of ecological stewardship.

Equipment Design for Acoustic Optimization

Noise generated by a VSI crusher originates from multiple sources: the high-speed impact of rock, the electric motor, gearboxes, and vibrating panels. Effective noise control requires a multi-pronged engineering approach. The foundation of the crusher is designed with vibration-damping materials and isolation pads to prevent the transmission of structure-borne noise into the ground and surrounding structures.

For containing airborne noise, acoustically engineered enclosures are constructed around the crusher. These enclosures are built from panels with sound-deadening cores and are lined with specialized acoustic absorbing materials. The design must incorporate adequate ventilation for cooling while maintaining acoustic integrity. To ensure effectiveness, noise monitoring is conducted at standardized points around the site perimeter, providing verifiable data that the installation complies with all applicable noise regulations and protects workers and nearby communities from noise pollution.

Graded Control for Dust Collection

Controlling dust is critical for meeting air quality standards and protecting worker health. A tiered control strategy is most effective. At the source, such as the feed hopper and crusher inlet, fine water spray systems are employed. These systems use nozzles that produce a mist which agglomerates dust particles, causing them to settle out rather than become airborne. This is a cost-effective first line of defense.

For finer dust generated inside the crusher and at material transfer points on conveyors, more robust solutions are necessary. These points are fully enclosed and connected to a central dust collection system via ductwork. The heart of this system is a baghouse filter, where dust-laden air is drawn through fabric filter bags that capture the fine particles. The cleaned air is then exhausted to the atmosphere, while the collected dust can often be reintroduced into the process stream, recovering valuable material and eliminating waste.

Energy Auditing and Carbon Footprint Tracking

Understanding and reducing energy consumption is a cornerstone of sustainable operation. Conducting detailed energy audits helps identify areas of waste and opportunities for improvement. These audits measure the power draw of the VSI crusher and all auxiliary equipment across different load conditions. Modern practices may involve using secure digital ledgers to record energy data immutably, ensuring transparency and reliability for reporting purposes.

This energy data is directly linked to the operation's carbon footprint. By accurately quantifying energy use, companies can calculate their greenhouse gas emissions. This information is essential for compliance with carbon pricing mechanisms, participating in carbon credit trading markets, and fulfilling the environmental component of ESG (Environmental, Social, and Governance) reporting. Quantifying the positive impact of using a VSI crusher to valorize tailings—such as reducing the need for virgin mining and its associated emissions—provides a powerful narrative for corporate sustainability reports.
