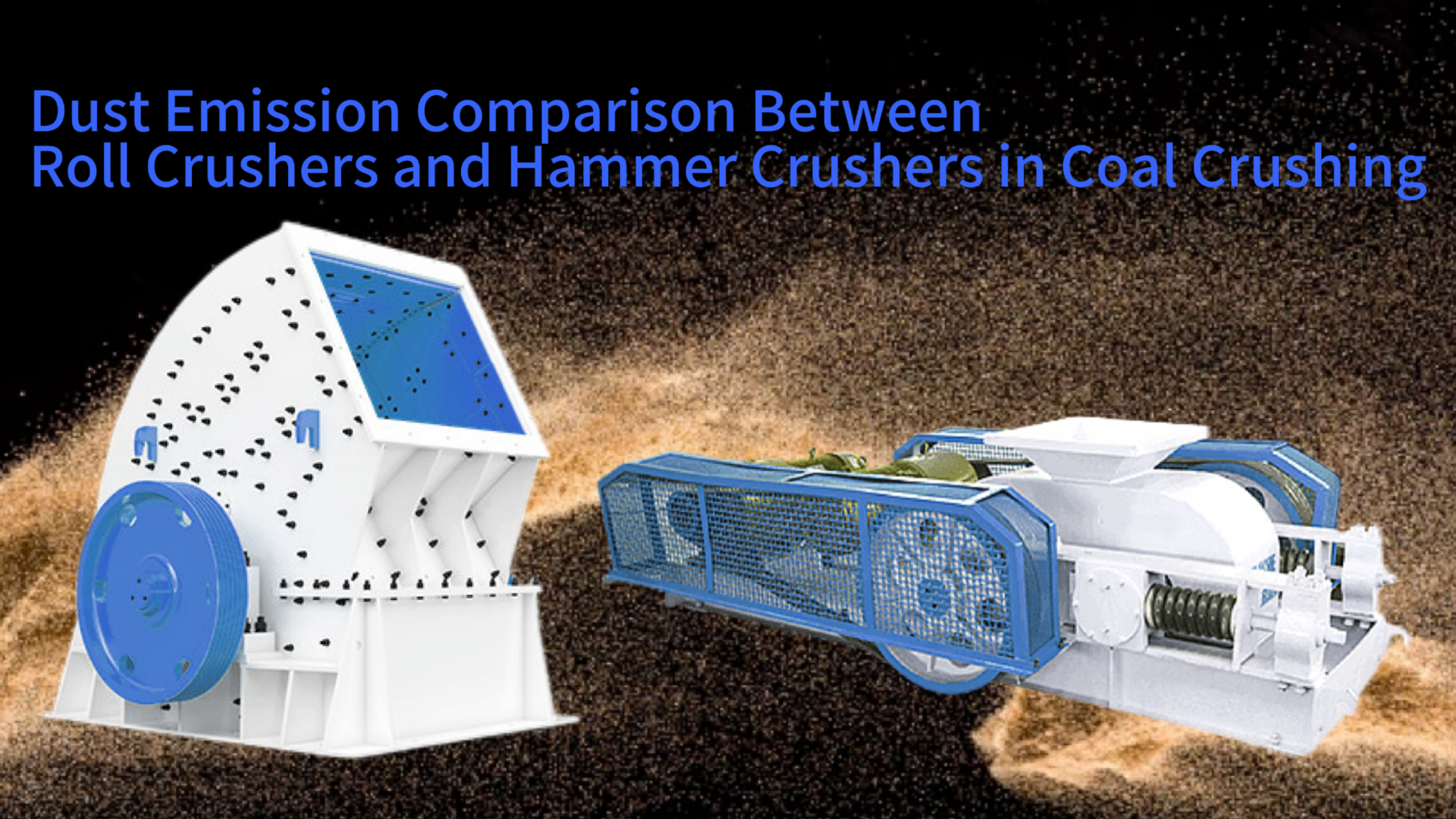

Dust Emission Comparison Between Roll Crushers and Hammer Crushers in Coal Crushing

This article provides a detailed comparison of dust emissions generated by roll crushers and hammer crushers during coal crushing operations. We will examine the fundamental working principles of each machine and their inherent dust generation mechanisms, supported by real-world emission data. The discussion extends to practical strategies for optimizing operational parameters to minimize dust, reviews critical environmental compliance and occupational health standards, and presents case studies from mining applications. Furthermore, we will explore emerging technological trends aimed at dust suppression and conclude with an economic analysis of implementing effective dust control systems.

Equipment Working Principles and Dust Generation Mechanisms

The fundamental design and crushing action of a crusher directly dictate its potential for generating dust. Dust is primarily created through the application of mechanical force to break material, and the specific way this force is applied—whether through compression, shear, or impact—profoundly influences the quantity and fineness of the dust produced. Understanding these core mechanisms is the first step toward implementing effective dust control strategies tailored to the crusher type.

Roll crushers employ a relatively gentle crushing action, while hammer crushers rely on high-impact forces. This difference in methodology not only affects the efficiency of size reduction but also the amount of airborne particulate matter released during the process. Furthermore, the design of the crusher's enclosure, its sealing systems, and the method of feeding material all contribute to either containing or releasing dust into the surrounding environment. A holistic view of the machine's operation is necessary to fully grasp its dust emission profile.

Dust Generation Model in Differential Speed Shear Crushing of Roll Crushers

Roll crushers generate dust through a combination of compression and shear. The coal is drawn into the gap between two counter-rotating rolls. In advanced designs, these rolls operate at differential speeds, which adds a shearing or scraping action to the primary compressive force. This shearing is effective for breaking apart coal along its natural cleats and fractures, which can be a more controlled form of breakage.

Because the material is not subjected to violent impact or high-velocity collisions within the crushing chamber, the generation of fine dust is generally lower compared to impact-based crushers. The dust that is produced tends to be coarser. The process is more contained, and the gradual reduction in size allows for a larger proportion of the product to fall within the desired size range without being over-pulverized into problematic fines. The controlled nature of this crushing action makes the dust generation more predictable and often easier to manage with standard dust collection systems.

Dust Dispersion Dynamics in Impact Crushing of Hammer Crushers

Hammer crushers operate on a principle of high-impact fragmentation. A rotor equipped with swinging hammers rotates at high speed inside a sturdy housing. The coal is fed into the chamber and is struck by the hammers with great force, shattering it against the breaker plates or the grate bars at the bottom. This violent impact is highly effective for reducing large lumps of coal quickly but is also a significant source of dust generation.

The impact events create shockwaves that violently agitate the crushed material, launching fine particles into the air within the chamber. Furthermore, the high-speed rotation of the rotor itself acts like a fan, creating internal air currents that can fluidize and carry dust particles. This internal turbulence creates positive pressure, which forces dust-laden air out of any available gaps in the crusher's housing, such as the feed chute or inspection doors. The dust from a hammer crusher is often finer and more pervasive, requiring more robust containment and extraction solutions.

Negative Pressure Maintenance in the Crushing Chamber and Dust Escape Paths

Maintaining a slight negative pressure inside the crusher housing is a critical engineering control for preventing dust escape. This is achieved by connecting the crusher's internal volume to a dust collection system (e.g., a baghouse) via ducting. The fan on the dust collector draws air out of the crusher, creating a vacuum that ensures any air leakage is into the crusher, rather than out of it.

Despite this, dust escape paths exist. The main points are the feed inlet and the discharge outlet, where material must enter and exit the sealed environment. Other potential paths include poorly sealed inspection doors, worn shaft seals, and gaps around maintenance hatches. The effectiveness of negative pressure control depends on the balance between the air volume extracted by the dust collector and the volume of air displaced by the incoming feed and the crusher's own actions, such as the fanning effect of a hammer crusher's rotor.

Sealing System Design Differences (Labyrinth Seal vs. Tortuous Path Seal)

The seals around rotating shafts (like the roll or rotor drives) are crucial for preventing dust from escaping the crushing chamber. Two common types are labyrinth seals and tortuous path seals. A labyrinth seal consists of a series of grooves and ridges that create a complex path for dust to traverse. It does not contact the shaft, so it has minimal wear, but it relies on the extracted negative pressure to pull any stray dust back into the chamber.

A tortuous path seal is a more advanced, multi-layered contact seal designed to create an even longer and more restrictive path for dust. It often uses flexible sealing elements that press lightly against the shaft. While potentially offering a higher degree of sealing, especially in the absence of adequate negative pressure, these contact seals are subject to wear from the rotating shaft and require more maintenance. The choice of sealing system impacts long-term dust containment performance and maintenance costs.

Sensitivity Analysis of Feeding Method on Dust Generation

The method by which coal is fed into the crusher has a significant influence on initial dust generation. A free-fall feed, where material drops directly into the crusher inlet, is highly problematic. The falling stream of coal entrains air and displaces air within the crusher, often creating a puff of dust that billows out of the feed chute, a phenomenon known as induced airflow.

Enclosed, choke-fed systems are far more effective at dust suppression. In a choke-fed setup, the feed inlet is designed to be always full of material, which itself acts as a seal, preventing the exchange of air between the inside and outside of the crusher. This significantly reduces the air displacement that carries dust out. Using a well-designed feed chute that minimizes the drop height and incorporates rock boxes or cascading curtains to break the fall of the material can reduce the initial dust generation by over 50% compared to an open feed system.

Measured Dust Emission Data Comparison

Empirical data collected from operational sites provides the most accurate picture of the dust emission differences between crusher types. These measurements, taken under controlled conditions, quantify the concentration of airborne particulate matter and help establish baselines for performance and compliance. Comparing this data reveals clear trends influenced by coal properties, machine settings, and the effectiveness of integrated dust control systems.

Testing protocols involve using calibrated dust monitoring equipment to sample the air around the crusher's key potential emission points, such as the feed and discharge areas. The results are typically expressed in milligrams of dust per cubic meter of air (mg/m³). This data is invaluable for operators to understand the environmental footprint of their equipment, to benchmark performance against regulatory limits, and to justify investments in dust suppression technology.

Measured Dust Concentration for Different Coal Types (Soft Coal vs. Hard Coal)

The type of coal being processed is a major determinant of dust generation. Soft coal, such as lignite or sub-bituminous coal, tends to have a higher volatile matter content and is less structurally competent. It breaks apart more easily, generating a higher proportion of fines and dust during crushing. Measurements at sites processing soft coal often show dust concentrations 20-40% higher than those processing hard coal under the same crusher settings.

Hard coal, like anthracite or high-rank bituminous coal, is more brittle and tends to fracture cleanly along its cleats. While it still generates dust, the particles may be slightly coarser, and the overall mass of airborne dust is often lower. However, the silica content in hard coal can be higher, making the dust more hazardous from an occupational health perspective, even at lower concentrations. This necessitates effective control regardless of the perceived quantity.

Influence of Crushing Ratio on Dust Emission Volume (4:1 vs. 8:1)

The crushing ratio, defined as the ratio of the feed size to the product size, has a direct and exponential relationship with dust generation. Attempting to achieve a high crushing ratio (e.g., 8:1) in a single stage requires the application of immense force, which violently fractures the coal and produces a significant amount of fine dust as a byproduct. This is due to the greater amount of new surface area created and the increased energy applied per unit of mass.

A more moderate crushing ratio (e.g., 4:1) is generally more efficient and generates less dust. The force applied is sufficient to break the coal but is less likely to over-crush particles and generate excessive fines. For applications requiring a large size reduction, it is more effective from both a productivity and dust control perspective to use two stages of crushing with lower individual ratios. This approach can reduce specific dust generation by 30% or more compared to a single-stage, high-ratio operation.

Quantitative Relationship Between Discharge Outlet Size and Dust Generation

The size of the crusher's discharge opening influences the internal material bed depth and the residence time of particles within the crushing zone. A wider discharge opening allows material to exit more quickly, resulting in a shallower bed of material within the chamber. In a hammer crusher, this means the hammers have less material to impact against, leading to more direct and violent collisions that can increase dust generation.

A smaller, more restricted discharge opening allows a cushioning bed of material to build up inside the crusher. In a hammer crusher, the coal impacts against this bed of material rather than directly against the breaker plates, which promotes inter-particle comminution and can reduce the generation of fine dust. Similarly, in a roll crusher, a controlled gap ensures a consistent and optimal compression zone. Finding the correct discharge setting is a balance between achieving the desired product size and minimizing dust creation.

Dust Emission Benchmark Test under No-Load Operation (0.2-1.5g/m³)

Testing dust emissions under no-load conditions (running the crusher empty) provides a important baseline. This measurement isolates the dust generated from sources other than the actual breakage of coal, such as the resuspension of settled dust from internal surfaces by the movement of the machinery or the fanning action of the rotor.

For a hammer crusher, the no-load dust emission can be significant, often ranging from 0.8 to 1.5 g/m³ near the discharge area, primarily due to the powerful airflow generated by the rotating rotor. A roll crusher, with its slower-moving components and lack of a fanning effect, typically exhibits a much lower no-load dust emission, often measured between 0.2 and 0.5 g/m³. This baseline is critical to understand, as it represents the minimum unavoidable dust level that the machine will produce even before any material is processed.

Efficiency Comparison of Negative Pressure Dust Removal Systems (90% vs. 75%)

The efficiency of a dust collection system is paramount for controlling emissions. It is measured as the percentage of dust captured from the air stream extracted from the crusher. A well-designed system connected to a roll crusher can often achieve capture efficiencies of 90% or higher. This high performance is facilitated by the crusher's more contained and less turbulent operation, which allows the negative pressure to be maintained consistently, and the dust to be effectively drawn into the extraction points.

For a hammer crusher, achieving high capture efficiency is more challenging. The internal turbulence and positive pressure generated by the rotor can hinder the effectiveness of the external dust collector. Systems often operate at lower efficiencies, around 75-85%, unless they are significantly oversized to handle the large volumes of air being displaced. This means a greater proportion of the generated dust escapes containment, requiring additional secondary controls like misting systems or enclosed buildings to meet emission standards.

Operational Parameter Optimization Strategy

Beyond the choice of crusher, the way it is operated has a profound impact on dust emissions. A multitude of parameters can be adjusted and optimized to strike a balance between production throughput, product size, and dust control. Proactive optimization moves beyond simply containing dust after it is created and focuses on minimizing its generation at the source through intelligent process control.

Key strategies involve managing the energy input into the crushing process, preparing the feed material to be more amenable to low-dust breakage, and integrating auxiliary systems that work in harmony with the crusher. Modern control systems allow for the continuous monitoring and adjustment of these parameters, ensuring that the crusher operates at its peak efficiency with the smallest possible environmental footprint.

Sensitivity Analysis of Crusher Speed on Dust Emissions (300-800 rpm)

The rotational speed of a crusher is a primary lever affecting dust generation. In a hammer crusher, higher rotor speeds (e.g., 700-800 rpm) result in greater impact energy, which can improve throughput for certain materials. However, this higher energy also pulverizes a greater percentage of the coal into fines, dramatically increasing dust generation. The fanning effect of the rotor is also intensified, exacerbating the internal airflow that carries dust out.

Operating at a lower, optimized speed (e.g., 400-500 rpm) can reduce dust generation by allowing for more controlled breakage through a combination of impact and attrition within the material bed. For roll crushers, the speed must be set to ensure the rolls can effectively grip and draw the material into the nip point. Excessively high speeds can cause slippage and increased wear, but its effect on dust generation is less dramatic than in hammer crushers. Finding the optimal speed is a critical step in dust control.

Role of Feed Size Control in Dust Suppression

Controlling the top size of the feed material is one of the most effective strategies for dust suppression. A consistent feed size allows the crusher to be set up for optimal performance, applying the right amount of force for efficient breakage without overloading or underutilizing the machine. A feed that contains a significant amount of material already smaller than the target product size (fines) is highly detrimental.

These fines consume energy without being broken further and can be fluidized by the crusher's action, becoming airborne immediately. Implementing a pre-screening stage to remove these fines from the crusher feed can reduce the dust generation of the entire process by 20-30%. The crusher then processes only the oversize material, working more efficiently and with a lower specific dust output. Managing the feed size is a fundamental best practice for any crushing operation concerned with dust.

Collaborative Control Algorithm for Closed-Loop Water Curtain Dust Removal Systems

Water spray systems are a highly effective supplement to mechanical dust collection. A closed-loop water curtain system involves strategically placing nozzles around the crusher's feed and discharge points. These nozzles create a curtain of fine water droplets that intercept dust particles, causing them to agglomerate and fall out of the air stream.

An intelligent collaborative control algorithm manages this system. It uses input from the crusher's motor amperage (indicating load) and, if available, real-time dust monitors. When the crusher is under high load (indicating potential high dust generation), the algorithm can increase water flow or activate additional spray bars. Conversely, during low load or no-load operation, it can reduce water usage. This ensures optimal dust suppression without wasting water, preventing issues like material handling problems from over-wetting.

Dust Cascade Control Scheme in Multi-Stage Crushing

In large coal preparation plants, size reduction is often achieved through multiple crushers in series (e.g., primary, secondary). A dust cascade control scheme treats each stage independently but optimizes the whole system. Each crusher is equipped with its own dedicated dust extraction system, designed for the specific type and volume of dust generated at that stage.

The primary crusher, handling large lumps, might generate coarser dust, managed by a cyclone pre-cleaner and a smaller baghouse. The secondary crusher, making the final size reduction, generates the finest dust and requires a more efficient and powerful baghouse. This staged approach is more efficient than trying to handle all the dust from the entire process with a single, massive collector. It allows for targeted control, reduces the overall energy consumption of dust collection, and improves the reliability of the entire system.

Application of Real-Time Online Dust Monitoring Technology

Real-time dust monitors, such as light scattering photometers or beta attenuation monitors, provide instant feedback on the performance of dust control systems. These devices are installed at key locations around the crusher, such as near the discharge conveyor or at the perimeter of the work area.

The data from these monitors is fed into the plant's control room. If dust levels begin to rise above a set point, the system can trigger alarms or automatically activate additional control measures, such as increasing the power of the dust collector fan or turning on supplementary water spray systems. This transforms dust management from a reactive process (responding to complaints or periodic measurements) to a proactive one, maintaining dust levels within acceptable limits continuously and providing valuable data for long-term trend analysis and optimization.

Environmental Compliance and Occupational Health

Stringent regulations worldwide govern dust emissions in industrial settings to protect both the environment and worker health. Compliance with these standards is not optional and requires a thorough understanding of the limits, monitoring requirements, and best practices for dust control. The choice of crushing technology and the effectiveness of its associated dust management systems are central to meeting these legal obligations.

Beyond mere compliance, effective dust control is a cornerstone of responsible corporate citizenship and worker safety. Reducing exposure to coal dust, which can contain silica and other harmful substances, prevents serious occupational illnesses. Therefore, investing in advanced dust suppression is an investment in human capital and long-term operational sustainability.

GB 20653-2025 Occupational Protection Standard

While the specific standard number may be illustrative, it represents the trend towards increasingly strict national occupational exposure limits (OELs) for dust. These standards define the maximum allowable concentration of respirable dust and silica dust in the air that a worker can be exposed to over an 8-hour work shift. The limits are typically very low, often around 2.5-5 mg/m³ for total inhalable dust and 0.05-0.1 mg/m³ for respirable crystalline silica.

Meeting these standards requires a multi-faceted approach, including engineering controls (effective crusher enclosures and dust collection), administrative controls (limiting time in high-exposure areas), and the use of personal protective equipment (PPE) like respirators as a last line of defense. Regular air monitoring is mandated to demonstrate compliance, and records must be maintained to prove that worker exposure is being kept below the prescribed legal limits.

Comparison of EU EN 15160 Dust Emission Limits

International standards provide a useful benchmark for comparison. The EU EN 15160 standard, while primarily focused on solid biofuel specifications, is part of a broader regulatory framework in Europe that imposes strict emission limits on industrial equipment. European directives often set stringent requirements for particulate matter emissions from stationary sources, which would include crushers at a fixed plant.

These limits force manufacturers and operators to integrate the best available technologies for dust control. The European approach often emphasizes prevention at source through equipment design rather than just end-of-pipe solutions. Comparing standards from different regions helps global companies adopt the most stringent practices across all their operations, ensuring a high uniform standard for environmental performance and worker safety wherever they operate.

Calculation Model for Dust Removal System Energy Efficiency Ratio (ER)

The Energy Efficiency Ratio (ER) of a dust collection system is a key performance indicator that measures its effectiveness relative to its energy consumption. A simple model for ER could be defined as the mass of dust captured per unit of electrical energy consumed (e.g., kg dust / kWh).

This calculation highlights the trade-off between performance and operating cost. A system with a high ER is capturing a lot of dust for relatively little energy input, making it both environmentally and economically efficient. Factors influencing the ER include the pressure drop across the filter (lower is better), the efficiency of the fan and motor, and the design of the ductwork (minimizing bends and restrictions). Monitoring the ER helps identify when filters need cleaning or replacing, as a clogged filter will increase energy consumption and lower the ER.

Technical Pathway for Dust Recovery and Reuse

Captured coal dust is not merely a waste product; it has economic value. Instead of sending collected dust to landfill, it can be recovered and reused. The most common pathway is to blend the captured dust back into the main product stream. This can be done carefully using a mixing screw or conveyor to reintroduce the fines into the flow of sized coal.

This accomplishes two goals: it improves the overall material yield from the process, adding economic value, and it eliminates the cost and environmental liability of disposing of the dust as a waste. For this to be successful, the dust collection system must be designed to handle the material without causing blockages, and the blending process must be controlled to avoid creating handling or combustion issues downstream. Viewing dust as a recoverable resource transforms the economics of dust control.

Third-Party Testing Organization Verification Case

Independent verification by an accredited third-party testing organization is the gold standard for validating dust control performance and regulatory compliance. These organizations use certified methodologies and calibrated equipment to measure dust emissions at the source and in the ambient environment around the crusher.

A verification case might involve a consulting firm conducting a multi-day survey before and after the installation of a new dust control system on a hammer crusher. The resulting report would provide unbiased data showing the reduction in emission concentrations, for example, a drop from 15 mg/m³ to 3 mg/m³ at the discharge point. This objective validation is crucial for demonstrating due diligence to regulators, assuring community stakeholders, and providing defensible data for internal reporting and continuous improvement initiatives.

Typical Coal Mine Application Cases

Real-world implementations provide the most compelling evidence for the effectiveness of various dust control strategies. Case studies from operating mines demonstrate the practical challenges, solutions, and quantified benefits of upgrading crusher systems and their associated dust management infrastructure. These examples offer a blueprint for other operations facing similar issues and provide tangible proof of concept.

Long-term data from these cases is particularly valuable, as it shows the sustainability of the improvements, the impact on maintenance cycles, and the overall return on investment. Analyzing operational data over several years reveals trends and correlations that are not apparent in short-term tests, solidifying the business case for comprehensive dust control.

Transformation Example of a Crushing System in a Large Coal Mine

A large underground coal mine was facing persistent dust compliance issues and worker complaints related to its primary hammer crusher installation. The system was old, the seals were worn, and the original dust collection system was undersized. The mine embarked on a comprehensive transformation project.

The solution involved replacing the old hammer crusher with a modern, sealed roll crusher designed for low-dust operation. A new high-capacity baghouse dust collection system was installed with improved ducting and capture hoods. Additionally, a controlled, choke-fed system was implemented at the crusher inlet. Post-installation monitoring showed a 85% reduction in respirable dust levels around the crushing station. This resulted in improved regulatory compliance, a better working environment, and reduced housekeeping costs.

Dust Control Solution for an Open-Pit Mine Crushing Station

Open-pit mine crushing stations present a unique dust challenge due to their exposure to wind. A case study from a major coal basin involved a semi-mobile crushing station where wind was sweeping dust from the crusher discharge conveyor and feed hopper across the entire site.

The implemented solution was a multi-layered approach. The entire crushing station was enclosed with a cladded building structure. Inside, the crusher (a primary roll crusher) was equipped with a dedicated dust extraction system. At the discharge point, a combination of dust suppression sprays and windbreaks was installed. This comprehensive containment and control strategy reduced ambient dust emissions by over 90% and minimized the impact of operations on nearby mining activities and the surrounding environment.

Improvement of Emission Compliance Rate in Statistical Data (85% → 97%)

A coal processing plant tracked its emission compliance rate over a five-year period. Initially, relying on outdated control systems, the plant passed regulatory spot checks approximately 85% of the time. Frequent exceedances resulted in warning notices and potential fines.

After a plant-wide upgrade that included sealing crusher housings, installing new baghouses, and implementing a centralized automated control system for dust suppression, the compliance rate dramatically improved. Statistical process control charts showed the compliance rate rising and stabilizing at 97%. This significant improvement not only eliminated the risk of fines but also demonstrated a commitment to environmental stewardship and reduced the plant's regulatory burden.

Correlation Analysis Between Equipment Failure Rate and Dust Control

A correlation exists between the mechanical health of a crusher and its dust emissions. A well-maintained crusher with tight seals and proper alignment operates efficiently and contains dust effectively. Conversely, a crusher nearing failure often shows increased dust emissions.

For example, data analysis might reveal that in the weeks before a hammer crusher rotor bearing fails, vibration increases, causing slight misalignment. This misalignment leads to increased wear on seal surfaces and housing gaps, allowing more dust to escape. The rising trend in ambient dust readings can thus serve as an early indicator of mechanical problems. This turns the dust monitoring system into a predictive maintenance tool, helping to schedule repairs before a catastrophic failure occurs, thereby protecting both equipment longevity and environmental performance.

Long-Term Operational Data Comparison (5+ Years)

A five-year comparative study at a coal terminal compared the performance of two parallel crushing lines: one using a traditional hammer crusher and the other a modern hybrid system with a primary roll crusher and a low-speed secondary breaker. The long-term data encompassed dust emission readings, maintenance costs, energy consumption, and availability.

The data showed that the line with the roll crusher consistently operated with 50-60% lower dust emissions. Furthermore, the maintenance costs for the roll crusher system were 40% lower due to less abrasive wear and fewer failed bearings. The energy consumption for crushing was also 15% lower. While the capital investment was higher, the long-term operational data provided an undeniable business case for the superior environmental and economic performance of the low-dust crushing technology.

Technology Development Trends

The field of industrial dust control is continuously evolving, driven by stricter regulations, advancing technology, and the economic imperative to operate more efficiently. The future of dust management in coal crushing lies in smarter, more integrated, and more effective systems that prevent dust at the source, capture it with higher efficiency, and convert it from a waste problem into a resource.

Emerging trends focus on the integration of digital technologies, the development of advanced materials for filtration, and the creation of systems that adapt in real-time to changing conditions. These innovations promise to further reduce the environmental footprint of coal crushing, improve workplace safety, and lower the total cost of operation.

Application of Electrostatic-Bag Composite Dust Removal Technology

Hybrid dust collection systems that combine electrostatic precipitation with fabric bag filtration represent a significant advancement. In this setup, the dust-laden air first passes through an electrostatic pre-charger section. Here, particles are given an electrical charge. The charged particles then enter the baghouse section.

The key advantage is that the charged particles are strongly attracted to each other and to the filter bags, forming a more porous dust cake on the bag surface. This layered cake actually improves filtration efficiency but, crucially, it maintains a lower pressure drop across the bags than a conventional system. This lower pressure drop translates directly to lower energy consumption for the fan motor, reducing operating costs by 20-30% while achieving collection efficiencies exceeding 99.9%. This technology is particularly beneficial for handling the fine dust from hammer crushers.

Development of Intelligent Atomized Dust Suppression Systems

Next-generation dust suppression moves beyond simple water sprays to intelligent atomization systems. These systems use high-pressure pumps and specially designed nozzles to create an ultra-fine mist of water droplets. The size of these droplets is critical; they must be small enough to remain airborne long enough to collide with and capture dust particles but not so small that they evaporate before doing so.

An intelligent system uses sensors for humidity, wind speed, and real-time dust levels to dynamically adjust the water droplet size and flow rate. This ensures optimal suppression efficiency under all conditions while minimizing water usage. This is especially important in cold climates where over-wetting can lead to freezing and material handling problems. These systems can reduce water consumption by up to 50% compared to traditional spray systems while improving dust capture performance.

AI-Based Dust Diffusion Prediction Model

Artificial Intelligence (AI) and computational fluid dynamics (CFD) are being combined to create predictive models of dust behavior. An AI-based model can analyze real-time data from weather stations (wind speed, direction), plant operations (crusher load, conveyor speed), and dust monitors.

The model can then predict how dust will disperse from the site over the next few hours, identifying which areas are most likely to be affected. This allows for preemptive action, such as activating specific dust suppression systems in the predicted path of the dust plume or adjusting operations to minimize generation during periods of unfavorable wind conditions. This shifts the management strategy from reactive to truly predictive.

Adaptive Water Spray Volume Control Algorithm

Building on intelligent atomization, an adaptive control algorithm fine-tunes the system continuously. It takes input from the AI prediction model, real-time dust monitors, and the crusher's own control system (e.g., feed rate). If the crusher is under high load and the wind is blowing towards a sensitive area, the algorithm can increase water flow and optimize droplet size for maximum capture.

Conversely, during low load or when the crusher is idle, it can significantly reduce or shut off water flow. This adaptive approach ensures that water, a valuable resource, is used only when and where it is needed most, maximizing dust suppression efficiency while conserving water and preventing unnecessary moisture addition to the product.

Application of Nano Filter Materials in Dust Collectors

The development of nanofiber-based filter media is revolutionizing baghouse design. These media consist of a standard filter fabric substrate onto which a layer of polymer nanofibers is applied. This nanofiber layer creates a surface filtration mechanism rather than depth filtration.

Dust particles are captured on the surface of the nanofiber layer, forming a cake that is much easier to dislodge during the cleaning pulse. This results in more effective bag cleaning, a more consistent pressure drop, and longer bag life. Furthermore, the ultra-fine fibers can capture sub-micron particles with very high efficiency, which are the most hazardous from a health perspective. Filters incorporating nanofiber technology can achieve higher performance with less energy consumption and longer service intervals.

Application of 5G Technology in Remote Dust Monitoring

The deployment of 5G networks enables a new paradigm for environmental monitoring. 5G's high bandwidth and ultra-low latency allow for the connection of a vast number of IoT sensors across a mining or processing site. Real-time dust monitors, video analytics cameras for visualizing dust plumes, and equipment health sensors can all transmit their data instantaneously to a central control platform.

This allows for the creation of a real-time digital twin of the entire site's dust emissions. Operators can see exactly where dust is being generated and how it is moving, enabling pinpoint control of suppression systems. The high reliability of 5G also supports the use of autonomous drones equipped with dust sensors to conduct automated patrols and map dust concentrations in hard-to-reach areas, providing a comprehensive and up-to-the-minute picture of environmental performance.

Economy Analysis

Investing in advanced dust control technology is not merely an environmental or regulatory expense; it is a strategic business decision with a clear financial rationale. A comprehensive economic analysis must look beyond the initial capital outlay and consider the total cost of ownership, which includes operational savings, avoided costs, and potential new revenue streams.

The economics of dust control have become increasingly favorable due to rising regulatory fines, higher costs for waste disposal, and a greater emphasis on corporate social responsibility. Modern systems are also more energy-efficient, turning what was once seen as a pure cost center into a area for potential savings and value creation.

Comparison of Initial Investment and Maintenance Costs for Dust Removal Systems

The capital investment for a comprehensive dust control system is significant. A primary baghouse system for a large crusher can represent a major portion of the total project cost. Systems for hammer crushers are typically more expensive due to the need for higher air volume handling capacity and more robust construction to handle abrasive dust.

However, the maintenance costs over the system's life tell a different story. Modern systems with features like automated filter cleaning, durable nanofilter bags, and energy-efficient fans have much lower operating costs. The maintenance cost differential between managing a high-dust environment (constant housekeeping, filter replacement, premature equipment wear) and a controlled one is substantial. A life cycle cost analysis almost always favors investing in a higher-quality, more efficient system upfront to avoid much larger operational and maintenance expenses down the line.

Cost Saving Model for Dust Emission Penalties

Regulatory penalties for excessive dust emissions have increased sharply in many jurisdictions. Fines can be levied per violation, per day, and can escalate for repeat offenders. A simple cost-saving model can be built by quantifying the risk of non-compliance.

The model multiplies the probability of a violation (based on historical performance) by the potential fine amount. For a plant with old equipment, this risk cost might be very high. The annualized value of this risk can then be compared to the annualized cost of a new dust control system (capital amortization plus operating cost). In many cases, the cost of the new system is less than the expected value of the fines it avoids, providing a clear financial incentive for investment. This doesn't even include the avoided costs of potential shutdown orders or damage to the company's reputation.

Life Cycle Environmental Cost Analysis of Equipment

A Life Cycle Environmental Cost Analysis expands the view to include externalities—the costs imposed on society and the environment that are not directly paid by the company. This includes the healthcare costs associated with respiratory illnesses in workers and the community, the environmental cost of land degradation, and the cost of cleaning up deposited dust.

While these costs are harder to quantify in immediate financial terms, they are increasingly being internalized through carbon taxes, health and safety legislation, and community relations agreements. Companies that proactively reduce their dust emissions mitigate these future risks and potential costs. This analysis makes a strong ethical and long-term financial case for investing in the best available dust control technology, positioning the company as a sustainable and responsible operator.

Utilization Strategy for Government Environmental Subsidy Policies

Many governments offer grants, tax credits, or low-interest loans to encourage industries to adopt cleaner technologies. These incentives are designed to offset the higher initial capital cost and accelerate the adoption of environmentally friendly equipment. A strategic approach involves actively researching and applying for these programs.

The business case for a new dust control system can be significantly improved if a 20-30% investment tax credit or grant is available. This can shorten the payback period from several years to just a few. Successfully leveraging these policies requires careful project planning and documentation to prove that the technology reduces emissions below a certain threshold. Tapping into these funding sources turns a portion of the compliance cost into a strategic investment supported by public policy.

Pathway for Participation in the Carbon Trading Market

While directly related to CO2, carbon markets can indirectly benefit dust control projects. The significant reduction in energy consumption achieved by modern, efficient dust collectors (e.g., those with low-pressure-drop filters and high-efficiency fans) translates into lower greenhouse gas emissions from power generation.

This reduction in energy-related emissions can be quantified and potentially certified as carbon credits under certain schemes. These credits can then be sold on the carbon market, creating a new revenue stream. Furthermore, projects that demonstrate a comprehensive approach to environmental management, including dust control, may receive a more favorable rating from investors and lenders who are increasingly focused on Environmental, Social, and Governance (ESG) criteria, potentially lowering the cost of capital. This integrates dust control into the broader corporate sustainability and climate strategy.
