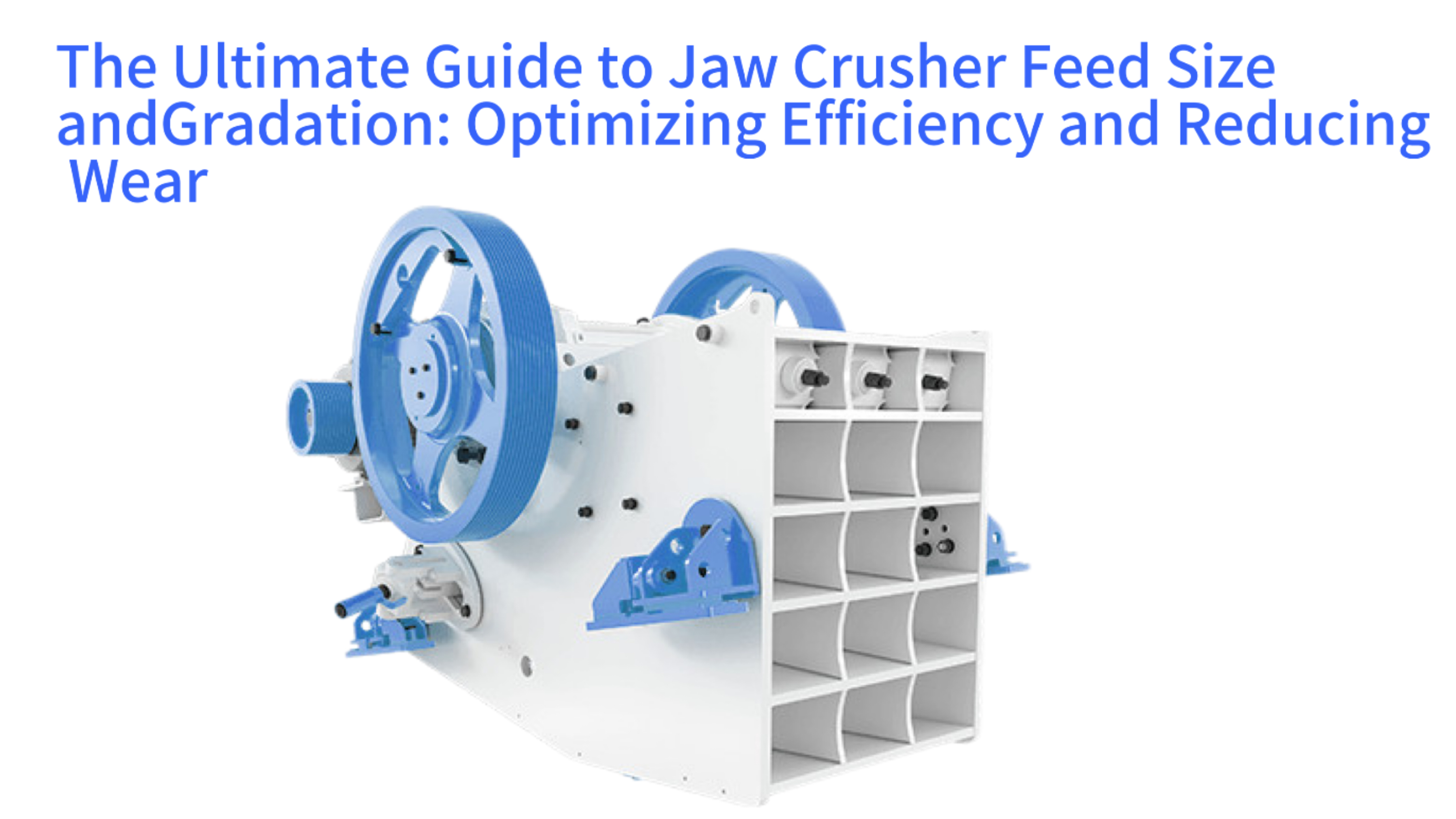

The Ultimate Guide to Jaw Crusher Feed Size and Gradation: Optimizing Efficiency and Reducing Wear

This comprehensive resource delivers essential knowledge about jaw crusher feed size and material gradation. These factors fundamentally influence operational productivity and cost management. The guide systematically explores precise definitions of feed dimensions. It also examines their direct correlation with crusher performance metrics and practical methodologies for determining optimal feed characteristics. Consequently, readers will acquire actionable strategies for maximizing production output while minimizing mechanical wear through proper feed preparation and control. Additionally, the content addresses both theoretical principles and field applications. This approach provides a complete framework for improving crushing circuit efficiency. From a technical perspective, optimized feed parameters directly influence energy consumption and component stress distribution. Ultimately, this guide enables operators to achieve higher production rates with lower operating costs.

Defining Jaw Crusher Feed Size and Essential Parameters

Feed size specification forms the foundational element for efficient jaw crusher operation. It establishes critical boundaries for material processing. This section clarifies exact terminology and measurement standards governing feed dimension control. These clarifications create a baseline for subsequent performance analysis. Therefore, understanding these parameters enables operators to prevent feeding issues and maintain consistent production flow. Moreover, precise definitions eliminate confusion between different measurement approaches used across the industry. Technically, accurate feed size definition ensures proper compression ratio and chamber utilization. The core value lies in establishing clear parameters that prevent equipment damage and optimize processing capacity.

Maximum Feed Size Concept and Operational Significance

The maximum feed dimension represents the largest particle measurement acceptable for crusher intake. This parameter prevents mechanical interference or blockages. It directly determines the crusher's ability to process raw material effectively while protecting internal components from impact damage. Importantly, exceeding recommended maximum dimensions risks catastrophic failure of jaw plates and supporting structures. Conversely, proper sizing ensures continuous material flow through the crushing chamber without interruption. Industry standards define maximum feed size as the greatest distance between two parallel planes contacting the particle surface. This measurement typically covers 80-85% of crusher gape distance. It accounts for irregular particle shapes that might otherwise cause bridging or choking within the feed opening. Maintaining this proportion ensures particles properly enter the crushing zone without requiring excessive force during intake. Fundamentally, the relationship between particle dimension and crusher geometry establishes processing capacity limits. Proper maximum size control maximizes throughput while protecting crusher components from overload damage.

Feed Opening Dimensions and Size Limitations

Crusher feed opening measurements establish absolute physical constraints for incoming material. They create the fixed framework within which all feed particles must operate. The gape width and depth dimensions determine the crusher's inherent capacity for handling bulk material of specific size distributions. These factory-determined specifications cannot be modified without significant structural alterations. Therefore, understanding these limitations prevents operational attempts to process incompatible material sizes. Feed opening geometry interacts with particle shape characteristics to influence actual processing capacity. For instance, elongated or flat particles may encounter restrictions despite meeting nominal size specifications. The industry-standard practice maintains maximum feed dimensions at approximately 80% of the actual gape measurement. This provides necessary clearance for consistent material flow. This proportional relationship ensures particles properly enter the crushing chamber without mechanical interference. Simultaneously, it maximizes utilization of available processing volume. Technically, the feed opening to particle size ratio affects material trajectory and compression efficiency. The essential benefit is preventing mechanical jams while ensuring optimal chamber loading for maximum production output.

Closed Side Setting Role in Feed Size Determination

The closed side setting represents the minimum discharge gap measurement between jaw plates at their closest approach during the crushing cycle. This parameter inversely influences optimal feed size selection by defining the compression ratio achievable within the crushing chamber. Specifically, larger CSS values typically permit processing of coarser feed material. Conversely, smaller settings require correspondingly reduced input sizes. The mechanical relationship between CSS and feed dimensions establishes the crusher's fundamental reduction capability. Practical operation maintains maximum feed size at approximately 1.6 times the CSS measurement for standard jaw crusher configurations. This ratio ensures proper engagement between jaw plates and processed material. It provides sufficient compression force distribution across particle surfaces while preventing excessive stress concentrations on crusher components. Notably, deviating from this proportion often results in inadequate size reduction or accelerated wear patterns. The CSS-to-feed-size relationship forms a critical operational parameter for achieving target product specifications. From an engineering perspective, this ratio optimizes the crushing stroke efficiency and energy transfer. The key advantage is maintaining optimal reduction ratios while minimizing component wear and power consumption.

Additional Dimensional Considerations for Feed Material

Particle width and thickness measurements introduce secondary constraints affecting crusher performance beyond basic length dimensions. These characteristics influence material behavior within the crushing chamber. Specifically, they affect flow patterns and compression dynamics. For example, flat or elongated particles present unique challenges compared to cubical fragments of equivalent maximum dimension. Therefore, comprehensive feed assessment requires evaluation of all three axial measurements for accurate processing predictions. Extreme dimensional ratios often cause processing difficulties even when maximum size specifications appear satisfied. This is particularly true with slab-shaped rocks or other geometrically challenging material. Such particles may enter the crushing chamber diagonally or become oriented in ways that reduce effective compression and increase wear irregularity. Consequently, optimal feed preparation strategies address these geometric factors through appropriate pre-screening or blending techniques. Complete dimensional analysis provides superior prediction of crusher performance compared to single-parameter assessment. Technically, particle aspect ratio directly influences breakage patterns and product shape characteristics. The primary value involves preventing operational issues and achieving more consistent product quality through comprehensive particle geometry control.

Critical Importance of Feed Size in Crusher Performance

Feed size characteristics directly govern multiple aspects of jaw crusher operation. They create cascading effects throughout the entire processing circuit. This section examines how dimensional parameters influence production efficiency, component longevity, and operational costs. Specifically, proper feed sizing represents the most significant controllable factor in optimizing crushing performance. Therefore, understanding these relationships enables substantial improvements in overall plant productivity. Technically, optimized feed size distribution enhances interparticle crushing action and chamber loading efficiency. The fundamental benefit is achieving higher throughput with reduced energy consumption and extended equipment lifespan.

Direct Impact on Production Capacity and Throughput

Feed size distribution establishes fundamental limits for material processing rates. It determines how efficiently the crushing chamber accepts and reduces incoming particles. Appropriately sized material enables maximum utilization of available crushing volume and power. In contrast, improperly dimensioned feed causes capacity reductions through inefficient chamber loading. Importantly, the relationship between feed size and throughput follows predictable patterns that operators can leverage for production optimization. Oversized material consumes disproportionate crushing energy while potentially causing chamber blockages that interrupt continuous operation. Similarly, undersized particles may pass through the crushing zone without proper engagement. This reduces effective reduction work and wastes available capacity. Therefore, optimal feed distribution maximizes the proportion of material receiving efficient compression between jaw plates. This balanced approach typically increases throughput by 15-25% compared to poorly graded feed material. Technically, proper sizing ensures optimal choke feeding conditions and power utilization. The core value lies in maximizing production rates without increasing equipment size or energy costs.

Influence on Product Shape and Gradation Quality

Feed particle dimensions directly affect output material characteristics. These include particle shape distribution and size consistency. Properly sized input material undergoes controlled fracture along natural cleavage planes. This produces cubical fragments with minimal flaky or elongated particles. In contrast, improperly dimensioned feed often results in irregular breakage patterns that generate excessive fines or flat-shaped products. These shape characteristics significantly influence product marketability and downstream processing efficiency. Consistent feed sizing promotes uniform compression throughout the crushing chamber. This creates predictable breakage behavior across all processed material. Consequently, this consistency enables operators to maintain target product specifications with minimal adjustment to crusher parameters. Conversely, uncontrolled feed variation forces continuous compensation through CSS modifications. This reduces overall stability and increases operational complexity. The relationship between input consistency and output quality demonstrates why feed control represents a crucial quality management point. From a technical perspective, uniform feed promotes preferential breakage along weaker planes, improving product shape. The key advantage is producing higher-value aggregate products with consistent gradation for specific application requirements.

Relationship with Wear Patterns and Component Stress

Feed size characteristics directly influence wear development on crushing surfaces and mechanical components throughout the jaw crusher assembly. Oversized particles generate excessive compressive forces that accelerate jaw plate deterioration and increase stress on eccentric shafts and bearing systems. Additionally, the impact forces associated with large feed material create shock loading conditions that reduce component service life through fatigue mechanisms. Therefore, proper sizing mitigates these destructive forces while maintaining production requirements. Laboratory analysis demonstrates that wear rates increase exponentially when feed dimensions exceed approximately 110% of recommended maximum size. Under severe oversize conditions, jaw plate service life potentially reduces by 40-60%. This relationship highlights the economic importance of feed control beyond immediate production considerations. The cost of premature component replacement often exceeds short-term production gains achieved through processing oversized material. Thus, balanced feed sizing provides optimal balance between output and operating expenses. Technically, proper sizing ensures even pressure distribution across jaw plates, minimizing localized wear. The essential benefit is significantly extending component service life and reducing maintenance costs through proper feed dimension control.

Common Operational Issues from Improper Feed Sizing

Incorrect feed dimensions manifest through various operational symptoms that indicate suboptimal crushing conditions and potential equipment damage. These issues range from minor processing inefficiencies to catastrophic mechanical failures. Importantly, all are traceable to improper material preparation. Therefore, recognizing these symptoms enables early intervention before secondary damage occurs. Systematic feed management prevents most common jaw crusher operational problems. Material bridging above the crushing chamber represents a frequent consequence of oversized or improperly shaped feed. This requires production stoppages for manual clearing. Excessive vibration often indicates irregular feed distribution or the presence of uncrushable material exceeding design limits. Similarly, power consumption spikes signal overloading conditions typically associated with feed that exceeds crusher capacity. These operational indicators provide real-time feedback about feed suitability and crusher condition. From a technical perspective, improper sizing creates uneven stress distribution and abnormal loading patterns. The core value involves preventing costly downtime and equipment damage through proactive feed size monitoring and adjustment.

Determining Correct Maximum Feed Size Specifications

Establishing appropriate feed size limits requires methodical assessment of crusher specifications, material characteristics, and operational objectives. This section provides structured approaches for defining optimal feed dimensions across various operating conditions. The methodologies combine manufacturer guidelines with practical field adjustments to address real-world material variations. Consequently, systematic implementation ensures crushers operate within design parameters while maximizing productivity. Technically, proper feed size determination balances mechanical limitations with material breakage characteristics. The fundamental benefit is optimizing crusher performance while ensuring operational safety and equipment protection.

Interpreting Manufacturer Specifications and Technical Data

Equipment manufacturers provide detailed feed size recommendations based on extensive testing and engineering analysis of specific crusher models. These specifications account for mechanical limitations, power transmission capabilities, and expected performance characteristics under ideal conditions. Therefore, understanding the basis for these recommendations enables proper application across variable operating environments. Manufacturer data represents the starting point for feed size determination. Technical documentation typically specifies maximum feed dimensions in relation to crusher gape measurements and component strength ratings. These values incorporate safety margins to accommodate normal material variations and occasional oversize incidents. Importantly, operating consistently near absolute maximum ratings often accelerates component wear and increases failure risk. Thus, conservative application of manufacturer specifications typically extends equipment service life while maintaining adequate production capacity. From an engineering perspective, manufacturer specifications consider fatigue limits and dynamic loading factors. The key advantage is leveraging manufacturer expertise to establish safe, efficient operating parameters without extensive trial and error.

Empirical Calculation Methods Using CSS Measurements

Closed side setting measurements provide a practical basis for calculating appropriate feed size limits through established proportional relationships. The standard industry practice maintains maximum feed dimensions at 1.6 to 1.8 times the CSS value for most jaw crusher configurations. This ratio ensures proper material engagement within the crushing zone while preventing excessive stress on components. Field experience has validated this relationship across diverse material types and operating conditions. Application of the CSS-based calculation method requires accurate measurement of the actual discharge setting under operating conditions. This must account for wear-related dimensional changes over time. Therefore, regular CSS verification ensures feed size recommendations remain appropriate as crushing components deteriorate. The proportional relationship may require adjustment for materials with unusual hardness or fracture characteristics. This empirical approach bridges theoretical specifications with practical operating requirements. Technically, the CSS-to-feed-size ratio maintains optimal nip angle and compression depth. The core value lies in providing a simple, reliable method for determining appropriate feed sizes that ensures efficient operation and protects crusher components.

Material Property Adjustments for Hardness and Moisture

Rock hardness characteristics significantly influence optimal feed size selection by altering breakage behavior and crusher loading patterns. Hard, competent materials require more conservative feed size limits to prevent excessive component stress and ensure proper fragmentation. Conversely, softer materials often permit more aggressive feed sizing while maintaining acceptable wear rates and product quality. The relationship between material strength and feed dimensions follows predictable patterns established through industry experience. Moisture content introduces additional considerations through its influence on material flow characteristics and adhesion tendencies. High-moisture materials often benefit from reduced maximum feed sizes to prevent packing and bridging within the crushing chamber. This adjustment compensates for changed material behavior rather than structural limitations of the crusher itself. Therefore, comprehensive feed size determination integrates material properties with mechanical specifications for optimal performance. From a technical perspective, material competence affects breakage energy requirements and wear mechanisms. The essential benefit is adapting feed parameters to specific material characteristics to maximize efficiency and minimize operational issues.

Practical Verification Procedures and Measurement Techniques

Field validation of feed size appropriateness employs straightforward observational methods combined with basic measurement tools to verify compliance with established limits. Visual comparison between feed material and crusher openings provides immediate indication of potential oversize issues. Additionally, simple gauges and measuring tapes enable quantitative assessment of representative samples from ongoing production. These practical methods complement theoretical calculations with real-world verification. Systematic feed monitoring establishes baseline conditions and identifies trends requiring corrective action before operational problems develop. Regular measurement of the largest particles in the feed stream provides data for adjusting preparation processes or crusher settings. This proactive approach prevents the gradual creep toward oversize conditions that often accompanies changing material characteristics. Therefore, consistent measurement practices maintain feed quality within optimal ranges. Technically, statistical sampling provides representative data for process control decisions. The key advantage is enabling continuous feed optimization through simple, practical measurement techniques that prevent operational problems.

Comprehensive Analysis of Feed Gradation Principles

Feed particle size distribution represents a frequently overlooked factor significantly influencing crusher efficiency and product quality. This section examines how controlled gradation enhances crushing performance beyond simple maximum size limitations. Specifically, proper gradation ensures optimal chamber loading and promotes interparticle crushing action. Therefore, understanding these mechanisms enables substantial improvements in overall circuit performance. Technically, optimized gradation improves compression efficiency and reduces void spaces. The fundamental benefit is achieving higher throughput with better product shape and reduced energy consumption per ton processed.

Defining Feed Gradation and Chamber Loading Dynamics

Feed gradation describes the proportional distribution of different particle sizes within the material presented to the crusher. This characteristic directly affects how completely the crushing chamber fills during operation and how efficiently crushing forces transfer through the material mass. Well-graded material with a balanced mix of coarse, intermediate, and fine particles typically achieves superior chamber loading compared to uniformly sized feed. Importantly, the interaction between particle sizes within the chamber creates more efficient force transmission patterns. Optimal gradation ensures the crushing chamber operates at maximum capacity without experiencing the voids common with uniformly sized material or the packing issues associated with excessive fines. This balanced loading condition allows the crusher to achieve its design throughput while maintaining consistent power consumption. Consequently, chamber loading efficiency directly correlates with overall production rates and energy utilization. Thus, proper gradation represents a key factor in maximizing the crusher's inherent capacity potential. From a technical perspective, optimized gradation creates a denser particle bed that improves energy transfer efficiency. The core value lies in significantly increasing production capacity without equipment modifications through proper feed gradation control.

Ideal Gradation Curve for Enhanced Crushing Efficiency

The optimal feed gradation profile follows a modified Fuller curve distribution. In this distribution, particle sizes distribute continuously from maximum dimension down to fine material. This pattern promotes interparticle crushing action within the chamber, where rocks fracture against each other rather than relying solely on direct contact with jaw plates. Importantly, the interparticle crushing mechanism significantly improves efficiency while reducing wear on crushing surfaces. This approach typically increases overall reduction efficiency by 20-30% compared to single-particle breakage patterns. A properly graded feed stream creates a dense particle bed within the crushing chamber that transmits compressive forces more effectively than loosely packed material. This dense packing ensures that crushing energy distributes evenly throughout the material mass rather than concentrating at specific contact points. Consequently, the resulting fragmentation pattern produces more uniform product sizing with reduced generation of extreme fines. The ideal gradation curve represents a balance between maximum chamber density and maintaining sufficient void space for particle rearrangement during compression. Technically, continuous gradation minimizes void spaces and creates optimal stress distribution during compression. The key advantage is achieving higher reduction ratios with lower energy input and reduced component wear through optimized particle size distribution.

Consequences of Excessive Fines or Oversize Dominance

Feed material dominated by fine particles presents distinct operational challenges that reduce crusher efficiency and increase operating costs. Excessive fines fill void spaces between larger particles, creating a dense, compacted mass that restricts material flow through the crushing chamber. This condition often leads to chamber packing, reduced throughput, and increased power consumption as the crusher works to compress non-crushable fine material. Typically, the presence of high fines content decreases production capacity by 15-25% while increasing energy consumption per ton processed. Conversely, feed streams dominated by oversize material create different operational issues centered around inefficient chamber utilization and increased component stress. The substantial void spaces between large particles prevent effective force transmission through the material bed, resulting in inefficient single-particle breakage patterns. This condition accelerates wear on jaw plates and increases the probability of uncrushable material causing damage. Oversize-dominated feed typically produces inconsistent product gradation with excessive variation between coarse and fine fractions. From a technical perspective, improper gradation creates either insufficient or excessive chamber density, both reducing efficiency. The essential benefit of balanced gradation is maintaining optimal chamber conditions that maximize production while minimizing wear and energy consumption.

Assessment Methods for Existing Feed Gradation

Accurate evaluation of current feed gradation requires systematic sampling and analysis using standardized sieving procedures. Representative samples collected from the crusher feed stream undergo dry sieving through a nested set of screens with progressively smaller openings. The material retained on each screen gets weighed and recorded to establish the complete particle size distribution. This quantitative analysis provides the data necessary to evaluate gradation quality and identify potential improvement opportunities. Regular gradation analysis enables operators to track changes in feed characteristics over time and correlate these variations with crusher performance metrics. This data-driven approach helps identify optimal feed gradation ranges for specific material types and crusher configurations. Consequently, historical gradation data serves as a valuable reference when troubleshooting production issues or optimizing operational parameters. Therefore, consistent monitoring provides the foundation for implementing and maintaining improved feed preparation practices. Technically, sieve analysis according to ASTM standards provides reliable gradation data for process optimization. The core value lies in using quantitative data to make informed decisions about feed preparation that significantly improve crusher performance and product quality.

Practical Strategies for Optimizing Feed Conditions

Implementing effective feed optimization requires coordinated approaches addressing material preparation, equipment configuration, and operational practices. This section presents field-proven methods for improving feed characteristics to enhance overall crushing performance. These strategies range from equipment modifications to procedural adjustments, all focused on achieving optimal feed size and gradation. Consequently, successful implementation typically delivers substantial improvements in production efficiency and operating costs. Technically, integrated feed management addresses both mechanical and material factors. The fundamental benefit is achieving optimal crusher performance through systematic feed preparation and control strategies.

Pre-Screening Implementation and Equipment Selection

The installation of vibrating feeder systems represents the most effective method for controlling crusher feed size distribution. These systems remove undersize material and oversize particles before they reach the crusher, ensuring only properly sized material enters the crushing chamber. Effective pre-screening typically increases overall circuit capacity by 20-35% while reducing crusher wear costs by 30-50%. Economically, the benefits of pre-screening typically justify the capital investment within 12-18 months of operation. Proper selection of pre-screening equipment requires careful analysis of material characteristics, production requirements, and site constraints. Screen deck configuration, screen media selection, and operating parameters must align with the specific needs of the crushing circuit. Modern screening systems incorporate multiple deck arrangements with specialized screen surfaces to achieve precise separation efficiency. Therefore, optimal screen selection ensures adequate removal of both undersize and oversize fractions while maintaining required processing rates. From a technical perspective, pre-screening optimizes feed characteristics before material enters the crushing chamber. The key advantage is significantly improving crusher efficiency and reducing operating costs through effective removal of non-optimal size fractions.

Feed Equipment Configuration and Control Systems

Proper configuration of feed equipment ensures consistent material delivery to the crusher at optimal rates and distribution patterns. Vibrating feeders with variable speed controls enable precise adjustment of feed rates to match crusher capacity and current operating conditions. Proper feeder setup maintains a consistent bed depth across the full width of the crusher opening, ensuring even utilization of the entire crushing surface. This even distribution pattern promotes uniform wear development and maximizes effective crushing area utilization. Modern feed systems incorporate level sensors and control logic that automatically adjust feed rates based on crusher power draw and chamber conditions. These automated systems maintain optimal feed rates despite variations in material characteristics or other operating conditions. Consequently, advanced control strategies typically increase average throughput by 10-15% while reducing the probability of crusher overload or starvation. Thus, the integration of automated feed control represents a significant advancement in crushing circuit optimization. Technically, controlled feeding maintains optimal chamber loading and power utilization. The core value lies in maximizing production consistency and equipment protection through automated feed rate optimization.

Stockpile Management to Minimize Segregation Effects

Proper stockpile management practices minimize particle size segregation that often degrades feed consistency in crushing operations. Strategic stockpile construction using telescoping conveyors and systematic stacking patterns reduces the natural tendency for coarse and fine particles to separate. Consistent reclamation methods that extract material from the entire pile face help maintain uniform gradation in the feed stream. Effective stockpile management typically reduces feed variation by 40-60% compared to uncontrolled stacking and reclaim practices. Segregation control becomes particularly important when processing materials with significant differences in particle size or density. Specialized stockpile techniques, including multiple small piles or blended reclaim systems, help maintain gradation consistency despite inherent segregation tendencies. Therefore, monitoring stockpile gradation at regular intervals provides data for adjusting stacking or reclaim methods to optimize feed characteristics. Proper stockpile management represents a cost-effective approach to improving feed quality without capital investment in additional processing equipment. From a technical perspective, controlled stacking and reclaiming minimizes particle separation by size. The essential benefit is maintaining consistent feed quality that ensures stable crusher operation and product specifications.

Operator Training and Performance Monitoring Protocols

Comprehensive operator training ensures consistent implementation of feed management practices across all operating shifts. Training programs should cover fundamental principles of crusher operation, the importance of feed control, and specific procedures for monitoring and adjusting feed characteristics. Well-trained operators recognize early signs of feed-related issues and take appropriate corrective actions before problems escalate. Typically, effective training reduces feed-related operational issues by 60-80% while improving overall circuit efficiency. Systematic monitoring of key performance indicators provides objective data for evaluating feed management effectiveness and identifying improvement opportunities. Tracking metrics including throughput rates, power consumption, product gradation, and component wear patterns helps correlate feed characteristics with operational results. Regular performance reviews enable continuous refinement of feed management strategies based on actual operating experience. Therefore, data-driven feed optimization represents the foundation for achieving and maintaining peak crushing circuit performance. Technically, trained operators can interpret process signals and make timely adjustments. The key advantage is sustaining optimal performance through knowledgeable operation and continuous process improvement based on performance data.

Troubleshooting Common Feed-Related Operational Issues

Despite proper planning and implementation, feed-related problems occasionally occur in jaw crusher operations. This section provides systematic approaches for identifying, diagnosing, and resolving these issues to minimize production losses and prevent equipment damage. The troubleshooting methodology progresses from simple observational checks to more detailed technical analysis, enabling efficient problem resolution at the appropriate level. Therefore, quick identification and correction of feed issues maintains optimal crusher performance and prevents secondary damage. Technically, systematic troubleshooting addresses root causes rather than symptoms. The fundamental benefit is minimizing downtime and maintaining consistent production quality through effective problem-solving approaches.

Crusher Feed Hopper Bridging and Blockage Resolution

Material bridging in the crusher feed hopper represents a common operational interruption that halts production until resolved. Bridging typically occurs with materials containing significant proportions of slabby particles or when moisture content creates cohesive conditions. The immediate resolution involves safe procedures for dislodging blocked material using appropriate tools and techniques. Preventive measures include hopper design modifications, material condition control, and the installation of mechanical or pneumatic bridging breakers. Long-term prevention of bridging issues requires addressing the root causes through material preparation and equipment modifications. Installing grizzly sections with properly spaced rails above the crusher feed opening helps orient elongated particles and break up potential bridges. Controlling material moisture content through drainage or blending practices reduces cohesive tendencies that contribute to bridging. Additionally, equipment solutions including vibrating hoppers, air cannons, or mechanical agitators provide active prevention against material bridging in problematic applications. From a technical perspective, bridging occurs when interparticle friction exceeds gravitational forces. The core value lies in implementing both immediate solutions and long-term strategies that prevent bridging and ensure continuous material flow.

Throughput Deficiency Analysis and Corrective Actions

Inadequate production rates often trace to feed-related issues that limit the crusher's ability to operate at design capacity. Systematic analysis begins with verifying actual feed rates and comparing them with crusher capacity under current operating conditions. Common feed-related causes of throughput deficiency include improper gradation, excessive moisture, inadequate feed equipment capacity, or incorrect crusher parameter settings. Therefore, identifying the specific limitation enables targeted corrective actions that restore designed production levels. Corrective measures for throughput deficiencies vary according to the identified root cause. Gradation issues may require adjustments to pre-screening operations or changes in material blending practices. Moisture problems might necessitate drainage improvements or the addition of drying systems. Similarly, inadequate feed equipment capacity typically requires upgrades to feeders or conveyors to match crusher capabilities. Thus, methodical troubleshooting ensures that solutions address actual limitations rather than symptoms of underlying problems. Technically, throughput limitations often result from chamber loading inefficiencies or feed rate inconsistencies. The key advantage is restoring design capacity through targeted interventions that address specific feed-related constraints.

Product Quality Issues and Feed-Related Solutions

Unacceptable product characteristics including poor particle shape, excessive fines generation, or inconsistent gradation often originate from feed-related issues. Flat or elongated particles in the crusher product typically indicate inadequate reduction of feed material or the presence of inappropriate feed shapes. Excessive fines generation often results from feed containing high proportions of fine material or operation with excessively small closed side settings. Similarly, inconsistent product gradation frequently traces to variations in feed characteristics or irregular feed rates. Therefore, addressing product quality issues requires correlating specific product deficiencies with potential feed-related causes and implementing appropriate corrective measures. Improving particle shape may involve adjusting the ratio of coarse to fine material in the feed or modifying crusher operating parameters. Reducing excessive fines generation might require enhanced pre-screening to remove fine material before crushing or adjusting the crusher's stroke characteristics. Stabilizing product gradation typically involves improving feed consistency through better material handling practices or feed rate control. From a technical perspective, product quality directly reflects feed characteristics and crushing mechanics. The essential benefit is achieving consistent product specifications that meet market requirements through proper feed management.

Abnormal Wear Patterns and Feed Correlation Analysis

Unusual wear development on jaw plates and other crusher components often indicates feed-related issues that require correction. Asymmetric wear patterns typically result from uneven feed distribution across the crusher opening, causing one side of the crushing chamber to receive more material than the other. Localized severe wear often indicates the presence of abrasive contaminants in the feed or operation with excessively coarse material. Similarly, rapid overall wear rates may signal consistently oversized feed or operation with closed side settings that are too small for the feed size. Therefore, correlating wear patterns with feed characteristics enables targeted corrective actions that extend component service life and reduce operating costs. Addressing asymmetric wear involves modifying feed arrangements to ensure even distribution across the entire crusher opening. Reducing localized wear requires improved contamination removal through enhanced pre-screening or material source control. Mitigating general wear rates may involve adjusting feed size specifications or modifying crusher operating parameters to better match feed characteristics. Technically, wear patterns reveal specific loading conditions and material interactions. The core value lies in significantly extending component life and reducing operating costs through feed-related wear mitigation strategies.

Advanced Considerations for Specific Application Scenarios

Specialized crushing applications introduce unique feed-related considerations beyond standard operational practices. This section examines these scenario-specific factors and presents adapted approaches for maintaining optimal performance under challenging conditions. Understanding these advanced considerations enables effective crusher application across diverse operating environments and material types. Therefore, proper addressing of application-specific factors ensures satisfactory performance in specialized crushing circuits. Technically, application-specific adaptations optimize crusher performance for particular material characteristics and operational requirements. The fundamental benefit is achieving optimal results in challenging applications through tailored feed management approaches.

Recycled Aggregate and Construction Waste Processing

Crushing operations processing recycled concrete, asphalt, and other construction debris face unique feed-related challenges requiring specialized approaches. These materials typically contain contaminants including steel reinforcement, wood, plastics, and other foreign substances that can damage crushers or disrupt operation. Therefore, effective processing requires robust pre-screening, magnetic separation, and manual picking systems to remove contaminants before crushing. The variable and unpredictable nature of recycled materials necessitates flexible feed management strategies that can accommodate rapid changes in material characteristics. Feed size control in recycling applications often requires secondary reduction equipment to process oversized chunks of concrete or asphalt before jaw crushing. Mobile hammer crushers or impact breakers frequently serve this function, reducing material to sizes compatible with jaw crusher feed requirements. The presence of reinforcing steel within concrete slabs necessitates careful feed rate control to prevent overload conditions when encountering embedded metal. Thus, successful recycled material processing balances production efficiency with effective contamination removal to produce quality aggregate products. From a technical perspective, recycled materials often have variable hardness and contain non-crushable elements. The key advantage is transforming waste materials into valuable products while protecting equipment through specialized feed handling and preparation techniques.

High-Hardness Abrasive Rock Crushing Strategies

Processing hard, abrasive rock types including granite, basalt, and quartzite requires modified feed strategies to control wear costs and maintain production efficiency. These materials necessitate more conservative feed size limits to reduce stress on crusher components and minimize the severe wear associated with hard rock crushing. Optimal feed gradation becomes particularly important in these applications to promote interparticle crushing that reduces direct contact between rock and jaw plates. Additionally, specialized jaw plate designs with enhanced wear materials often provide economic benefits despite higher initial costs. Feed rate control assumes critical importance when processing high-hardness materials to prevent crusher overload and minimize component stress. Modern crushing plants processing abrasive rock typically incorporate sophisticated control systems that monitor power draw and adjust feed rates accordingly. The economic balance between production rates and wear costs shifts significantly with hard abrasive materials, often justifying operation at somewhat reduced throughput to extend component service life. Therefore, successful hard rock crushing requires integrated consideration of feed characteristics, equipment selection, and operational parameters. Technically, hard rocks require higher crushing forces and cause accelerated abrasive wear. The essential benefit is optimizing the economic balance between production output and operating costs in challenging hard rock applications.

Mobile versus Stationary Plant Feed Considerations

Mobile jaw crusher applications introduce distinct feed-related considerations compared to stationary installations, primarily centered around space limitations and operational flexibility. Mobile plants typically feature smaller feed hoppers and less comprehensive pre-screening systems due to space and weight constraints. These limitations necessitate careful feed management to prevent bridging and ensure consistent material flow. Additionally, the frequent relocation of mobile plants creates constantly changing feed conditions that require adaptable operational approaches. Stationary crushing plants typically incorporate more extensive feed systems including larger surge piles, elaborate pre-screening arrangements, and sophisticated feed rate controls. These comprehensive systems enable more precise feed management but require significant capital investment and fixed infrastructure. Therefore, the choice between mobile and stationary approaches involves balancing feed control capabilities against operational flexibility and capital requirements. Understanding the distinct feed considerations for each plant type enables selection of the optimal configuration for specific application requirements. From a technical perspective, mobile plants sacrifice some feed control capabilities for mobility and flexibility. The core value lies in selecting the appropriate plant configuration that best matches operational requirements and feed characteristics.

Automated Feed Optimization and Future Development Trends

Advanced automation technologies increasingly transform feed management practices in modern crushing operations. Sensor systems including laser scanners, cameras, and weighing devices provide real-time data on feed characteristics and crusher response. This information enables automated adjustment of feed rates and crusher parameters to maintain optimal performance despite changing conditions. Additionally, machine learning algorithms gradually improve these control systems by identifying patterns and correlations not apparent through conventional operational approaches. Future developments in feed optimization likely will incorporate more sophisticated sensing technologies including hyperspectral imaging and embedded smart sensors. These advancements will enable real-time analysis of material composition and properties beyond simple size characteristics. Integration between crushing equipment and upstream processes will create fully optimized circuits that automatically adjust to maintain peak performance. Therefore, the ongoing evolution of feed management technology promises continued improvements in crushing efficiency, product quality, and operating costs. Technically, automated systems can respond to changing conditions faster than human operators. The key advantage is achieving consistently optimal performance with reduced manual intervention through advanced automation and control technologies.
