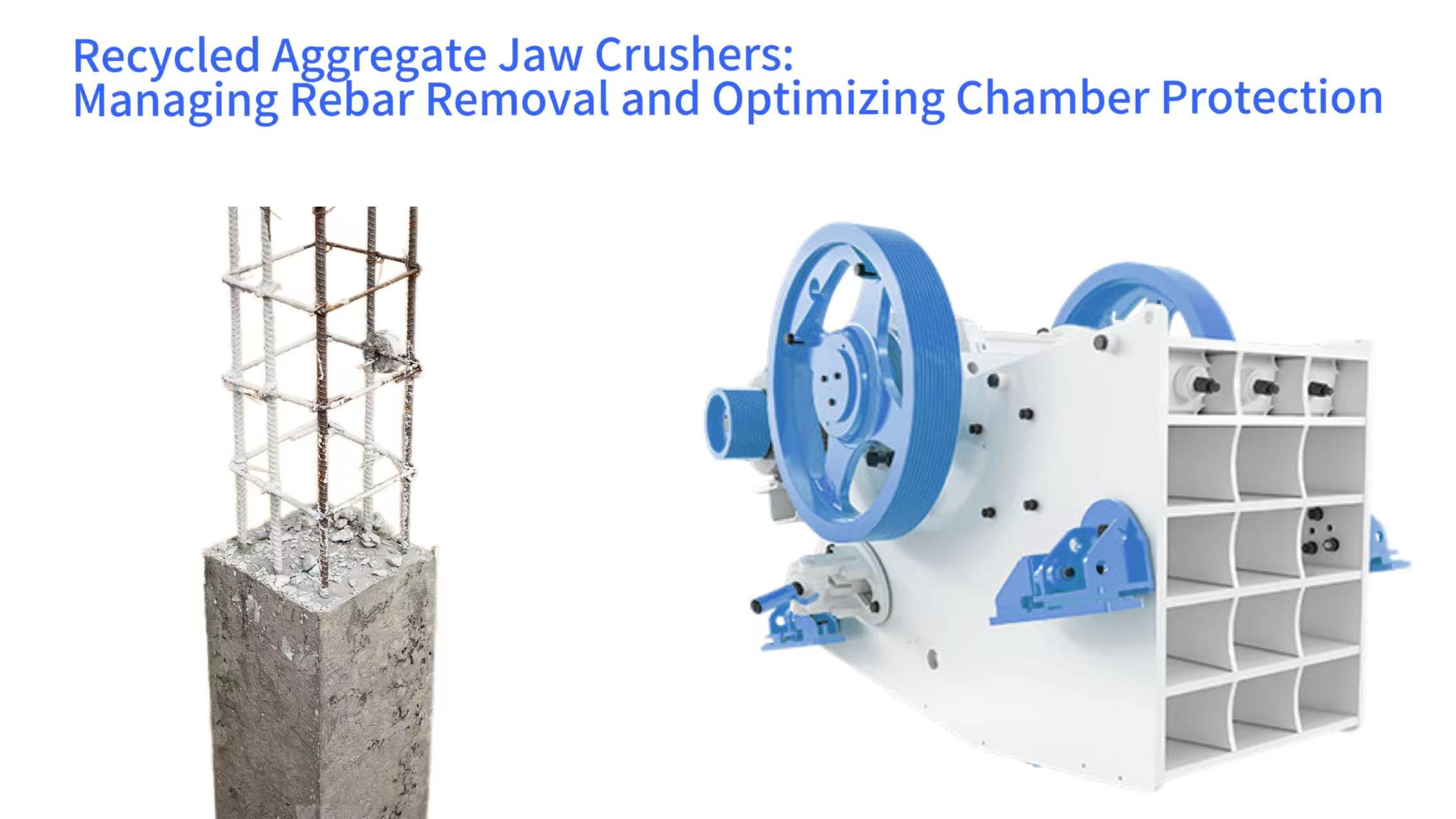

Recycled Aggregate Jaw Crushers: Managing Rebar Removal and Optimizing Chamber Protection
Recycled aggregate, derived from construction and demolition waste, has become a valuable resource in modern construction. Jaw crushers play a critical role in processing this material, but they face unique challenges from embedded rebar—steel reinforcement common in concrete structures. This article explores how these crushers handle rebar removal, the importance of chamber protection designs, and the technologies that make efficient recycling possible. Understanding these elements helps operators maximize equipment lifespan, reduce downtime, and produce high-quality recycled aggregate.
The Challenge of Rebar in Recycled Aggregate Processing
Construction and demolition waste typically contains 3-8% rebar by weight, presenting significant obstacles for jaw crushers. This steel reinforcement, while essential for structural integrity in original buildings, becomes a liability during crushing. Rebar can wrap around crusher components, causing jams that halt operations. On average, such incidents result in 20-30 hours of lost production monthly for facilities processing 100 tons per hour or more.
Beyond downtime, rebar causes physical damage to crusher components. The impact and friction from steel against the fixed jaw plate and other surfaces accelerate wear, reducing component lifespans by up to 60%. This increases maintenance costs—facilities report a 45% rise in repair expenses when processing rebar-rich materials without proper protection. Traditional removal methods, such as basic magnetic separators, capture only 60-75% of rebar, leaving enough to cause ongoing issues.
How Rebar Damages Crusher Components
Rebar’s hardness and tensile strength make it particularly destructive. When caught between moving parts, it can bend or snap crusher elements, creating uneven wear patterns on the moveable jaw plate. The high-impact forces generated during crushing transfer directly to the eccentric shaft and toggle plate, increasing stress and potential for premature failure. Over time, repeated rebar impacts can even warp the crusher frame, requiring expensive realignment or replacement.
Another critical issue is heat generation. Friction between rebar and metal components raises temperatures in the crushing chamber, affecting lubrication efficiency. This thermal stress weakens metal integrity, making parts more susceptible to cracking. In extreme cases, prolonged friction can ignite combustible materials mixed in the waste, creating safety hazards.
Rebar Content Variation in Different Waste Streams
Rebar concentration varies significantly across waste types. Demolished concrete structures, such as bridges or high-rises, can contain up to 8% rebar, while residential demolition waste averages 3-5%. renovation waste typically has lower concentrations, around 1-3%, but often includes smaller, harder-to-detect pieces like wire mesh. Road construction waste, which combines concrete and asphalt, generally contains 2-4% rebar, primarily from reinforcement in roadbeds.
This variability complicates processing, as a single facility may handle multiple waste streams. Crushers must adapt to fluctuating rebar levels, requiring flexible removal systems that can adjust to different input compositions. Facilities that process mixed waste streams without adaptive systems experience 20% more rebar-related incidents than those with tailored solutions.
Economic Costs of Unmanaged Rebar
The financial impact of unmanaged rebar extends beyond direct repair costs. Each unplanned shutdown for rebar removal costs an average of $2,000-$5,000 in lost production, depending on facility size. Over a year, this can accumulate to $50,000-$150,000 for mid-sized operations. Additionally, premature replacement of wear parts—such as jaw plates and liners—increases material costs by 30-40% compared to facilities with effective rebar management.
Indirect costs include increased energy consumption. Crushers working against rebar jams draw 15-25% more power, raising utility bills. Labor costs also rise, as workers spend extra time monitoring equipment, clearing jams, and performing unscheduled maintenance. These factors combined can reduce overall profitability by 10-15% for operations processing rebar-rich materials.
Limitations of Traditional Removal Methods
Basic magnetic separators, the most common traditional rebar removal tool, have significant limitations. Their magnetic fields weaken with distance, capturing only larger rebar pieces and missing smaller fragments or those buried within concrete chunks. This results in 25-40% of rebar reaching the crusher, even with well-maintained magnets. Manual sorting, while more thorough, is labor-intensive and slow, reducing throughput by 30-50%.
Wind-based separation systems, which rely on density differences, struggle with rebar embedded in concrete, as the combined weight of steel and concrete mimics the density of clean aggregate. This method captures less than 20% of embedded rebar, making it ineffective for most recycling operations. These limitations highlight the need for advanced, integrated rebar removal systems.
Industry Standards for Aggregate Purity
Global standards regulate rebar and metal content in recycled aggregate to ensure quality and safety. Most require metal residues below 0.5% by weight for aggregate used in structural applications. For non-structural uses, limits range from 1-2%, but stricter specifications are increasingly common as recycled materials gain wider acceptance.
Compliance with these standards is not just a regulatory requirement but also a market necessity. Construction projects using recycled aggregate often demand certification, which requires consistent metal removal. Facilities failing to meet standards face reduced market access, with some losing 20-30% of potential customers due to non-compliant aggregate quality.
Rebar Removal Systems: Design and Function
Modern rebar removal systems combine multiple technologies to address the limitations of traditional methods. These integrated systems typically include pre-crushing magnetic separation, in-line metal detection, and post-crushing separation, working together to achieve removal rates of 90-95%. By capturing rebar at multiple stages, they minimize the amount reaching critical crusher components.
The effectiveness of these systems depends on proper integration with the crusher’s workflow. Placement of magnetic separators and metal detectors is critical—installing them too far from the crusher allows rebar to mix with other materials, reducing capture efficiency. Well-designed systems coordinate with the crusher’s speed and feed rate, ensuring separation processes keep pace with material flow.
High-Efficiency Magnetic Separators
Advanced永磁自卸式除铁器 (permanent magnetic separators) feature stronger magnetic fields—up to 12,000 gauss—capable of capturing even small rebar fragments. Their self-cleaning design uses a rotating belt to remove captured metal, eliminating the need for manual intervention and maintaining consistent performance. These separators achieve capture rates of 85-92%, a significant improvement over older models.
Key parameters for selection include magnetic field strength, conveyor speed, and belt width. For high-volume facilities processing 200+ tons per hour, separators with larger magnetic surfaces and higher field strengths are necessary. Proper calibration ensures the magnetic field penetrates the material stream, capturing rebar even when buried under aggregate.
Hydraulic Rebar Shears
Integrated hydraulic shears handle rebar too large or too deeply embedded for magnets to capture. These devices, installed on conveyors before the crusher, use 200-300 tons of force to cut rebar into manageable pieces, preventing jams. Shears with rotating blades can handle diameters up to 32mm, covering most common rebar sizes in construction waste.
The shears’ control systems synchronize with metal detectors, activating only when rebar is detected to minimize energy use. This targeted operation reduces wear on blades, extending their lifespan to 5,000-8,000 cuts before replacement. For facilities processing mixed waste, adjustable cutting force settings allow adaptation to different rebar thicknesses.
Machine Vision for Precision Detection
Machine vision systems enhance rebar detection by combining high-resolution cameras with AI algorithms. These systems identify rebar by shape, size, and density, even when partially obscured, with 95% accuracy. They can distinguish between rebar and other metals, reducing false positives that would slow processing.
Mounted above conveyor belts, these systems scan the material stream at 50-100 frames per second, triggering separation mechanisms within milliseconds. Integration with the crusher’s PLC allows real-time adjustments to feed rates when large quantities of rebar are detected, preventing overload. Over time, the AI learns from operational data, improving detection accuracy by 5-10% in the first year of use.
Coordinated Control Systems
PLC-based control systems coordinate rebar removal components, ensuring seamless operation. These systems integrate metal detectors, magnetic separators, shears, and the crusher itself, creating a responsive network that adapts to changing material conditions. For example, if a metal detector identifies multiple rebar pieces, the system can slow the feed rate to allow the separator more time to capture them.
Human-machine interfaces (HMIs) provide operators with real-time data on rebar levels, capture rates, and system status. Alerts notify operators of abnormal conditions , such as a drop in capture efficiency, allowing proactive intervention. These systems reduce operator workload by 30-40% while improving overall process reliability.
Scaling for Different Production Volumes
Rebar removal systems must scale with facility output. For small operations processing 50 tons per hour, a single magnetic separator and basic metal detector may suffice. Medium facilities (100-200 tons/hour) benefit from dual-stage separation—pre-crushing and post-crushing magnets—plus a single hydraulic shear. Large operations (200+ tons/hour) require multiple separators, redundant shears, and advanced vision systems to maintain efficiency.
Modular designs allow facilities to expand systems as production increases. Adding a second magnetic separator or upgrading to a higher-capacity shear can increase capture rates by 10-15% without replacing the entire system. This scalability ensures facilities can adapt to growing demand while maintaining rebar removal effectiveness.
Crushing Chamber Protection Designs
Even with effective rebar removal, some metal fragments may reach the crushing chamber, making protection designs critical. These features minimize damage from accidental rebar contact, extending component life and reducing downtime. Modern designs combine hardened materials, hydraulic systems, and smart monitoring to create robust defense against metal impacts.
The effectiveness of these protections is measured by their ability to absorb impact energy, resist wear, and prevent jams. Well-designed chambers reduce repair costs by 40-60% compared to standard configurations when processing rebar-containing materials. They also maintain consistent crushing performance, ensuring product quality doesn’t suffer from protective measures.
Dual-Metal Jaw Plates
Dual-metal jaw plates combine a high-chrome iron wear layer with a ductile steel backing, offering both hardness and toughness. The wear layer, 40% thicker than standard plates, resists abrasion from aggregate, while the ductile backing absorbs impact energy from rebar. This combination extends plate life by 2-3 times in rebar-rich applications.
Manufacturing these plates involves specialized casting processes that bond the two metals without weak points. The resulting plates maintain their integrity even after repeated impacts, reducing the risk of cracking or chipping. For facilities processing 100 tons/hour, this translates to replacing jaw plates every 6-8 months instead of 2-3 months, significantly lowering maintenance costs.
Hydraulic Overload Protection
Hydraulic systems protect the crusher from excessive forces caused by rebar jams. These systems monitor pressure in the crushing chamber, activating within 0.3 seconds when forces exceed safe levels. They release pressure gradually, allowing the rebar to pass through without damaging components, then reset automatically to resume operation.
Adjustable pressure settings allow operators to tailor protection to material type. For rebar-heavy waste, lower pressure thresholds trigger earlier releases, while higher settings maintain crushing efficiency for cleaner aggregate. This adaptability reduces false triggers by 30-40% compared to fixed systems, minimizing unnecessary downtime.
Anti-Jam Chamber Geometry
优化的破碎腔型 (Optimized chamber geometry) reduces rebar entanglement risk through strategic design. Wider feed openings and curved surfaces guide rebar through the chamber rather than allowing it to wrap around the movable jaw. This design reduces jams by 85% in rebar-rich applications.
Variable crushing angles—steeper at the top for initial breaking, shallower at the bottom for fines production—further prevent hang-ups. The geometry ensures rebar is broken into smaller pieces that pass through the chamber, reducing the need for manual clearing. Computational fluid dynamics (CFD) simulations refine these designs, ensuring optimal material flow for mixed waste streams.
Real-Time Force Monitoring
Sensor systems embedded in the crusher frame and jaw plates monitor crushing forces in real time. These sensors detect sudden spikes caused by rebar impacts, sending data to the control system. Operators receive instant alerts, allowing them to adjust feed rates or activate additional separation measures before damage occurs.
Long-term data analysis identifies patterns, such as increased rebar levels during specific shifts or with certain waste streams. This information helps facilities optimize upstream separation processes, reducing rebar reaching the crusher by 10-15% over time. The sensors themselves are ruggedized to withstand vibration and dust, ensuring reliable operation in harsh conditions.
Integration with Control Systems
Chamber protection systems communicate with the crusher’s main control system, creating a unified defense network. When a rebar impact is detected, the system can slow the feeder, adjust the jaw movement, or activate hydraulic protection—all without operator input. This coordination reduces response time to under 1 second, minimizing damage.
Data from protection systems integrates with maintenance software, generating alerts when components show signs of excessive wear. This predictive maintenance approach reduces unplanned downtime by 25-30%, as repairs can be scheduled during planned shutdowns. For example, if force sensors detect abnormal vibration, the system may recommend inspecting the toggle plate before failure occurs.
System Integration and Performance Optimization
Effective rebar management requires seamless integration between removal systems, crushing chamber protections, and overall plant operations. This integration ensures each component works in harmony, maximizing efficiency while minimizing waste. Optimized systems reduce rebar-related issues by 70-80% compared to standalone solutions, creating a more reliable process.
Integration begins with system design, where engineers map material flow and identify potential bottlenecks. By aligning removal systems with crusher capacity and feed rates, they create balanced processes that handle peak loads without sacrificing performance. This holistic approach is critical for facilities aiming to process 100+ tons/hour of rebar-containing waste.
Coordinated Control Logic
Advanced control systems use complex logic to coordinate rebar removal and crushing operations. For example, if the metal detector identifies a surge in rebar, the system can slow the feeder, increase magnetic separator power, and prepare the hydraulic protection system—all simultaneously. This prevents overload and ensures each component receives only the material it can handle.
Interlock mechanisms prevent unsafe operations, such as running the crusher if the magnetic separator is offline. This protects equipment and workers, reducing accident risk by 40-50%. The logic is customizable, allowing facilities to adapt to specific waste streams or operational goals, such as maximizing throughput vs. minimizing wear.
Material Hardness Sensing
Ultrasonic and microwave sensors measure material hardness as it enters the plant, identifying rebar-rich sections. This information allows the system to adjust separation settings—strengthening magnetic fields or activating additional shears—before the material reaches the crusher. Facilities using this technology report 15-20% higher rebar capture rates.
The sensors also detect concrete hardness, helping optimize crusher settings for the material at hand. For softer concrete, the system can increase crushing force to improve throughput, while harder materials trigger reduced force to prevent overload. This adaptability increases overall efficiency by 10-15%.
Machine Learning for Continuous Improvement
Machine learning algorithms analyze historical data to identify patterns in rebar occurrence and system performance. Over time, these algorithms predict when rebar levels will spike—based on factors like waste source, time of day, or weather—and adjust the system proactively. This predictive approach reduces rebar reaching the crusher by 10-25%.
The algorithms also optimize maintenance schedules, recommending component replacements based on actual wear patterns rather than fixed intervals. For example, if data shows magnetic separator belts wear faster during morning shifts, the system can schedule inspections accordingly. This reduces maintenance costs by 15-20% while improving reliability.
Remote Monitoring and Diagnostics
Cloud-based platforms allow remote monitoring of rebar management systems, providing real-time data to off-site engineers. These platforms track capture rates, component temperatures, and energy usage, flagging issues before they cause downtime. Facilities using remote monitoring reduce unplanned shutdowns by 30-40%.
Diagnostic tools within these platforms analyze performance data to identify inefficiencies, such as a magnetic separator operating below optimal strength. Engineers can adjust settings remotely or dispatch technicians with specific parts, reducing repair time by 20-30%. This connectivity is particularly valuable for facilities in remote locations with limited on-site expertise.
Economic Benefits and Return on Investment
Investing in advanced rebar removal and chamber protection systems yields significant economic returns. The combination of reduced downtime, lower maintenance costs, and higher-quality aggregate creates a compelling business case. Most facilities see a full return on investment within 12-18 months, with ongoing savings continuing for the system’s lifespan.
The economic benefits extend beyond direct cost savings. Higher-quality aggregate, with lower metal content, commands premium prices in the market—often 10-15% above standard recycled material. This increased revenue, combined with operational efficiencies, can boost overall profitability by 20-30% for recycling facilities.
Cost Components of System Implementation
Initial investment includes equipment purchase, installation, and training. A complete system for a 100-ton/hour facility typically costs $150,000-$250,000, depending on complexity. This includes magnetic separators, metal detectors, hydraulic shears, upgraded jaw plates, and control systems. Installation adds 10-15% to the total, while operator training accounts for 5-8%.
Long-term costs include energy for additional equipment (5-10% increase in overall plant electricity use), replacement parts for separators and shears, and software updates for control systems. These ongoing expenses are offset by reduced maintenance on the crusher itself, with jaw plate and bearing replacements declining by 40-60%.
Operational Cost Savings
Maintenance savings are the most significant benefit, with facilities reporting 60% lower repair costs after system implementation. Reduced downtime—from 20-30 hours monthly to 5-8 hours—saves $40,000-$100,000 annually for mid-sized operations. Energy savings, while smaller, still contribute 5-10% to overall cost reduction, as the crusher operates more efficiently without rebar-induced overloads.
Labor costs decrease by 15-20%, as workers spend less time clearing jams and performing unscheduled maintenance. This allows reallocation of personnel to more productive tasks, such as quality control or process optimization. Over time, these savings compound, creating a substantial impact on the bottom line.
Return on Investment Calculation
Calculating ROI involves comparing total investment to annual savings. For a $200,000 system generating $150,000 in annual savings, the simple payback period is 16 months. Factoring in increased revenue from higher-quality aggregate shortens this period by 2-3 months. Over a 5-year lifespan, the system generates $750,000-$1,000,000 in net benefits, making it a highly profitable investment.
For larger facilities processing 200+ tons/hour, the ROI is even more favorable. Higher initial investment ($300,000-$500,000) is offset by greater annual savings ($250,000-$400,000), resulting in payback periods of 12-15 months. These facilities also benefit more from increased aggregate quality, as their larger output amplifies revenue gains.
Economic Scaling Across Facility Sizes
Small facilities (50 tons/hour) see slower but still positive ROI, with payback periods of 18-24 months. Their lower throughput means smaller absolute savings, but the proportional benefit remains significant. Many small operations find that the systems pay for themselves through reduced downtime alone, even without factoring in higher aggregate prices.
Medium facilities (100-200 tons/hour) balance investment and savings most effectively, with the widest range of system options. They can select modular components that match their specific needs, avoiding over-investment while still capturing substantial benefits. Large facilities, while requiring larger initial outlays, achieve the fastest payback due to economies of scale.
Maintenance and Troubleshooting Guidelines
Proper maintenance ensures rebar removal and protection systems operate at peak efficiency. A structured approach to upkeep—including daily inspections, scheduled maintenance, and proactive troubleshooting—extends system life and maintains performance. Facilities with robust maintenance programs report 30-40% fewer system failures than those with reactive approaches.
Maintenance requirements vary by component, with magnetic separators needing more frequent attention than hydraulic systems. Creating a customized schedule based on equipment type, usage, and waste characteristics ensures resources are allocated effectively. Training staff to recognize early warning signs of issues further reduces downtime.
Daily Inspection Protocols
Daily checks focus on critical components: magnetic separator belts for wear, metal detector calibration, shear blade condition, and hydraulic fluid levels. Operators visually inspect for damage, listen for unusual noises, and verify that sensors are functioning. These checks take 15-30 minutes and can prevent 70-80% of common failures.
Key inspection points include: magnetic field strength (verified with a gauss meter), shear blade alignment, conveyor belt tracking, and sensor cleanliness. Recording results in a log allows trend analysis, identifying gradual performance declines that might otherwise go unnoticed. For example, a 5% drop in magnetic strength over two weeks indicates a need for coil inspection.
Preventive Maintenance Schedules
Weekly maintenance includes lubricating moving parts, cleaning sensors and detectors, and checking fastener tightness. Monthly tasks involve testing hydraulic system pressure, calibrating metal detectors, and inspecting jaw plate wear patterns. Quarterly maintenance focuses on more complex items: magnetic coil integrity, shear hydraulic fluid analysis, and control system software updates.
Annual maintenance includes replacing wear items like separator belts and shear blades, regardless of condition, to prevent unexpected failures. This proactive approach increases replacement costs by 10-15% but reduces downtime costs by 50-60%, resulting in a net savings. Facilities that follow this schedule extend system life by 2-3 years compared to those replacing parts only when failed.
Diagnosing Common System Issues
Reduced rebar capture rates often stem from weakening magnetic fields, misaligned sensors, or conveyor speed mismatches. Troubleshooting involves checking each component sequentially: verifying magnetic strength, testing sensor accuracy with standard metal samples, and measuring conveyor speeds against specifications. In 80% of cases, simple adjustments—like realigning a sensor or tightening a belt—restore performance.
Hydraulic shear issues typically involve pressure loss or blade misalignment. Pressure testing identifies leaks or pump problems, while visual inspection checks for blade wear or damage. Control system errors often require software resets or parameter adjustments, with remote diagnostic tools resolving 60-70% of issues without on-site technician visits.
Spare Parts Inventory Management
Maintaining a strategic spare parts inventory minimizes downtime during failures. Critical items—magnetic separator belts, shear blades, and hydraulic seals—should be kept on hand, with quantities based on replacement frequency and lead time. For example, facilities processing rebar-rich waste may stock 2-3 sets of shear blades, as these wear fastest.
Inventory optimization software tracks usage patterns, automatically generating reorder alerts when stock falls below predefined levels. This reduces inventory costs by 15-20% while ensuring parts are available when needed. Facilities that implement this approach reduce mean time to repair by 30-40% compared to those with disorganized inventory systems.
