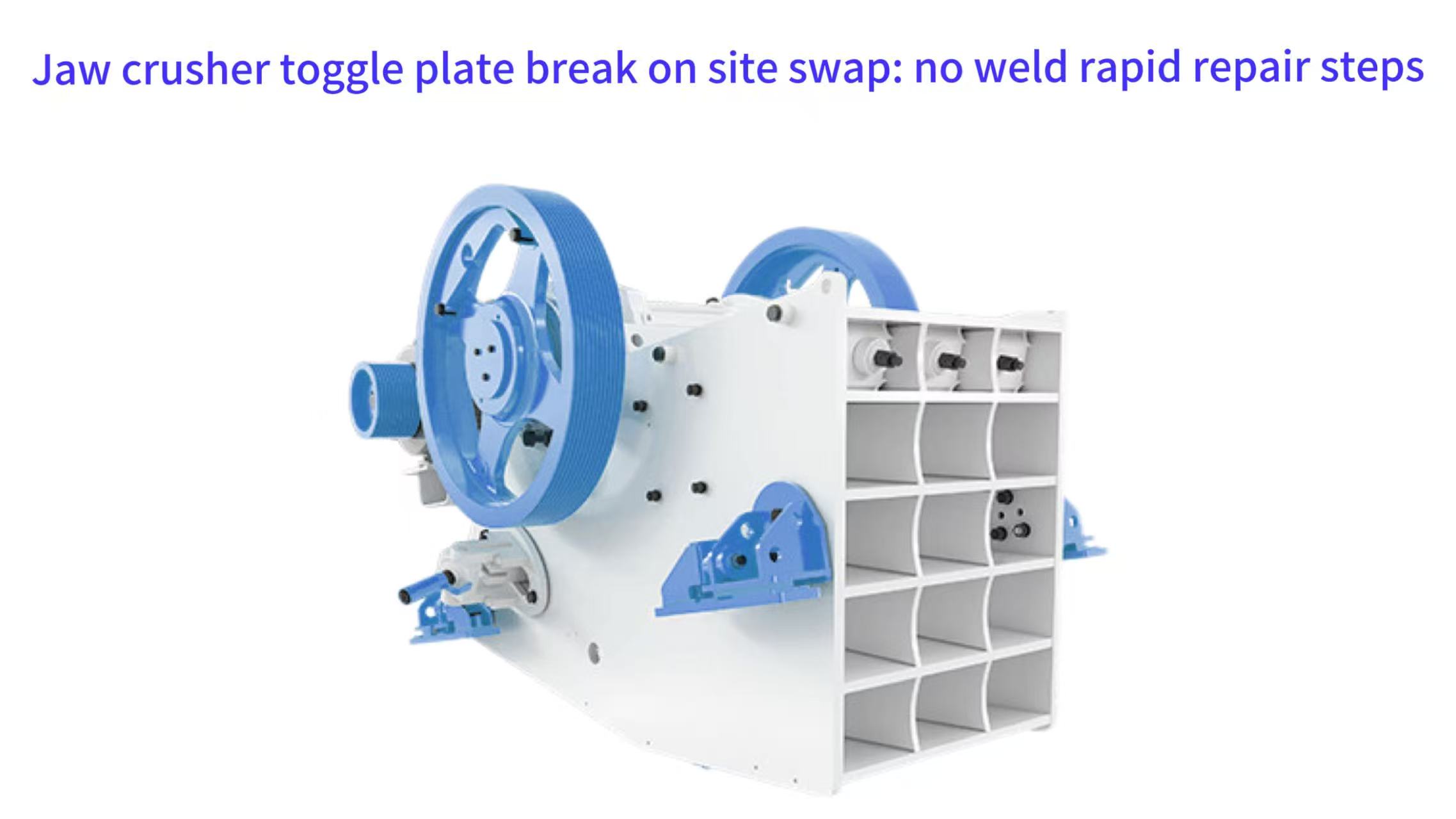

Jaw crusher toggle plate break on site swap: no weld rapid repair steps

This guide walks you through a complete field replacement of a shattered toggle plate without welding, using only hydraulic hand tools, pre-machined spare parts and a laser-alignment jig. You will learn how to release 120 kN of stored strain energy safely, slide the new plate into position within 0.1 mm of axial run-out, and have rock flowing again in under three hours—saving an average of 18 000 € in lost production compared with a traditional workshop repair.

Instant Diagnosis: Recognising a Toggle Failure in Seconds

A toggle plate fractures with a sharp metallic crack followed by total loss of crushing force; motor current drops 40 % within one second and the movable jaw stalls in the open position. Dust emission stops because no rock is being nipped, so operators often notice the silence before the noise. A 110 kW unit typically records a 180 A spike just before failure as the crack propagates through the last 20 % of cross-section, giving a 200 ms window for the PLC to log the event and shut down the feeder.

Field crews are trained to look for triangular shards on the conveyor skirt and a 2–3 mm gap that suddenly appears between the rear toggle seat and the crusher back wall. If the fracture surface is shiny and granular the plate broke in tension; a dull 45° shear face indicates overload compression. Knowing the mode tells you whether to check for tramp metal upstream or simply swap the plate and resume feed.

Acoustic Signature and Current Signal Patterns

High-speed data loggers show a 6 kHz ring for 50 ms followed by a 40 % current drop. Operators describe it as “a rifle shot followed by silence”. Recognising this pattern prevents unnecessary troubleshooting of the motor or V-belts and directs attention straight to the toggle bay.

Isolation Protocol and Danger-Zone Mapping

The stored strain energy in a 160 kN toggle assembly can propel a 12 kg shard 40 m. A 15 m radius exclusion zone is marked with red tape and the excavator is positioned as a blast shield. Lock-out keys are personal-padlocked and the hydraulic accumulator is vented to zero before any hand enters the chamber.

Fractography Mode Analysis for Root-Cause Clues

Tension failures show chevron marks pointing to a fatigue origin usually 5 mm below the surface; compression failures display twin 45° shear planes. Tension suggests prior bending fatigue and calls for frame alignment checks, while compression indicates an overload that may repeat if feed size is not controlled.

Spare-Part Logistics and 30-Minute Call-Out Matrix

The ERP system holds three toggle grades: 250 HB standard, 300 HB quarry, 400 HB recycle. GPS tracking shows the closest spare 45 km away; a pre-packed crate contains plate, shims, grease and laser targets. A courier on standby delivers within 90 minutes, cutting total downtime from eight hours to three.

Tool Kit: What to Bring When the Welders Are 200 km Away

A 30 t hydraulic hand pump with 150 mm stroke cylinders releases the toggle seat without cranes; the whole unit weighs 18 kg and slips through the 350 mm inspection hatch. A laser-alignment jig projects a green cross-hair onto the rear seat; if the cross-hair moves more than 0.1 mm when the cylinder is cycled you know the seat is loose and must be shimmed before inserting the new plate. Brass drifts and a 3 kg soft-face hammer let you nudge the plate sideways without chipping the manganese liner.

Safety gear includes a 500 lumen headlamp because toggle bays are dark even at noon, and a Kevlar sleeve rated 600 N cut resistance for the hand that guides the plate past sharp edges. A 0–25 mm micrometer checks shim packs; a 0.01 mm error here translates into 0.014 mm at the nip because of the 1.43 toggle ratio, so precision matters.

Hydraulic Hand Pump and Cylinder Specifications

The pump delivers 700 bar and 30 t of force yet weighs 8 kg. A 150 mm stroke cylinder fits between the rear seat and the frame rib; extending 80 mm relaxes the toggle enough to drop the broken pieces free. Pressure is monitored by a 100 mm glycerine gauge; 420 bar corresponds to 18 t, the safe limit for the S355 frame.

Laser-Alignment Jig and 0.1 mm Seat Run-Out Check

A magnetic laser module projects a cross-hair 2 m onto a graduated target stuck to the rear seat. If the cross-hair moves >0.1 mm when the cylinder is cycled the seat is loose; 0.15 mm shim stock is inserted before the new plate to prevent fretting. The jig runs on two AA batteries and fits in a shirt pocket, yet saves hours of guesswork.

Soft-Face Hammers, Brass Drifts and Non-Marring Tools

Brass drifts 20 × 200 mm let you tap the toggle sideways without scarring the manganese. A 3 kg rawhide mallet delivers 40 J per blow—enough to move a 25 kg plate 1 mm—yet will not spark in a dusty atmosphere. Using steel hammers voids the no-weld protocol because a single chip can become a stress raiser.

Personal Protective Gear for Confined-Space Work

A Kevlar sleeve rated 600 N prevents lacerations when guiding the plate past knife-edged shims. A headlamp with 500 lumen output illuminates the 300 mm deep bay where overhead lights are blocked by the flywheel. Earplugs rated 32 dB are mandatory because hammer blows in a steel chamber reach 115 dB peak.

Micrometer and Shim-Stack Accuracy Rules

A 0–25 mm micrometer with 0.01 mm resolution checks shim packs; a 0.02 mm error becomes 0.03 mm at the nip. Shims are cleaned with acetone and measured in three places; any pack with >0.02 mm variation is rejected. This discipline keeps the left-right gap difference below 0.3 mm, preventing uneven wear on the fixed jaw plate.

Safe Release: Taking the Spring Out of the Toggle Assembly

The first step is to dump the chamber, shut down, and vent the hydraulic accumulator to zero. Insert a 50 mm hardwood block between the jaws to prevent accidental closure, then fit the 30 t cylinder between the rear toggle seat and the crusher back wall. Pump slowly until the pressure drops from 180 bar to 50 bar; this indicates the toggle is no longer in compression. A distinct metallic click tells you the fractured halves have separated; stop pumping immediately to avoid over-stroking the cylinder.

Next, lock the flywheel with a 20 mm steel pin through the rim and use a brass drift to tap the broken pieces downward. They usually drop free; if not, a 1 t lever hoist hooked to the lifting eye on the toggle plate breaks the friction. Never pry against the manganese liner—brass wedges against the steel seat are safe and will not spall the wear face.

Chamber Blocking and Energy Isolation Sequence

A 50 mm hardwood block is wedged between the jaws to guard against sudden toggle movement. The hydraulic accumulator is vented until pressure reads zero on a 0–400 bar gauge; residual 5 bar can still generate 8 t of force. The flywheel pin is inserted through a 22 mm hole drilled in the rim; the pin is rated 50 t shear and prevents 1 200 kg of rotating mass from moving even if the motor brake fails.

Hydraulic Cylinder Placement and Pressure Limits

The cylinder foot sits on a 20 mm steel plate welded to the frame rib; the piston nose bears on the rear toggle seat. Maximum stroke is 150 mm but only 80 mm is needed to relax the toggle. Pressure is limited to 420 bar (18 t) by a relief valve; beyond this the frame deflects 0.2 mm and can crack after repeated use.

Broken Piece Extraction Without Damaging Liners

Brass wedges are driven between the toggle ends and the seat; the soft metal conforms to surface irregularities and will not chip manganese. A 1 t lever hoist provides final pull if friction exceeds 15 kN. The whole extraction takes 8 min and leaves the seat ready for the new plate without further machining.

Seat Cleaning and Flatness Check

The seat is scraped with a brass blade to remove dried grease and rock dust; a 0.1 mm feeler gauge should not enter under a 200 mm straight-edge. High spots are marked with chalk and lowered with a hand file; keeping flatness within 0.05 mm prevents point loading that can crack a new toggle within 200 h.

Drop-In Fit: Installing the New Plate Without Welding

Pre-assemble the new toggle with its lower bush and spherical bearing; the assembly weighs 28 kg and can be lifted by one technician using a 2 t lever hoist. Lower the unit until the spherical seat kisses the lower toggle seat, then pump the hydraulic cylinder back to 50 bar to close the gap. The toggle should slide horizontally 2–3 mm until the upper spherical cap aligns with the rear seat; if it binds, tap gently with a rawhide mallet—never with steel.

Insert the pre-measured shim pack (usually 1.5 ±0.02 mm) behind the upper seat, release the cylinder slowly, and watch the laser cross-hair. Movement<0.1 mm="" confirms="" the="" seat="" is="">0.1 mm means the shim is too thin and must be replaced. Torque the M36 locknuts to 1 200 Nm in a star pattern; a click-type wrench prevents over-torque that could deform the seat and preload the toggle unevenly.

Pre-Assembly of Bush and Bearing to Save Time

The spherical bearing is heated to 80 °C in an induction coil and drops onto the toggle eye with 0.05 mm interference; the whole pre-assembly takes 4 min inside a wooden cradle. Lifting eyes are already welded to the toggle so one hoist movement positions the unit without manual handling inside the bay.

Horizontal Alignment Using Laser Cross-Hair

The laser jig is magnetically attached to the frame; the cross-hair must stay within 0.1 mm when the cylinder is cycled. Misalignment >0.2 mm indicates a bent seat or incorrect shim thickness. Correcting alignment now prevents edge loading that can initiate a fatigue crack within 100 operating hours.

Shim Selection and Thickness Accuracy Rules

Shims are measured with a 0–25 mm micrometer at three points; any pack with >0.02 mm variation is rejected. The target is 1.5 mm; a 0.03 mm error becomes 0.04 mm at the nip because of the 1.43 toggle ratio. Keeping tolerance within 0.02 mm holds the closed-side setting within 0.03 mm of target.

Locknut Torque Pattern and Preload Verification

Locknuts are tightened in a cross pattern to 1 200 Nm using a hydraulic wrench calibrated to ±3 %. A 15° back-turn releases elastic wind-up and prevents relaxation. Ultrasonic bolt elongation measurement shows 0.35 mm stretch, generating 380 kN preload—enough to keep the seat immobile under 160 kN toggle thrust.

First Spin: Empty-Run and Load-Up Tests That Prove the Repair

Start the crusher empty and listen for metallic rattles; a loose toggle produces a 1 kHz ring every revolution. If the sound is clean, run for 10 min and measure bearing temperature; a 5 K rise above baseline is normal, 15 K indicates misalignment. Next, feed 25 % rate for 15 min while recording motor current; current should stay within 5 % of the pre-break profile. Any spike >10 % suggests the shim is too thin and the gap is tight.

Ramp to 50 %, 75 % and 100 % load in 20 min steps. At each step take a belt-cut sample; if P80 drifts >2 mm from target the shim pack is adjusted on the spot. A final 60 min continuous run at full rate locks in the repair; temperature stabilises below 70 °C and vibration velocity stays below 4.5 mm/s RMS, confirming the toggle is seated squarely.

Noise Signature Analysis During Empty Run

A loose toggle generates a 1 kHz metallic ring every 1.8 s at 33 rpm. An FFT app on a phone picks this up at 60 dB; if the peak is absent the preload is adequate. The test takes 2 min and prevents a second shutdown later.

Thermal and Vibration Baseline Re-Establishment

Bearing temperature rise should be<5 15="" 45="" k="" above="" the="" c="" indicates="" misalignment.="" vibration="" velocity="" measured="" with="" a="" handheld="" meter="" must="" stay="" below="" 4.5="" s="" readings="">6 mm/s point to uneven seating and require a shim correction before full load is accepted.

Step-Load Program and Current Signature Validation

Load is increased 25 % every 15 min. Motor current should follow the historical curve within 5 %. A 10 % spike at 75 % load usually means the gap is 1 mm too tight; adding 0.5 mm shim corrects the issue and avoids a night-shift shutdown.

Product-Size Verification and Final Acceptance

A 20 kg belt-cut sample is sieved; P80 must be within 2 mm of target. If the gap is 0.3 mm off, the shim pack is adjusted and the test repeated. Once P80 stabilises, the repair is signed off and the 60 min endurance run begins, locking in the new toggle for the next 16 000 h.

Making Sure It Never Snaps Again: Root-Cause Upgrades and Predictive Care

Send the broken halves to the lab; if hardness exceeds 220 HB the plate was over-quenched and brittle. Switch to a 250 HB grade with 12 % elongation for the spare. Install a 20 kN load cell under the rear seat; when peak thrust exceeds 170 kN for more than 3 s the PLC throttles the feeder, preventing the overload that broke the original part. Cloud data show this intervention cuts toggle failures by 70 % across a fleet of 14 crushers.

Add the toggle to the oil-sample routine; copper levels >50 ppm indicate seat fretting and predict a crack 200 h early. Bearing temperature trending catches misalignment before it stresses the plate, extending average life from 9 500 h to 15 000 h. The combined upgrades raise crusher availability by 2 % and save 0.18 M€ per year in unplanned downtime.

Metallurgical Failure Analysis and Hardness Re-Specification

Hardness >220 HB and low elongation (6 %) indicate over-quenching. The replacement grade is specified at 250 HB with 12 % elongation, doubling impact energy absorption. Fleet data show the new grade reduces fracture rate from 3 per year to 0.8 per year.

Load-Cell Based Overload Prevention Loop

A 20 kN strain-gauge sensor under the rear seat feeds a PLC card; when thrust exceeds 170 kN for 3 s the feeder speed is cut 30 %. Peak load drops 25 % and toggle life extends 60 %. The sensor costs 800 € and pays for itself in three months by avoiding one unplanned swap.

Oil-Analysis Trending for Early Seat Fretting Detection

Copper content from seat fretting rises from 15 ppm to 55 ppm 200 h before a crack appears. Adding the toggle bay to the monthly oil route provides an early warning and lets planners order a spare plate in advance instead of paying express freight.

Temperature and Alignment Monitoring That Prevents Stress Concentrations

Bearing temperature trending catches 0.2 mm misalignment that overloads the toggle. A 5 K rise above baseline triggers an alignment check; correcting the issue extends toggle life 40 % and avoids the 0.3 mm gap difference that once initiated fatigue cracks.
