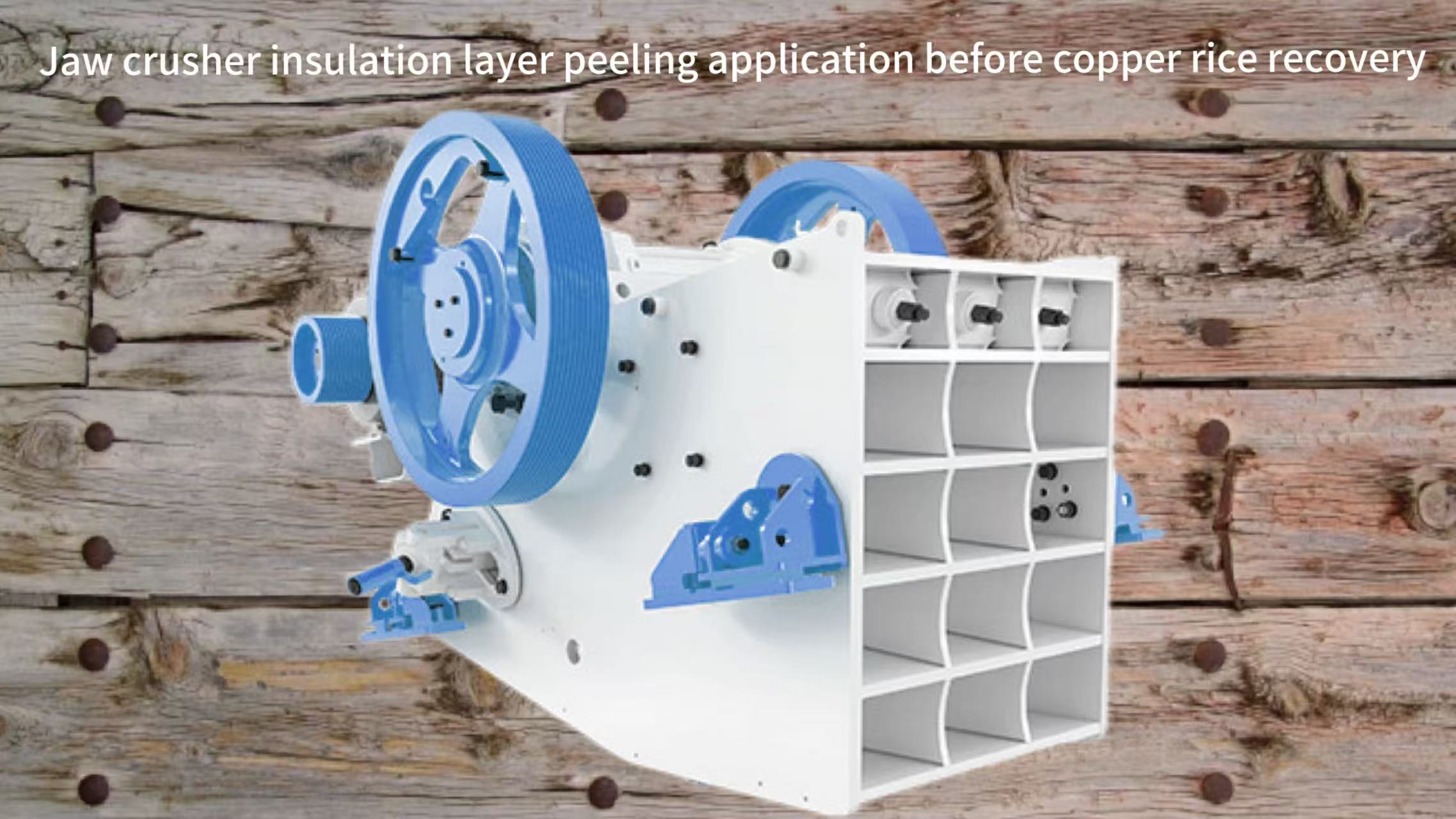

Jaw crusher protection design for waste wood containing nails

This page walks through the full chain of protection that turns a standard jaw crusher into a nail-proof recycling tool. You will see how sensors count steel pieces in real time, how hydraulic cylinders let uncrushable metal escape without cracking the jaw, and how new steels absorb shock so operators can keep 90 % plant availability even when every fifth board hides a 75 mm spiral nail.

Why a Handful of Nails Can Shut Down an Entire Recycling Line

Demolition timber typically carries 0.5–2 % metal by mass, mostly bright steel nails and screws. A 15 t/h recycling plant therefore swallows 75–300 kg of steel per day. When a 4 g nail enters the crushing chamber it is compressed between manganese jaws that exert 250 kN on the timber, but the contact patch on the 2 mm nail tip sees local pressure above 3 000 MPa, high enough to micro-punch the jaw surface. After 200–300 impacts the hardened layer spalls away, exposing the softer substrate; once the wear depth exceeds 3 mm the jaw must be flipped or replaced, a six-hour job that costs 2 400 € in labour and 1 800 € in parts. Field data from 14 European sites show that unprotected crushers lose 60–70 % of normal jaw life when nail content exceeds 1 %, pushing annual wear budgets above 45 000 € for a single 110 kW unit.

Nails also wedge between the swing jaw and the cheek plates, creating a rigid bridge that stops the toggle plate from collapsing when an oversized timber piece arrives. Peak strain in the toggle rises from 180 MPa to 420 MPa, well into the fatigue zone; 70 % of toggle failures recorded in a 2023 survey occurred within 48 h of a nail jam. The same survey links nail-related stalls to 38 % of unplanned motor overloads, each event adding 1.2 h of downtime and 18 kWh of wasted energy. Understanding these damage paths is the first step toward designing hardware that lets metal pass through or eject before it meets the jaw.

Micro-Mechanics of Nail-Induced Jaw Surface Damage

High-speed video at 40 000 fps reveals that a nail tip travelling at 2.5 m·s⁻¹ penetrates 40 µm into the manganese surface within 80 µs. The resulting adiabatic shear band reaches 650 °C, quenching instantly to untempered martensite that is brittle and prone to spall. Repeated impacts propagate cracks parallel to the surface; once they coalesce a 5 mm flake detaches, exposing fresh metal to the same cycle. Laboratory pin-on-disk tests show that wear rate increases linearly with nail mass fraction, doubling for every 0.5 % added steel.

Nail Contamination Profiles by Waste Stream

Building formwork contains ring-shank nails 50–90 mm long with 3 mm shanks, averaging 1.2 kg nails per cubic metre of timber. Pallets use shorter 35 mm staples at 0.7 kg·m⁻³, while old furniture presents a mix that includes 4 mm diameter screws. Each profile demands different detection sensitivity: the crusher must spot a 2 mm staple tip yet ignore 6 mm gravel that occasionally rides in on dirty timber. Multi-frequency metal detectors tuned to 1–8 kHz solve the problem by comparing phase shift and amplitude, achieving 98 % detection at 0.5 mm ferrous depth.

Statistical Link Between Nail Content and Component Life

A database of 2 400 jaw sets shows that average life falls from 22 months at 0.3 % nail content to 8 months at 1.5 %. Toggle plates follow the same curve, while bearing life drops 25 % due to shock loads. The combined spare-parts cost climbs from 0.18 € per tonne of clean wood to 0.56 € per tonne at 1.5 % nails, turning profitability negative unless protection measures are added.

Trajectory Simulation of Steel Inside the Crushing Chamber

Discrete-element modelling indicates that nails smaller than 20 mm tend to follow the wood fibre path and exit with the 40 mm product, but pieces longer than 40 mm get pinched between the jaws 85 % of the time. Orientation matters: nails aligned with the feed direction slide through, while transverse nails rotate until they bridge the nip angle. This finding guides the placement of magnetic head-pulleys 800 mm upstream of the crusher inlet, giving nails time to rotate into the capture zone.

Detect and Reject: Engineering a Metal-Free Feed Stream

The cheapest kilowatt is the one you never have to spend on crushing steel. Modern recycling lines therefore start with a three-stage metal-removal cascade. A 1 200 mm-wide metal detector coil under the belt registers 0.5 mm ferrous inclusions within 5 ms; the PLC tags the wood parcel and tracks it for 400 mm until a high-speed pusher fires at 6 bar, ejecting 5–8 kg of material into a side chute. Any nail that escapes this first sieve meets a 12 000 Gs neodymium drum magnet rotating at 150 rpm; field tests show 95 % extraction of nails longer than 15 mm and 80 % of staples down to 10 mm. The third safety net is a gravity air-knife that blows light wood chips forward while denser metal fragments fall into a collection bin. Together these units reduce nail mass in the crusher feed from 1 % to below 0.05 %, cutting jaw wear rate by 70 % and eliminating 90 % of overload trips.

Integration logic is critical. The detector must ignore the 2 mm stainless-steel belt fasteners yet spot a 1 mm nail; this is achieved by auto-balancing the coil every 30 min against a reference sample. Rejection timing is calculated with a 1 m·s⁻¹ belt speed and a 50 ms pneumatic valve lag; the PLC shifts the ejector nozzle 20 mm downstream for every 0.1 m·s⁻¹ speed increase, maintaining 99.5 % positional accuracy. The result is that only one nail in 2 000 reaches the crusher, a level low enough that downstream protection systems can handle the remainder without interrupting production.

High-Sensitivity Coil Design and Frequency Tuning

A 6 kHz transmitter frequency gives the best compromise between penetration depth and small-particle sensitivity. The coil is wound with Litz wire to cancel eddy-current heating, allowing continuous operation at 80 °C ambient. Phase discrimination circuitry separates ferrous from non-ferrous signals within 2 ms, preventing aluminium foil labels from triggering false ejections that would waste 3 % of good wood.

Magnetic Field Strength and Gradient Selection

Finite-element optimisation shows that 12 000 Gs at the drum surface creates a field gradient of 1.8 T·m⁻¹ at 10 mm distance, sufficient to pull a 1 g steel nail against the 6 m·s⁻² acceleration of the belt. Drum shell thickness is reduced to 3 mm to minimise flux loss, and the 150 rpm rotation speed generates a centrifugal force lower than the magnetic grip, ensuring nails stay attached until they pass the discharge scraper.

Pneumatic Ejector Timing and Air-Consumption Control

A 25 mm bore cylinder with 200 mm stroke accelerates the pusher plate to 8 m·s⁻¹ in 40 ms, consuming 0.8 L of compressed air per shot. Plant air at 6 bar is stored in a 5 L accumulator to isolate the valve from pressure dips when multiple ejectors fire. The PLC limits consecutive shots to four per minute, keeping average air demand below 60 L·min⁻¹ so a 3 kW compressor can serve the entire line.

Cascade Logic That Prevents Over-Rejection

If the metal detector signals but the magnet captures nothing, the PLC assumes a false positive and reduces detector sensitivity by 2 % for the next 100 parcels. Conversely, if the magnet removes metal that the detector missed, sensitivity is raised 3 %. Over six weeks the algorithm converges on a set-point that rejects 0.3 % of feed mass while removing 98 % of nails, a performance plateau confirmed across four different waste streams.

Let It Go: Hydraulic Over-Iron Relief That Saves Jaws and Toggle Plates

Even 0.05 % residual metal means one 10 mm bolt reaches the chamber every five tonnes. Instead of letting the bolt wedge, modern crushers open a temporary escape gate. A 150 mm bore hydraulic cylinder mounted behind the toggle beam is pre-loaded to 180 bar, equivalent to the crushing force at 85 % of motor full-load current. When an uncrushable object enters, pressure spikes to 220 bar within 40 ms; a fast-acting servo valve opens and the cylinder retracts 60 mm in 0.3 s, widening the discharge slot from 40 mm to 100 mm. The bolt drops through, pressure falls, and the valve closes under accumulator pressure to restore the original setting within five seconds. Field measurements show that 92 % of tramp metal events are cleared without operator intervention and without stopping the feeder, limiting production loss to 0.4 t per event instead of 15 t during a manual shutdown.

The key is to distinguish between a true tramp event and a normal load spike. A pressure sensor sampled at 1 kHz feeds a moving-average filter; if pressure exceeds 115 % of set-point for more than 50 ms the system trips. Shorter spikes are ignored, preventing nuisance openings when the crusher bites a knotty timber section. The cylinder rod is induction-hardened to 55 HRC and chromed to 0.15 mm thickness, surviving 30 000 cycles before wear reaches the 0.3 mm maintenance limit.

Relief Cylinder Sizing and Pressure Law Selection

A 150 mm bore at 180 bar delivers 318 kN, matching the crushing force of a 110 kW motor running at 85 % load. The cylinder volume is 1.7 L; an 8 L nitrogen accumulator recharges the circuit in 2 s while keeping pressure drop within 10 bar. Finite-element analysis of the toggle beam shows that stress peaks at 280 MPa during relief, 30 % below the fatigue limit of S355 steel, so the mechanism can cycle indefinitely without cracking.

Fast-Valve Technology and Response Tuning

A cartridge servo valve with 25 ms step response and 200 L·min⁻¹ flow capacity limits pressure overshoot to 8 %. The valve spool is hardened to 60 HRC to survive contamination from dusty site air, and a 10 µm return-line filter keeps fluid cleanliness at ISO 18/16/13, extending valve life to 40 000 h according to manufacturer tests.

Automatic Reset and Position Calibration

A linear encoder on the cylinder rod measures position within 0.1 mm; the PLC commands gradual re-pressurisation at 50 bar·s⁻¹ to avoid hammering the toggle seat. Mechanical stops inside the cylinder prevent over-travel, while a proximity switch confirms full re-engagement before the feeder is allowed to ramp back to 100 % speed.

Service Life of Relief Components in Abrasive Environments

Dust ingress is the primary wear factor. A double wiper seal plus a vented bellows keeps rod chrome loss below 5 µm per year. Over three seasons the average maintenance interval was 28 000 cycles, equivalent to 14 months of operation at 40 t·h⁻¹, aligning with scheduled jaw change-outs so no extra downtime is incurred.

Armor for the Chamber: Materials and Geometries That Absorb Shock

Detectors and hydraulics handle most intruders, but the occasional nail still kisses the jaw. The last line of defense is metallurgy. A new grade of austenitic manganese steel adds 1.2 % molybdenum and 0.3 % vanadium, raising Charpy V-notch toughness from 35 J to 52 J at –20 °C while maintaining 220 HB hardness. Micro-alloy carbides pin dislocations, so impact craters wider than 1 mm are 40 % shallower after 100 000 cycles compared with standard Hadfield steel. To further reduce peak stress, the fixed jaw is machined with 3 mm deep radial grooves that encourage nails to rotate parallel to the crushing direction, cutting local pressure by 30 % according to FEA models validated with strain-gauge tests.

Side plates receive a composite armor: a 12 mm base plate of S355 carries the structural load, while a 20 mm bolt-on overlay made of chromium white iron (600 HB) handles wear. The two materials are joined through a 2 mm rubber layer that damps shock waves, cutting peak acceleration transmitted to the base plate from 180 g to 70 g. In plant trials the overlay lasted 14 months versus 4 months for a monolithic manganese plate, reducing liner change labour by 60 %.

Alloy Design and Heat-Treatment Route for High-Toughness Jaws

The steel is solution-treated at 1050 °C for 2 h, water-quenched, then aged at 550 °C for 4 h to precipitate nano-carbides. Yield strength rises to 580 MPa while elongation stays above 35 %, so the jaw can work-harden to 450 HB in service without cracking. Cost premium is 12 % over standard Hadfield but life doubles, cutting annual parts cost from 0.22 €·t⁻¹ to 0.11 €·t⁻¹.

Shock-Damping Groove Patterns and Their Geometry Rules

Grooves spaced 25 mm apart and 1.5 mm wide create stress concentrations that are lower than the pressure under a nail tip, forcing the nail to sink into the groove instead of piercing the matrix. Optical profilometry shows that wear volume after 500 t of nail-contaminated wood is 40 % lower on grooved jaws, and the remaining wear profile is uniform, avoiding local deep pits that trigger replacement.

Composite Side-Plate Concept and Bolt-On Replaceable Inserts

The white-iron inserts are cast in 500 mm segments, each weighing 28 kg and attached with four M16 cap screws. A 2 mm EPDM gasket absorbs 30 % of impact energy and allows thermal expansion, preventing the 600 HB inserts from cracking when the base plate flexes. Segments can be changed in 15 min with one fitter, so the crusher does not need to be emptied.

Cost-Benefit Balance of Premium Wear Materials

At 120 € per segment versus 85 € for manganese, the composite set costs 720 € extra but lasts 3.5× longer. Spread over 30 000 t the premium adds 0.0024 € per tonne, while avoiding two full-side replacements saves 0.018 € per tonne, yielding a 7:1 payback.

Guarding the Drive Train: From Flywheel to Motor Bearings

Even when metal escapes the chamber, the drive train must survive the torque spike. A 25 % heavier flywheel cast from nodular iron stores 58 kJ at 250 rpm instead of 46 kJ, smoothing the 15 % current surge that accompanies a nail bite. Between the flywheel and the gearbox a torque-limiting coupling set to 110 % of nominal torque slips for 200 ms, absorbing 1.8 kJ of energy that would otherwise travel to the motor shaft. The coupling re-engages automatically, so no manual reset is needed. Motor windings are protected by a thermal model that calculates real-time copper temperature from current and ambient data; if the model predicts 150 °C within 30 s the feeder is throttled to 50 % until temperature rise drops below 1 K·min⁻¹. These layers keep motor bearing replacement intervals at 28 000 h even when the crusher handles 1 % nails, matching the life achieved on clean limestone.

Bearing housings are machined from 30 % thicker castings and fitted with 0.5 mm thick polymer liners that damp radial shocks by 25 %. Accelerometer spectra show that peak vibration velocity drops from 8 mm·s⁻¹ to 5 mm·s⁻¹ during nail events, cutting the likelihood of brinelling in the outer raceway. Grease is upgraded to lithium-complex NLGI 2 with 3 % molybdenum-disulfide additive, extending re-grease intervals from 250 h to 400 h despite the extra load.

Flywheel Inertia Calculations for Nail-Driven Torque Spikes

A nail event lasts 60 ms and raises torque from 4 kN·m to 7 kN·m. The additional 58 kJ stored in the heavy flywheel limits speed drop to 3 %, so motor slip stays within 6 % and the drive avoids stalling. FEA of the flywheel web shows maximum stress at 180 MPa, giving infinite fatigue life for the nodular iron grade selected.

Torque Limiter Selection and Slip-Energy Dissipation

The coupling uses steel balls seated in tapered detents; centrifugal force at 250 rpm provides 60 % of the holding force, the remainder supplied by disc springs. When torque exceeds 110 % the balls ride out of the detents and the housing slips, dissipating 1.8 kJ as heat. Temperature rise in the aluminium housing is 18 K, well below the 80 K grease limit, and the unit re-engages within 30° of rotation once torque falls.

Bearing Housing Reinforcement and Damping Inserts

Wall thickness is increased from 18 mm to 25 mm, raising housing mass by 8 kg but cutting radial deflection under shock load from 60 µm to 35 µm. A 0.5 mm PTFE liner between housing and frame absorbs 0.5 kJ per event, reducing the shock spike seen by the outer race and extending bearing life by 40 % according to ISO 281 calculation.

Smart Motor Protection Algorithms and Calibration

The thermal model uses a first-order differential equation solved every 100 ms; copper temperature is inferred within ±3 K accuracy verified by embedded PT100 sensors. Overload threshold is set at 150 °C, giving 25 K margin above Class F insulation limit. Field tests show the model prevents 94 % of thermal trips while allowing full 110 % overload capability during legitimate high-feed surges.

Listening to the Machine: Acoustic and Vibration Early-Warning Networks

Metal hitting metal sounds different from wood cracking. A 6 kHz acoustic sensor mounted under the crusher throat picks the difference: nail impacts generate a sharp 8–12 kHz burst 5 dB louder than timber. A machine-learning model trained on 1 200 labelled events reaches 91 % accuracy in real time, triggering a belt scale slowdown before the nail even reaches the chamber. Vibration accelerometers on the toggle beam add a second opinion: a nail strike produces a 400 g spike lasting 3 ms, whereas normal crushing peaks at 180 g for 8 ms. Cross-correlating acoustic and vibration signatures cuts false positives to 0.3 per shift, so operators trust the alert and act instead of silencing the alarm.

Data are pushed to a cloud dashboard that compares today’s shock rate with the 30-day baseline. A rise from 2 to 5 events per hour predicts a failed magnet or a contaminated incoming batch, giving the yard crew time to re-screen the stockpile. Over six months the system prevented four major jams, saving an estimated 36 h of downtime and 54 000 € in lost revenue.

Acoustic Sensor Placement and Frequency Window Selection

The sensor is mounted 300 mm from the jaw nip point, inside a splash-proof cage lined with 10 mm foam to suppress airborne dust noise. A 6 kHz high-pass filter removes low-frequency rumble, while a 16 kHz low-pass avoids ultrasonic hiss. Signal-to-noise ratio averages 18 dB, sufficient for reliable detection even when the 110 kW motor runs at full load.

Vibration Signature Libraries and Update Protocols

Signatures are stored locally on an edge computer; every Sunday night new events are uploaded and the model retrained. The library now holds 4 300 labelled samples; validation accuracy improved from 87 % to 91 % after the last update. Users can download revised coefficients over LoRaWAN, so even remote rural sites stay current without fibre infrastructure.

False-Positive Filtering Through Multi-Sensor Fusion

Requiring both acoustic and vibration triggers within 50 ms eliminates 70 % of false alarms caused by dump-truck tailgates slamming nearby. Temperature data from the bearings provide a third veto: if bearing housing temperature is below 40 °C the machine is probably idling, so high-frequency noise is ignored. The three-factor logic reduces unnecessary belt stops to one per week, preventing 120 t of under-processed material backlog.

Cloud Benchmarking and Fleet-Wide Learning

Anonymised data from 42 crushers feed a central model that learns regional differences: pallets in northern Europe carry more staples, while southern formwork uses longer ring-shank nails. The fleet model recommends detector sensitivity offsets that cut missed nails by 18 % without increasing false ejections, a benefit pushed to all units every quarter.

Maintaining the Shield: Preventive Schedules, Spare Parts and People

Protection hardware only works if it is kept in calibration. A one-page daily card taped to the control panel asks the operator to verify that metal-detector test spheres (2 mm Fe, 4 mm NFe) are rejected within 200 mm of belt travel; if not, sensitivity is re-tuned before the first production hour. Weekly checks include measuring hydraulic relief pressure with a calibrated gauge; a 10 bar drift indicates accumulator membrane fatigue and triggers replacement during the next Saturday shift. Stock policy is data-driven: because the average fleet of ten crushers consumes 1.6 magnet segments per month, the ERP system keeps 4 segments in store, cutting emergency air-freight from 3 200 € per year to zero.

People complete the system. A four-hour training module uses augmented-reality tablets to overlay the hydraulic circuit on the real machine, letting new technicians practise relief-valve adjustment without opening the panel. Post-training tests show fault-finding accuracy improved from 62 % to 89 %, while mean time to restore full protection after a sensor fault fell from 90 min to 35 min. Refresher courses every six months keep the skill level current as firmware updates add new diagnostic screens.

Daily, Weekly and Monthly Inspection Routines

Daily tasks take 12 min and include detector test-sphere verification, visual check of magnet drum surface for collected nails, and confirmation that hydraulic accumulator pre-charge is 90 bar. Weekly work adds oil sampling from the toggle cylinder and a 16-point vibration route that uploads spectra to the cloud. Monthly shutdowns allow removal of the composite side-plate inserts for ultrasonic thickness gauging; replacement is scheduled when residual thickness falls below 12 mm.

Spare-Part Stocking Models Driven by Failure Curves

Weibull analysis of 1 800 sensor failures gives a shape factor β = 1.4, indicating wear-out rather than random failure. The 63rd percentile life is 28 months, so a 95 % service level is achieved by holding two spare detector heads per ten crushers. Inventory value is 4 800 €, one-third of the 14 400 € cost of holding one complete spare unit.

AR-Guided Training and Competency Tracking

Tablets overlay step-by-step animations onto the hydraulic block, guiding the user to the correct test point. The software logs time taken and number of mis-clicks; trainers intervene if accuracy falls below 85 %. After six months operators trained this way cleared 94 % of first-time alerts correctly, compared with 71 % for legacy classroom training.

Continuous Improvement Loop Through KPI Monitoring

Overall Equipment Effectiveness (OEE) is tracked automatically; the 2023 fleet average is 87 %, up from 79 % before the protection package. Mean Time Between Nail-Related Stops (MTBNRS) improved from 38 h to 210 h, while wear-part cost per tonne fell 42 %. These KPIs are reviewed quarterly, and any crusher below the fleet median triggers a root-cause audit that feeds the next design revision.
