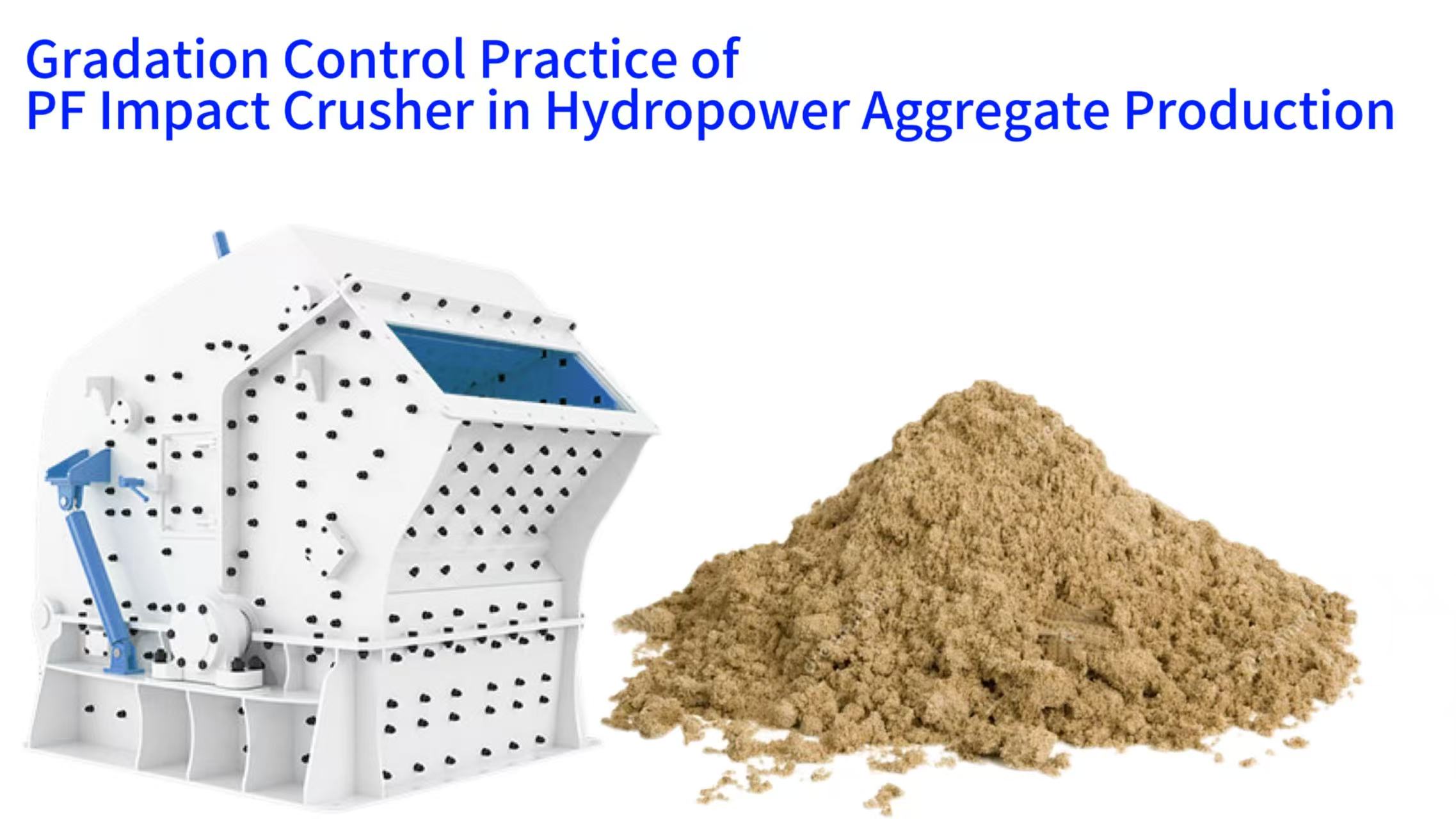

Gradation Control Practice of PF Impact Crusher in Hydropower Aggregate Production

This article provides a comprehensive overview of gradation control methodologies for PF Impact Crushers within the specific context of hydropower project aggregate production. It examines the stringent quality requirements for hydropower concrete, details the operational mechanisms of the PF crusher that influence particle size distribution, and outlines robust monitoring and control systems. The discussion extends to practical optimization strategies, common problem-solving, and the emerging role of intelligent control technologies in ensuring consistent, specification-compliant aggregate.

Special Requirements for Aggregate Gradation in Hydropower Projects

Hydropower engineering imposes exceptionally strict requirements on aggregate gradation due to the massive scale and critical nature of the structures, such as dams and powerhouses. The concrete used must possess high strength, durability, and volume stability to withstand immense hydraulic pressures, freeze-thaw cycles, and chemical erosion over decades of service. The particle size distribution of the aggregate is a fundamental factor directly influencing the workability, density, and ultimate performance of this concrete.

Unlike standard construction projects, hydropower specifications demand not only a specific gradation band but also exceptional consistency over the entire production period. A single batch of off-spec aggregate can compromise large concrete pours, leading to potential structural weaknesses and significant financial losses. The quality control regime is therefore rigorous and continuous, ensuring every truckload of aggregate meets the precise engineering design.

Standards and Specifications for Hydraulic Concrete Gradation

International and national standards, such as those from ASTM or specific project specifications, define strict envelopes for both coarse and fine aggregate gradation. For coarse aggregate produced by a primary crusher like the PF impact crusher, these standards typically specify the permissible percentage of material passing through a series of sieve sizes. The target is a well-balanced, continuous gradation that minimizes voids and reduces the cement paste requirement without sacrificing workability.

The specifications often separate coarse aggregate into multiple size fractions, for instance, 40-20mm, 20-10mm, and 10-5mm. The PF crusher's output must be effectively screened into these fractions, and the final concrete mix is a precise blend of them. Any deviation in the crusher's product gradation can disrupt this blending process and alter the concrete's properties.

Gradation Variations for Different Project Components

The required aggregate gradation is not uniform across all parts of a hydropower facility. The mass concrete used in the dam core, for example, often utilizes larger maximum aggregate sizes to reduce heat generation during cement hydration. This requires the PF crusher to be set to produce a coarser product. Conversely, concrete for tunnel linings or spillways may require a denser, finer gradation for improved surface finish and erosion resistance.

These varying demands necessitate a flexible and well-understood crushing operation. Plant managers must be able to adjust the PF crusher's parameters reliably to switch between producing different gradation curves to supply multiple concurrent construction activities on a large hydropower site.

Impact of Gradation Fluctuations on Concrete Performance

Fluctuations in aggregate gradation have a direct and measurable impact on the properties of fresh and hardened concrete. A mix with an excess of fine particles will have a larger total surface area, requiring more water to achieve the same workability, which can lead to lower final strength and increased shrinkage cracking. Conversely, a mix that is too coarse may become harsh and unworkable, leading to poor consolidation and honeycombing in the structure.

The durability of the concrete is also at stake. An improperly graded aggregate can create a more porous concrete matrix, allowing for easier penetration of water and deleterious chemicals, which accelerates deterioration. Consistent gradation from the PF Impact Crusher is therefore not just a quality metric but a crucial contributor to the long-term structural integrity of the hydropower project.

Quality Inspection and Acceptance Criteria

The quality assurance protocol for hydropower aggregate involves frequent and systematic sampling and testing. Representative samples are taken from the production line at defined intervals, often multiple times per shift. These samples are then dried, sieved through a standard set of screens, and weighed to determine the gradation curve.

Acceptance criteria are typically based on statistical analysis. The producer must demonstrate that the gradation consistently falls within the specified limits. A common requirement is that a certain percentage of test results, for example, 90 out of 100, must be within the tolerance bands. This statistical approach ensures the overall process is under control, rather than just punishing single, out-of-spec batches.

Gradation Adjustment Principles and Mechanisms of the PF Impact Crusher

The PF Impact Crusher controls the size of its output product through several interconnected mechanical adjustments. The fundamental breaking action occurs when the feed material is struck by the high-speed hammers on the rotor and is then flung against the impact plates. The final product size is determined by the energy of impact and the clearance between the rotating hammers and the impact plates at the point where the material exits the crushing chamber.

Understanding these adjustment mechanisms is the first step toward proactive gradation control. Operators cannot simply set the crusher and forget it; they must continuously monitor its output and make precise adjustments to compensate for changes in feed material or to target a different product specification.

Influence of Rotor Speed on Crushing Effect

The rotational speed of the crusher's rotor is a primary factor influencing the aggregate's final shape and size distribution. A higher rotor speed imparts more kinetic energy to the feed material, resulting in a greater degree of fragmentation and typically a finer product. The increased impact force can shatter rocks more completely, often producing a higher proportion of cubical particles, which is desirable for concrete workability.

Conversely, a lower rotor speed yields a coarser product with a potentially higher percentage of flaky particles. While adjusting rotor speed via sheave changes or variable frequency drives is powerful, it is often a coarse adjustment done during major product changes. For fine-tuning gradation, other methods are typically preferred due to the mechanical complexity of altering rotor speed.

Adjustment of Impact Plate Gap and Gradation Control

The most direct and commonly used method for controlling the top size of the product from a PF crusher is adjusting the gap between the impact plate and the hammer path. This is achieved through a mechanical adjustment system that moves the impact rack closer to or further from the rotor. A smaller gap results in a finer product, as the material must be broken into smaller pieces to pass through the restricted opening.

This gap setting has a strong correlation with the maximum particle size in the discharge. However, it's important to note that changing this gap affects the entire gradation curve, not just the top size. A smaller gap typically produces a more well-graded product but may reduce the crusher's throughput capacity and increase wear on the blow bars and impact plates.

Feed Characteristics and Gradation Stability

The properties of the feed material are the most significant variable affecting the stability of the crusher's output gradation. Variations in the feed's size distribution, hardness, abrasiveness, and moisture content will all cause the product gradation to shift. For instance, an increase in the proportion of fine material in the feed can cushion the crushing impact, leading to a coarser discharge.

Maintaining a consistent, well-blended feed is therefore paramount for stable gradation. This often involves using a regulated feeder and ensuring the primary shot rock is properly sized before it reaches the PF crusher. A consistent feed size allows the crusher to operate at a steady state, producing a predictable and consistent product.

Crushing Chamber Design and Gradation Optimization

The geometry of the crushing chamber in a PF crusher plays a crucial role in shaping the final gradation curve. The angles and contours of the impact plates are designed to create a series of impact zones that promote further breaking of the material. A well-designed chamber encourages a multi-stage crushing process where larger pieces are broken initially and then re-crushed before exiting, leading to a more controlled and cubicle product.

While the chamber design is fixed for a given crusher model, understanding its function helps operators optimize other parameters. For example, ensuring the impact plates are not excessively worn is critical, as wear alters the chamber's geometry and can lead to a gradual coarsening of the product and a change in particle shape over time.

Gradation Monitoring Methods and Quality Control System

Implementing a rigorous gradation monitoring system is the cornerstone of quality assurance in aggregate production for hydropower. This system must integrate both real-time, indirect methods and precise, laboratory-based direct measurements to provide a complete picture of product quality. The data generated forms the basis for all operational adjustments and long-term process improvement.

A modern quality control system moves beyond simple compliance checking. It is a proactive tool for process management, using statistical process control techniques to identify trends and potential deviations before they result in non-conforming product. This data-driven approach is essential for meeting the exacting standards of hydropower aggregate processing.

Application of Online Particle Size Analysis Technology

Advanced aggregate plants are increasingly adopting online particle size analyzers. These systems use technologies like digital image processing or laser scanning to analyze a continuous stream of material from the main conveyor. They provide real-time data on the full gradation curve, allowing for immediate feedback and adjustment of the crusher parameters.

The primary advantage of this technology is the elimination of the time lag associated with laboratory sieving. Operators can see the effect of an adjustment within minutes, not hours, enabling much tighter control over the process. While a significant investment, the payback in reduced waste, improved consistency, and lower lab costs can be substantial for a large-scale hydropower project.

Sampling Methods and Frequency Standards

Manual sampling remains a critical and trusted method for gradation verification. The procedure for obtaining a representative sample is standardized to avoid bias. This typically involves taking incremental samples from a moving stream of aggregate at regular intervals over a specified period, which are then combined to form a composite sample for the shift or day.

The frequency of sampling is dictated by the project specifications and the production rate. On a major hydropower project, sampling might be required every few hours. The samples are reduced in size through a sample splitter and then sent to the laboratory for accurate sieve analysis. This data is used to validate the online analyzer readings and provide the definitive quality record.

Data Recording and Statistical Analysis

Every gradation test result, whether from an online analyzer or lab sieving, must be meticulously recorded in a centralized database. This historical data is invaluable for tracking crusher performance over time. Simple statistical tools, such as control charts, are used to plot key parameters like the percentage passing a critical sieve.

These charts visually display the process mean and control limits. Points trending towards a limit signal the need for a crusher adjustment before the product goes out of spec. Long-term analysis of this data can also reveal correlations between crusher settings, feed material properties, and final gradation, leading to more refined operating procedures.

Quality Alert and Adjustment Response

An effective quality control system includes a clear protocol for responding to gradation deviations. When monitoring data indicates that the product is trending outside the control limits, an alert is triggered. The response protocol defines the steps for investigation, which may include checking the crusher's adjustment settings, inspecting for wear on blow bars and impact plates, and verifying the feed material characteristics.

The goal is a swift and systematic diagnosis leading to a corrective action, such as adjusting the impact plate gap. This closed-loop control process—measure, analyze, adjust—ensures that gradation is maintained within the tight tolerances required for high-quality basalt or granite aggregate used in critical structures.

Process Parameter Optimization and Gradation Stability Enhancement

Achieving and maintaining stable aggregate gradation requires a holistic approach to optimizing the entire crushing process. It involves understanding the interaction between multiple operational parameters and their collective impact on the final product. Optimization is not a one-time event but a continuous effort to balance production rate, product quality, and operational costs.

The key is to move from reactive adjustments, made after a bad sample is found, to a proactive strategy where the process is stabilized at an optimal setpoint. This reduces variability, minimizes the production of off-spec material, and maximizes the efficiency of the impact crusher.

Collaborative Adjustment Strategy for Key Parameters

The most effective gradation control comes from the coordinated adjustment of several parameters rather than changing one in isolation. For example, if a finer product is needed, an operator might slightly reduce the impact plate gap. However, this could reduce throughput. To compensate, they might also increase the rotor speed slightly or adjust the feed rate to ensure the chamber is not overfilled, which can lead to poor crushing and accelerated wear.

Developing these multi-parameter adjustment strategies requires experience and a deep understanding of the crusher's dynamics. Many operations create a "recipe book" of optimal settings for different feed materials and target products, which serves as a starting point for operators and reduces trial-and-error time.

Circulating Load and Closed-Circuit Crushing Optimization

Most modern aggregate plants operate in a closed-circuit configuration, where the crusher discharge is screened and the oversize material is returned to the crusher as "circulating load." The management of this circulating load is crucial for gradation stability. An optimal circulating load ensures that the crusher is always processing a sufficient quantity of rock to maintain a full crushing chamber, which promotes inter-particle crushing and a well-graded product.

If the circulating load is too low, the crusher may be "starved," leading to poor utilization of the crushing energy and a coarser, less consistent product. If it is too high, the crusher can become choked, reducing capacity and increasing power consumption. Optimizing screen efficiency and crusher settings to maintain an appropriate circulating load is a fundamental aspect of process control.

Relationship Between Equipment Wear and Gradation Changes

The gradation curve produced by a PF crusher will gradually change as its wear parts, primarily the blow bars and impact plates, deteriorate. As the blow bars wear, the effective weight of the hammer diminishes, reducing the impact energy. This often results in a coarser product with more elongated particles. Simultaneously, wear on the impact plates alters the geometry of the crushing chamber, affecting the material's flow and breaking path.

Proactive wear management is essential. This involves regularly measuring and recording wear part dimensions and tracking the corresponding changes in product gradation. By understanding this relationship, operators can preemptively adjust the crusher settings to compensate for wear, maintaining a consistent product quality throughout the wear life of the components.

Process Parameter Adjustments for Different Rock Types

The optimal operating parameters for a PF crusher are highly dependent on the parent rock's properties. Hard, abrasive rocks like granite or basalt require different settings than softer, less abrasive rocks like limestone. For hard rock, a higher rotor speed and a smaller impact plate gap might be necessary to achieve adequate fragmentation, accepting a higher wear rate.

For softer limestone crushing, a lower rotor speed and a larger gap might produce the desired product with significantly less wear and energy consumption. Plant operators must characterize their feed material and develop specific parameter sets for each rock type encountered in the quarry to ensure efficient and consistent production.

Common Gradation Problem Diagnosis and Solutions

Despite best efforts, deviations in aggregate gradation are an inevitable part of production. The ability to quickly diagnose the root cause of these problems and implement an effective solution is a critical skill for plant operators. A systematic approach to troubleshooting, starting with the most common and easily rectified issues, minimizes downtime and prevents the accumulation of sub-standard product.

Diagnosis should always begin with a verification of the problem through reliable sampling and sieve analysis. Once confirmed, the investigation should follow a logical path, examining crusher settings, feed material, and equipment condition in a structured manner.

Analysis and Treatment of Excess Fines

A common issue is the production of an excessive amount of fine material, which can be problematic for concrete mix designs. The primary causes are often an impact plate gap that is set too small, an excessively high rotor speed, or a feed material that is itself already rich in fines. Another potential cause is severely worn blow bars, which can lead to a grinding rather than a sharp impact action.

The solution involves first checking and potentially increasing the impact plate gap to allow material to exit the chamber more quickly. If the rotor speed is adjustable, reducing it may be beneficial. It is also crucial to evaluate the feed source; if the quarry is producing a friable rock or if the primary crushing stage is generating too many fines, blending with a coarser feed material may be necessary.

Control of Excess Coarse Material and Oversized Particles

The presence of too many oversized particles indicates that the crushing force or frequency is insufficient. This is typically caused by an impact plate gap that is too wide, a low rotor speed, or a feed rate that is too high, causing the crusher to be overloaded and material to pass through without being fully broken. Worn-out blow bars that lack kinetic energy can also be a culprit.

Corrective actions include reducing the impact plate gap to restrict the top size of the discharge. Increasing the rotor speed, if possible, will deliver more breaking energy. Ensuring the crusher is fed at a consistent and appropriate rate is also vital; an overfed crusher cannot effectively break all the material presented to it.

Gradation Curve Fluctuation and Stability Enhancement

Erratic or fluctuating gradation curves are often a symptom of inconsistent feed or unstable crusher operation. The most frequent cause is a highly variable feed size distribution. If the feed alternates between being too coarse and too fine, the crusher's response will be equally variable, leading to an unstable product. Other causes can be a fluctuating feed rate or an unstable power supply affecting rotor speed.

Enhancing stability requires addressing the root cause. Improving blending and pre-screening of the feed material before it reaches the PF crusher is the most effective long-term solution. Installing a surge pile between the primary and secondary crusher can also buffer short-term variations in feed. Ensuring mechanical stability, such as tight V-belts and secure mounting, also contributes to consistent operation.

Control Technology for Flaky Particle Content

A high content of flaky or elongated particles is detrimental to concrete workability and strength. In an impact crusher, this is often the result of a "tearing" or "cleaving" action rather than a full-impact shatter. Contributing factors include a low rotor speed that provides insufficient impact energy, worn impact plates that do not provide a sharp breaking surface, or an inappropriate feed size where rocks are too large for the crusher to effectively break them.

To reduce flakiness, increasing the rotor speed is often the most effective measure, as it promotes more violent impact and shattering of the rock. Ensuring that the feed size is appropriate for the crusher's capacity is also critical; over-sized feed will tend to splinter rather than shatter. Maintaining sharp, non-worn impact plates and blow bars ensures a clean breaking action.

Intelligent Control and Future Development Trends

The future of gradation control in aggregate production lies in the direction of increased automation and intelligence. The goal is to develop systems that can self-adjust in real-time to maintain a target gradation curve, compensating for feed variations and equipment wear without human intervention. This represents a shift from control based on historical data to predictive and adaptive control.

These intelligent systems leverage advancements in sensor technology, data processing power, and machine learning algorithms. They promise not only superior product consistency but also significant gains in operational efficiency and reduced labor costs, setting a new standard for quality in major infrastructure projects like hydropower dams.

Composition of Automatic Feedback Control Systems

An automatic feedback control system for gradation consists of three main components: sensors, a controller, and actuators. The sensor is typically an online particle size analyzer that continuously measures the product gradation on the main discharge conveyor. This data is fed to a programmable logic controller (PLC) or a dedicated industrial computer.

The controller compares the real-time gradation data with the target setpoint. If a deviation is detected, it calculates a corrective action and sends a signal to an actuator. In the case of a PF crusher, the actuator could be an electric or hydraulic motor that automatically adjusts the impact plate gap, creating a closed-loop system that constantly fine-tunes the crusher's operation.

Application of Artificial Intelligence in Gradation Prediction

Artificial intelligence (AI), particularly machine learning, offers the potential to predict gradation outcomes based on a wider range of input variables than a traditional controller can handle. An AI model can be trained on historical operational data, learning the complex relationships between feed characteristics, crusher parameters (like rotor speed and gap setting), and the resulting product gradation.

Once trained, the model can predict how a change in, for example, feed size or rock hardness will affect the final product. This allows for proactive adjustments before the off-spec material is even produced. AI can also be used to optimize multiple objectives simultaneously, such as finding the crusher settings that deliver the target gradation with the lowest possible energy consumption and wear rate.

Digital Twin and Virtual Commissioning Technology

A digital twin is a dynamic, virtual model of the physical crushing plant. It mirrors the real system in real-time, using data from plant sensors. Engineers can use the digital twin to simulate the effect of operational changes, test new control strategies, or predict the outcome of running different rock types—all without disrupting the actual production.

For gradation control, a digital twin can be invaluable for optimization and training. Operators can run "what-if" scenarios to understand how to achieve a new gradation target. Furthermore, new control logic can be virtually commissioned and debugged on the digital twin before being deployed to the actual plant, reducing risk and downtime.

Remote Monitoring and New Operation-Maintenance Models

With robust internet connectivity, it is now feasible to monitor and even control crushing plants remotely. Key performance indicators, including real-time gradation data, equipment health metrics, and production rates, can be transmitted to a central operations center staffed by expert engineers. This allows for centralized oversight of multiple plants and provides remote support to local crews.

This capability enables new operational models, such as predictive maintenance. By analyzing trends in power consumption, vibration, and performance data, experts can predict when a component like a rotor or bearing is likely to fail and schedule maintenance proactively. This maximizes equipment availability and ensures that gradation control is not suddenly disrupted by an unexpected mechanical failure.
