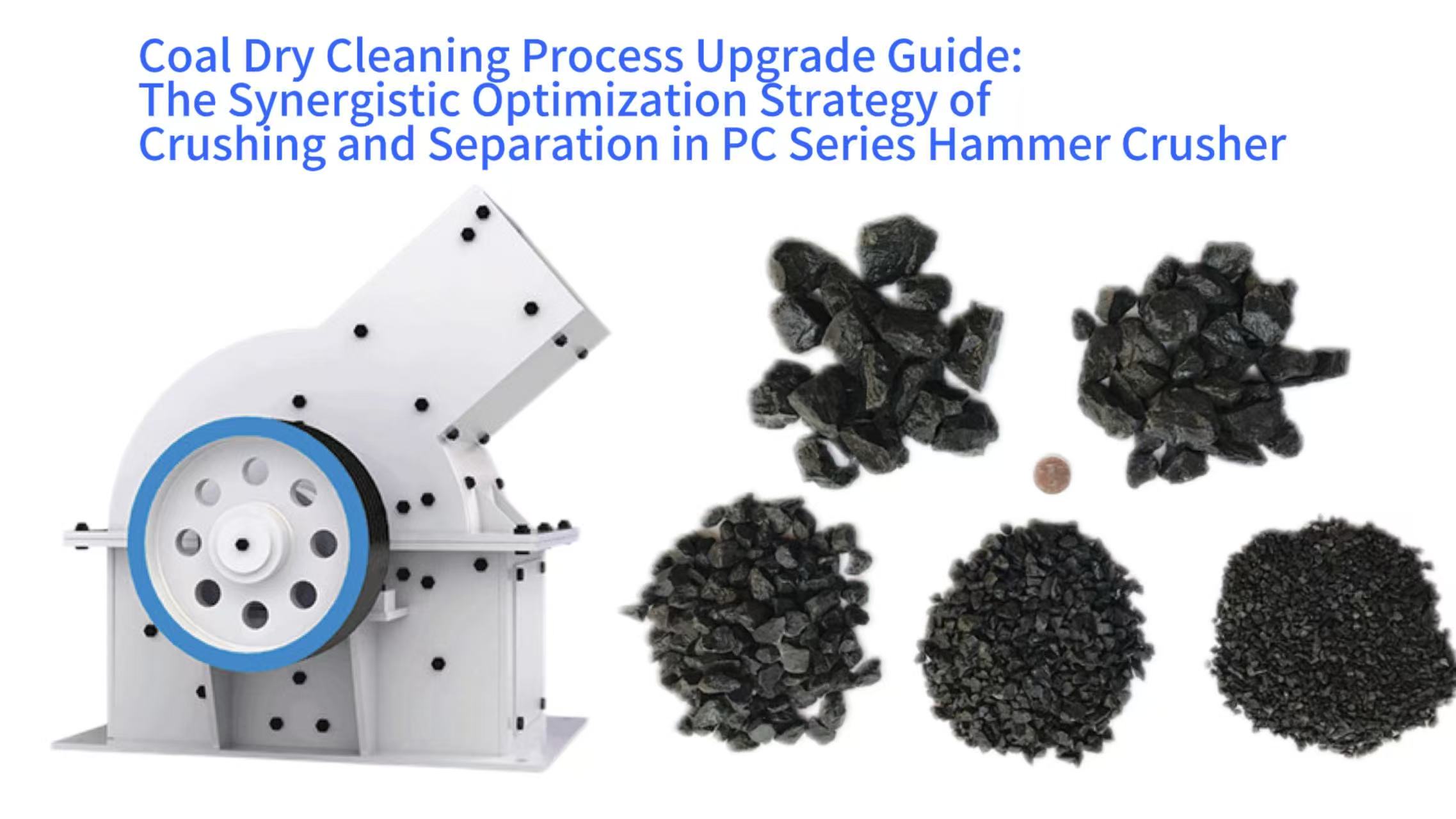

Coal Dry Cleaning Process Upgrade Guide: The Synergistic Optimization Strategy of Crushing and Separation in PC Series Hammer Crusher

The coal industry faces increasing pressure to improve efficiency and reduce environmental impact. Dry coal cleaning presents a water-conserving alternative to traditional methods, but its success hinges on precise preparation of the raw coal. The initial crushing stage is paramount, as it directly determines the effectiveness of subsequent separation processes. This article details how modern hammer crushers, specifically the PC series, are engineered to meet the exacting demands of dry cleaning. We will explore the critical relationship between crushing and separation, focusing on particle size control, system integration, and intelligent optimization strategies that maximize yield and minimize energy consumption.

Stringent Particle Size Requirements for Dry Coal Cleaning

Dry coal cleaning efficiency is exceptionally sensitive to the size distribution of the feed material. The process relies on differential physical properties like density and aerodynamic behavior, which are most pronounced within a specific size range. A well-established exponential model describes the relationship between the proportion of material finer than three millimeters and the overall separation efficiency. This model shows that even a small increase in the minus three millimeter fraction, beyond an optimal point, can lead to a disproportionate decrease in cleaning performance, as fine particles behave unpredictably in air-based separators.

Beyond process inefficiency, the generation of excessive coal fines represents a direct economic loss. Quantifiable analysis indicates that over-crushing can result in a loss of between three and seven percent of total recoverable coal value, as this ultrafine material often cannot be effectively cleaned and is lost as waste. This fine powder also creates significant dust control challenges, posing health and safety risks within the plant. Therefore, the primary objective of the crushing stage is to achieve liberation of coal from its impurities while rigorously minimizing the production of undesirable fines, making the choice of crusher and its configuration a critical economic decision.

The Control Equation Between Hammer Tip Speed and Product Size

The size of the final product is fundamentally governed by the kinetic energy imparted by the crusher's hammers, which is a function of their tip speed. A higher tip speed generates greater impact force, resulting in finer fragmentation. For instance, operating a crusher with a hammer tip speed of fifty meters per second produces a characteristic Granule size distribution curve that is skewed towards smaller particles. This curve is predictable and allows engineers to select operational parameters that target a specific size distribution suitable for the downstream dry separation process.

This relationship is not linear, however. Beyond a certain speed threshold, the increase in fine generation accelerates rapidly. The control equation must therefore balance the need for adequate liberation of coal from shale and other impurities with the imperative to avoid over-crushing. Precise control of the rotor speed is the most effective method for tuning the crusher's output, allowing operators to respond to variations in the raw coal's hardness and composition to maintain a consistent product size.

Application of Selective Crushing Technology in Coal Preparation

Selective crushing, or differential crushing, is a technique that exploits the difference in hardness between coal and its associated gangue materials like shale. A well-designed crushing system applies just enough force to break the brittle coal while leaving the harder impurities like sandstone more intact for later removal. This approach is far more efficient than attempting to pulverize everything uniformly, as it directly reduces energy consumption and limits the creation of coal fines.

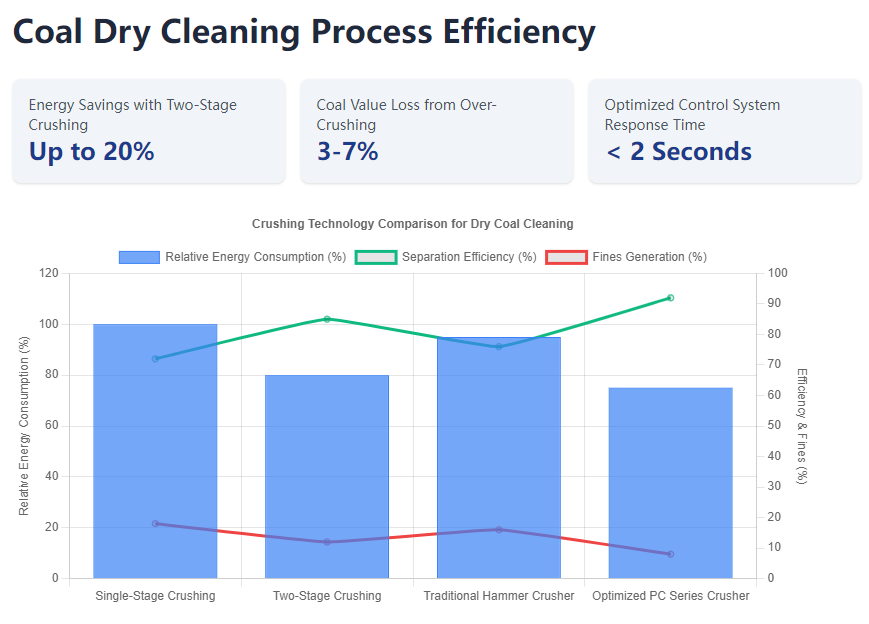

A two-stage crushing circuit often proves most effective for this purpose. The first stage uses a larger crushing ratio to achieve initial size reduction, while the second stage operates with a finer setting to ensure complete liberation without excessive impact. Energy consumption comparisons show that a properly configured two-stage system can consume up to twenty percent less power per ton of product than a single-stage crusher attempting to achieve the same final size, due to the more efficient application of energy in each stage.

CFD Simulation for Anti-Overcrushing Hammer Structure Optimization

Computational Fluid Dynamics has become an indispensable tool for optimizing crusher component design without the cost and time of physical prototyping. Engineers use CFD to simulate the complex interaction between the rotating hammers, the material bed, and the air within the crushing cavity. These simulations reveal how different hammer shapes and profiles influence material flow, impact energy transfer, and the resulting particle size distribution.

A key innovation arising from this work is the integration of aerodynamic features directly into the hammer design. Specific airflow guidance channels can be cast into the hammers to create a controlled air current that moves downward through the crushing zone. This induced draft has a dual benefit: it suppresses dust by preventing fine particles from becoming airborne, and it helps to evacuate properly sized material more quickly from the impact zone, reducing its exposure to further impacts and thereby directly mitigating over-crushing.

The Standardization Process for Size Control in Coal Preparation Plants

Establishing reliable and repeatable crushing parameters requires a rigorous standardization process that moves from laboratory testing to full-scale industrial operation. This process begins with comprehensive laboratory tests on representative coal samples. Small-scale crushers are used to establish baseline data on how the specific coal responds to different crushing energies, hammer configurations, and grate settings, identifying the optimal conditions for maximizing liberation while minimizing fines.

The critical step is the scaling of these parameters to the industrial PC hammer crusher. This is not a simple linear magnification. Engineers use established scaling laws that account for differences in rotor dynamics, feed rates, and internal chamber geometry between small and large machines. By following a methodical scale-up methodology, plants can confidently install crushers that will perform as expected, ensuring that the delicate balance of size control achieved in the lab is successfully translated to production-level throughput.

Dynamic Matching Technology Between Crusher and Air Separation System

The efficiency of a dry coal cleaning plant depends on a perfect handoff between the crushing and air separation stages. These are not independent units but rather two halves of a single system. The crusher's discharge must be presented to the air separator under precise conditions of feed rate and aerosolization. The exit airflow from the crusher, carrying the newly crushed coal, must be perfectly matched to the negative pressure and intake velocity of the air separator to ensure a smooth transfer without material dropout or blockage.

Any mismatch creates immediate inefficiency. If the crusher's discharge velocity is too high, it can overwhelm the separator's air classifier, leading to misplaced material and poor separation. If the velocity is too low, material may fall out of suspension and build up in the transfer ducts. This coupling relationship means that the crusher and separator cannot be optimized in isolation; they must be treated as a single integrated system whose dynamics are managed in unison to achieve peak operational performance.

Crusher-Air Separator Coordinated control Algorithm Development

To maintain the delicate balance between the crusher and the air separator, advanced Coordinated control algorithms are employed. These control systems continuously monitor key parameters from both machines, such as the crusher's rotor amperage and the separator's internal pressure differential. A Proportional-Integral-Derivative controller is typically the core of this system. The PID algorithm processes the data from these sensors and makes micro-adjustments to the crusher's feed rate or rotor speed to maintain a steady-state condition.

The optimization of the controller's response time is critical. A case study on a system upgrade showed that by tuning the PID constants to reduce the system's response time from five seconds to under two seconds, the stability of the feed to the air separator improved dramatically. This faster response allowed the system to compensate for sudden changes in raw coal density or the presence of a large shale band, preventing process upsets and maintaining a consistent feed of material to the separator, which is essential for achieving a high-quality separation and a consistent final product discharge size.

Intelligent Opening Control Model for Air Volume Regulating Valves

The air volume within the separation chamber is the primary variable controlling the separation efficiency of coal from heavier impurities like shale. Intelligent regulating valves, equipped with precision actuators, adjust the airflow based on real-time feedback. A sophisticated control model dictates the valve's opening, correlating specific air volume settings with expected separation outcomes. For example, a higher air volume is typically required to achieve effective separation of coal from denser.

This relationship is quantified in a  Airflow - Separation Rate curve, which is unique to the specific gravity of the feed material. The control system references this curve, adjusting the valve opening to maintain the optimal air velocity that fluidizes the coal particles for extraction while allowing the heavier waste rock to report to the reject stream. This dynamic adjustment ensures peak separation efficiency is maintained even as the composition of the feed coal changes throughout a shift, maximizing yield and product quality.

Real-Time Monitoring Technology for Dust Concentration at Crusher Outlet

Controlling dust at the crusher discharge is critical for environmental compliance, equipment health, and worker safety. Real-time monitoring provides the data needed to manage this risk effectively. Laser scattering dust monitors are the preferred technology for this application. These instruments work by projecting a laser beam through the exhaust duct; dust particles passing through the beam scatter the light, and the degree of scattering is proportional to the mass concentration of dust present.

The installation position of the monitor is paramount for obtaining accurate readings. The optimal location is in a straight section of ductwork, far from elbows or obstructions that could create turbulent or non-representative airflow. The probe must be positioned to sample the center of the air stream, where the dust is most likely to be evenly distributed. Correct installation ensures that the real-time data reflects the true dust load, allowing the control system to activate suppression systems or adjust crusher parameters before dust levels exceed permissible limits, thus protecting the entire discharge assembly.

Construction of a Full-Process Energy Consumption Monitoring Platform

Modern dry coal plants are moving towards holistic energy management by implementing plant-wide energy monitoring platforms. These systems collect data from smart meters installed on every major energy consumer, from the crusher motors and fan drives to conveyor systems and compressors. This data is aggregated on a central dashboard that displays real-time energy use across the entire process flow, from initial crushing through to final separation.

The power of this platform lies in its ability to define and track key performance indicators for unit energy consumption. For example, a KPI might be established for kilowatt-hours consumed per ton of raw coal crushed, or per ton of clean coal produced. By monitoring these KPIs, plant managers can identify inefficiencies, such as a crusher operating at a non-optimal speed or a fan using excessive power. This data-driven approach enables targeted interventions to reduce the overall carbon footprint and operational cost of the mining and processing operation, making the entire process more sustainable and economically viable.
