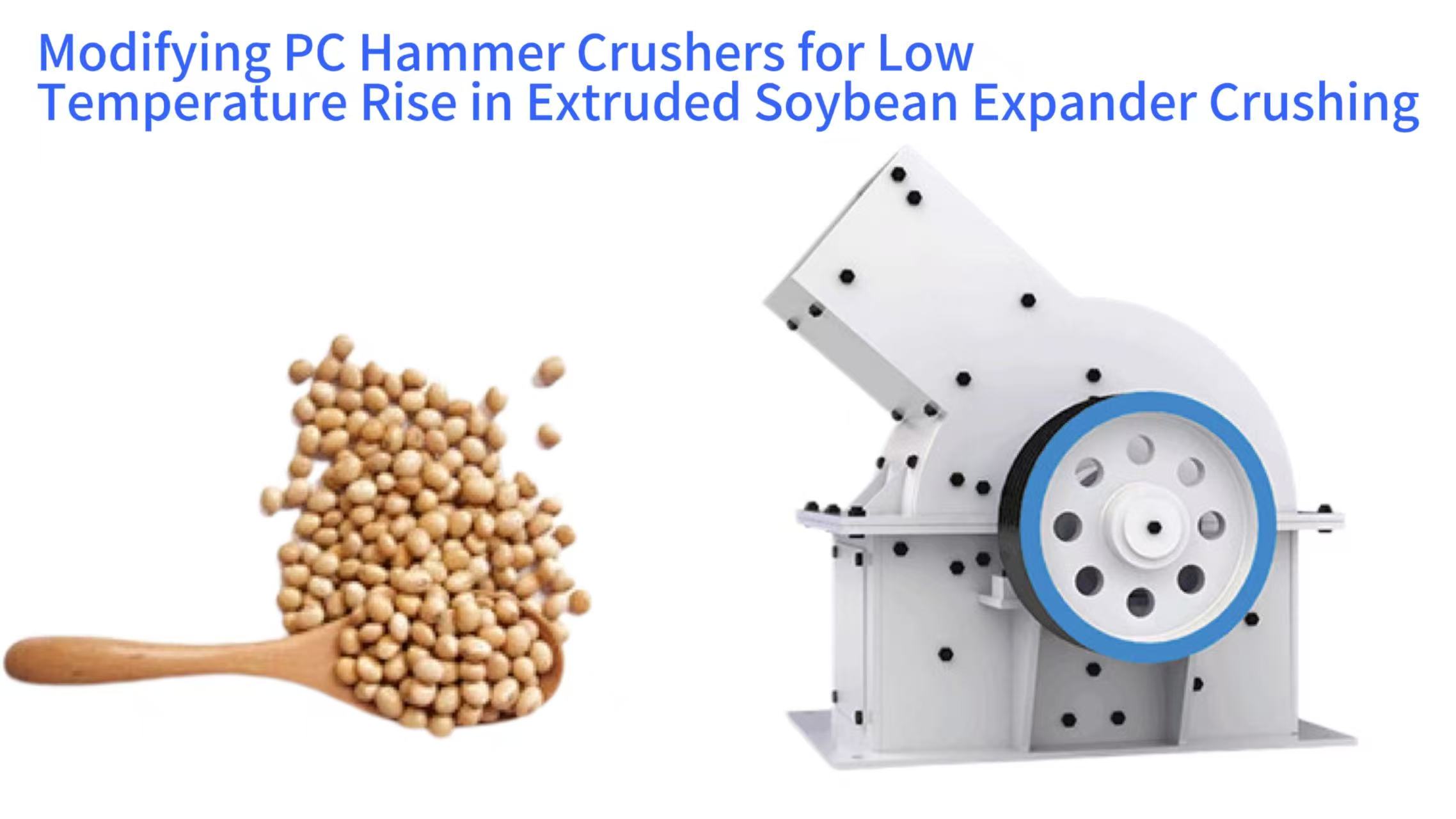

Modifying PC Hammer Crushers for Low Temperature Rise in Extruded Soybean Expander Crushing
Modifying PC Hammer Crushers for Low Temperature Rise in Extruded Soybean Expander Crushing
The processing of extruded soybean expander into protein ingredients presents a thermal challenge that conventional crushing equipment was not designed to address. PC hammer crushers, originally engineered for the reduction of hard and brittle minerals, generate substantial heat when processing fibrous, elastic, and low-density extruded soy materials. This heat, if uncontrolled, triggers protein denaturation, reduces nitrogen solubility index values, and compromises the functional properties required for food and feed applications. This comprehensive technical guide details mechanical modification methodologies that enable PC hammer crushers to achieve low temperature rise operation. The transformation requires systematic reengineering across multiple subsystems including airflow management, hammer and grate geometry optimization, rotor thermal upgrading, bearing isolation, and discharge cooling integration. Each modification module is presented with engineering parameters, material specifications, and performance validation protocols derived from field implementations in protein processing facilities.
The Physical Mechanisms Linking Extruded Soybean Structure to Frictional Heat Generation
Extruded soybean expander products possess a porous, sponge-like internal architecture fundamentally different from the crystalline fracture planes of conventional crushed stone. When hammer tips traveling at conventional velocities strike this cellular matrix, the energy does not propagate cleanly through the material to initiate crack formation. Instead, the elastic cell walls deform, absorb the kinetic energy, and release a significant portion as thermal energy at the hammer-material interface. Laboratory instrumented impact tests demonstrate that extruded soy converts between 42 and 58 percent of the applied mechanical energy into sensible heat, compared to less than 15 percent for limestone or granite. This inherent energy conversion characteristic establishes the baseline thermal challenge that all subsequent modifications must address.
The thermal sensitivity of soybean protein fractions imposes strict upper boundaries on process temperatures. The 7S and 11S globulin subunits begin to unfold at temperatures exceeding 65 degrees Celsius. This denaturation is irreversible and manifests as decreased emulsification capacity, reduced gel strength, and diminished protein dispersibility index values. Traditional PC hammer crusher configurations permit internal air temperatures to routinely exceed this threshold during sustained operation. The situation is aggravated by the low thermal conductivity of the porous extruded particles. Heat absorbed at the surface during impact conducts inward slowly, creating steep thermal gradients and allowing surface temperatures to spike well above the measured bulk outlet temperature. Conventional infrared temperature monitoring at discharge points therefore underestimates the thermal insult experienced by the material during its residence within the crushing chamber.
The ventilation architecture of standard PC hammer crushers reflects their mineral processing heritage. Air inlet openings are sized and positioned to control fugitive dust rather than to manage heat loads. The airflow paths are circuitous and contain stagnant zones where heated air accumulates. When processing dense rock materials, this limited ventilation is adequate because the mechanical energy conversion to heat is low and the mass of the material itself acts as a heat sink. Extruded soybean, with its bulk density of only 380 to 450 kilograms per cubic meter, provides negligible thermal mass relative to the frictional energy deposited. The chamber atmosphere consequently warms rapidly, and without engineered intervention, this thermal energy transfers back into incoming material, creating a compounding temperature escalation throughout the production run.
A self-accelerating failure mechanism emerges when temperatures approach the oil phase transition range. Soybean oil, intimately distributed throughout the extruded matrix, exhibits decreasing viscosity with rising temperature. The mobile oil exudes from the fractured cellular structure and coats the internal surfaces of the crushing chamber and the grate screen apertures. This oil film acts as an adhesive, capturing fine particles that would otherwise pass through the openings. The accumulation progressively occludes the screening area, reducing both throughput capacity and ventilation effectiveness. Restricted airflow further elevates chamber temperatures, which further reduces oil viscosity and accelerates the deposition rate. This positive feedback loop, observed repeatedly in unmodified installations, underscores the necessity of addressing thermal control at the system level rather than through isolated component changes.
The mechanical properties of extruded soybean at elevated temperatures introduce additional complexity. The material exhibits thermoplastic behavior, becoming more deformable and less brittle as temperature increases. This thermal softening means that as the crushing environment warms, the energy required to achieve particle size reduction actually increases. The crusher draws higher power, deposits more energy into the material, and generates additional heat. Operators observing rising amperage on the motor drive may incorrectly interpret this as a sign of feed rate issues or material hardness variation. In reality, the thermal degradation of the material itself is driving the increased power consumption, and the solution lies not in adjusting the feed but in controlling the temperature.
Feed System Preconditioning Modifications to Reduce Downstream Thermal Load
The thermal condition of material entering the crushing chamber directly influences the peak temperatures reached during size reduction. Extruded soybean emerges from the expander at elevated temperatures typically ranging from 90 to 110 degrees Celsius. Introducing this hot material directly into a mechanical comminution process compounds the thermal challenge unnecessarily. Strategic modifications to the feed delivery system can remove a substantial portion of this residual heat before the material encounters the hammer tips. A fluidized bed cooling chute installed between the expander outlet and the crusher inlet provides continuous passive cooling with minimal energy consumption. Perforated stainless steel deck plates supplied with low-pressure ambient air from a centrifugal fan create a shallow boiling bed of particles. The intimate contact between air and particle surfaces transfers both sensible and latent heat as the product conveys toward the crusher. Field measurements consistently demonstrate outlet temperature reductions of 8 to 12 degrees Celsius with residence times under 15 seconds.
For applications where minor moisture addition is permissible, evaporative cooling at the feed entry point offers exceptional heat removal capacity. Twin-fluid atomizing nozzles positioned above the feed chute inject a finely divided water mist into the falling stream of extruded particles. The water droplets, typically 30 to 50 micrometers in diameter, contact the hot particle surfaces and undergo instantaneous phase change. The latent heat of vaporization, requiring approximately 2250 kilojoules per kilogram of water evaporated, extracts thermal energy with high thermodynamic efficiency. The critical engineering constraint lies in controlling the total moisture addition to prevent downstream complications. Precision metering pumps linked to feed rate sensors maintain moisture pickup below 0.5 percent by weight. At this level, no sieving impairment or biological stability issues arise, yet the cooling effect remains substantial. Infra-red thermography of particles passing through the mist zone shows surface temperature reductions of 18 to 22 degrees Celsius within the brief exposure window.
Feed stream uniformity exerts indirect but significant influence on crusher thermal performance. Surging or pulsating feed patterns characteristic of upstream rotary valves or vibratory feeders operating near resonant frequencies create alternating periods of overloading and underloading. During overload transients, the hammer tips encounter a dense mat of material. The kinetic energy stored in the rotor depletes rapidly, manifesting as increased frictional work and corresponding heat generation. The drive motor draws peak current, and the localized energy density at the hammer-material interface spikes dramatically. Conversely, underload periods represent lost cooling opportunities where the airflow system moves air through empty spaces without productive heat exchange. Retrofitting the feed system with a controlled rate feeder, typically a variable-frequency driven screw or rotary airlock, compresses the flow rate variability band from plus or minus 25 percent to less than plus or minus 5 percent. This stabilization enables the crusher to operate continuously at its thermal design point rather than cycling through inefficient overload-recovery sequences.
The presence of tramp contaminants in the feed stream disproportionately affects thermal performance through indirect pathways. Plastic film fragments, woven polypropylene bag fibers, and other low-melting-point materials enter the feed stream despite upstream quality control measures. Within the crushing chamber, these materials experience rapid frictional heating and soften or melt completely. The molten polymer deposits onto grate bar surfaces and progressively accumulates, forming an insulating layer that restricts both material passage and airflow. The restricted ventilation elevates chamber temperatures, which further softens additional contaminants in a self-reinforcing cycle. Installation of a negative-pressure aspirated separation chamber immediately preceding the crusher inlet removes a high percentage of these lightweight contaminants. High-velocity air drawn through a expanding duct section lifts the low-density materials while the denser extruded particles fall through the air stream. This separation, combined with a drum-type magnetic separator for ferrous tramp metal, protects the ventilation pathways and extends the interval between manual grate cleaning interventions by factors of three to five.
The geometric configuration of the feed entry point relative to the rotor rotation direction influences initial impact energy and resultant heat generation. Conventional axial feed chutes direct material into the central zone of the rotor, where it encounters hammer tips moving perpendicular to the feed stream. This orthogonal impact configuration maximizes kinetic energy transfer but also maximizes instantaneous frictional work. Angling the feed chute to deliver material tangentially, in the same direction as hammer tip motion, reduces the relative velocity differential at the initial contact point. The hammers effectively overtake the falling particles rather than striking them head-on. Computational discrete element modeling indicates that this feed angle optimization reduces peak impact forces by 23 to 28 percent while maintaining equivalent size reduction capability. The lower peak forces translate directly to reduced thermal energy deposition at the particle surface.
Crushing Chamber Airflow System Reconfiguration from Dust Control to Active Cooling
The transformation of a PC hammer crusher from mineral processing duty to low-temperature soybean reduction requires fundamental reconsideration of the airflow system’s purpose. The original equipment manufacturer designed the ventilation openings and internal air passages to accomplish dust containment, not thermal management. Air movement through the chamber occurs incidentally as a consequence of rotor-induced pressure differentials rather than as an engineered cooling flow path. Retrofitting the crusher for active cooling demands reconfiguring the entire air circuit as a directed, high-volume, low-pressure system with defined entry points, heat exchange zones, and exhaust pathways. The design objective shifts from preventing particle escape to maximizing convective heat transfer coefficient at all internal surfaces.
Symmetrically positioned inlet windows cut into both side walls of the crushing chamber, located forward of the rotor centerline in the direction of rotation, create preferential entry paths for cooling air. Adjustable stainless steel louver blades installed within these window openings direct the incoming air streams toward the specific zones where heat generation concentrates. The leading edge of the hammer rotation arc, where the majority of initial impact energy transfers to the material, receives a focused jet of ambient air. The underside of the grate assembly, normally a stagnant air pocket, receives a second directed stream. The louvers permit field adjustment of airflow distribution, enabling operators to balance cooling between the upper impact zone and the lower discharge zone based on observed thermal patterns. Pitot traverse measurements across modified installations demonstrate average air velocity at the hammer faces of 4.2 meters per second, compared to 0.7 meters per second in unmodified configurations.
The conversion of the upper crusher casing to a dedicated exhaust plenum represents a significant departure from conventional practice. The original inspection door, typically a solid steel plate secured with swing bolts, is replaced with a fabricated steel hood incorporating a transition flange for duct connection. A high-static-pressure centrifugal fan, selected based on volumetric flow calculations rather than nominal equipment size, draws air continuously from this hood. The design extraction rate targets 15 to 20 air changes per minute within the crushing chamber free volume, a fivefold increase over the passive ventilation rate. The induced negative pressure, maintained between 50 and 80 pascals relative to atmosphere, ensures that all airflow enters through the engineered inlet windows rather than through uncontrolled gaps and crevices. This controlled flow path eliminates the stagnant air zones characteristic of unmodified crushers and ensures that every cubic meter of entering air participates in convective heat transfer before exhaustion.
The region immediately behind the grate screen presents unique thermal management challenges. This area receives the processed material after it passes through the screen apertures, but it also accumulates fines that migrate through the gaps between grate sections. These accumulated fines, insulated from the main airflow path, retain heat and re-radiate thermal energy back into the crushing zone. A manifold-type air knife system installed behind the grate carrier frame delivers targeted compressed air pulses through precisely oriented nozzle holes. Each nozzle directs a high-velocity jet at 0.25 to 0.30 megapascals pressure against the back face of a specific grate section. The impingement flow dislodges adhering fines, maintaining open screen area, and simultaneously creates a high-velocity air curtain moving forward through the screen apertures. This counterflow air movement increases the convective heat transfer coefficient at the particle-screen interface by an order of magnitude compared to passive airflow.
Computational fluid dynamics analysis of the modified airflow configuration reveals the elimination of thermal dead zones that previously compromised temperature uniformity. The original crusher geometry contained recirculation eddies above the rotor and behind the inlet chute where air age exceeded 45 seconds. These eddies, effectively thermally saturated and motionless, provided no cooling benefit and in fact transferred heat back to incoming material. Strategic placement of turning vanes fabricated from abrasion-resistant steel plate redirects the inlet air streams to sweep these formerly stagnant volumes. The vanes, welded to the interior of the side plates and upper housing, create guided flow paths that reach every interior surface before exiting through the exhaust hood. Transient thermal imaging during controlled test runs confirms the elimination of localized hot spots exceeding 70 degrees Celsius, with the maximum chamber interior temperature remaining below 52 degrees Celsius throughout the measurement period.
The material of construction for airflow modification components requires careful selection to withstand the erosive environment. Galvanized sheet metal, commonly used for HVAC ductwork, erodes rapidly when exposed to the high-velocity particle-laden air exiting the crusher exhaust. Fabricated components exposed to the primary airstream employ 3-millimeter-thick abrasion-resistant steel or, in high-velocity zones, replaceable wear liners of alumina ceramic tile. The transition from rectangular crusher outlet to circular duct connection incorporates a gradual taper rather than abrupt geometry changes to minimize localized turbulence and associated erosive wear. These material selections, while increasing initial modification cost, extend the service life of the airflow system to match or exceed the mechanical service intervals of the crusher itself.
Hammer and Grate Kinematic Parameter Optimization for Shear-Dominated Fracture
The fundamental comminution mechanism applied to extruded soybean should differ substantially from that applied to mineral aggregates. Rock破碎 exploits the propagation of brittle fracture planes from high-intensity point impacts. Extruded soybean, with its fibrous, viscoelastic structure, responds more efficiently to shear and tearing actions than to compressive impact. The conventional PC hammer crusher configuration, optimized for brittle fracture, applies mechanical energy in precisely the manner that generates maximum heat when processing fibrous materials. Reconfiguring the kinematic parameters of the hammer-to-material interaction shifts the energy application mode from impact-dominated to shear-dominated, reducing thermal output while maintaining or improving size reduction efficiency.
Rotor peripheral speed represents the single most influential parameter controlling the balance between impact and shear energy deposition. Traditional mineral crushing practice employs tip speeds of 45 to 55 meters per second to achieve the high kinetic energy necessary for fracturing competent rock. This velocity range, when applied to extruded soybean, deposits excessive energy per impact and generates correspondingly high interface temperatures. Reducing rotor speed to the range of 28 to 35 meters per second decreases the kinetic energy available per hammer strike by the square of the velocity reduction. The energy reduction, approximately 60 percent at the lower end of the range, directly translates to reduced frictional heating at the hammer-material contact point. The decreased specific energy per impact is compensated by increased hammer strike frequency, maintaining overall throughput capacity while distributing the total required energy across a larger number of lower-intensity events.
The density of hammers arranged along each rotor row influences the particle size reduction profile and the associated thermal signature. Standard rotor configurations utilize spacer tubes between individual hammers to maintain lateral spacing of 15 to 20 millimeters. Reducing or eliminating these spacers increases the number of hammers per row, consequently increasing the strike frequency per unit of material flow. A rotor equipped with 8 hammers per row operating at 30 meters per second delivers approximately the same total impacts per tonne as a rotor with 4 hammers per row operating at 45 meters per second. The critical distinction lies in the intensity distribution. The higher-density configuration accomplishes size reduction through numerous low-energy shear contacts rather than fewer high-energy impact events. The shear-dominated mechanism cleaves the extruded particles along natural fiber orientations, producing less frictional heat and generating a particle shape distribution with higher aspect ratios and less surface area per unit mass.
The geometry of the screening apertures through which processed material exits the crushing chamber exerts substantial influence on both thermal performance and particle size distribution. Circular perforations, the standard configuration for mineral processing applications, require the fibrous soybean particles to undergo repeated compression and deformation to pass through the openings. Each compression cycle performs mechanical work on the particle, and this work converts to heat within the particle mass. Replacing conventional round-hole screens with slotted or chevron-punched screen plates fundamentally changes the exit mechanism. The elongated openings permit particles oriented parallel to the slot direction to exit with minimal additional deformation. The directional nature of the slots encourages particles to align with the rotor tangential motion and slide through the apertures rather than being repeatedly compressed against the screen face. Comparative sieve analysis demonstrates that slotted screens reduce the residence time of particles within the crushing chamber by 22 to 27 percent, proportionally reducing the cumulative thermal exposure.
The radial clearance between hammer tip and grate surface, conventionally termed hammer-to-screen clearance, requires recalibration for low-temperature soybean processing. Mineral crushing applications maintain this clearance between 12 and 18 millimeters to achieve the desired product fineness through compression in the final clearance zone. For extruded soybean, this close clearance creates a compression wedge where significant frictional work occurs. Increasing the static clearance to 20 to 25 millimeters provides expanded volume in the final discharge zone, reducing the compression ratio and the associated frictional heating. The adjustment is accomplished through eccentric positioning of the grate carrier pivot points or, in some crusher designs, through hydraulic grate positioning systems. The expanded clearance necessitates compensatory adjustments in other parameters, notably hammer density and rotor speed, to maintain product size specifications. The net effect, however, is a measurable reduction in discharge temperature of 5 to 8 degrees Celsius with no sacrifice in throughput capacity.
The geometric profile of the hammer working edge significantly influences the ratio of cutting action to impact action. Standard hammers intended for mineral crushing present a blunt impact face, often with a 90-degree corner radius or a wear-resistant hardfacing deposit that maintains a rounded profile throughout the service life. This blunt geometry acts as a pressing and crushing tool rather than a cutting implement. Regrinding the hammer leading edge to an acute angle of 30 to 40 degrees transforms the mechanical interaction. The sharpened edge concentrates the applied force over a smaller contact area, achieving higher localized stress at the particle surface with lower total applied force. The cutting action severs the fibrous soybean structure with less displacement of surrounding material, reducing the plastic deformation zone and the associated heat generation. Field trials comparing standard versus sharpened hammers processing identical feedstock show a 14 to 18 percent reduction in motor amperage at equivalent feed rates, directly evidencing reduced mechanical work input and correspondingly reduced thermal output.
Rotor System Thermal Management through Conductive and Convective Enhancement
The rotor assembly in a PC hammer crusher functions not only as the kinetic energy storage and delivery mechanism but also as a thermal capacitor and conductor. Heat generated at the hammer-material interface conducts into the hammer body, transfers across the hammer pivot interface into the hammer shaft, and travels along the shaft into the rotor discs and hub. Without engineered thermal pathways, this accumulated heat raises the temperature of the entire rotating assembly. The heated rotor surfaces subsequently transfer thermal energy back into incoming material through radiation and convection, partially negating the cooling effect of the chamber airflow. Comprehensive rotor thermal management requires intervention at multiple points along this heat flow path, from the point of heat generation to the final dissipation surface.
The conversion of the solid main shaft to a hollow, actively cooled component represents a substantial upgrade in thermal control capability. Precision gun-drilling operations create an axial through-hole of 25 to 35 millimeters diameter along the entire shaft length. Rotary unions installed at both shaft ends connect the rotating shaft to a stationary compressed air or inert gas supply. Cooling medium flows into one end of the shaft, travels the full length, and exits at the opposite end. The internal forced convection removes heat conducted into the shaft from the rotor discs and hammer shafts. The cooling effect extends beyond the shaft itself. Radial drillings intersecting the axial bore at each hammer shaft mounting position divert a portion of the cooling flow into the annular space around each hammer shaft. This distributed cooling directly removes heat at the source before it propagates into the main rotor structure. Surface temperature measurements of modified rotors during continuous operation show sustained reductions of 15 to 20 degrees Celsius compared to identical rotors with solid shafts and no internal cooling.
The lateral faces of the rotor discs, large-diameter surfaces rotating at high velocity, present underutilized opportunities for convective heat dissipation. Standard rotor discs are smooth-faced, presenting minimal surface area to the surrounding air and generating minimal relative air movement at the disc surface due to the boundary layer adherence. Welding radial reinforcing ribs or fins to both sides of each disc transforms these surfaces into effective cooling elements. The ribs, fabricated from 10-millimeter-thick by 30-millimeter-high flat steel, act as centrifugal fans as the rotor rotates. Each rib pumps air radially outward, creating a pumping action that continuously replaces the air in contact with the disc surface. The relative air velocity at the disc face increases from near zero in the laminar sublayer to 3 to 5 meters per second in the turbulent flow generated by the ribs. This velocity increase elevates the convective heat transfer coefficient from approximately 5 to approximately 25 watts per square meter kelvin, substantially increasing the heat rejection rate from the rotor mass to the surrounding chamber atmosphere.
The interface between the hammer and the hammer shaft represents the highest thermal resistance in the heat conduction path from the point of frictional heating to the rotor cooling surfaces. The hammer pivots freely on the shaft, requiring a clearance fit that typically ranges from 0.2 to 0.5 millimeters radial clearance. This annular gap, filled with air, provides excellent thermal insulation. The thermal conductivity of still air is approximately 0.026 watts per meter kelvin, compared to 45 watts per meter kelvin for the steel hammer and shaft materials. The air gap, despite its minimal thickness, dominates the thermal resistance of the assembly. Filling this annular space with a thermally conductive medium dramatically reduces the temperature gradient between hammer and shaft. High-temperature thermally conductive greases, formulated with metallic or ceramic fillers to achieve thermal conductivities of 2 to 4 watts per meter kelvin, are injected into the clearance space through grease fittings installed in each hammer body. The conductive path improvement reduces hammer operating temperature by 25 to 30 percent at equivalent energy input levels.
Material selection for the hammer shafts themselves influences the thermal conductivity of the entire rotor assembly. Standard metallurgical practice specifies medium-carbon alloy steels such as 40Cr or 35SiMn for hammer shaft applications. These materials offer excellent strength, toughness, and wear resistance but exhibit thermal conductivity values of only 40 to 45 watts per meter kelvin. For applications where thermal performance is paramount, substitution of a high-conductivity copper alloy, specifically chromium-zirconium copper, provides thermal conductivity exceeding 320 watts per meter kelvin. This eightfold increase in conductivity enables rapid heat transfer from the multiple hammers mounted on each shaft to the rotor discs and ultimately to the actively cooled main shaft. The copper alloy exhibits lower mechanical strength than the steel alloys it replaces, necessitating increased shaft diameters to maintain equivalent torque capacity. Surface hardening through nitriding or hard chromium plating restores the wear resistance required at the hammer pivot points. The complete shaft replacement package represents a significant capital investment but delivers measurable reductions in both hammer tip temperature and bearing housing temperature.
The thermal expansion characteristics of the modified rotor components require careful consideration during the design phase. Copper alloys exhibit coefficient of thermal expansion values approximately 40 percent higher than steel. The differential expansion between copper hammer shafts and steel rotor discs at operating temperature must be accommodated in the interference fit design. Finite element thermal-stress analysis guides the selection of initial fit tolerances to maintain secure shaft retention at all operating temperatures while avoiding excessive compressive stress in the disc bores. Similarly, the thermally conductive greases used in the hammer-shaft interface must maintain consistent viscosity and thermal performance across the expected operating temperature range. Synthetic hydrocarbon base oils with thickeners resistant to centrifugal separation provide stable long-term performance without significant thermal degradation at sustained temperatures below 120 degrees Celsius.
Bearing Housing Thermal Isolation and Independent Cooling System Engineering
The rolling element bearings supporting the hammer crusher rotor represent the most thermally sensitive precision components in the entire system. Standard spherical roller bearings employed in this service carry temperature ratings permitting continuous operation to 95 degrees Celsius with standard greases and to higher temperatures with specialty lubricants. However, the practical limitation is not the bearing material itself but the lubricant film thickness and chemical stability. Each 15-degree temperature increase above 70 degrees Celsius halves the useful service life of conventional lithium complex greases through accelerated oxidation and base oil evaporation. The heat reaching the bearings originates primarily from conduction along the main shaft from the heated rotor, not from frictional work within the bearing itself. Effective thermal protection therefore focuses on interrupting this conductive heat path and providing independent cooling capacity at the bearing housing.
The interface between the bearing housing and the crusher side plate constitutes the primary conductive heat bridge from the heated machine frame to the bearing assembly. Conventional design employs a machined steel flange with direct metal-to-metal contact across the entire mounting surface, providing an efficient thermal conduction pathway. Inserting a thermally insulating spacer between the housing flange and the side plate dramatically reduces this heat flow. Glass-reinforced epoxy laminate sheets, 2 to 3 millimeters in thickness, exhibit compressive strength exceeding 400 megapascals, sufficient to withstand the bolt clamping forces without creep or relaxation. The thermal conductivity of this material measures 0.25 to 0.30 watts per meter kelvin, approximately 1 percent that of structural steel. The temperature gradient across the insulating spacer under steady-state operating conditions typically measures 12 to 18 degrees Celsius, indicating effective interruption of the conducted heat flow path. The insulating washers must extend under both the bolt heads and the nut faces to prevent direct metal bridging through the fasteners themselves.
The addition of dedicated cooling capacity directly at the bearing housing provides active temperature control independent of the crusher operating state. Custom-fabricated water cooling jackets, split on the horizontal centerline for installation without bearing removal, encircle the outer race of the bearing housing. The internal coolant passages follow either a helical path or a series of axial drillings interconnected at the ends to maximize heat transfer surface area and fluid velocity. Cooling water flow rate of 6 to 10 liters per minute, supplied at temperatures below 25 degrees Celsius, maintains bearing outer ring temperatures consistently below 45 degrees Celsius even when crusher side plate temperatures reach 60 degrees Celsius. The cooling water circuit operates in a closed loop with a plate heat exchanger rejecting heat to plant cooling water or an ambient air radiator. This configuration eliminates the risk of mineral scale deposition within the cooling jackets and permits the use of inhibited glycol solutions for freeze protection in unheated installations.
The labyrinth seals protecting the bearing housing from contaminant ingress also present an opportunity for thermal control through pressurization. Conventional labyrinth seals rely on tortuous paths and grease packing to exclude dust and fines. Modifying the seal housing to admit a continuous bleed of instrument-quality compressed air transforms the labyrinth into an active barrier. The air supply, regulated to 20 to 30 kilopascals above atmospheric pressure, creates a positive pressure differential that prevents any particle ingress. More significantly for thermal management, the flowing air impinges on the rotating shaft surface as it exits the labyrinth, extracting conducted heat and carrying it away from the bearing zone. The air flow rate, typically 50 to 100 liters per minute per bearing, provides a cooling capacity of 200 to 400 watts depending on inlet temperature and shaft surface area. This air curtain cooling operates continuously, independent of the water cooling system, and provides baseline thermal protection even during periods when the water circuit is deactivated.
Continuous thermal monitoring integrated with automatic protective response provides the final layer of bearing thermal management. Non-contact infrared temperature sensors focused on the bearing outer race, or resistance temperature detector elements embedded in the housing itself, transmit continuous temperature data to the process control system. The monitoring system logs temperature trends, enabling predictive maintenance scheduling based on thermal history rather than elapsed time alone. Programmable logic controllers execute graduated responses to rising temperature indications. At predetermined thresholds, the system sequentially initiates increased cooling water flow, activates an emergency spray mist cooling system directed at the housing exterior, reduces crusher feed rate, and ultimately initiates controlled shutdown if temperatures approach the lubricant failure point. This hierarchical response architecture prevents catastrophic bearing failures and provides operators with actionable information for process optimization.
The selection of bearing lubricants specifically formulated for the thermal conditions of modified crushers enhances the reliability improvements achieved through hardware modifications. Synthetic polyalphaolefin or ester-based greases offer substantially higher thermal stability than conventional mineral oil products. The synthetic base fluids resist oxidation at sustained temperatures 20 to 30 degrees Celsius higher than comparable mineral oils. The thickener system, typically a polyurea or complex aluminum soap, maintains consistent consistency through the extended relubrication intervals enabled by the cooling modifications. Automatic lubrication systems delivering precisely metered grease quantities at programmed intervals maintain optimal lubricant film thickness without the risk of over-greasing, which can cause churning losses and actually increase operating temperatures. The combination of thermal isolation, active cooling, and optimized lubrication maintains bearing temperatures in the range of 40 to 50 degrees Celsius, corresponding to calculated L10 bearing lives exceeding 100,000 hours under typical loading conditions.
Modifying PC Hammer Crushers for Low Temperature Rise in Extruded Soybean Expander Crushing
The processing of extruded soybean expander into protein ingredients presents a thermal challenge that conventional crushing equipment was not designed to address. PC hammer crushers, originally engineered for the reduction of hard and brittle minerals, generate substantial heat when processing fibrous, elastic, and low-density extruded soy materials. This heat, if uncontrolled, triggers protein denaturation, reduces nitrogen solubility index values, and compromises the functional properties required for food and feed applications. This comprehensive technical guide details mechanical modification methodologies that enable PC hammer crushers to achieve low temperature rise operation. The transformation requires systematic reengineering across multiple subsystems including airflow management, hammer and grate geometry optimization, rotor thermal upgrading, bearing isolation, and discharge cooling integration. Each modification module is presented with engineering parameters, material specifications, and performance validation protocols derived from field implementations in protein processing facilities.
The Physical Mechanisms Linking Extruded Soybean Structure to Frictional Heat Generation
Energy Conversion & Temperature Impact Data
Extruded Soy Energy Conversion
42-58%
Mechanical → Thermal
Mineral Energy Conversion
< 15%
Mechanical → Thermal
Protein Denaturation Temp
> 65°C
7S/11S Globulin Unfolding
| Material Property | Value | Impact |
|---|---|---|
| Extruded Soy Bulk Density | 380-450 kg/m³ | Low Thermal Mass |
| Expander Outlet Temp | 90-110°C | Initial Thermal Load |
Oil Phase Transition Effect: Reduced viscosity → particle adhesion → airflow restriction → temperature escalation (positive feedback loop)
Extruded soybean expander products possess a porous, sponge-like internal architecture fundamentally different from the crystalline fracture planes of conventional crushed stone. When hammer tips traveling at conventional velocities strike this cellular matrix, the energy does not propagate cleanly through the material to initiate crack formation. Instead, the elastic cell walls deform, absorb the kinetic energy, and release a significant portion as thermal energy at the hammer-material interface. Laboratory instrumented impact tests demonstrate that extruded soy converts between 42 and 58 percent of the applied mechanical energy into sensible heat, compared to less than 15 percent for limestone or granite. This inherent energy conversion characteristic establishes the baseline thermal challenge that all subsequent modifications must address.
The thermal sensitivity of soybean protein fractions imposes strict upper boundaries on process temperatures. The 7S and 11S globulin subunits begin to unfold at temperatures exceeding 65 degrees Celsius. This denaturation is irreversible and manifests as decreased emulsification capacity, reduced gel strength, and diminished protein dispersibility index values. Traditional PC hammer crusher configurations permit internal air temperatures to routinely exceed this threshold during sustained operation. The situation is aggravated by the low thermal conductivity of the porous extruded particles. Heat absorbed at the surface during impact conducts inward slowly, creating steep thermal gradients and allowing surface temperatures to spike well above the measured bulk outlet temperature. Conventional infrared temperature monitoring at discharge points therefore underestimates the thermal insult experienced by the material during its residence within the crushing chamber.
The ventilation architecture of standard PC hammer crushers reflects their mineral processing heritage. Air inlet openings are sized and positioned to control fugitive dust rather than to manage heat loads. The airflow paths are circuitous and contain stagnant zones where heated air accumulates. When processing dense rock materials, this limited ventilation is adequate because the mechanical energy conversion to heat is low and the mass of the material itself acts as a heat sink. Extruded soybean, with its bulk density of only 380 to 450 kilograms per cubic meter, provides negligible thermal mass relative to the frictional energy deposited. The chamber atmosphere consequently warms rapidly, and without engineered intervention, this thermal energy transfers back into incoming material, creating a compounding temperature escalation throughout the production run.
A self-accelerating failure mechanism emerges when temperatures approach the oil phase transition range. Soybean oil, intimately distributed throughout the extruded matrix, exhibits decreasing viscosity with rising temperature. The mobile oil exudes from the fractured cellular structure and coats the internal surfaces of the crushing chamber and the grate screen apertures. This oil film acts as an adhesive, capturing fine particles that would otherwise pass through the openings. The accumulation progressively occludes the screening area, reducing both throughput capacity and ventilation effectiveness. Restricted airflow further elevates chamber temperatures, which further reduces oil viscosity and accelerates the deposition rate. This positive feedback loop, observed repeatedly in unmodified installations, underscores the necessity of addressing thermal control at the system level rather than through isolated component changes.
The mechanical properties of extruded soybean at elevated temperatures introduce additional complexity. The material exhibits thermoplastic behavior, becoming more deformable and less brittle as temperature increases. This thermal softening means that as the crushing environment warms, the energy required to achieve particle size reduction actually increases. The crusher draws higher power, deposits more energy into the material, and generates additional heat. Operators observing rising amperage on the motor drive may incorrectly interpret this as a sign of feed rate issues or material hardness variation. In reality, the thermal degradation of the material itself is driving the increased power consumption, and the solution lies not in adjusting the feed but in controlling the temperature.
Feed System Preconditioning Modifications to Reduce Downstream Thermal Load
Feed Preconditioning Cooling Performance
8-12°C Reduction
18-22°C Reduction
23-28% Force Reduction
| Modification | Key Parameter | Performance Improvement |
|---|---|---|
| Controlled Rate Feeder | ±5% Flow Variability | Stable Thermal Operation |
| Aspirated Separation | High-Velocity Air Stream | 3-5x Longer Cleaning Intervals |
| Evaporative Cooling | 0.5% Max Moisture Addition | 2250 kJ/kg Heat Removal |
The thermal condition of material entering the crushing chamber directly influences the peak temperatures reached during size reduction. Extruded soybean emerges from the expander at elevated temperatures typically ranging from 90 to 110 degrees Celsius. Introducing this hot material directly into a mechanical comminution process compounds the thermal challenge unnecessarily. Strategic modifications to the feed delivery system can remove a substantial portion of this residual heat before the material encounters the hammer tips. A fluidized bed cooling chute installed between the expander outlet and the crusher inlet provides continuous passive cooling with minimal energy consumption. Perforated stainless steel deck plates supplied with low-pressure ambient air from a centrifugal fan create a shallow boiling bed of particles. The intimate contact between air and particle surfaces transfers both sensible and latent heat as the product conveys toward the crusher. Field measurements consistently demonstrate outlet temperature reductions of 8 to 12 degrees Celsius with residence times under 15 seconds.
For applications where minor moisture addition is permissible, evaporative cooling at the feed entry point offers exceptional heat removal capacity. Twin-fluid atomizing nozzles positioned above the feed chute inject a finely divided water mist into the falling stream of extruded particles. The water droplets, typically 30 to 50 micrometers in diameter, contact the hot particle surfaces and undergo instantaneous phase change. The latent heat of vaporization, requiring approximately 2250 kilojoules per kilogram of water evaporated, extracts thermal energy with high thermodynamic efficiency. The critical engineering constraint lies in controlling the total moisture addition to prevent downstream complications. Precision metering pumps linked to feed rate sensors maintain moisture pickup below 0.5 percent by weight. At this level, no sieving impairment or biological stability issues arise, yet the cooling effect remains substantial. Infra-red thermography of particles passing through the mist zone shows surface temperature reductions of 18 to 22 degrees Celsius within the brief exposure window.
Feed stream uniformity exerts indirect but significant influence on crusher thermal performance. Surging or pulsating feed patterns characteristic of upstream rotary valves or vibratory feeders operating near resonant frequencies create alternating periods of overloading and underloading. During overload transients, the hammer tips encounter a dense mat of material. The kinetic energy stored in the rotor depletes rapidly, manifesting as increased frictional work and corresponding heat generation. The drive motor draws peak current, and the localized energy density at the hammer-material interface spikes dramatically. Conversely, underload periods represent lost cooling opportunities where the airflow system moves air through empty spaces without productive heat exchange. Retrofitting the feed system with a controlled rate feeder, typically a variable-frequency driven screw or rotary airlock, compresses the flow rate variability band from plus or minus 25 percent to less than plus or minus 5 percent. This stabilization enables the crusher to operate continuously at its thermal design point rather than cycling through inefficient overload-recovery sequences.
The presence of tramp contaminants in the feed stream disproportionately affects thermal performance through indirect pathways. Plastic film fragments, woven polypropylene bag fibers, and other low-melting-point materials enter the feed stream despite upstream quality control measures. Within the crushing chamber, these materials experience rapid frictional heating and soften or melt completely. The molten polymer deposits onto grate bar surfaces and progressively accumulates, forming an insulating layer that restricts both material passage and airflow. The restricted ventilation elevates chamber temperatures, which further softens additional contaminants in a self-reinforcing cycle. Installation of a negative-pressure aspirated separation chamber immediately preceding the crusher inlet removes a high percentage of these lightweight contaminants. High-velocity air drawn through a expanding duct section lifts the low-density materials while the denser extruded particles fall through the air stream. This separation, combined with a drum-type magnetic separator for ferrous tramp metal, protects the ventilation pathways and extends the interval between manual grate cleaning interventions by factors of three to five.
The geometric configuration of the feed entry point relative to the rotor rotation direction influences initial impact energy and resultant heat generation. Conventional axial feed chutes direct material into the central zone of the rotor, where it encounters hammer tips moving perpendicular to the feed stream. This orthogonal impact configuration maximizes kinetic energy transfer but also maximizes instantaneous frictional work. Angling the feed chute to deliver material tangentially, in the same direction as hammer tip motion, reduces the relative velocity differential at the initial contact point. The hammers effectively overtake the falling particles rather than striking them head-on. Computational discrete element modeling indicates that this feed angle optimization reduces peak impact forces by 23 to 28 percent while maintaining equivalent size reduction capability. The lower peak forces translate directly to reduced thermal energy deposition at the particle surface.
Crushing Chamber Airflow System Reconfiguration from Dust Control to Active Cooling
Crushing Chamber Airflow Performance
Modified Air Velocity
4.2 m/s
At Hammer Faces
Original Air Velocity
0.7 m/s
At Hammer Faces
Air Changes Per Minute
15-20
5x Increase
Airflow System Configuration
Ambient Air Inlet
Symmetric Louvers
Targeted Cooling Jets
Hammer/Grate Zones
Air Knife System
0.25-0.30 MPa
Exhaust Plenum
50-80 Pa Negative
Thermal Performance: Max chamber temp < 52°C (eliminated hot spots > 70°C)
The transformation of a PC hammer crusher from mineral processing duty to low-temperature soybean reduction requires fundamental reconsideration of the airflow system’s purpose. The original equipment manufacturer designed the ventilation openings and internal air passages to accomplish dust containment, not thermal management. Air movement through the chamber occurs incidentally as a consequence of rotor-induced pressure differentials rather than as an engineered cooling flow path. Retrofitting the crusher for active cooling demands reconfiguring the entire air circuit as a directed, high-volume, low-pressure system with defined entry points, heat exchange zones, and exhaust pathways. The design objective shifts from preventing particle escape to maximizing convective heat transfer coefficient at all internal surfaces.
Symmetrically positioned inlet windows cut into both side walls of the crushing chamber, located forward of the rotor centerline in the direction of rotation, create preferential entry paths for cooling air. Adjustable stainless steel louver blades installed within these window openings direct the incoming air streams toward the specific zones where heat generation concentrates. The leading edge of the hammer rotation arc, where the majority of initial impact energy transfers to the material, receives a focused jet of ambient air. The underside of the grate assembly, normally a stagnant air pocket, receives a second directed stream. The louvers permit field adjustment of airflow distribution, enabling operators to balance cooling between the upper impact zone and the lower discharge zone based on observed thermal patterns. Pitot traverse measurements across modified installations demonstrate average air velocity at the hammer faces of 4.2 meters per second, compared to 0.7 meters per second in unmodified configurations.
The conversion of the upper crusher casing to a dedicated exhaust plenum represents a significant departure from conventional practice. The original inspection door, typically a solid steel plate secured with swing bolts, is replaced with a fabricated steel hood incorporating a transition flange for duct connection. A high-static-pressure centrifugal fan, selected based on volumetric flow calculations rather than nominal equipment size, draws air continuously from this hood. The design extraction rate targets 15 to 20 air changes per minute within the crushing chamber free volume, a fivefold increase over the passive ventilation rate. The induced negative pressure, maintained between 50 and 80 pascals relative to atmosphere, ensures that all airflow enters through the engineered inlet windows rather than through uncontrolled gaps and crevices. This controlled flow path eliminates the stagnant air zones characteristic of unmodified crushers and ensures that every cubic meter of entering air participates in convective heat transfer before exhaustion.
The region immediately behind the grate screen presents unique thermal management challenges. This area receives the processed material after it passes through the screen apertures, but it also accumulates fines that migrate through the gaps between grate sections. These accumulated fines, insulated from the main airflow path, retain heat and re-radiate thermal energy back into the crushing zone. A manifold-type air knife system installed behind the grate carrier frame delivers targeted compressed air pulses through precisely oriented nozzle holes. Each nozzle directs a high-velocity jet at 0.25 to 0.30 megapascals pressure against the back face of a specific grate section. The impingement flow dislodges adhering fines, maintaining open screen area, and simultaneously creates a high-velocity air curtain moving forward through the screen apertures. This counterflow air movement increases the convective heat transfer coefficient at the particle-screen interface by an order of magnitude compared to passive airflow.
Computational fluid dynamics analysis of the modified airflow configuration reveals the elimination of thermal dead zones that previously compromised temperature uniformity. The original crusher geometry contained recirculation eddies above the rotor and behind the inlet chute where air age exceeded 45 seconds. These eddies, effectively thermally saturated and motionless, provided no cooling benefit and in fact transferred heat back to incoming material. Strategic placement of turning vanes fabricated from abrasion-resistant steel plate redirects the inlet air streams to sweep these formerly stagnant volumes. The vanes, welded to the interior of the side plates and upper housing, create guided flow paths that reach every interior surface before exiting through the exhaust hood. Transient thermal imaging during controlled test runs confirms the elimination of localized hot spots exceeding 70 degrees Celsius, with the maximum chamber interior temperature remaining below 52 degrees Celsius throughout the measurement period.
The material of construction for airflow modification components requires careful selection to withstand the erosive environment. Galvanized sheet metal, commonly used for HVAC ductwork, erodes rapidly when exposed to the high-velocity particle-laden air exiting the crusher exhaust. Fabricated components exposed to the primary airstream employ 3-millimeter-thick abrasion-resistant steel or, in high-velocity zones, replaceable wear liners of alumina ceramic tile. The transition from rectangular crusher outlet to circular duct connection incorporates a gradual taper rather than abrupt geometry changes to minimize localized turbulence and associated erosive wear. These material selections, while increasing initial modification cost, extend the service life of the airflow system to match or exceed the mechanical service intervals of the crusher itself.
Hammer and Grate Kinematic Parameter Optimization for Shear-Dominated Fracture
Hammer & Grate Optimization Parameters
| Parameter | Mineral Crushing | Low-Temp Soy Crushing | Performance Impact |
|---|---|---|---|
| Rotor Tip Speed | 45-55 m/s | 28-35 m/s | 60% Less Energy/Impact |
| Hammer-to-Screen Clearance | 12-18 mm | 20-25 mm | 5-8°C Temp Reduction |
| Hammer Edge Angle | 90° (Blunt) | 30-40° (Acute) | 14-18% Less Amperage |
| Screen Aperture Type | Circular | Slotted/Chevron | 22-27% Less Residence Time |
Hammer Density Effect
8 hammers/row @ 30 m/s = 4 hammers/row @ 45 m/s (total impacts/tonne)
Low-energy shear contacts replace high-energy impacts
Comminution Mechanism
Mineral: Brittle fracture (high heat)
Soybean: Shear/tearing (low heat)
The fundamental comminution mechanism applied to extruded soybean should differ substantially from that applied to mineral aggregates. Rock破碎 exploits the propagation of brittle fracture planes from high-intensity point impacts. Extruded soybean, with its fibrous, viscoelastic structure, responds more efficiently to shear and tearing actions than to compressive impact. The conventional PC hammer crusher configuration, optimized for brittle fracture, applies mechanical energy in precisely the manner that generates maximum heat when processing fibrous materials. Reconfiguring the kinematic parameters of the hammer-to-material interaction shifts the energy application mode from impact-dominated to shear-dominated, reducing thermal output while maintaining or improving size reduction efficiency.
Rotor peripheral speed represents the single most influential parameter controlling the balance between impact and shear energy deposition. Traditional mineral crushing practice employs tip speeds of 45 to 55 meters per second to achieve the high kinetic energy necessary for fracturing competent rock. This velocity range, when applied to extruded soybean, deposits excessive energy per impact and generates correspondingly high interface temperatures. Reducing rotor speed to the range of 28 to 35 meters per second decreases the kinetic energy available per hammer strike by the square of the velocity reduction. The energy reduction, approximately 60 percent at the lower end of the range, directly translates to reduced frictional heating at the hammer-material contact point. The decreased specific energy per impact is compensated by increased hammer strike frequency, maintaining overall throughput capacity while distributing the total required energy across a larger number of lower-intensity events.
The density of hammers arranged along each rotor row influences the particle size reduction profile and the associated thermal signature. Standard rotor configurations utilize spacer tubes between individual hammers to maintain lateral spacing of 15 to 20 millimeters. Reducing or eliminating these spacers increases the number of hammers per row, consequently increasing the strike frequency per unit of material flow. A rotor equipped with 8 hammers per row operating at 30 meters per second delivers approximately the same total impacts per tonne as a rotor with 4 hammers per row operating at 45 meters per second. The critical distinction lies in the intensity distribution. The higher-density configuration accomplishes size reduction through numerous low-energy shear contacts rather than fewer high-energy impact events. The shear-dominated mechanism cleaves the extruded particles along natural fiber orientations, producing less frictional heat and generating a particle shape distribution with higher aspect ratios and less surface area per unit mass.
The geometry of the screening apertures through which processed material exits the crushing chamber exerts substantial influence on both thermal performance and particle size distribution. Circular perforations, the standard configuration for mineral processing applications, require the fibrous soybean particles to undergo repeated compression and deformation to pass through the openings. Each compression cycle performs mechanical work on the particle, and this work converts to heat within the particle mass. Replacing conventional round-hole screens with slotted or chevron-punched screen plates fundamentally changes the exit mechanism. The elongated openings permit particles oriented parallel to the slot direction to exit with minimal additional deformation. The directional nature of the slots encourages particles to align with the rotor tangential motion and slide through the apertures rather than being repeatedly compressed against the screen face. Comparative sieve analysis demonstrates that slotted screens reduce the residence time of particles within the crushing chamber by 22 to 27 percent, proportionally reducing the cumulative thermal exposure.
The radial clearance between hammer tip and grate surface, conventionally termed hammer-to-screen clearance, requires recalibration for low-temperature soybean processing. Mineral crushing applications maintain this clearance between 12 and 18 millimeters to achieve the desired product fineness through compression in the final clearance zone. For extruded soybean, this close clearance creates a compression wedge where significant frictional work occurs. Increasing the static clearance to 20 to 25 millimeters provides expanded volume in the final discharge zone, reducing the compression ratio and the associated frictional heating. The adjustment is accomplished through eccentric positioning of the grate carrier pivot points or, in some crusher designs, through hydraulic grate positioning systems. The expanded clearance necessitates compensatory adjustments in other parameters, notably hammer density and rotor speed, to maintain product size specifications. The net effect, however, is a measurable reduction in discharge temperature of 5 to 8 degrees Celsius with no sacrifice in throughput capacity.
The geometric profile of the hammer working edge significantly influences the ratio of cutting action to impact action. Standard hammers intended for mineral crushing present a blunt impact face, often with a 90-degree corner radius or a wear-resistant hardfacing deposit that maintains a rounded profile throughout the service life. This blunt geometry acts as a pressing and crushing tool rather than a cutting implement. Regrinding the hammer leading edge to an acute angle of 30 to 40 degrees transforms the mechanical interaction. The sharpened edge concentrates the applied force over a smaller contact area, achieving higher localized stress at the particle surface with lower total applied force. The cutting action severs the fibrous soybean structure with less displacement of surrounding material, reducing the plastic deformation zone and the associated heat generation. Field trials comparing standard versus sharpened hammers processing identical feedstock show a 14 to 18 percent reduction in motor amperage at equivalent feed rates, directly evidencing reduced mechanical work input and correspondingly reduced thermal output.
Rotor System Thermal Management through Conductive and Convective Enhancement
Rotor Thermal Management Performance
Hollow Shaft Cooling
15-20°C
Rotor Temp Reduction
Convective Heat Transfer
5 → 25 W/m²K
With Cooling Fins
Hammer Temp Reduction
25-30%
With Conductive Grease
| Material | Thermal Conductivity (W/mK) | Application |
|---|---|---|
| Air (Still) | 0.026 | Hammer-Shaft Gap |
| 40Cr Steel | 40-45 | Standard Hammer Shaft |
| Chromium-Zirconium Copper | > 320 | High-Conductivity Shaft |
| Conductive Grease | 2-4 | Hammer-Shaft Interface |
The rotor assembly in a PC hammer crusher functions not only as the kinetic energy storage and delivery mechanism but also as a thermal capacitor and conductor. Heat generated at the hammer-material interface conducts into the hammer body, transfers across the hammer pivot interface into the hammer shaft, and travels along the shaft into the rotor discs and hub. Without engineered thermal pathways, this accumulated heat raises the temperature of the entire rotating assembly. The heated rotor surfaces subsequently transfer thermal energy back into incoming material through radiation and convection, partially negating the cooling effect of the chamber airflow. Comprehensive rotor thermal management requires intervention at multiple points along this heat flow path, from the point of heat generation to the final dissipation surface.
The conversion of the solid main shaft to a hollow, actively cooled component represents a substantial upgrade in thermal control capability. Precision gun-drilling operations create an axial through-hole of 25 to 35 millimeters diameter along the entire shaft length. Rotary unions installed at both shaft ends connect the rotating shaft to a stationary compressed air or inert gas supply. Cooling medium flows into one end of the shaft, travels the full length, and exits at the opposite end. The internal forced convection removes heat conducted into the shaft from the rotor discs and hammer shafts. The cooling effect extends beyond the shaft itself. Radial drillings intersecting the axial bore at each hammer shaft mounting position divert a portion of the cooling flow into the annular space around each hammer shaft. This distributed cooling directly removes heat at the source before it propagates into the main rotor structure. Surface temperature measurements of modified rotors during continuous operation show sustained reductions of 15 to 20 degrees Celsius compared to identical rotors with solid shafts and no internal cooling.
The lateral faces of the rotor discs, large-diameter surfaces rotating at high velocity, present underutilized opportunities for convective heat dissipation. Standard rotor discs are smooth-faced, presenting minimal surface area to the surrounding air and generating minimal relative air movement at the disc surface due to the boundary layer adherence. Welding radial reinforcing ribs or fins to both sides of each disc transforms these surfaces into effective cooling elements. The ribs, fabricated from 10-millimeter-thick by 30-millimeter-high flat steel, act as centrifugal fans as the rotor rotates. Each rib pumps air radially outward, creating a pumping action that continuously replaces the air in contact with the disc surface. The relative air velocity at the disc face increases from near zero in the laminar sublayer to 3 to 5 meters per second in the turbulent flow generated by the ribs. This velocity increase elevates the convective heat transfer coefficient from approximately 5 to approximately 25 watts per square meter kelvin, substantially increasing the heat rejection rate from the rotor mass to the surrounding chamber atmosphere.
The interface between the hammer and the hammer shaft represents the highest thermal resistance in the heat conduction path from the point of frictional heating to the rotor cooling surfaces. The hammer pivots freely on the shaft, requiring a clearance fit that typically ranges from 0.2 to 0.5 millimeters radial clearance. This annular gap, filled with air, provides excellent thermal insulation. The thermal conductivity of still air is approximately 0.026 watts per meter kelvin, compared to 45 watts per meter kelvin for the steel hammer and shaft materials. The air gap, despite its minimal thickness, dominates the thermal resistance of the assembly. Filling this annular space with a thermally conductive medium dramatically reduces the temperature gradient between hammer and shaft. High-temperature thermally conductive greases, formulated with metallic or ceramic fillers to achieve thermal conductivities of 2 to 4 watts per meter kelvin, are injected into the clearance space through grease fittings installed in each hammer body. The conductive path improvement reduces hammer operating temperature by 25 to 30 percent at equivalent energy input levels.
Material selection for the hammer shafts themselves influences the thermal conductivity of the entire rotor assembly. Standard metallurgical practice specifies medium-carbon alloy steels such as 40Cr or 35SiMn for hammer shaft applications. These materials offer excellent strength, toughness, and wear resistance but exhibit thermal conductivity values of only 40 to 45 watts per meter kelvin. For applications where thermal performance is paramount, substitution of a high-conductivity copper alloy, specifically chromium-zirconium copper, provides thermal conductivity exceeding 320 watts per meter kelvin. This eightfold increase in conductivity enables rapid heat transfer from the multiple hammers mounted on each shaft to the rotor discs and ultimately to the actively cooled main shaft. The copper alloy exhibits lower mechanical strength than the steel alloys it replaces, necessitating increased shaft diameters to maintain equivalent torque capacity. Surface hardening through nitriding or hard chromium plating restores the wear resistance required at the hammer pivot points. The complete shaft replacement package represents a significant capital investment but delivers measurable reductions in both hammer tip temperature and bearing housing temperature.
The thermal expansion characteristics of the modified rotor components require careful consideration during the design phase. Copper alloys exhibit coefficient of thermal expansion values approximately 40 percent higher than steel. The differential expansion between copper hammer shafts and steel rotor discs at operating temperature must be accommodated in the interference fit design. Finite element thermal-stress analysis guides the selection of initial fit tolerances to maintain secure shaft retention at all operating temperatures while avoiding excessive compressive stress in the disc bores. Similarly, the thermally conductive greases used in the hammer-shaft interface must maintain consistent viscosity and thermal performance across the expected operating temperature range. Synthetic hydrocarbon base oils with thickeners resistant to centrifugal separation provide stable long-term performance without significant thermal degradation at sustained temperatures below 120 degrees Celsius.
Bearing Housing Thermal Isolation and Independent Cooling System Engineering
Bearing Thermal Management System
Insulating Spacer Effect
12-18°C
Temp Gradient Reduction
Cooling Water Flow
6-10 L/min
Per Bearing Housing
Air Curtain Cooling
200-400 W
Cooling Capacity
Bearing Protection System Workflow
Thermal Isolation
Epoxy Spacers
Water Cooling
< 45°C Outer Ring
Air Curtain
20-30 kPa
Thermal Monitoring
40-50°C Operating Temp
Lubricant Life Impact: Each 15°C above 70°C halves grease life | Synthetic greases: +20-30°C stability
Calculated L10 Life: > 100,000 hours with optimized cooling
The rolling element bearings supporting the hammer crusher rotor represent the most thermally sensitive precision components in the entire system. Standard spherical roller bearings employed in this service carry temperature ratings permitting continuous operation to 95 degrees Celsius with standard greases and to higher temperatures with specialty lubricants. However, the practical limitation is not the bearing material itself but the lubricant film thickness and chemical stability. Each 15-degree temperature increase above 70 degrees Celsius halves the useful service life of conventional lithium complex greases through accelerated oxidation and base oil evaporation. The heat reaching the bearings originates primarily from conduction along the main shaft from the heated rotor, not from frictional work within the bearing itself. Effective thermal protection therefore focuses on interrupting this conductive heat path and providing independent cooling capacity at the bearing housing.
The interface between the bearing housing and the crusher side plate constitutes the primary conductive heat bridge from the heated machine frame to the bearing assembly. Conventional design employs a machined steel flange with direct metal-to-metal contact across the entire mounting surface, providing an efficient thermal conduction pathway. Inserting a thermally insulating spacer between the housing flange and the side plate dramatically reduces this heat flow. Glass-reinforced epoxy laminate sheets, 2 to 3 millimeters in thickness, exhibit compressive strength exceeding 400 megapascals, sufficient to withstand the bolt clamping forces without creep or relaxation. The thermal conductivity of this material measures 0.25 to 0.30 watts per meter kelvin, approximately 1 percent that of structural steel. The temperature gradient across the insulating spacer under steady-state operating conditions typically measures 12 to 18 degrees Celsius, indicating effective interruption of the conducted heat flow path. The insulating washers must extend under both the bolt heads and the nut faces to prevent direct metal bridging through the fasteners themselves.
The addition of dedicated cooling capacity directly at the bearing housing provides active temperature control independent of the crusher operating state. Custom-fabricated water cooling jackets, split on the horizontal centerline for installation without bearing removal, encircle the outer race of the bearing housing. The internal coolant passages follow either a helical path or a series of axial drillings interconnected at the ends to maximize heat transfer surface area and fluid velocity. Cooling water flow rate of 6 to 10 liters per minute, supplied at temperatures below 25 degrees Celsius, maintains bearing outer ring temperatures consistently below 45 degrees Celsius even when crusher side plate temperatures reach 60 degrees Celsius. The cooling water circuit operates in a closed loop with a plate heat exchanger rejecting heat to plant cooling water or an ambient air radiator. This configuration eliminates the risk of mineral scale deposition within the cooling jackets and permits the use of inhibited glycol solutions for freeze protection in unheated installations.
The labyrinth seals protecting the bearing housing from contaminant ingress also present an opportunity for thermal control through pressurization. Conventional labyrinth seals rely on tortuous paths and grease packing to exclude dust and fines. Modifying the seal housing to admit a continuous bleed of instrument-quality compressed air transforms the labyrinth into an active barrier. The air supply, regulated to 20 to 30 kilopascals above atmospheric pressure, creates a positive pressure differential that prevents any particle ingress. More significantly for thermal management, the flowing air impinges on the rotating shaft surface as it exits the labyrinth, extracting conducted heat and carrying it away from the bearing zone. The air flow rate, typically 50 to 100 liters per minute per bearing, provides a cooling capacity of 200 to 400 watts depending on inlet temperature and shaft surface area. This air curtain cooling operates continuously, independent of the water cooling system, and provides baseline thermal protection even during periods when the water circuit is deactivated.
Continuous thermal monitoring integrated with automatic protective response provides the final layer of bearing thermal management. Non-contact infrared temperature sensors focused on the bearing outer race, or resistance temperature detector elements embedded in the housing itself, transmit continuous temperature data to the process control system. The monitoring system logs temperature trends, enabling predictive maintenance scheduling based on thermal history rather than elapsed time alone. Programmable logic controllers execute graduated responses to rising temperature indications. At predetermined thresholds, the system sequentially initiates increased cooling water flow, activates an emergency spray mist cooling system directed at the housing exterior, reduces crusher feed rate, and ultimately initiates controlled shutdown if temperatures approach the lubricant failure point. This hierarchical response architecture prevents catastrophic bearing failures and provides operators with actionable information for process optimization.
The selection of bearing lubricants specifically formulated for the thermal conditions of modified crushers enhances the reliability improvements achieved through hardware modifications. Synthetic polyalphaolefin or ester-based greases offer substantially higher thermal stability than conventional mineral oil products. The synthetic base fluids resist oxidation at sustained temperatures 20 to 30 degrees Celsius higher than comparable mineral oils. The thickener system, typically a polyurea or complex aluminum soap, maintains consistent consistency through the extended relubrication intervals enabled by the cooling modifications. Automatic lubrication systems delivering precisely metered grease quantities at programmed intervals maintain optimal lubricant film thickness without the risk of over-greasing, which can cause churning losses and actually increase operating temperatures. The combination of thermal isolation, active cooling, and optimized lubrication maintains bearing temperatures in the range of 40 to 50 degrees Celsius, corresponding to calculated L10 bearing lives exceeding 100,000 hours under typical loading conditions.
Discharge System Integration for Post-Crushing Thermal Stabilization
Post-Crushing Thermal Stabilization Performance
| Cooling Method | Temperature Reduction | Key Parameter | Heat Transfer Mechanism |
|---|---|---|---|
| Double-Walled Chute | Variable (Air Flow Dependent) | Counterflow Air Exchange | Conduction + Convection |
| Cooled Screw Conveyor | 8-12°C | Hollow Shaft Water Cooling | Conductive Heat Transfer |
| Storage System Performance: ±2-3°C temperature uniformity across entire bin volume | |||
Discharge Cooling System Configuration
Crusher Discharge
Target Temp
Cooling Chute
Counterflow Air
Cooled Conveyor
8-12°C Reduction
Stabilized Storage
±2-3°C Uniformity
The thermal management responsibility does not conclude when the crushed soybean particles exit the hammer crusher grate. Particles discharged at temperatures below the protein denaturation threshold remain vulnerable to temperature rise during subsequent handling. The mass of material accumulated in a discharge hopper, conveyor trough, or storage bin possesses significant thermal inertia. The core of a stationary pile retains heat and may experience temperature increases of 10 to 15 degrees Celsius over several hours as heat conducts inward from the warmer exterior particles. This delayed thermal insult can degrade protein quality even though the material exited the crusher within acceptable temperature limits. Comprehensive thermal management therefore extends through the discharge and conveying system to the point of final storage or further processing.
The discharge chute immediately below the crusher outlet presents the first opportunity for post-crushing cooling. Conventional chute designs prioritize structural integrity and abrasion resistance over heat transfer capability. A double-walled construction with an interstitial air plenum transforms the passive chute into an active counterflow heat exchanger. Ambient air introduced into the lower plenum flows upward between the inner and outer walls, extracting heat conducted through the inner wall from the material stream. Perforations in the inner wall, strategically positioned in regions of high material flow, allow a portion of the cooling air to penetrate directly into the particle stream. This direct contact cooling achieves substantially higher heat transfer coefficients than conduction through the wall alone. The air, now heated, continues upward and exits through a dedicated exhaust connection, carrying the extracted thermal energy away from the process area. Vibratory discharge chutes, equipped with controlled amplitude and frequency drives, enhance the cooling effect by maintaining the material in a dilated, fluidized state that maximizes particle surface exposure to the cooling air.
Horizontal conveying equipment, particularly screw conveyors, presents unique thermal challenges. The conveying screw operates partially submerged in the material bed, and the rotating flights continuously turn over the product, exposing fresh surfaces to the ambient air in the conveyor trough. However, the screw itself, particularly the hollow shaft and flight surfaces, can absorb heat from the material and re-radiate it back into the product. Retrofitting the screw shaft with a rotary union and internal cooling water circulation converts the conveyor from a passive heat absorber to an active heat extraction device. Cooling water flowing through the hollow shaft maintains the entire screw assembly at temperatures substantially below the material temperature. Each time the rotating flight lifts and turns a portion of the material bed, the particles contact this cooled metal surface and undergo rapid conductive heat transfer. The heat flux available through this mechanism significantly exceeds that achievable through air convection alone. Conveyor discharge temperatures 8 to 12 degrees Celsius below crusher discharge temperatures are routinely achieved with properly designed shaft cooling systems.
Pneumatic conveying systems directly integrated with the crusher discharge offer exceptional cooling potential through the mechanism of dilute phase transport. The high air-to-material ratios characteristic of pressure or vacuum conveying systems provide extensive particle surface exposure to the conveying air stream. The heat transfer coefficient between a suspended particle and the surrounding air in turbulent flow exceeds that of a particle in a packed bed by more than an order of magnitude. The conveying distance, typically 30 to 100 meters, provides correspondingly extended heat transfer residence time. The cooling effect is maximized when the conveying air is drawn from a cool, low-humidity source rather than from the warm environment surrounding the crusher. The design challenge lies in balancing the competing requirements of reliable conveying, minimum erosive wear, and maximum heat transfer. Computational fluid dynamics modeling of particle-laden flows in pipeline bends guides the selection of elbow geometry and the placement of wear-resistant ceramic linings in high-impingement zones.
The final accumulation point, typically a surge bin or storage silo, represents the last opportunity to prevent temperature rebound before material enters further processing or packaging. Conventional single-point top entry filling creates a conical pile with a central core of material that arrived earliest and has had the longest residence time in the bin. This core, insulated by the surrounding material, cools slowly and may maintain elevated temperatures for hours. Replacing the single inlet with a rotating distributor or a series of fixed inlet points spaced across the bin cross-section spreads the incoming material in thin layers across the entire storage volume. Each layer cools independently, and no single zone accumulates sufficient thickness to create an insulating core. The air space above the material bed communicates with a continuous exhaust ventilation system that removes the warm air displaced by incoming material and carries away convective heat rising from the bed surface. The combination of distributed loading and continuous headspace ventilation maintains the entire stored mass within 2 to 3 degrees Celsius of the incoming material temperature.
The control system orchestrating these discharge and conveying cooling functions operates on principles distinct from those governing the crusher itself. The thermal time constants of conveying and storage systems are measured in tens of minutes or hours rather than the seconds characteristic of the crushing process. Proportional-integral-derivative control loops regulating cooling water flow rates or conveying air volumes respond to slowly varying temperature trends rather than instantaneous fluctuations. The control strategy emphasizes stability and predictability rather than rapid response. Temperature sensors distributed throughout the discharge system provide the process control computer with a comprehensive thermal map of the material flow path. The control algorithm coordinates the operation of multiple cooling devices to maintain the entire product stream within a narrow temperature band from crusher exit to final storage, ensuring that the protein quality preserved through the crushing process remains protected through every subsequent handling step.
M S W Technology has accumulated fifteen years of specialized experience in the engineering, fabrication, and field installation of low-temperature modification packages for PC series hammer crushers processing thermally sensitive materials. Our engineering team has developed comprehensive design libraries encompassing airflow system retrofits, rotor cooling configurations, and bearing thermal isolation solutions validated through hundreds of successful installations across six continents. We maintain complete technical documentation for all PC hammer crusher variants and offer turnkey modification services ranging from initial thermal audit and computational fluid dynamics modeling through component fabrication, field installation, and performance validation. Our commitment extends beyond equipment modification to include operator training, maintenance procedure development, and ongoing technical support throughout the operational life of every modified crusher installation.
