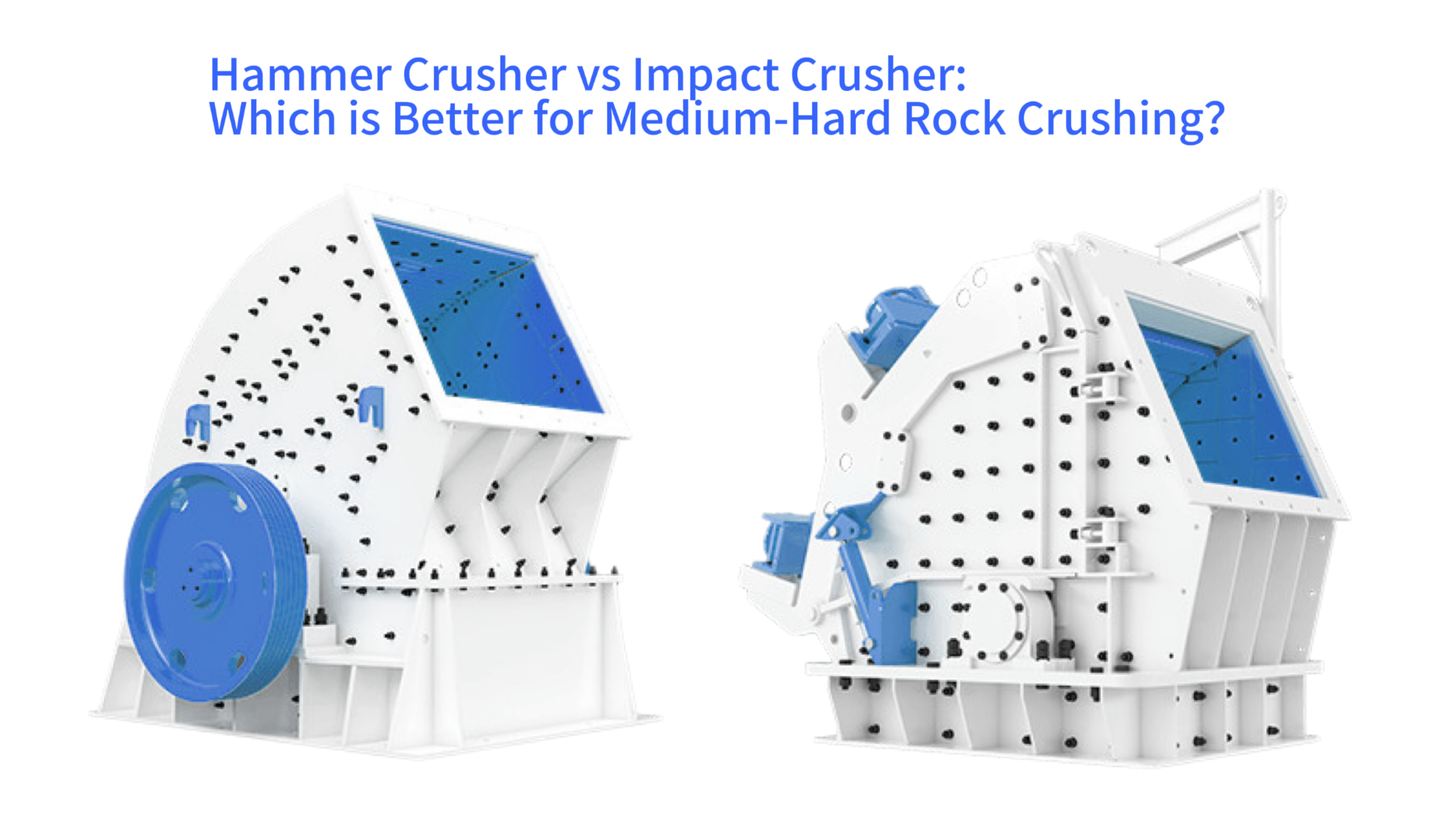

Hammer Crusher vs Impact Crusher: Which is Better for Medium-Hard Rock Crushing？
This comprehensive guide delves into the operational principles, structural differences, and optimal application scenarios of two fundamental crushing technologies: hammer crushers and impact crushers. Selecting the right equipment for processing medium-hard materials is a critical decision that impacts production efficiency, product quality, and long-term operational costs. This analysis provides a detailed, data-driven comparison to serve as a reliable foundation for this crucial investment decision.
We will systematically explore the distinct crushing mechanisms, compare key performance parameters such as capacity and energy consumption, and evaluate the long-term maintenance requirements and associated costs of each machine type. The objective is to equip plant managers, engineers, and procurement specialists with the necessary knowledge to make an informed choice that aligns with their specific material characteristics, production goals, and budgetary constraints, ensuring optimal performance in their crushing circuits.
Comparison of Working Principles and Crushing Mechanisms
The fundamental difference between a hammer crusher and an impact crusher lies in their approach to applying force and the resulting particle-on-particle interactions within the crushing chamber. These distinct mechanisms directly influence the final product shape, size distribution, and the crusher's efficiency when processing different types of medium-hard materials. Understanding these core principles is the first step toward a rational selection process.
While both are classified as impact crushers, the path of the material and the role of the machine's internal components create significantly different crushing environments. One relies on a more direct, grate-controlled process, while the other utilizes a free-flowing, multi-impact action that offers greater control over the final product's characteristics.
Impact Crushing Mechanism of Hammer Crushers
A hammer crusher operates on a relatively straightforward principle. Material is fed into the machine and is immediately struck by hammer heads that are fixed to a rotor spinning at high speed. This initial impact shatters the material, propelling it against the rugged lining plates that form the walls of the crushing chamber.
The defining feature of this mechanism is the presence of a grate assembly or screen bars at the bottom of the chamber. The crushed material must pass through the openings in this grate to be discharged. This means particles are subjected to repeated impacts until they are small enough to exit, resulting in a higher degree of fines and a less controlled particle shape. This mechanism is highly effective for brittle materials but can lead to higher wear when processing abrasive substances.
Impact and Counter-Attack Mechanism of Impact Crushers
An impact crusher employs a more dynamic crushing process. The material is still struck by powerful blow bars mounted on a high-speed rotor. However, instead of being confined by a grate, the launched particles fly freely into the large crushing chamber where they collide with adjustable impact plates, also known as aprons or breaker plates.
This collision constitutes the "counter-attack" or secondary breakage. The material may undergo several cycles of impact between the rotor and the impact plates before eventually exiting through the adjustable gap between the rotor and the impact plate. This multi-impact action allows for better control over the final product's size and shape, producing a more cubical end product with a consistent grain size distribution, which is highly valued in aggregate production.
Energy Transfer Efficiency Differences
The efficiency with which electrical energy is converted into effective crushing force varies significantly between the two designs. In a hammer crusher, a considerable amount of energy is consumed in the friction and repeated impacts against the grate, especially if the material is not easily reduced on the first strike. This can lead to energy losses in the form of heat and noise.
Impact crushers are generally considered to have a 15-20% higher energy utilization rate for producing a similarly sized product. The energy transfer is more focused on the initial impact and the subsequent purposeful collisions with the impact plates. The absence of a grate reduces unnecessary friction, allowing a greater proportion of the motor's power to be used directly for size reduction, making it a more efficient system for many applications.
Adaptability to Material Moisture Content
The susceptibility to clogging is a major differentiator. Hammer crushers, with their bottom grate, are highly sensitive to moist or clay-rich materials. These sticky substances can quickly blind the grate openings, blocking the discharge path. This leads to a buildup of material inside the chamber, causing severe overload, potential motor damage, and requiring frequent, often dangerous, manual clearing.
Impact crushers, lacking a bottom grate, are inherently more resistant to clogging from damp material. The open discharge design allows for a much higher moisture tolerance. Some impact crusher models can even be equipped with optional heating elements on the feed chute and impact plates to prevent the adhesion of slightly moist materials, further expanding their operational range in less-than-ideal conditions.
Differences in Equipment Structure and Core Components
The divergent crushing mechanisms of these two machines are made possible by their distinct physical structures and the design of their core wear parts. These structural choices dictate not only performance but also maintenance routines, component service life, and the overall robustness of the machine. A closer examination of their construction reveals why each is suited to particular tasks.
From the shape of the crushing chamber to the method of adjusting the final product size, every aspect of the design is optimized around its primary crushing action. These design philosophies result in different strengths and weaknesses, influencing which machine is the correct tool for a given job based on the physical properties of the feed material and the desired specifications of the output product.
Crushing Chamber Design Comparison
The crushing chamber of a hammer crusher is typically a smaller, more enclosed space. Its geometry is designed to maximize the number of impacts between the hammers, the lining plates, and the material. The presence of the grate at the bottom defines the lower boundary of this chamber, creating a controlled but confined environment that prioritizes reduction over particle shaping.
In contrast, an impact crusher features a large, open-type crushing chamber. This expansive volume provides ample space for the material to be lifted by the rotor, accelerated, and then thrown against the impact plates. This design facilitates the "rock-on-rock" or "rock-on-plate" impact action that is crucial for achieving a well-shaped, cubical product. The open chamber also makes it easier to access internal components for inspection and maintenance.
Key Wear Parts Service Life
The service life of wear parts is a major factor in operating costs. In a hammer crusher, the primary wear parts are the hammer heads and the grate bars. Due to the direct and often abrasive contact with the material, hammer heads typically require replacement or rotation after 800 to 1,200 hours of operation, depending on the abrasiveness of the feed material.
Impact crushers utilize blow bars and impact plates. The design often allows the blow bars to be reversed top-to-bottom to utilize multiple wearing edges, effectively doubling their service life. Blow bars commonly last between 1,500 and 2,000 hours. Furthermore, the impact plates and chamber liners have a replacement cycle that is approximately 40% longer than the lining plates in a hammer crusher, contributing to lower long-term maintenance costs.
Discharge Opening Adjustment Methods
Adjusting the final product size is achieved through fundamentally different methods. In a hammer crusher, the product size is primarily controlled by the size of the openings in the bottom grate. To change the product size, the entire grate assembly must be physically replaced with another one that has different gap dimensions. This is a manual process that requires downtime and inventory of multiple grate sets.
Impact crushers offer a more dynamic and convenient solution. The product size is adjusted by changing the gap between the rotor and the impact plates. On modern machines, this is frequently accomplished through a hydraulic adjustment system, allowing the operator to modify the setting at the push of a button, even while the machine is running. This enables quick and easy adaptation to produce different product grades without any manual intervention or additional parts.
Overload Protection Devices
Protecting the crusher from uncrushable objects like tramp metal is essential to prevent catastrophic damage. Traditional hammer crushers often employ a mechanical safety device. This can be a safety clutch or a coupling designed to slip or break a shear pin when the torque exceeds a predetermined limit, thereby disconnecting the drive and protecting the motor and rotor assembly.
Modern impact crushers are typically equipped with more advanced hydraulic overload protection systems. When an unbreakable object enters the chamber, the hydraulic cylinders holding the impact plates allow them to move back and open wider, letting the object pass through the chamber with minimal damage. After the object passes, the hydraulic system automatically returns the impact plates to their original position, and the crusher resumes normal operation. This system minimizes downtime and protects the machine's integrity more effectively.
Suitable Material Types and Particle Size Control
The inherent design characteristics of hammer and impact crushers make each uniquely suited to processing specific types of materials and achieving certain product specifications. The choice between them often hinges on the physical properties of the feed stock, particularly its hardness and abrasiveness, and the desired shape and size of the final product required by the market or the next process stage.
Selecting the wrong crusher type for a given material can lead to prematurely worn components, high energy consumption, and an unsuitable product that may require additional processing. Therefore, matching the crusher's capabilities to the material's profile is a critical step in designing an efficient and economical crushing circuit.
Adaptability Comparison for Medium-Hard Materials
Hammer crushers excel at processing medium-hard to hard but non-abrasive or slightly abrasive materials with a compressive strength below 150 MPa. They are the preferred choice for crushing brittle materials like limestone, gypsum, coal, and weathered shale. Their high reduction ratio makes them ideal for single-stage crushing in cement plants and other similar industries.
Impact crushers demonstrate superior performance with harder and more abrasive materials, handling rocks with a compressive strength up to 350 MPa. They are the go-to machine for processing basalt, granite, river gravel, and recycled concrete and asphalt. Their ability to produce a high-quality, well-shaped aggregate makes them indispensable in the production of concrete and asphalt aggregates where particle shape is a critical quality parameter.
Feed Size Limitations
The maximum allowable feed size is an important practical consideration. Hammer crushers can generally accept larger lump sizes, with some heavy-duty models capable of taking feed material up to 2500mm in diameter. This large feed opening is an advantage when primary breaking is not performed or when the feed comes directly from a quarry face with minimal pre-screening.
Impact crushers typically have a more limited maximum feed size, often recommended to be no larger than 500mm to 800mm for standard models. This is because the feed must be properly engaged by the rotor and blow bars for efficient acceleration and impact. Exceeding this limit can lead to poor crushing efficiency, reduced capacity, and potential damage to the rotor bearings due to unbalanced loading.
Discharge Size Range
The final product size distribution is a key differentiator. A hammer crusher, governed by its bottom grate, produces a product where a high percentage, often over 80%, will be smaller than the grate opening. However, the product will contain a significant amount of fines and a wider range of particle sizes due to the aggressive pulverizing action and the requirement for material to pass through the grate.
Impact crushers offer more precise control over the top size of the product through the adjustable gap between the rotor and the impact plates. While they also produce fines, the product is generally more evenly graded. They are capable of producing a specific product size range, for example, from 20mm to 50mm, with a higher degree of consistency, which is beneficial for meeting strict aggregate specifications.
Particle Shape Control Capability
Particle shape is where the difference between the two crushers is most apparent. The confined and grate-dependent crushing action of a hammer crusher tends to produce a higher percentage of flaky and elongated particles. The continuous impacting and shearing against the grate bars can break particles along their natural cleavage planes, resulting in a product that may have a higher void content and be less desirable for high-strength concrete applications.
Impact crushers are renowned for their ability to produce a highly cubical product. The combination of high-speed impact and the rock-on-rock crushing action in the chamber fractures the particles through their natural weaknesses, minimizing cleavage and creating more equidimensional, cubical grains. This results in a denser, stronger aggregate with better interlocking properties, which is a premium product in the construction industry.
Performance Parameter Comparative Analysis

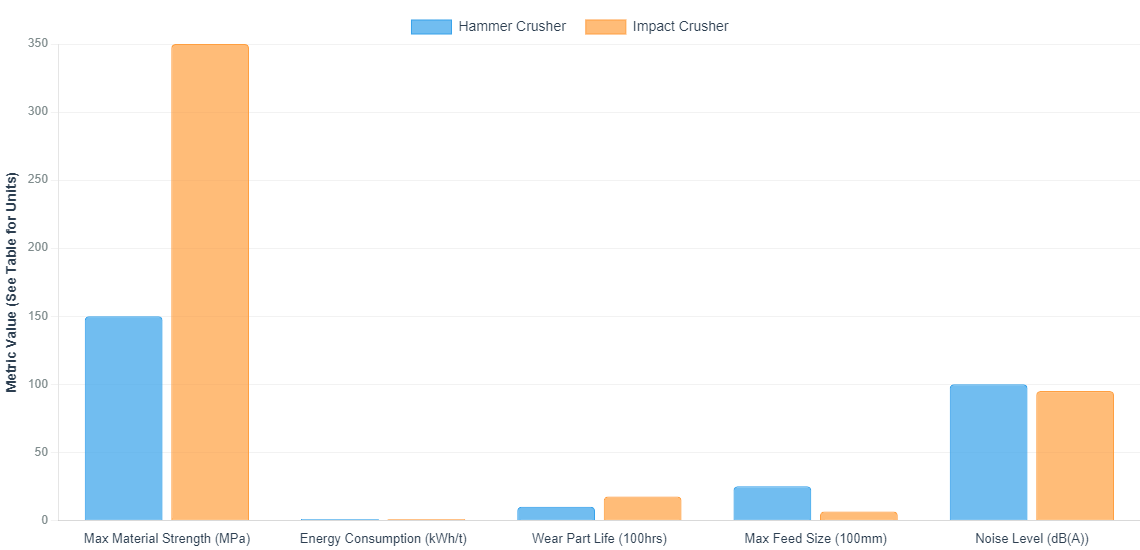

When selecting crushing equipment, quantitative performance metrics provide an objective basis for comparison. These parameters, including processing capacity, energy consumption, physical footprint, and environmental impact, directly influence the operational efficiency and economic viability of a crushing plant. A thorough analysis of these factors is essential for making a data-driven investment decision.
It is important to note that these figures are representative ranges and can vary significantly based on the specific model, feed material characteristics, and desired product size. However, the comparative trends between hammer and impact crushers remain consistent and provide valuable guidance for the selection process.
Processing Capacity Differences
The throughput capacity of a crusher is a primary consideration. Hammer crushers are available in a wide range of sizes, offering capacities from as low as 5 tonnes per hour for small-scale operations to over 2000 tonnes per hour for massive industrial applications. Their capacity is highly dependent on the grate opening size; a larger opening allows for higher throughput but produces a coarser product.
Impact crushers also cover a broad capacity spectrum, typically ranging from 50 to 800 tonnes per hour for most standard models in aggregate production. Their capacity is influenced by the rotor speed, the feed size distribution, and the setting of the impact plates. For a given motor power, an impact crusher might have a slightly lower maximum capacity than a hammer crusher but will often produce a more valuable, in-spec product.
Energy Consumption Indicators Comparison
Energy efficiency is a critical operational cost driver. Hammer crushers typically exhibit a specific energy consumption—the energy required to process one tonne of material—in the range of 0.5 to 1.5 kWh/t for limestone and other soft rocks. This value can increase significantly for harder or more abrasive materials due to higher wear and the energy lost in the grate screening action.
Impact crushers are generally more energy-efficient for producing a similarly sized product from the same feed material. Their specific energy consumption often falls between 0.8 and 1.2 kWh/t. The higher efficiency is attributed to the direct transfer of energy from the rotor to the material and the absence of the frictional losses associated with a grate. This can lead to substantial savings in electricity costs over the lifespan of the equipment.
Equipment Weight and Footprint
The physical size and weight of the crusher impact foundation requirements, transportation costs, and plant layout. Hammer crushers tend to be more compact and lighter in weight for a given feed opening size. This makes them a suitable choice for space-constrained installations or for semi-mobile crushing plants where equipment may need to be relocated periodically.
Impact crushers often have a larger footprint due to the size of the crushing chamber and the need for robust construction to withstand high-impact forces. They are also generally heavier. However, their design is often more vertical, which can be an advantage in terms of overall plant height and material flow design. The foundation must be designed to absorb significant dynamic loads during operation.
Noise and Dust Control
Industrial noise and dust are significant environmental and workplace health concerns. The operation of a hammer crusher generates noise levels typically between 95 and 105 dB(A), primarily from the impact of the hammers and the material, as well as the drive motor. Effective acoustic enclosures and hearing protection for operators are mandatory.
Impact crushers operate at similar noise levels, often between 90 and 100 dB(A). Dust generation is a major issue for both types of crushers. However, impact crushers, with their more contained and often better-sealed crushing chambers, can be more effectively connected to dust suppression systems. Comprehensive dust control, involving water spray systems and baghouse filters, is an essential auxiliary system for any crushing operation to meet environmental regulations and protect worker health.
Maintenance Costs and Wear Parts Management
The total cost of ownership for a crusher extends far beyond its initial purchase price. Recurrent expenses related to wear part replacement, labor for maintenance, and machine downtime constitute a significant portion of the operational budget. A comparative analysis of these long-term costs is crucial for assessing the true economic value of each crusher type over its operational lifespan.
Proactive wear parts management, including inventory planning, scheduled replacement, and potential refurbishment strategies, can optimize maintenance schedules and minimize unexpected downtime. The design of the crusher directly influences the ease, frequency, and cost of these essential maintenance activities.
Wear Parts Replacement Frequency
The interval between wear part changes is a key maintenance metric. In a hammer crusher, the hammer heads are the primary consumables. Depending on the abrasiveness of the material, these may require rotation (to use another wear edge) or replacement every 200 to 600 operating hours. The bottom grate bars also wear quickly and may need replacement or repair on a similar timescale.
In an impact crusher, the blow bars are the main wear parts. Due to their larger mass and the ability to be reversed, their service life is typically longer, ranging from 600 to 1200 hours. The secondary wear parts, the impact plates or aprons, have an even longer service life, often lasting for two to three blow bar replacement cycles before needing attention themselves.
Maintenance Complexity
The ease of maintenance affects labor costs and machine availability. Maintenance on a hammer crusher often involves physically accessing the bottom of the machine to inspect, replace, or unclog the grate assembly. Replacing the hammers can be a labor-intensive process requiring the opening of the housing and careful handling of heavy components.
Impact crushers are often designed with maintenance in mind. Many modern models feature hydraulic assistance for opening the housing and changing the blow bars. The adjustment of the product size via hydraulic controls is also a significant maintenance advantage, eliminating manual shim adjustment. The overall maintenance process can be less physically demanding and faster, reducing the critical downtime associated with wear part replacement.
Spare Parts Inventory Cost
The annual expenditure on spare parts is a major operational cost. For a hammer crusher, the inventory must include multiple sets of hammer heads, grate bars, and various pins and bushings. The high wear rate of these components means that a significant capital is often tied up in spare parts inventory to avoid production stoppages.
For an impact crusher, the spare parts inventory is typically simpler, focusing mainly on blow bars and impact plates. Although these parts are larger and more expensive individually, their longer service life means that the annual consumption and associated inventory cost are often 20-30% lower than for a hammer crusher processing the same material. This represents a significant working capital advantage.
Equipment Service Life
The overall service life of the crusher structure itself is another economic factor. A well-maintained hammer crusher, with timely replacement of all wear parts, can have a capital asset life of 10 to 15 years. The main frame, rotor shaft, and bearings are designed to last through many cycles of wear part replacement.
Impact crushers are built to withstand high dynamic loads and shock forces. Their robust construction often translates to a longer overall service life for the main machine, frequently exceeding 15 to 20 years. The longer lifespan of the core machine, combined with lower annual spare parts costs, often results in a lower total cost of ownership per tonne of material processed over the long term.
Application Cases and Selection Decision Framework
Translating the technical comparisons into practical decision-making requires examining real-world applications and developing a structured selection framework. The optimal choice between a hammer crusher and an impact crusher is rarely absolute; it depends on a confluence of factors specific to each project. This section provides guidance based on common industry practices and a logical decision-making process.
The final selection should be a balanced consideration of technical suitability, operational economics, and strategic project goals. There are scenarios where one technology clearly outperforms the other, and there are cases where the choice may be less distinct, requiring a detailed cost-benefit analysis.
Typical Application Scenarios
Hammer crushers find their strongest application in industries where the priority is a high reduction ratio in a single stage and the product shape is a secondary concern. They are the workhorse of the cement industry for crushing limestone, marl, and gypsum. They are also extensively used in coal crushing for power plants and coke production, and for processing soft industrial minerals.
Impact crushers dominate applications where the quality of the final product is paramount. This includes the production of high-value aggregates for concrete and asphalt, where their ability to produce a cubical product is a critical advantage. They are also the preferred choice for recycling operations, crushing concrete, asphalt, and construction demolition waste, as their open chamber is less prone to clogging from rebar and other contaminants.
Production Scale Matching
The scale of the operation can influence the choice. For small to medium-scale production plants with a capacity requirement below 300 tonnes per hour, hammer crushers can be an attractive option due to their lower initial capital investment and mechanical simplicity. They offer a cost-effective solution for meeting basic crushing needs.
For large-scale, high-volume aggregate production facilities with capacities exceeding 500 tonnes per hour, impact crushers are often the standard choice. While the initial investment is higher, their superior product shape, higher efficiency, and lower long-term operating costs per tonne justify the capital expenditure. Their ability to be precisely adjusted to meet changing market demands for different aggregate sizes is a significant operational advantage.
Investment Budget Analysis
A comprehensive financial analysis is essential. The initial purchase price of a hammer crusher is typically 20% to 30% lower than that of a similarly sized impact crusher. This lower capital outlay can be a decisive factor for projects with tight budget constraints or for operations where the crusher will be used intermittently.
However, a life-cycle cost analysis often reveals a different picture. The impact crusher's advantages in energy efficiency, longer wear part life, and higher product value can lead to a 15-20% lower operating cost per tonne of output. For a continuous, high-volume operation, the higher initial investment in an impact crusher is usually recovered through operating savings within a few years, making it the more economical choice over the machine's full lifespan.
Decision Framework Model
A logical decision tree can guide the selection process. The first and most critical filter is material hardness. For soft to medium-hard, non-abrasive materials like limestone and coal, a hammer crusher is a strong candidate due to its high reduction ratio and lower cost.
If the material is medium-hard to hard and/or abrasive, or if the specification requires a well-shaped, cubical aggregate product, then an impact crusher is the necessary choice. Finally, the decision should be validated by an economic analysis. For high-utilization applications, the impact crusher's operational savings will justify its higher price. For low-utilization or budget-sensitive projects, the hammer crusher may be the pragmatically correct choice despite its operational limitations.
