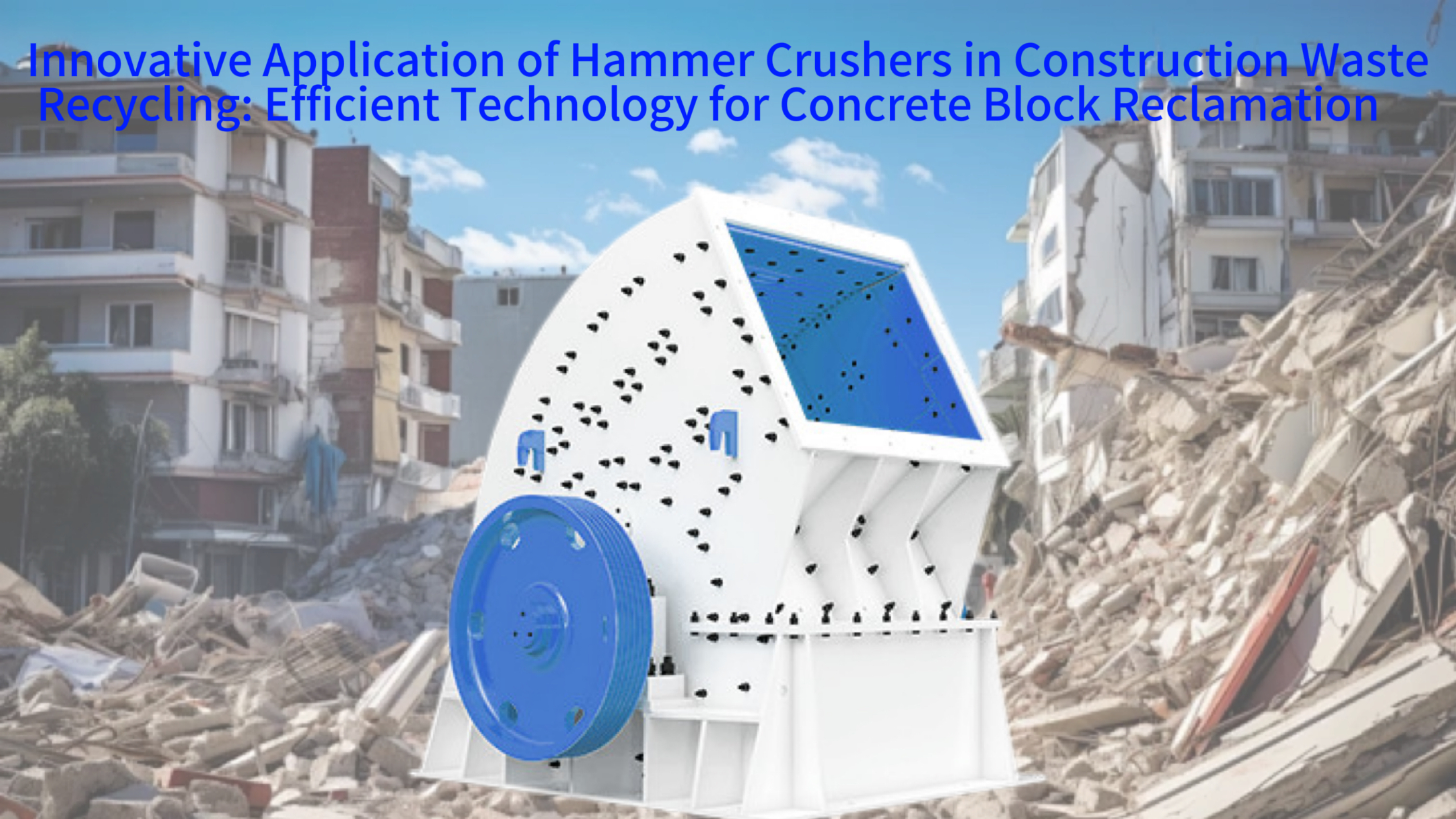

Innovative Application of Hammer Crushers in Construction Waste Recycling: Efficient Technology for Concrete Block Reclamation
This article provides a systematic overview of the core technological applications of hammer crushers in the resource utilization of construction and demolition (C&D) waste. By optimizing process parameters, establishing quality control systems, and implementing energy efficiency improvement plans, hammer crushers enable the efficient preparation and quality enhancement of recycled aggregate from concrete blocks. The focus is on transforming waste into valuable resources for a more sustainable construction industry.
The Logic Behind Crusher Selection in Construction Waste Recycling
Selecting the right crushing equipment is the foundational step in building an efficient construction waste recycling operation. The choice is not arbitrary but is driven by the specific physical characteristics of the input material, primarily demolished concrete blocks. These blocks present unique challenges that not all crushers can handle effectively, making the selection process critical for economic and operational success.
The ideal crusher must be robust enough to process large, irregular chunks of concrete, resilient enough to handle occasional metal contaminants like rebar, and versatile enough to produce a well-graded, high-quality aggregate product. This necessitates a careful evaluation of different crusher types against the project's specific requirements for throughput, final product specification, and operational costs. For many applications, a hammer crusher presents a compelling solution due to its unique combination of impact crushing force and flexibility.
Analysis of Concrete Block Physical Characteristics
Demolished concrete blocks possess distinct physical properties that directly influence the crushing process. Their compressive strength typically ranges from 15 to 40 Megapascals, which defines the amount of force needed to break them apart. Furthermore, these blocks are often reinforced with steel rebar, with the metal content constituting between 0.5% and 3% of the total mass, a factor that can cause significant issues for certain types of crushers.
The size distribution of the feed material is another critical consideration. While pre-processing is used to break down extremely large pieces, the crusher must be capable of accepting blocks up to 600 mm in their largest dimension. Understanding these properties is essential for choosing a crusher that can operate reliably without frequent blockages or damage from metal contamination.
Adaptive Advantages of Hammer Crushers
Hammer crushers offer several inherent advantages that make them particularly suitable for C&D waste recycling. One of the most significant is their high size reduction capability, known as the crushing ratio, which can reach 20:1 to 30:1. This allows a single machine to effectively transform large concrete rubble into usable aggregate in one step.
Their impact-based crushing action is also highly effective at liberating embedded rebar from the concrete matrix. The hitters strike the material with high energy, breaking the concrete along its natural fracture lines and separating it from the metal. Additionally, the final product size can be easily adjusted over a wide range, typically from 5 mm to 50 mm, by changing the bottom grate or screen, allowing for the production of different aggregate grades to meet various market demands.
Limitations of Traditional Equipment in Comparison
Other traditional crushers, like jaw crushers, often struggle with reinforced concrete. While excellent for primary crushing of virgin rock, their compressive crushing action can lead to steel rebar becoming tangled in the crushing chamber, requiring dangerous and time-consuming manual removal and causing significant downtime. This makes them less ideal for continuous processing of contaminated C&D waste.
Impact crushers are another common choice but can suffer from high wear part consumption when processing abrasive materials like concrete. The continuous impact of the concrete on the blow bars and impact plates leads to rapid wear, increasing operating costs for replacement parts and maintenance. While effective, their operational economics can be less favorable compared to hammer crushers designed for such abrasive duties.
Integrated Crushing and Sorting Design
The most efficient recycling systems are designed as integrated units where crushing and sorting happen in a coordinated, continuous process. A key component integrated directly into the crushing flow is a powerful magnetic separator. This device is positioned, often above a conveyor belt carrying the crushed material, to automatically extract liberated ferrous metal (rebar, wire mesh) for separate recycling.
Beyond metal removal, advanced systems may also include air classifiers or water jigs to separate lighter materials like wood, plastic, and paper from the heavier aggregate. This creates a closed-loop process where material is continuously crushed, sorted, and recirculated until the desired product purity and size are achieved, maximizing both material recovery and product quality.
Optimization Strategies for Recycled Aggregate Preparation Process
Once the appropriate hammer crusher is selected, maximizing its performance requires careful optimization of the entire preparation process. This involves fine-tuning the machine's operational parameters, integrating efficient screening, and managing the flow of material within the system. The goal is to achieve the highest possible yield of high-quality aggregate with minimal energy consumption and wear.
Optimization is not a one-time setup but a continuous process of monitoring and adjustment based on the changing nature of the feed material. By implementing smart strategies for parameter control, screening, and impurity removal, plant operators can significantly boost their productivity and the economic viability of their recycling operation. Understanding the crushing ratio is fundamental to this optimization process.
Dynamic Adjustment of Crushing Parameters
Modern hammer crushers allow for the dynamic adjustment of key operational parameters to match the feed material's characteristics. The rotor speed, which typically operates between 800 and 1200 revolutions per minute, can be varied. A higher speed delivers more impact energy for harder concrete, while a lower speed can be used for softer material to reduce wear and energy use.
The clearance between the hammers and the lining plates or grate is another critical parameter, often adjustable between 10 mm and 30 mm. A smaller clearance produces a finer product but increases wear, while a larger clearance increases throughput but may result in a coarser output. Similarly, the feed rate must be matched to the crusher's capacity, usually between 50 and 150 tons per hour, to avoid overloading and ensure efficient crushing.
Screening System Configuration Plan
After crushing, the material is sent to a screening system to separate it into different size fractions. Multi-deck vibrating screens, with two to four layers, are commonly used for this purpose. Each deck is equipped with screen meshes of different apertures, such as 5 mm, 10 mm, and 20 mm, to classify the aggregate into commercial grades like sand, fine aggregate, and coarse aggregate.
The efficiency of this screening process is paramount. A well-designed system can achieve screening efficiencies of 90% or higher. This means that over 90% of the material that should pass through a specific screen size does so, ensuring accurate product grading and preventing undersized material from being unnecessarily recirculated back to the crusher.
Control of Return Material Circulation
Oversized material from the screens is not wasted; it is automatically returned to the crusher's inlet for further reduction. In a well-balanced system, this recirculating load typically constitutes 30% to 50% of the total feed entering the crusher. Managing this flow is essential for stable operation.
The concept of cyclic load rate, or circulating load ratio, is optimized to find the perfect equilibrium between the crusher's capacity and the screen's efficiency. The system is designed to handle this constant flow of return material without causing bottlenecks or overloading the crusher, ensuring a smooth and continuous production process.
Impurity Removal Technology
Producing clean, high-value aggregate requires effective removal of non-concrete impurities. High-precision metal detectors, with an accuracy of 98% or better, are used to identify and signal the removal of any non-ferrous metals that the magnetic separator missed. This ensures the final product is free from metallic contaminants.
Air separation technology, or wind sifting, is employed to remove light impurities like plastic, paper, and wood. By injecting controlled air currents through a falling curtain of crushed material, these lighter particles are carried away, achieving separation efficiencies of 85% or more. For final quality assurance, some facilities still incorporate manual sorting stations to remove any remaining visible contaminants that the automated systems might have missed.
Building a Quality Control System for Recycled Aggregate
Establishing a robust quality control system is what separates a basic recycling operation from a producer of premium, specification-grade recycled aggregate. This system encompasses monitoring and controlling the physical and chemical properties of the product to ensure it meets strict industry standards and is fit for purpose in new construction projects.
Quality control begins at the input, with inspection of incoming demolition waste, and continues through every stage of processing, culminating in certified testing of the final product. This diligence builds confidence among engineers, architects, and contractors, enabling the wider adoption of recycled aggregates and supporting the circular economy in the construction sector. The properties of the final product are closely tied to the discharge size control of the crusher.
Particle Size Distribution Control Standards
A key quality indicator for aggregate is its particle size distribution, or gradation. The target is often a continuous gradation curve, where particles of all sizes are present in specific proportions to create a dense, well-compacted mix. This is crucial for the strength and durability of new concrete or asphalt made with the recycled aggregate.
Specific limits are placed on undesirable particle shapes. The content of fine powder (particles smaller than 75 micrometers) is typically limited to 12% or less, as excessive fines can increase water demand in concrete. Similarly, the percentage of elongated and flaky particles, known as needle-shaped and flake-shaped particles, is controlled to a maximum of 15%, as these can weaken the structural integrity of the final application.
Physical Performance Enhancement Technology
Various techniques are employed to improve the physical properties of recycled aggregate. Pre-wetting or aging processes can be used to strengthen the aggregate. These treatments help to initiate and complete secondary hydration reactions within the old cement paste attached to the aggregate, potentially closing micro-cracks and improving its strength.
The primary crushing process itself is optimized to "crack" open impurities encapsulated within concrete pieces, liberating them so they can be removed by subsequent sorting steps. Furthermore, the impact action of hammer crushers tends to produce more cubical particles compared to other methods, which optimizes the particle shape for better performance in concrete mixes.
Chemical Stability Assurance
Chemical stability is vital to prevent long-term deterioration in new constructions. Recycled aggregate is tested for harmful chemical compounds, such as free calcium oxide, which can expand upon hydration and cause cracking. Measures are also taken to mitigate the risk of alkali-silica reaction, a damaging reaction that can occur between the alkalis in cement and certain types of silica in the aggregate.
In some cases, the pH value of the aggregate may be monitored and adjusted if necessary to ensure it is compatible with its intended use and will not cause corrosion of embedded steel reinforcement in new concrete. This comprehensive chemical screening ensures the long-term durability of structures built with recycled materials.
Quality Control Inspection Process
A rigorous QC inspection process is implemented throughout production. Online particle size analyzers provide real-time data on the gradation of the aggregate, allowing for immediate adjustments to the crusher or screens. Key strength indicators, like the aggregate crushing value, are monitored through regular laboratory testing to ensure the material meets mechanical performance standards.
The water absorption of the aggregate is also measured in real-time or through frequent sampling. This is a critical property as high absorption can affect the water-cement ratio in concrete mixes. This multi-tiered inspection process ensures that every batch of recycled aggregate consistently meets the required quality specifications.
Environmental Benefits and Social Value Assessment
The adoption of hammer crushers in construction waste recycling extends far beyond economic gains, generating profound environmental and social benefits. By diverting waste from landfills and converting it into a valuable resource, these operations play a crucial role in promoting a circular economy and reducing the environmental footprint of the construction industry.
These benefits can be quantified in terms of reduced resource extraction, lower energy consumption compared to virgin material production, and significant cuts in greenhouse gas emissions. Furthermore, recycling initiatives contribute to urban sustainability by conserving landfill space and reducing the visual and environmental pollution associated with demolition waste. This aligns perfectly with modern C&D waste recycling goals and sustainable development policies.
Improvement in Resource Recycling Rates

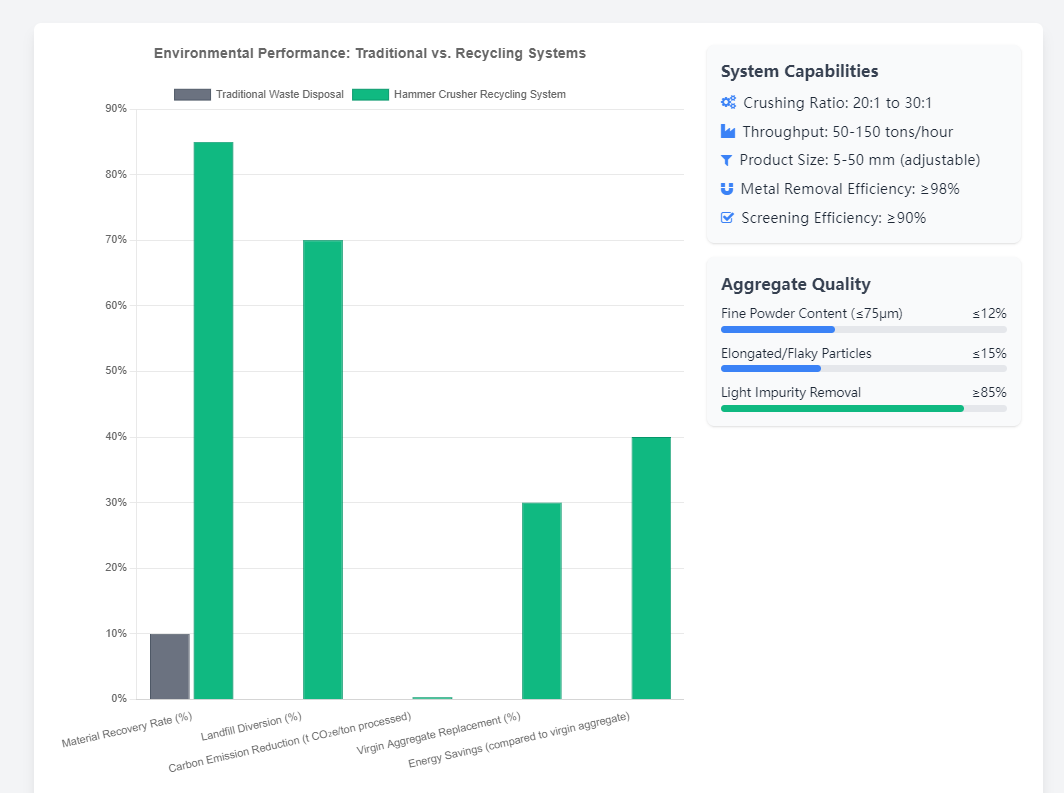

Efficient recycling systems can achieve concrete block recovery rates of 85% or higher. This means that the vast majority of demolished concrete is processed into reusable aggregate rather than being disposed of in landfills. This high recovery rate directly translates into a reduced demand for natural virgin aggregates.
It is estimated that high-quality recycled aggregate can replace up to 30% of natural sand and gravel in many construction applications without compromising performance. By diverting waste from landfills, these recycling operations also reduce the land required for waste disposal by up to 70%, preserving natural landscapes and reducing soil and water pollution from landfill leachate.
Calculation of Carbon Emission Reduction
The carbon footprint of processing one ton of recycled aggregate is significantly lower than that of quarrying, crushing, and transporting one ton of virgin natural aggregate. The avoidance of these energy-intensive processes results in a substantial net reduction in carbon dioxide emissions.
Studies have shown that using recycled concrete aggregate can reduce carbon emissions by approximately 0.3 tons of carbon dioxide equivalent per ton of material compared to using virgin aggregate. This reduction not only helps combat climate change but also may have future financial value through carbon credit trading mechanisms as carbon pricing policies become more widespread.
Contribution to Urban Sustainable Development
Recycling construction waste is a cornerstone of urban mining, where cities are viewed as sources of valuable materials. By controlling the amount of waste sent to landfill, municipalities can extend the lifespan of existing landfill sites and avoid the environmental and social costs of establishing new ones.
Successful recycling plants serve as demonstration project, or demonstration projects, showcasing practical circular economy models. They turn a waste management problem into an economic opportunity, creating green jobs in waste collection, processing, and sales, while also supplying local construction projects with a sustainable, often more cost-effective, material source, thus contributing to the overall sustainable development of the city.
Strategies for Enhancing Social Acceptance
Increasing the market acceptance of recycled products is crucial for the industry's growth. This involves implementing clear publicity plan, or promotional plans, to educate engineers, contractors, and the public about the performance, reliability, and environmental benefits of recycled aggregate. Transparency through third-party certification and quality labels is key to building trust.
Designing public participation mechanisms, such as site tours and educational programs, can help demystify the recycling process and garner community support. Furthermore, guiding businesses on how to access available policy subsidies or tax incentives for using recycled materials can provide an economic driver that accelerates market adoption and enhances the social license to operate.
