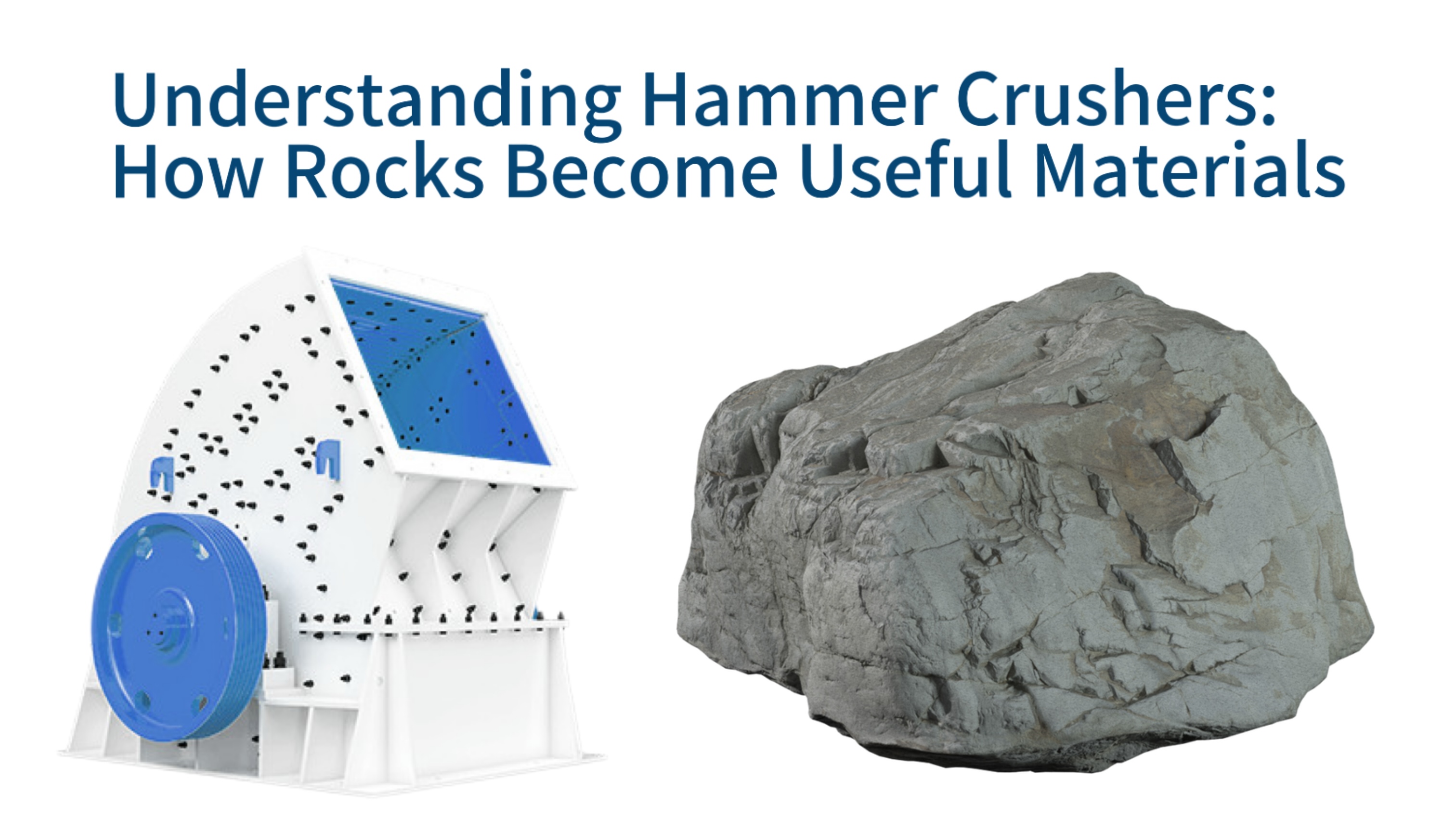

Understanding Hammer Crushers: How Rocks Become Useful Materials
Hammer crushers transform large rocks into smaller particles through powerful mechanical impacts. These industrial machines use swinging hammers to shatter materials against metal surfaces, reducing boulders to gravel-sized fragments. Found in mining operations and recycling facilities, they efficiently process materials like granite, concrete rubble, and ore. This guide explores their working principles, components, applications, and maintenance essentials - revealing how raw geological resources become construction aggregates and industrial materials through controlled fragmentation.
The Crushing Mechanism: Kinetic Energy at Work
Hammer crushers operate on a straightforward physical principle: transferring kinetic energy from rotating hammers to brittle materials. When rocks enter the crushing chamber, they encounter rapidly swinging hammers mounted on a central rotor. These hammers strike materials with tremendous force, creating fractures along natural fault lines. The shattered fragments then collide with breaker plates or grate bars for secondary fracturing. This dual-impact system ensures efficient size reduction in a single processing stage.
Impact Dynamics
Material disintegration occurs primarily through brittle fracture propagation. When hammer tips strike rock surfaces at velocities exceeding 30 meters per second, they generate localized stress points exceeding the material's compressive strength. These impact zones create micro-fractures that rapidly propagate through the specimen, similar to how glass shatters when hit at specific angles.
The hammers' rotational momentum directly determines crushing efficiency. Higher rotational speeds increase impact energy but also accelerate wear. Modern crushers optimize this balance through precision-engineered rotors and weight-balanced hammer assemblies that maintain stability while delivering maximum kinetic transfer.
Particle Trajectory Control
Controlled material flow ensures optimal impact sequences. Rocks entering the feed chute encounter deflector plates that distribute them across the hammer path. This prevents material clustering and guarantees even hammer engagement. After initial impacts, fragments ricochet toward adjustable breaker plates for secondary size reduction.
The final particle sizing depends on retention time within the crushing chamber. Adjustable grate assemblies at the discharge end determine exit timing - fragments remain circulating until small enough to pass through grate openings. This retention system enables precise control over output gradation without additional screening.
Energy Conversion Efficiency
Modern hammer crushers convert over 85% of electrical input into crushing energy. This efficiency stems from direct-drive mechanisms where motors connect directly to rotors without power-wasting transmissions. Energy recovery systems capture rotational inertia during deceleration phases, feeding reclaimed electricity back into the power grid.
The crushing chamber geometry significantly influences energy utilization. Curved impact plates create optimal deflection angles that maximize secondary collisions. Computational fluid dynamics models help designers create chamber profiles that minimize energy loss through friction and heat generation.
Core Components and Their Functions
Robust construction enables hammer crushers to withstand repetitive high-impact stresses. The welded steel housing contains all operational elements while dampening noise and vibration. Critical internal components work in synchrony to transform raw materials into uniform aggregates, with each element engineered for specific functions within the fragmentation process.
Rotor Assembly
The rotor serves as the crusher's kinetic heart, transferring motor power to crushing implements. Heavy-duty steel disks mount on a forged alloy shaft, creating a drum-like structure that spins on industrial-grade bearings. Hammer mounting slots radiate from the disk perimeter, allowing flexible hammer positioning to optimize impact patterns.
Precision dynamic balancing prevents destructive vibrations during operation. Rotors undergo computerized balancing procedures where technicians add counterweights until rotational forces remain neutral at maximum operating speeds. This meticulous balancing extends bearing life and prevents structural fatigue in the crusher frame.
Hammer Configuration
Interchangeable hammer heads attach to mounting rods protruding from the rotor. These wear components feature replaceable tungsten carbide tips brazed onto forged steel bodies. Different hammer profiles serve distinct purposes - blunt heads deliver maximum impact force for hard rocks while wedge-shaped designs create shearing action for fibrous materials.
Strategic hammer arrangement creates overlapping impact zones. Technicians position hammers in staggered rows to ensure complete material coverage without hammer-to-hammer collisions. This configuration eliminates dead spots in the crushing chamber while distributing wear evenly across the hammer set.
Grate Systems
Discharge grates function as sizing screens within the crushing chamber. These perforated plates consist of manganese steel bars with precisely spaced gaps. Fragment retention time depends directly on gap width - narrower openings produce finer output but reduce throughput capacity.
Modular grate segments allow quick configuration changes. Operators can replace individual sections to adjust product sizing without complete disassembly. Some advanced models feature hydraulic grate adjustment that modifies spacing during operation, enabling real-time output size modifications.
Protective Linings
Replaceable wear linings shield the crusher housing from abrasive particles. These thick steel plates bolt onto interior surfaces at impact points, taking the brunt of material abrasion. Strategic placement creates material-on-material crushing zones where fragments collide with each other rather than metal surfaces.
Linings utilize specialized alloys for extended service life. Chromium-molybdenum compositions resist impact deformation while boron-infused surfaces deflect abrasive wear. Some designs incorporate rubber-bonded linings that absorb impact energy, reducing noise levels by up to 15 decibels during operation.
Material Applications and Processing
Different materials demand customized crushing approaches. Hard igneous rocks like basalt require high-impact energy configurations, while brittle limestone fractures easily with less force. Recycled concrete contains reinforcing steel that necessitates tramp metal protection systems. Understanding material characteristics ensures optimal crusher configuration for each application scenario.
Igneous Rock Processing
Granite and basalt present unique challenges due to their interlocking crystalline structures. Successful fragmentation requires high tip-speed rotors with massive hammers that deliver concentrated impact energy. These dense rocks necessitate hardened alloy hammers with extra-thick wear surfaces to withstand abrasive quartz content.
Crushers processing volcanic rocks often incorporate secondary impact shelves. These reinforced ledges positioned below the primary impact zone provide additional fracture points for resistant materials. The resulting cubical fragments make excellent concrete aggregates with superior binding properties.
Recycling Operations
Construction debris recycling demands rugged designs with tramp metal protection. Reinforced rotors withstand unexpected encounters with rebar or steel fragments. Automatic metal detection systems trigger immediate shutdown when ferrous material enters, preventing catastrophic component damage.
Moisture management proves critical when crushing demolition waste. Water spray systems suppress dust without over-wetting materials, maintaining efficient flow through discharge grates. Adjustable baffle plates redirect material streams, preventing damp concrete from accumulating in dead zones.
Mineral Ore Reduction
Primary ore crushing requires specialized hammer metallurgy. Tungsten carbide inserts withstand abrasive iron ores while chrome-white iron bodies resist impact deformation. Some models incorporate replaceable ore pockets - specially contoured plates that concentrate impact forces on dense mineral clusters.
Closed-circuit systems with cone crushers often follow hammer crushers in mineral processing plants. The initial hammer crushing stage creates optimally sized feed material for secondary grinding processes, maximizing overall plant efficiency.
Operational Efficiency Factors
Multiple variables influence hammer crusher performance and output quality. Material characteristics like hardness and moisture content directly affect throughput rates. Machine parameters including rotor speed and hammer configuration determine energy efficiency. Understanding these interdependencies helps operators maximize productivity while minimizing operational costs.
Feed Size Limitations
Optimal feed dimensions ensure efficient energy transfer. Oversized boulders cause material bridging while undersized particles reduce impact effectiveness. The ideal feed size ranges between 70-90% of the feed opening dimensions, creating a steady material flow that fully engages the hammer tips.
Pre-crushing strategies improve efficiency for large feed stocks. Primary jaw crushers reduce quarry-run material to manageable sizes before hammer crushing. This staged approach increases overall system throughput by 20-35% compared to direct feeding of uncrushed stone.
Moisture Management
Material moisture critically affects crusher performance. Excess water creates sticky aggregates that clog discharge grates, while bone-dry materials generate excessive dust. Optimal moisture content ranges between 3-8% depending on material type, requiring pre-drying systems or controlled water addition.
Specialized hammer designs prevent material buildup in damp conditions. Ventilated hammers with through-holes prevent material adherence while rotating brush systems keep grate openings clear. Some models incorporate heated breaker plates that flash-dry materials during crushing.
Production Optimization
Throughput balancing prevents component overload. Feed rate controllers match material input to crusher capacity using load sensors that monitor motor amperage. Variable frequency drives automatically adjust rotor speed based on material hardness, maintaining constant product quality despite feed variations.
Automated gap control systems optimize energy consumption. Pressure sensors detect material resistance, signaling hydraulic rams to widen discharge openings when processing hard materials. This dynamic adjustment reduces power consumption by 12-18% while preventing component stress during difficult crushing conditions.
Maintenance Protocols for Longevity
Proactive maintenance extends crusher service life while preventing unexpected downtime. Regular inspections identify emerging issues before they cause component failure. Strategic component rotation distributes wear evenly, while proper lubrication reduces friction in critical moving parts. Implementing structured maintenance routines significantly reduces operating costs over the equipment lifecycle.
Wear Component Management
Hammer rotation extends service intervals. Technicians periodically reverse hammers to utilize unworn surfaces, effectively doubling component life. Digital thickness gauges monitor wear progression, triggering replacement when critical dimensions are reached.
Predictive replacement scheduling prevents catastrophic failures. Vibration analysis detects imbalanced rotors before bearing damage occurs. Thermal imaging identifies hot spots indicating impending failures in electrical systems. These techniques reduce unplanned downtime by 40-60% compared to reactive maintenance approaches.
Lubrication Systems
Automatic greasing maintains bearing integrity. Programmable dispensers deliver precise lubricant amounts at scheduled intervals while filtration systems remove abrasive particles from oil reservoirs. Centralized lubrication points allow single-point servicing, reducing maintenance time requirements.
Specialized lubricants withstand extreme conditions. Synthetic greases with solid lubricant additives maintain viscosity at high temperatures while resisting water washout. Some systems incorporate condition-monitoring sensors that analyze lubricant quality and trigger changes when contamination exceeds thresholds.
Structural Integrity Preservation
Regular frame inspections prevent catastrophic failures. Dye-penetrant testing detects microscopic cracks in high-stress areas while ultrasonic thickness measurements monitor housing wear. These non-destructive techniques identify potential failure points before they compromise structural integrity.
Foundation monitoring ensures proper alignment. Laser alignment systems detect minute shifts in crusher positioning that might cause abnormal vibrations. Grout injection repairs foundation erosion beneath mounting points, maintaining precise rotor alignment throughout the service life.
Modern Technological Advancements
Contemporary hammer crushers incorporate sophisticated technologies that enhance performance and operational control. Digital monitoring systems provide real-time performance data while automated adjustment features optimize output without operator intervention. These innovations increase productivity while reducing manpower requirements and operational costs.
Intelligent Control Systems
Automated optimization algorithms adjust operational parameters. Sensors monitoring vibration, temperature, and power consumption feed data to control processors that dynamically adjust rotor speed and feed rates. These systems maintain peak efficiency despite variations in material characteristics.
Remote monitoring enables off-site supervision. Cellular-connected controllers transmit operational data to centralized monitoring stations where technicians oversee multiple units. This approach reduces onsite staffing requirements while enabling expert intervention during abnormal conditions.
Wear Monitoring Technology
Embedded sensors track component degradation. Strain gauges mounted within hammers detect thickness loss while proximity sensors monitor rotor balance. This real-time wear data enables predictive replacement scheduling before failures occur.
Laser scanning creates digital wear profiles. Automated systems periodically map internal chamber dimensions, comparing results against original specifications. This technology identifies asymmetric wear patterns that might indicate alignment issues or material flow problems requiring correction.
Energy Recovery Innovations
Regenerative drives capture deceleration energy. When reducing rotor speed, these systems convert rotational momentum into electrical energy that feeds back into the power grid. This technology reduces net energy consumption by 15-25% during frequent start-stop operations.
Hydraulic accumulator systems store impact energy. Specialized circuits capture pressure spikes during crushing events, releasing stored energy during the hammer return cycle. This innovative approach smooths power demand curves while reducing overall energy requirements.
Environmental Considerations and Solutions
Modern hammer crushers incorporate comprehensive environmental protection features. Dust suppression systems contain particulate matter while noise reduction technologies minimize acoustic impact. Energy-efficient designs reduce carbon footprints, making contemporary crushing operations more sustainable than ever before.
Particulate Control Systems
Integrated water spray systems suppress dust at source points. Nozzles positioned at feed and discharge locations create fine water curtains that capture airborne particles. Moisture sensors prevent over-saturation while flow controllers adjust water volume based on material throughput.
Negative pressure systems contain dust within enclosures. Exhaust fans create inward air currents that prevent particle escape while filtration units capture fine particulates. These closed systems maintain ambient air quality without contaminating surrounding areas.
Noise Abatement Technologies
Acoustic enclosures reduce sound transmission. Sandwich panels with sound-absorbing cores surround crushing chambers while resilient mounts prevent vibration transfer to supporting structures. These engineering solutions reduce operational noise by 20-30 decibels compared to unshielded units.
Impact dampening materials absorb collision energy. Rubber-lined crushing chambers reduce metal-to-metal contact noise while polyurethane curtain systems muffle discharge impacts. These treatments create quieter working environments without compromising crushing efficiency.
Resource Conservation Features
Water recycling systems minimize consumption. Closed-loop circuits collect used spray water, removing suspended solids through sedimentation before reuse. This approach reduces water requirements by 70-90% compared to single-pass systems.
Wear component recycling programs recover valuable materials. Manufacturers collect spent hammers and liners for metal reclamation while specialized foundries reformulate recovered alloys into new components. These circular economy approaches significantly reduce the environmental impact of replacement part production.
