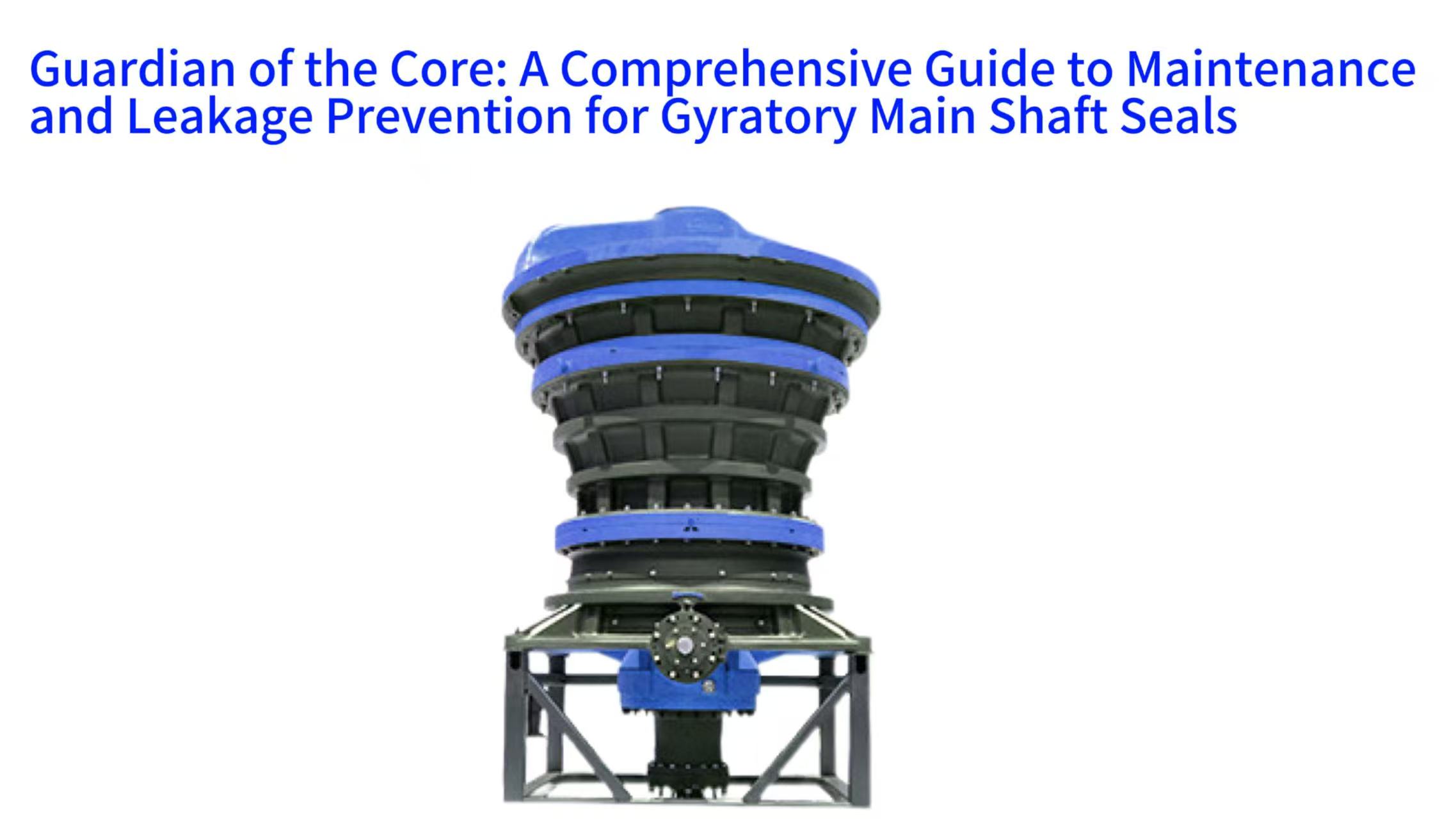

Guardian of the Core: A Comprehensive Guide to Maintenance and Leakage Prevention for Gyratory Crusher Main Shaft Seals

The main shaft seal in a gyratory crusher acts as the fundamental barrier protecting the machine's heart, the main shaft bearings, from catastrophic failure. This article provides a systematic exploration of how these seals function, the common root causes of leakage, step-by-step daily inspection routines, professional replacement procedures, and a holistic management system designed to eliminate leakage faults. Our goal is to equip operators and maintenance personnel with the knowledge to ensure long-term, uninterrupted operation of this critical industrial equipment by safeguarding its most vulnerable points against contamination and wear.

Understanding the Main Shaft Seal System

The main shaft seal assembly in a gyratory crusher serves a dual critical purpose, preventing the ingress of external abrasive dust while simultaneously retaining the internal lubricating oil essential for bearing operation. This system typically incorporates a multi-layered defense strategy, combining contact seals, labyrinth seals, and sometimes air purge systems to create a robust barrier. A failure in this sealing mechanism can lead directly to lubricant contamination, resulting in bearing overheating, accelerated wear, and ultimately a complete mechanical breakdown that halts production. The integrity of the seal is intrinsically linked to the performance of the entire crusher's hydraulic and lubrication systems, making its understanding paramount.

Installation Position and Operating Environment

Located at the point where the rotating main shaft enters the stationary crusher frame, the main shaft seal operates in an exceptionally harsh environment. It is constantly exposed to high-velocity rock dust, significant mechanical vibrations, and fluctuating temperatures. The seal must accommodate the precise gyratory motion of the shaft without compromising its protective function, a challenge that demands robust design and material selection. Understanding this location helps visualize the constant assault the seal endures and underscores the necessity for rigorous maintenance protocols to preserve its integrity over time.

Principles of Contact Seals

Contact seals, such as lip seals or V-rings, function by maintaining light physical contact with the rotating shaft, creating a dynamic barrier. These components are often made from specialized elastomers or polymers designed for flexibility and resistance to wear. The sealing action relies on a thin film of lubricant between the seal lip and the shaft surface to minimize friction and heat generation while effectively scraping away any potential contaminants. The performance and lifespan of these seals are heavily influenced by shaft surface finish, alignment, and the quality of the lubricant they are designed to contain.

Function of Labyrinth Seals

Labyrinth seals operate on a non-contact principle, using a series of intricate grooves and passages to create a tortuous path for any contaminant attempting to enter. This design does not rely on friction, which eliminates wear in this specific component, and instead uses aerodynamic or viscous effects to impede the flow of dust and moisture. While highly effective at blocking larger particles, labyrinth seals often work in concert with contact seals to provide a comprehensive defense, where the labyrinth handles the bulk of the contaminant load and the contact seal provides the final, critical barrier against oil leakage.

Progression from Minor Leak to Major Failure

A seemingly insignificant leak from the main shaft seal can initiate a rapid and costly chain of events within the crusher. Initially, a small leak allows fine, abrasive dust to be drawn into the bearing housing, where it mixes with the lubricating oil to form a grinding paste. This contaminated lubricant drastically increases the rate of bearing wear, leading to increased operating temperatures and clearance. As bearings degrade, they induce greater vibration and stress on the main shaft, potentially causing scoring and further damaging the seal, accelerating the leakage until the bearing fails completely, requiring a lengthy and expensive rebuild of the entire upper assembly.

Diagnosing Common Causes of Main Shaft Seal Leakage

Accurately diagnosing the root cause of a seal leakage is the first and most crucial step toward implementing an effective and lasting solution. Leakage can stem from a variety of interconnected issues, ranging from simple component wear to complex systemic failures. A methodical approach to diagnosis helps avoid misidentifying the problem and prevents the recurrence of leaks after repairs. By categorizing the causes into mechanical, structural, operational, and environmental factors, maintenance teams can develop a structured troubleshooting protocol that saves time and resources while improving crusher reliability.

Interpreting Leakage Fluid Characteristics

The physical appearance and composition of the leaking fluid provide vital clues for pinpointing the source of the failure. Leakage that consists of oil heavily contaminated with dust typically indicates a failure of the primary dust exclusion seals, allowing external material to enter the lubrication system. In contrast, a stream of relatively clean oil suggests a failure of the oil-retaining seals, often due to wear or damage from internal pressure or shaft movement. Analyzing the leakage helps narrow down whether the issue is primarily on the external defense side or the internal retention side of the sealing system, guiding the subsequent inspection and repair efforts.

Differentiating Between Seal Types and Locations

Distinguishing between a leak originating from the spider deck U-seal and one from the lower main shaft seal is essential for targeted repair. The spider deck seal is tasked with protecting the upper bearing arrangement from material falling from the crushing chamber, and its failure often manifests as contamination in the upper lubrication sump. The lower main shaft seal guards the primary bearings and its failure directly threatens the core of the machine. Identification often requires a combination of visual inspection, oil sample analysis from different reservoir points, and sometimes the use of borescopes to observe internal conditions without full disassembly, ensuring the correct repair scope is planned.

Non-Disassembly Inspection Techniques

Advanced tools like industrial borescopes enable maintenance personnel to perform detailed internal inspections of the seal area and adjacent components without the downtime associated with full disassembly. These visual inspections can reveal tell-tale signs of wear, such as polished grooves on the shaft, cracked seal lips, or accumulated debris in labyrinth passages. Coupled with vibration analysis and thermographic imaging, these techniques form a powerful predictive maintenance toolkit that can identify seal degradation in its early stages, allowing for planned interventions before a catastrophic leak occurs and production is lost.

Factors Leading to Premature Seal Aging

Several subtle factors can drastically shorten the service life of a main shaft seal beyond normal mechanical wear. Chemical incompatibility between the seal elastomer and certain lubricant additives can cause the material to swell, harden, or crack, destroying its sealing ability. Excessive heat, often from bearing issues or inadequate cooling, accelerates the aging process of polymer materials, reducing their elasticity. Improper storage of spare seals, exposing them to ozone, sunlight, or extreme temperatures before installation, can also degrade their material properties, leading to premature failure even when correctly installed.

Implementing a Daily Inspection and Preventive Maintenance Routine

Establishing a disciplined and consistent daily inspection routine is the most effective strategy for catching seal problems at their inception, when they are easiest and least expensive to address. This proactive approach moves maintenance from a reactive, breakdown-based model to a predictive one, maximizing equipment availability. A comprehensive routine should encompass visual checks, sensory observations, and simple instrument readings that together provide a holistic view of the seal's health. Documenting these observations in a maintenance log creates a valuable historical record for tracking seal performance and predicting end-of-life, enabling planned replacements.

A Detailed Sensory Inspection Regimen

A thorough daily inspection employs multiple senses to assess the condition of the main shaft seal. Visually, look for any signs of oil seepage, dust accumulation around the seal housing, or discoloration indicating overheating. Audibly, listen for changes in sound from the seal area; a consistent whining or scraping noise may suggest excessive friction. Tactilely, carefully feeling the housing for unusual heat can indicate failing bearings or inadequate lubrication that will soon affect the seal. This multi-faceted approach, conducted during every shift, builds a baseline of normal operation and makes deviations immediately apparent.

Proper Cleaning Procedures for the Seal Area

Maintaining cleanliness around the seal housing is a simple yet critical preventive measure. Accumulated dust and debris can trap moisture against metal surfaces, promoting corrosion, and can clog cooling fins or labyrinth passages, leading to overheating. Cleaning should be performed using low-pressure air or soft brushes to avoid driving fine particles past the seals. It is vital to avoid using high-pressure water jets for cleaning, as the force can easily damage seal lips, force water past the seals into the bearing oil, and wash away protective grease from auxiliary seals, ultimately causing more harm than good.

Interpreting Oil Analysis Reports

Regular oil analysis is a powerful predictive tool that provides an early warning system for seal and bearing health. A rising particle count in the oil sample directly indicates that contaminants are bypassing the seals, while an increasing water content suggests a failure in the sealing system's ability to exclude moisture. Trends in metal wear particles can signal bearing degradation that may be related to seal failure. By tracking these parameters over time, maintenance teams can make data-driven decisions about when to schedule seal inspections or changes, moving from a fixed-time schedule to a conditioned-based one for greater efficiency and reliability.

Establishing a Preventive Replacement Cycle

Instead of waiting for a seal to fail, establishing a preventive replacement cycle based on historical performance data and operating hours minimizes unplanned downtime. This cycle should be determined by analyzing the typical service life of seals under specific operating conditions, such as the abrasiveness of the material being processed. Factors like crusher utilization rate, ambient temperature extremes, and the effectiveness of the dust control systems should all influence this schedule. A planned replacement during a scheduled maintenance shutdown is far more cost-effective than an emergency repair that disrupts production and risks collateral damage to other components like the main shaft.

Executing the Standard Procedure for Seal Replacement and Installation

When seal replacement becomes necessary, adhering to a meticulous and standardized procedure is non-negotiable for ensuring a successful, long-lasting repair. This process begins long before any tools are applied, with comprehensive safety planning and preparation. A haphazard approach to disassembly or installation can easily damage expensive components, such as the shaft sealing surface, leading to immediate re-leakage and wasted effort. Following the manufacturer's specified steps, using the correct tools, and maintaining a clean work environment are the three pillars of a professional seal replacement that restores the crusher to optimal operating condition.

Identifying and Mitigating Safety Risks

Seal replacement work involves significant hazards that must be systematically controlled before any work begins. This includes performing a full lockout-tagout procedure to isolate all energy sources, including electrical, hydraulic, and potential gravitational energy from the mantle. The work area must be cleared of falling hazards, and personnel must use appropriate personal protective equipment. A pre-task safety briefing should identify specific risks such as heavy component handling, confined spaces, and exposure to residual lubricants, ensuring that every team member is aware of the procedures and emergency protocols.

Disassembly and Removal of the Old Seal

The disassembly process must be conducted with patience and precision to avoid causing collateral damage. After safely gaining access to the seal housing, the use of dedicated pullers and drivers is essential for removing the old seal. Forcing components or using improvised tools can score or gouge the precision-machined sealing surface on the shaft or within the housing, creating leak paths that no new seal can correct. Each removed component should be carefully inspected for wear or damage, as these old parts provide valuable forensic evidence about the root cause of the failure, informing improvements to prevent a recurrence.

Selection and Application of Lubricants

Proper lubrication of the new seal during installation is a critical step that is often overlooked. The seal lip must be lubricated with the same type of oil it will be sealing, or a compatible assembly grease, to prevent it from running dry during the initial start-up. This initial lubrication prevents damage to the delicate sealing edge, which can be burned or torn in seconds without a protective film. The lubricant should be applied evenly and sparingly, ensuring it does not attract dust or debris during the assembly process, which could be embedded against the seal lip and cause premature wear.

Achieving Proper Alignment During Installation

Correct alignment during the installation of the new seal and its housing is paramount to achieving a uniform seal and long service life. Misalignment creates uneven pressure on the seal lip, leading to localized wear and rapid failure. The use of installation mandrels or guides that center the seal on the shaft is highly recommended to prevent cocking. All fasteners should be tightened in a cross-pattern to the manufacturer's specified torque values to ensure the housing is drawn down evenly without distorting the seal. Verifying alignment after installation, before final reassembly, can prevent a costly do-over.

Maintaining Related Systems for a Comprehensive Leakage Solution

Focusing solely on the seal itself is often a short-sighted strategy, as leakage is frequently a symptom of problems elsewhere in the crusher's ancillary systems. A holistic approach to leakage prevention involves verifying the health and proper function of all interconnected systems that influence the seal's operating environment. The lubrication system, the crusher's breathing apparatus, and the mechanical condition of the main shaft and bearings all exert direct pressure, both literal and figurative, on the sealing elements. By maintaining these related systems, the root causes of seal stress are eliminated, leading to a fundamental and lasting solution.

Internal Pressure Buildup and Seal Extrusion

Excessive internal pressure within the crusher frame is a primary force that can physically extrude seals from their housings or force oil past the sealing lips. This pressure can originate from thermal expansion of the oil, air compression from the downward stroke of the mantle, or a blocked breather. The crusher's breather is designed to equalize internal and external pressure, and if it becomes clogged with dust, pressure will build during operation. This elevated pressure seeks the path of least resistance, which is often the main shaft seal, pushing oil out and demonstrating that seal failure can be a consequence of a simple, maintainable component like a breather.

Correlation Between Bearing Wear and Seal Life

The health of the main shaft bearings is inextricably linked to the lifespan of the main shaft seal. As bearings wear, they allow for increased radial and axial movement of the shaft. This movement, even if minute, exceeds the design tolerance of the seal, which is meant to accommodate a precise gyratory motion, not erratic play. The seal lip cannot maintain consistent contact with a wobbling shaft, leading to gaps that allow leakage and accelerated wear. Therefore, monitoring bearing clearance through regular checks is not just about preventing bearing failure; it is a direct preventive measure for protecting the seals and maintaining the desired discharge size consistency.

Impact of Lubrication System Filter Neglect

The lubrication system's filters play an indirect but crucial role in seal longevity. If filters are not changed at recommended intervals, they become clogged, activating the bypass valve and allowing unfiltered oil, potentially containing fine metallic and silica dust, to circulate through the system. This abrasive oil acts like lapping compound on the seal lip and the shaft surface, gradually wearing them down and destroying the sealing interface. Maintaining a strict filter replacement schedule is a low-cost investment that protects not only the bearings but also the seals, ensuring the lubricant remains clean and non-abrasive.

Checklist for Associated System Maintenance

A comprehensive maintenance checklist for systems affecting the main shaft seal should include verifying lubricant pressure and temperature gauges for accuracy, inspecting and cleaning the breather assembly, checking the condition and torque of all clamp rings and housing fasteners, and confirming the proper function of oil coolers and any air purge systems. This checklist, performed during regular service intervals, ensures that all external factors contributing to seal life are monitored and maintained. This proactive system-wide approach is far more effective than repeatedly replacing seals without addressing the underlying conditions that caused their premature failure.

Building a Zero-Leakage Culture from Response to Management

Transitioning from simply fixing leaks to proactively preventing them requires a cultural shift within the maintenance and operations teams, moving from a reactive mindset to a proactive, reliability-focused philosophy. This involves establishing clear protocols for every stage of the seal's life cycle, from initial installation to emergency response and continuous improvement. A zero-leakage culture is built on standardized procedures, cross-functional training, and the use of data-driven tools to analyze failures and prevent their recurrence. This holistic management system turns seal maintenance from a tactical chore into a strategic advantage for operational excellence.

Structured Emergency Response to Leak Detection

When a leak is first detected, a predefined and practiced emergency response plan should be initiated immediately to minimize damage. The first step is always to assess the severity and potential safety implications, followed by notifying the operations and maintenance supervisors. The second step involves deciding whether to schedule an immediate shutdown or if the crusher can continue running under increased monitoring for a short period to align with production schedules. The third step is to mobilize the prepared seal replacement kit and trained personnel to execute the repair efficiently, ensuring that every action is documented for future analysis and process refinement.

Managing Seal Life as a Key Performance Indicator

Incorporating seal performance metrics, such as Mean Time Between Failures (MTBF), into the plant's overall Key Performance Indicators (KPIs) elevates its importance to a managerial level. Tracking MTBF for main shaft seals provides quantifiable data on the effectiveness of maintenance practices, material quality, and operating conditions. A rising MTBF indicates improving reliability and effective preventive measures, while a falling MTBF signals an underlying problem that needs investigation. This data-driven approach allows management to justify investments in better seal materials, training, or system upgrades, directly linking maintenance activities to bottom-line results and operational stability.

Cross-Functional Training for Early Anomaly Recognition

Empowering crusher operators, not just maintenance technicians, to recognize the early signs of seal distress is a powerful strategy for early intervention. Operators are the eyes and ears of the machine during its operation and are often the first to notice subtle changes. Training simulations and workshops can teach them to identify minor oil sheens, slight changes in sound, or small accumulations of dust in specific patterns around the seal housing. This shared responsibility creates a collaborative environment where potential issues are reported and addressed long before they develop into major failures, embedding leak prevention into the daily consciousness of everyone involved in the crusher's operation.

Establishing a Continuous Improvement Management Loop

A true zero-leakage culture is not a static achievement but a cycle of continuous improvement. This loop begins with the detailed documentation of every seal failure, using Root Cause Analysis (RCA) to move beyond the symptomatic fix and address the fundamental reason for the failure. The findings from the RCA are then used to update maintenance procedures, refine training programs, and inform technical specifications for new seal purchases. These implemented changes are then monitored through the KPIs, closing the loop and creating a feedback system that constantly learns from experience and drives incremental improvements in reliability, reducing costs and enhancing the crusher's crushing capacity over the long term.
