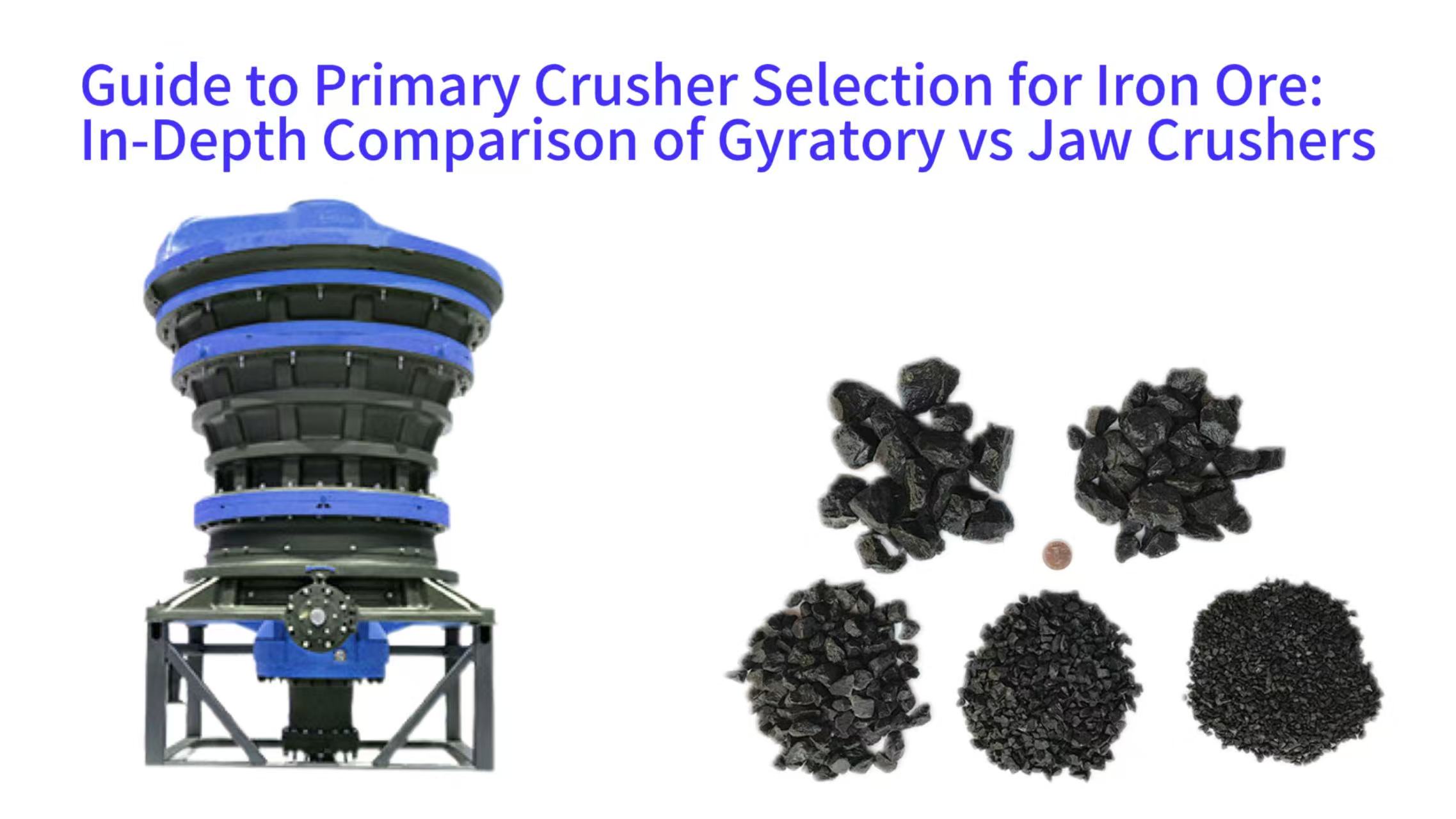

Guide to Primary Crusher Selection for Iron Ore: In-Depth Comparison of Gyratory vs Jaw Crushers
Selecting the right primary crusher is a critical decision in the design of an iron ore processing plant. This choice profoundly impacts operational efficiency, capital expenditure, and long-term profitability. The debate often centers on two robust machines: the gyratory crusher and the jaw crusher. There is no universal correct answer; the optimal selection depends on a comprehensive evaluation of ore characteristics, required throughput, site conditions, and financial constraints. This guide provides a detailed comparison, examining key factors such as capacity, product gradation, energy consumption, maintenance demands, and suitability for handling hard, abrasive ores like magnetite and hematite. The objective is to equip decision-makers with a clear framework for making an informed choice.
The Fundamental Influence of Iron Ore Characteristics on Primary Crusher Selection
The properties of the material being processed are the foundational element in crusher selection. Iron ore presents specific challenges that directly dictate the type of machinery required for efficient primary reduction. Understanding these material characteristics prevents premature equipment wear, unexpected downtime, and suboptimal performance.
Hardness and Abrasiveness of Iron Ore: Bond Work Index and Ai Index
The hardness of iron ore is quantitatively measured using the Bond Work Index, which indicates the energy required to reduce the ore size. Values for iron ore typically range from 10 to 20 kWh per tonne. Abrasiveness, measured by the Ai index, reflects the wear potential on crusher components. Hard and abrasive ores like hematite demand crushers built with superior wear-resistant materials to ensure acceptable service life for parts like mantles and jaw plates.
The combination of high hardness and abrasiveness accelerates the wear of crushing surfaces. This necessitates a crusher design that allows for relatively straightforward maintenance and component replacement to minimize operational disruptions. The selection process must account for these factors to balance initial cost with long-term durability.
Feed Size: The Maximum Lump Size from Blasting Operations
Modern large-scale mining operations use blasting to fragment the ore body, resulting in large boulders that can exceed 1.5 meters in diameter. The primary crusher must be capable of accepting these large lumps without bridging or blockage. The dimensions of the crusher's feed opening are a primary consideration, directly influencing the machine's ability to handle the run-of-mine ore effectively.
A crusher with an insufficiently sized feed opening will require secondary breaking of oversized rocks, adding cost and complexity to the operation. Therefore, the maximum feed size anticipated from the mine plan is a non-negotiable parameter that narrows down the suitable crusher options from the outset.
Moisture and Clay Content: Impact on Clogging Sensitivity
Iron ore deposits can vary significantly in their moisture and clay content. While some ores are dry and free-flowing, others may be sticky and moist. This characteristic critically affects material flow through the crusher's chamber. Sticky material tends to adhere to surfaces, potentially causing clogging at the discharge point.
Crushers differ in their susceptibility to handling clay-rich ores. A design that promotes positive material discharge is essential in such conditions to maintain continuous operation. The presence of moisture and clay can turn an otherwise efficient machine into a source of constant operational headaches if not properly considered during selection.
Required Product Size: Preparing Feed for the Next Processing Stage
The primary crushing stage does not aim to achieve the final product size but rather to reduce the ore to a manageable dimension for subsequent stages, such as secondary crushing or grinding in a ball mill. The target product size typically falls between 150 and 250 millimeters. This target dictates the setting of the crusher's discharge opening.
The ability of a crusher to produce a consistent product size with a minimum of undersize or oversize material is valuable. A well-graded product can improve the efficiency of downstream processes, leading to overall plant optimization. The desired product size is a key performance indicator for the primary crushing circuit.
Advantages and Limitations of Gyratory Crushers in Iron Ore Primary Crushing
Gyratory crushers are a staple in high-capacity iron ore operations, renowned for their robustness and efficiency. They operate on a continuous principle, making them particularly suited for large-scale mining applications where throughput is paramount.
High Capacity and Continuous Feeding Advantage
The defining feature of a gyratory crusher is its ability to accept a continuous feed of material. Unlike intermittent-action crushers, it can process ore steadily, leading to exceptionally high throughput rates. This makes it the preferred choice for large open-pit mines with annual production exceeding tens of millions of tonnes.
The continuous action allows for a more uniform power demand and efficient use of the installed motor power. This operational characteristic is a significant driver behind its high capacity, enabling it to handle the vast quantities of ore typical of world-class iron ore deposits.
Superior Product Shape and Gradation
Gyratory crushers achieve size reduction primarily through compressive action between a gyrating mantle and a stationary concave. This results in a product that is generally more cubical in shape with a lower content of flaky or elongated particles compared to other crusher types. The product gradation curve is also steeper, indicating a more uniform size distribution.
A well-shaped, uniformly graded product is beneficial for downstream processes. It can improve the flow characteristics of the ore on conveyor belts and lead to more efficient operation of secondary crushers or grinding mills, ultimately contributing to lower operational costs per tonne of processed ore.
Lower Energy Consumption per Tonne
Due to their continuous operation, gyratory crushers often exhibit a lower specific energy consumption, measured in kilowatt-hours per tonne of ore crushed. The energy is applied more consistently throughout the crushing cycle, minimizing peaks and valleys in power demand. This efficiency translates into significant cost savings over the crusher's operational lifetime, especially given the high cost of energy.
When processing hard iron ores, this energy efficiency becomes a major economic advantage. The savings on electricity can offset a portion of the higher initial investment associated with gyratory crushers over many years of operation.
Limitations: High Initial Investment, Demanding Installation, and Sensitivity to Sticky Material
The primary drawback of the gyratory crusher is its high capital cost. The machine itself, along with the required heavy-duty foundation and the surrounding structure like a feed hopper and maintenance platform, represents a substantial financial outlay. The installation is complex and requires careful planning and execution.
Furthermore, the crusher can be sensitive to sticky or clay-bound ores. The design of the crushing chamber, particularly in the lower sections, can be prone to clogging if the ore does not flow freely. This necessitates additional measures, such as installing rock boxes or using mechanical plows, to ensure reliable operation with challenging material.
Advantages and Limitations of Jaw Crushers in Iron Ore Primary Crushing
Jaw crushers are celebrated for their simplicity and reliability. They have been a fundamental tool in mineral processing for decades and remain a viable and often optimal choice for many iron ore applications, particularly where capital budget or specific site conditions are constraints.
Simple Structure, Robustness, and Lower Investment Cost
The jaw crusher features a straightforward design with a fixed jaw and a movable jaw that reciprocates to crush the ore against it. This simplicity translates into high mechanical reliability and a lower initial purchase price compared to a gyratory crusher of similar feed size capacity. It is a common selection for medium-sized mines or projects with limited funding.
The robust construction of jaw crushers allows them to withstand the shock loads from dumping large rocks into the feed hopper. Their durability makes them a dependable workhorse in demanding mining environments, often delivering long service life with minimal sophisticated maintenance requirements.
Higher Tolerance for Clay and Moisture in the Feed
One of the key advantages of a jaw crusher is its relative immunity to problems caused by sticky ore. The straight-line discharge opening and the reciprocating action of the movable jaw tend to promote material discharge, reducing the likelihood of clogging. This makes it a more suitable option for ores with significant clay content or variable moisture levels.
In situations where the ore characteristics are not perfectly known or are highly variable, the jaw crusher's forgiving nature can be a significant operational advantage, preventing frequent stoppages and maintaining production flow.
Ease of Maintenance and Faster Wear Part Replacement
Maintenance procedures for a jaw crusher are generally less complex. The primary wear parts are the jaw plates, which are bolted onto the crusher frames. Replacing these plates is typically faster and requires less specialized equipment or labor compared to replacing the concaves and mantles in a gyratory crusher.
This ease of maintenance reduces the duration of planned shutdowns, thereby increasing plant availability. For operations where minimizing downtime is critical, the quicker turnaround on wear part changes can be a decisive factor.
Limitations: Intermittent Action Limits Capacity, Flaky Product, and Higher Vibration
The crushing action in a jaw crusher is cyclical, meaning it is not a continuous process. This inherent design characteristic places an upper limit on its capacity relative to its physical size. For very high-tonnage applications, multiple jaw crushers or a single, very large unit would be needed, which may not be as economical as a single gyratory crusher.
The product from a jaw crusher tends to contain a higher proportion of flaky and elongated particles due to its squeezing and breaking action. This can sometimes be less desirable for certain downstream processes. Additionally, the reciprocating motion generates more vibration, which requires a robust foundation and may lead to more frequent inspection and maintenance of the supporting structure.
Key Performance Parameter Comparison: Data-Driven Decision Making
Moving from qualitative advantages to quantitative data provides a more concrete basis for comparison. Key performance metrics allow for a direct side-by-side evaluation of how gyratory and jaw crushers stack up against each other under specific conditions.
Relationship Between Capacity and Feed Opening Size
The crushing capacity of a crusher is intrinsically linked to the dimensions of its feed opening. For a given feed opening size, a gyratory crusher will typically have a significantly higher capacity than a jaw crusher. For example, a crusher with a 1.5-meter feed opening might have a capacity of over 2,000 tonnes per hour as a gyratory model, while a jaw crusher of the same size might be limited to around 1,200 tonnes per hour when processing hard iron ore.
This capacity disparity is a fundamental reason why gyratory crushers dominate in high-throughput greenfield projects. The ability to achieve high reduction ratios in a single stage also contributes to their capacity advantage.
Differences in Product Size Distribution Curves
The product size distribution, often represented graphically, shows the percentage of material passing through various sieve sizes. A gyratory crusher typically produces a steeper distribution curve, meaning a greater proportion of the product is close to the crusher setting. In contrast, a jaw crusher's curve is usually broader, indicating a wider range of particle sizes in the product.
A steeper curve can be advantageous as it may reduce the load on subsequent screening stages. Understanding these differences helps in designing the entire crushing circuit to work in harmony, optimizing overall plant performance.
Main Motor Power and Energy Consumption per Tonne Comparison
A gyratory crusher for a large iron ore application might be equipped with a 400 to 500 kW motor. A jaw crusher with a comparable feed opening could require a motor of similar or slightly lower power. However, due to its continuous operation, the gyratory crusher often achieves a lower specific energy consumption, sometimes 10-20% less than a jaw crusher producing the same product size from similar feed material.
This energy efficiency is a critical operational cost factor. Over the lifespan of a mine, even a small difference in kilowatt-hours per tonne can amount to millions of dollars in saved energy costs, making it a vital consideration in the total cost of ownership analysis.
Analysis of Wear Part Life and Replacement Costs
The life of manganese steel wear parts—liners for gyratory crushers and jaw plates for jaw crushers—depends heavily on the abrasiveness of the iron ore. In a highly abrasive hematite ore, jaw plates might last between 3 to 6 months, while gyratory crusher mantles and concaves could last 6 to 12 months. The cost of a full set of replacement parts is generally higher for a gyratory crusher.
However, the longer service life of gyratory wear parts can mean fewer changeouts over a year, reducing the frequency of production interruptions. The economic evaluation must balance the cost per wear part set against the number of replacements required annually and the associated downtime costs.
Selection Decision Matrix: Based on Specific Project Scenarios
The optimal choice between a gyratory and a jaw crusher is not made in a vacuum; it is dictated by the specific context of the project. Different operational scenarios will favor one machine over the other.
Scenario One: Large Open-Pit Mine, High Capacity, Dry Ore
For a large-scale, high-production open-pit mine processing dry iron ore, the gyratory crusher is almost always the superior choice. Its high capacity and lower energy consumption perfectly align with the requirements of moving massive amounts of material efficiently. The dry ore eliminates the risk of clogging, allowing the crusher to operate at its full potential.
The significant capital investment is justified by the long-term operational savings and the ability to meet high production targets reliably. This scenario represents the classic application for gyratory crushers in the iron ore industry.
Scenario Two: Medium-Sized or Underground Mine, Limited Budget, Clay-Bearing Ore
In a medium-sized operation, an underground mine where space may be constrained, or a project with a tight capital budget, the jaw crusher emerges as a strong contender. Its lower initial cost makes the project financially feasible. Furthermore, if the ore contains clay or has high moisture, the jaw crusher's ability to handle sticky material without clogging becomes a decisive advantage.
Its simpler installation and smaller footprint can also be beneficial in confined spaces like underground mines or brownfield plant expansions where existing layout constraints exist.
Scenario Three: Mobile or Semi-Mobile Crushing Station
The concept of mobile crushing stations is gaining traction in mining for its flexibility. In such applications, the jaw crusher is almost invariably the primary crusher of choice. Its compact design, lower weight relative to its capacity, and simpler supporting structure make it more suitable for mounting on a mobile platform.
The ability to relocate the crusher closer to the mining face reduces truck haulage distances, offering significant logistical and cost benefits. The jaw crusher's characteristics align perfectly with the mobility and flexibility requirements of these modern mining systems.
Scenario Four: Existing Plant Expansion with Space Constraints
Expanding an existing processing plant often involves working within the confines of the current layout. Space can be the limiting factor. A jaw crusher might be selected for its smaller footprint and simpler foundation requirements, even if a gyratory crusher would otherwise be preferred based on capacity alone.
Retrofitting a large gyratory crusher into an existing building may be structurally challenging and prohibitively expensive. In such cases, the practical constraints of the site override theoretical performance advantages, making the jaw crusher the pragmatic solution.
Looking Beyond the Machine: A Total Life Cycle Cost Perspective
The final selection should not be based solely on the initial purchase price. A comprehensive analysis considering all costs incurred over the equipment's entire operational life provides a more accurate financial picture. This total life cycle cost approach often reveals hidden advantages and disadvantages.
Comparison of Initial Investment Cost Components
The initial investment includes the crusher itself, the civil works for its foundation, the structural steel for the feed arrangement, and the installation labor. A gyratory crusher system typically requires a more massive and expensive foundation due to its height and weight. The capital cost for a gyratory system can be 20% to 50% higher than for a jaw crusher system of similar feed size capacity.
This higher upfront cost must be weighed against the potential for lower operating costs over time. A detailed quotation from suppliers covering all these elements is essential for an accurate comparison.
Long-Term Operating Cost Comparison
Operating costs encompass electricity, wear parts, and maintenance labor. As discussed, the gyratory crusher generally has an advantage in energy costs. The cost of wear parts must be annualized based on their expected service life. While a set of gyratory liners is more expensive, their longer life may result in a lower annual cost compared to more frequent jaw plate replacements.
Maintenance labor costs can also differ; gyratory crusher maintenance might require more specialized skills but occur less frequently. A detailed operating cost model projecting these expenses over a 15 to 20-year period is crucial for a fair evaluation.
Economic Assessment of Downtime and Production Loss
Unplanned or planned downtime results in lost production, which has a direct financial impact. The time required to replace wear parts is a key factor. Replacing jaw plates on a large crusher might take a crew 8 to 12 hours. Replacing the concaves and mantle in a gyratory crusher is a more complex task that could require 24 to 48 hours or more.
If the primary crusher is a bottleneck in the process, the cost of downtime is very high. The value of lost production during these maintenance windows must be calculated and included in the life cycle cost analysis. A crusher with faster maintenance might have a significant economic advantage in high-value operations.
Summary of the Final Decision Framework
The decision should be made using a weighted scoring matrix that evaluates both quantitative and qualitative factors. Criteria include technical suitability, capacity match, total capital investment, operating cost, maintenance complexity, reliability, and project-specific risks. Each criterion is assigned a weight based on its importance to the project's goals.
Both the gyratory and jaw crusher options are then scored against these weighted criteria. The option with the highest total score represents the most balanced and economically sound choice for the specific iron ore processing application, ensuring a decision that supports long-term operational success.
