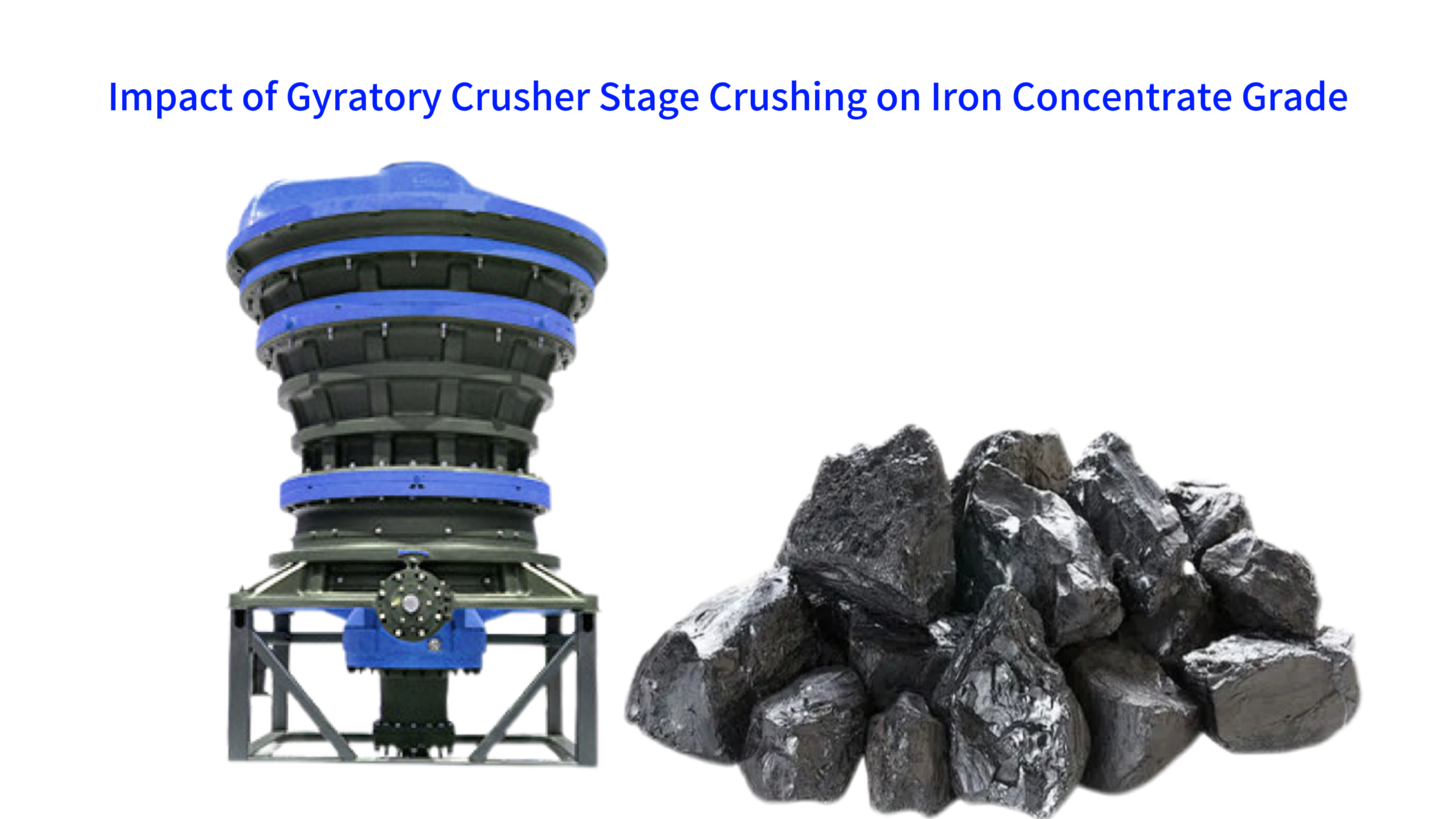

Impact of Gyratory Crusher Stage Crushing on Iron Concentrate Grade

Gyratory crushers play a pivotal role in mineral processing, especially in the beneficiation of iron ore. This article delves into the mechanisms through which staged crushing in these industrial machines influences the final grade of iron concentrate. We will explore the fundamental principles of multi-stage size reduction, the optimization of technical parameters for maximum efficiency, and the direct impact of crushing on downstream processes like grinding and separation. Furthermore, the integration of intelligent control systems and real-world case analyses will be examined to provide a comprehensive understanding of how to achieve higher purity iron ore products through optimized comminution strategies.

The Core Role of Stage Crushing in Iron Ore Processing

Stage crushing is a fundamental process in preparing iron ore for further beneficiation. It involves reducing the size of mined ore in sequential steps, each designed to achieve a specific particle size distribution that liberates valuable iron minerals from the surrounding waste rock, or gangue. This systematic approach is far more efficient than attempting to achieve the desired fineness in a single crushing event, as it allows for controlled application of energy and minimizes the production of undesirable fine particles, a phenomenon known as over-crushing.

The logic behind controlling particle size at each stage is directly linked to the concept of mineral liberation. Iron ores are complex aggregates where valuable iron oxides, like magnetite or hematite, are physically locked within silicate-based gangue minerals such as quartz. Effective crushing creates fractures along the boundaries between these different minerals. Inadequate crushing leaves these composites intact, making subsequent separation impossible, while excessive crushing consumes unnecessary energy and can create slimes that are difficult to process. The selection of appropriate crushing equipment, from primary gyratory crushers to secondary cone crushers, is therefore a critical decision based on the ore's hardness, abrasiveness, and target product size.

Division of Crushing Stages and Size Control Logic

The typical iron ore processing flowsheet employs a three-stage crushing circuit, often followed by a grinding circuit. Primary crushing, usually performed by a large gyratory crusher, accepts run-of-mine ore which can be over a meter in size and reduces it to a top size of approximately 150-250 mm. The secondary crushing stage, often handled by a cone crusher, further reduces this material to a range of 30-50 mm. Tertiary crushing, if applied, aims for an even finer product, typically below 20 mm, to prepare an optimal feed for ball mills.

This staged approach allows for precise control over the final product's size distribution. Each crusher's discharge setting is carefully calibrated. The primary crusher's setting determines the feed size for the secondary stage, and so on. This ensures that each machine operates within its most efficient capacity range and produces a product that is neither too chunky nor too fine for the next stage of processing, ultimately leading to a more efficient liberation of iron minerals.

Physical Principles of Enhancing Mineral Liberation

Mineral liberation is the ultimate goal of comminution. It is the process by which valuable mineral grains are physically separated from the gangue matrix through size reduction. The efficiency of this process is governed by the ore's texture and the mechanical stresses applied. Iron ores often have a heterogeneous structure where hard, brittle magnetite grains are embedded in a tougher silicate matrix.

When crushing force is applied, the ore particle will fracture preferentially through weaker zones, which are often the boundaries between different minerals. The probability of achieving a clean separation between iron and silica increases as the particle size decreases. However, this relationship is not linear. There is an optimal size range, often between 50 and 200 microns, where liberation is sufficient without generating excessive ultra-fines. Achieving this target size distribution from the crushing circuit reduces the energy-intensive grinding workload later.

Key Considerations in Crusher Selection

Selecting the right crusher for each stage is paramount. The choice depends on capacity requirements, feed size, desired product size, ore hardness (often measured on the Mohs scale or by Bond Work Index), and ore abrasiveness. For primary crushing, where large, abrasive rocks are handled, robust and reliable jaw crushers or gyratory crushers are used due to their ability to handle high throughput and their high availability.

For secondary and tertiary crushing, cone crushers are predominantly chosen. Their design allows for a finer reduction ratio and better control over product shape. The choice between different types of cone crushers, such as hydraulic or spring-based systems, depends on the need for automation and precise control over the discharge setting, which is crucial for maintaining consistent feed to the grinding mills.

Optimizing Technical Parameters of Gyratory Stage Crushing

Once the appropriate crushing stages and equipment are selected, the next step is to optimize the operating parameters of each crusher to maximize efficiency and product quality. This involves finding the perfect balance between the machine's throughput capacity and the quality of its output, particularly the particle size distribution. Modern crushers are equipped with sophisticated control systems that can adjust key parameters in real-time based on feedback from sensors monitoring the crusher's load, power draw, and even the size of the output material.

This dynamic optimization is essential because the characteristics of the feed ore can vary significantly. An optimized crusher will maintain a consistent product size despite these variations, ensuring stable operation for the entire mineral processing plant. Key parameters include the crusher's closed-side setting (which defines the product size), the speed of the mantle's gyration, and the rate at which ore is fed into the crushing chamber.

Strategies for Crushing Ratio Optimization

The crushing ratio is a fundamental concept, defined as the ratio of the feed top size to the product top size. A higher ratio means more size reduction. However, attempting to achieve too high a ratio in a single crusher can lead to inefficiency, increased wear, and a broader, less controlled particle size distribution. The total crushing ratio required is therefore distributed across the multiple stages.

For example, a primary crusher might achieve a ratio of 8:1, reducing 1-meter rock to 125 mm. A secondary crusher then applies a ratio of 6:1 to reduce this to about 20 mm. The overall ratio is 48:1, but it is achieved more efficiently in two steps. This staged application of the crushing ratio helps control over-crushing. Techniques like pre-screening, where fine material is bypassed around a crusher, are also employed to prevent the re-crushing of already-sized material, further optimizing the process and improving the final concentrate grade by reducing slime generation.

Controlling the Mantle's Movement Trajectory

The crushing action in a gyratory crusher is defined by the gyrating motion of the mantle. This motion is created by an eccentric assembly beneath the mantle. The speed of this gyration, or the crusher's head speed, is a critical parameter. A higher speed can increase capacity but may lead to a poorer product shape and higher wear. A lower speed might improve product shape but reduce throughput.

Advanced models use fluid dynamics to optimize the pressure distribution within the crushing chamber, ensuring that energy is applied efficiently to break rocks rather than to cause excessive friction and wear. Furthermore, modern systems include online compensation mechanisms for liner wear. As the manganese liners wear, the crusher's setting changes, altering the product size. Automatic control systems can adjust the crusher's setting hydraulically to compensate for this wear, maintaining a consistent product size throughout the liner's life and ensuring stable feed to the grinding circuit.

Intelligent Control of the Feeding System

A consistent and well-regulated feed is crucial for optimal crusher performance. The feed should be evenly distributed around the circumference of the crushing chamber to prevent uneven wear and localized overloads. The rate of feed must also be matched to the crusher's capacity. An underfed crusher runs inefficiently, while an overfed crusher can become choked, leading to downtime and potential damage.

Intelligent control systems use algorithms to maintain this balance. Sensors measure the crusher's power draw and the level of material in the crushing chamber. If the power draw is too high, indicating a heavy load, the feed rate can be automatically reduced. Conversely, if the power draw is low, the feed rate can be increased. Some advanced systems even employ online particle size analysis, using laser or camera-based technologies, to provide direct feedback on the product size, allowing for real-time adjustment of the crusher's setting to ensure the target product size is always met.

The Direct Impact Path of Stage Crushing on Iron Concentrate Grade

The quality of the crushing circuit's product has a profound and direct impact on the final grade of the iron concentrate. This influence is exerted through several key pathways, primarily by determining the efficiency of the subsequent grinding and mineral separation stages. A well-designed crushing circuit produces a feed for the grinding mills that is already well-liberated and within an optimal size range, allowing the mills to operate more efficiently and effectively.

Furthermore, the specific size distribution achieved by crushing directly affects how well harmful impurities, particularly silica (SiO₂), can be separated from the valuable iron minerals. If the crushing is insufficient, the iron and silica remain locked together, reporting to the concentrate and lowering its grade. If the crushing is too fine, it can create slimes that are difficult to process through conventional magnetic separation or flotation, leading to losses in recovery. Therefore, stage crushing is the first and most critical step in defining the metallurgical and economic performance of an iron ore beneficiation plant.

Influence of Crushed Size on Grinding Process Efficiency

The relationship between the feed size to a grinding mill and its energy consumption is well-documented and highly non-linear. The famous Bond's Law states that the energy required to reduce a material's size is inversely proportional to the square root of the product size. Simply put, providing a finer feed to the ball mill significantly reduces the energy required to achieve the final liberation size.

By performing more of the size reduction work in efficient crushers rather than in inefficient ball mills, the overall energy consumption of the comminution circuit can be drastically reduced. Studies have shown that grinding energy can account for up to 50% of a mine's total energy bill. Optimizing the crushing circuit to produce a mill feed that is 10-15 mm instead of 20-30 mm can lead to energy savings in the grinding circuit of 10-20%, a substantial reduction in operating costs and environmental footprint. It also reduces steel consumption from grinding media wear.

Innovations in Separating Harmful Elements

The removal of silica, often the primary gangue mineral in iron ore, is typically achieved through reverse flotation or magnetic separation. The efficiency of these processes is highly sensitive to the particle size of the feed material. For magnetic separation, there is an optimal size range where the difference in magnetic susceptibility between magnetite and silica is most pronounced, typically between 80% passing 75 microns and 80% passing 45 microns.

If the crushing and grinding circuit produces too many coarse particles, liberation is poor. If it produces too many ultra-fines, or slimes, these can coat the surface of larger particles and interfere with separation processes. In flotation, slimes can consume excessive reagents and reduce selectivity. Advanced crushing strategies aim to minimize the generation of these problematic fine fractions early in the process, thereby enhancing the performance of downstream separation and boosting the final iron concentrate grade.

Advances in Fine Iron Mineral Recovery Technology

Despite best efforts, some generation of fine iron particles is inevitable. Recovering these valuable fines is a major focus of mineral processing research. Traditional methods often struggled with low efficiency for very fine particles. However, new technologies are improving recovery rates.

High-pressure grinding rolls (HPGR) are being used as a tertiary crushing step, which can generate a particle size distribution with fewer ultra-fines compared to conventional crushers. Furthermore, advances in magnetic separation, such as the development of high-gradient magnetic separators (HGMS), have significantly improved the recovery of fine and ultrafine magnetite particles. These technological breakthroughs, combined with an optimized crushing circuit that provides a better feed, are pushing the boundaries of recovery and concentrate grade for iron ore operations.

Empirical Research on Adjusting Stage Crushing Parameters

The theoretical principles of stage crushing are validated and refined through extensive empirical research and plant trials. This research focuses on quantifying the relationships between key operating parameters—such as crusher pressure, feed size, and number of stages—and the resulting metallurgical performance, measured by mineral liberation degree and final concentrate grade. This data-driven approach allows engineers to build accurate models for process optimization.

For instance, controlled experiments can be conducted where the closed-side setting of a tertiary cone crusher is varied, and the product is analyzed for size distribution and liberation. Statistical analysis of this data can reveal the optimal setting for a specific ore type. Similarly, economic models are used to analyze the cost-benefit of adding an additional crushing stage, weighing the capital and operating costs against the expected gains in grinding efficiency and mineral recovery.

Experimental Data on Crushing Pressure

In cone crushers, the applied pressure is a critical factor for achieving effective breakage. Research has shown that there is a threshold pressure required to initiate fracture in ore particles. Applying pressure beyond this threshold does not necessarily lead to better breakage but does consume more energy and accelerates wear on the crusher liners.

Empirical studies involve measuring the power draw and product size while varying the crusher's hydraulic pressure or spring pressure. The data is then fitted to models that describe the relationship between energy input, particle size reduction, and mineral liberation. These models show that optimal liberation is achieved not at the maximum possible pressure, but at a specific, controlled pressure that is sufficient to break the ore along grain boundaries without causing excessive fines generation. This finding is crucial for optimizing energy efficiency and wear rates.

Case Study on Feed Size Control

The importance of controlling the feed size to each crushing stage is demonstrated in plant case studies. For example, a study might compare plant performance before and after installing a vibrating screen before the secondary crusher (a configuration known as secondary crushing with pre-screening).

The data typically shows that removing fine material from the crusher feed leads to a significant increase in the crusher's capacity and a reduction in power consumption per ton of product. It also results in a more consistent product size distribution because the crusher is not re-processing material that is already at size. This consistency directly translates to improved stability in the grinding circuit, more consistent cyclone classification, and ultimately, a higher and more stable iron concentrate grade. Statistical analysis of recovery rates before and after such a modification often confirms a significant improvement.

Economic Evaluation of the Number of Crushing Stages

The decision to use two or three stages of crushing is ultimately an economic one. Adding a third crushing stage involves significant capital expenditure for an additional crusher, screens, and conveyors. It also adds to operating costs. The benefit is a finer, more consistent feed to the grinding circuit, which lowers grinding energy and media costs and can improve recovery.

Engineers use economic analysis models to calculate the net present value (NPV) or internal rate of return (IRR) of the additional crushing stage. They model the capital outlay against the projected savings in operating costs over the life of the mine. For large, high-throughput operations, the savings in grinding costs often justify the investment in a third stage of crushing within a few years. The economic break-even point is highly sensitive to ore hardness, energy costs, and equipment prices, requiring a detailed and site-specific analysis.

Application of Intelligent Control Systems in Stage Crushing

The modern era of mineral processing is defined by automation and digitalization. Intelligent control systems are now being integrated into crushing circuits to maintain optimal performance around the clock, adapting to changing ore conditions and equipment wear. These systems use a network of sensors to monitor the process in real-time and sophisticated algorithms to adjust control parameters automatically.

The goal of these systems is to maximize throughput while maintaining a target product size and protecting the equipment from damage. They represent a significant step beyond traditional manual control, which often involved operators reacting to changes rather than proactively optimizing the process. The result is a more efficient, stable, and profitable operation with a consistently higher quality product feed for downstream processes.

Sensor Layout for Particle Size Monitoring

The most critical measurement for controlling a crushing circuit is the size of the product. Traditionally, this was done through manual sampling and screening, which introduced delays. Modern plants use online particle size analyzers. These devices, often based on laser diffraction or digital image analysis, provide a continuous stream of size data.

These sensors are typically installed on conveyor belts carrying the final product from the crushing circuit. The data is fed directly into the plant's distributed control system (DCS). Advanced image analysis systems use deep learning algorithms to not only determine size distribution but also identify the shape of particles and even classify rock types, providing an unprecedented level of feedback for process optimization.

Design of Parameter Adjustment Algorithms

With real-time data on product size and crusher load, intelligent control algorithms can make adjustments. Simple control loops might adjust the crusher's feed rate based on its power draw. More advanced systems use model predictive control (MPC) or fuzzy logic algorithms.

These advanced controllers use a mathematical model of the crushing process to predict the future outcome of current actions. For example, if the product size is starting to increase, the controller can calculate the necessary adjustment to the crusher's setting to bring it back on target before the size deviation becomes significant. This proactive approach minimizes fluctuations and keeps the process running at its peak efficiency, directly contributing to a more stable and higher-grade concentrate production.

Implementation of Equipment Health Management

Intelligent control extends beyond process optimization to include machine health. Equipment Health Management (EHM) systems use vibration analysis, acoustic emission monitoring, and oil particle counters to assess the mechanical condition of crushers and their components.

Vibration sensors on the crusher's main shaft and bearings can detect imbalances, misalignments, or developing bearing faults long before they cause a catastrophic failure. This allows maintenance to be planned during scheduled shutdowns, preventing unplanned downtime that is extremely costly in a continuous process like mining. By integrating production data with maintenance plans, EHM systems ensure high availability and reliability of the crushing circuit, which is a prerequisite for achieving consistent product quality and high concentrate grades.

Typical Iron Ore Case Analysis and Data Verification

The theoretical benefits and optimized strategies of stage crushing are best demonstrated through real-world case studies from operating iron ore mines. These cases provide tangible evidence of the improvements in metallurgical performance and economic returns that can be achieved through well-engineered crushing circuits. They offer valuable insights into the practical challenges and solutions encountered during implementation.

Analyses often compare key performance indicators (KPIs) before and after a circuit modification or optimization project. These KPIs include throughput (tons per hour), specific energy consumption (kWh per ton), product size distribution (e.g., P80), and most importantly, the final iron concentrate grade and recovery. Statistical significance tests are applied to the data to confirm that the observed improvements are real and not due to random variation in the process.

Case Study Mine Parameter Settings

A typical case study begins by describing the characteristics of the ore body. For instance, a mine processing hard, abrasive banded iron formation (BIF) will have different challenges and solutions compared to a mine processing softer, clay-rich hematite ore. The initial head grade, or the percentage of iron in the raw ore, is stated, along with the concentration of key impurities like silica and alumina.

The technical targets for the final product are also defined. A pellet feed product requires a much finer grind (e.g., 80% passing 45 microns) than a direct shipping ore or a sinter feed product. These targets dictate the design and operation of the entire comminution circuit, from the primary crusher setting to the final grind. The overall energy consumption for the crushing and grinding circuit is a primary metric for evaluating efficiency.

Data from Crushing Process Adjustments

The core of the case study presents the data collected after implementing an optimization. This includes detailed particle size distribution curves from the crushing circuit output before and after the change. A noticeable shift towards a finer and tighter size distribution is a clear indicator of success.

The impact on the final product is the most crucial data point. The case study will report the average iron concentrate grade and recovery rate after the optimization and compare it to the historical average. A hypothesis test, such as a student's t-test, can be used to determine if the observed increase in grade (e.g., from 65.5% Fe to 66.2% Fe) is statistically significant. Similarly, the reduction in specific grinding energy (kWh/t) is calculated and its significance analyzed.

Economic Benefit Assessment Model

The final part of the analysis translates the technical improvements into financial benefits. A simple payback period model is often used. The total capital cost of the new equipment or modification is divided by the annual savings generated.

Savings come from multiple sources: reduced energy costs in the grinding circuit, reduced grinding media consumption, and increased revenue from selling a higher-grade product (which often commands a price premium) and/or a higher volume of product due to increased recovery. A sensitivity analysis shows how the payback period changes with fluctuations in energy prices, iron ore prices, and other key economic variables, providing a robust financial justification for the investment in crushing circuit optimization.

Decision-Making Framework for Optimizing Stage Crushing Processes

Optimizing a stage crushing circuit is a complex exercise that requires balancing multiple, often competing, objectives. The ultimate goal is to maximize the economic value of the operation, which involves finding the optimal trade-off between achieving the highest possible concentrate grade and minimizing processing costs. A structured decision-making framework is essential for navigating these trade-offs systematically.

This framework integrates geological data, metallurgical test work, equipment performance models, and economic analysis. It provides a logical pathway for evaluating different circuit configurations, operating strategies, and technology investments. The framework is not static; it should be continuously updated with new operating data and market information to ensure the crushing circuit remains optimized throughout the life of the mine.

Analysis of Grade-Cost Balance

The relationship between concentrate grade and processing cost is central to the optimization. Pushing for a very high grade often requires finer grinding, which consumes more energy and increases costs. The law of diminishing returns applies; the cost of achieving each additional percentage point of iron grade increases exponentially.

The framework involves conducting a marginal analysis. Engineers calculate the incremental cost of improving the grade by one unit (e.g., 1% Fe) and compare it to the incremental revenue generated by the price premium for that higher grade. The optimal operating point is where the marginal cost of improvement equals the marginal revenue. This analysis must be dynamic, as it changes with fluctuating iron ore prices and energy costs.

Equipment Performance Evaluation System

Selecting and evaluating equipment requires a multi-criteria approach. Throughput (t/h) and specific energy consumption (kWh/t) are key metrics, but they must be evaluated together. A Pareto front analysis can be used to identify crusher settings or models that offer the best compromise between high throughput and low energy use.

Other crucial factors include equipment availability (the percentage of time it is operational) and reliability. Monte Carlo simulations can model the probability of equipment failure and its impact on overall plant production. The lifetime cost of wear liners is also a significant operational expense and must be factored into any comprehensive evaluation of crusher performance.

Risk Control for Process Adjustments

Any change to the process carries inherent risk. The ore feed is naturally variable, and an optimization that works for one type of ore might not work for another. Therefore, a robust optimization strategy must include risk control measures.

This involves designing the system with flexibility and robustness in mind. Control systems should be programmed with constraints to prevent the crusher from operating in conditions that could cause mechanical damage. Multi-objective optimization strategies can be employed that simultaneously maximize throughput, minimize product size, and protect equipment health, ensuring stable and safe operation even when facing fluctuations in feed material properties.
