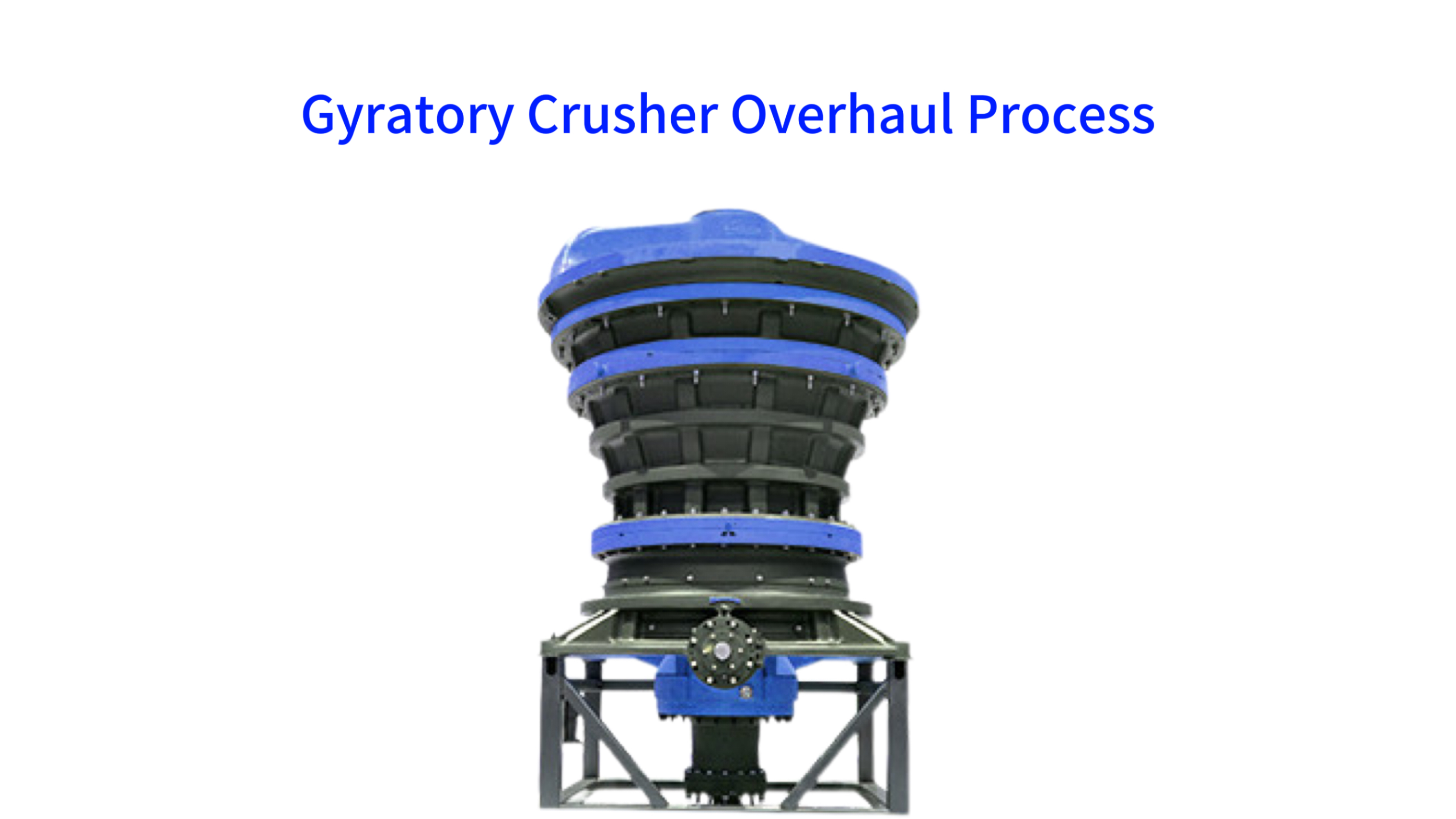

Gyratory Crusher Overhaul Process: Step-by-Step Guide and Best Practices

A gyratory crusher is a massive industrial machine designed to break large rocks into smaller, manageable pieces through powerful compressive forces. This comprehensive guide explores the complete overhaul process of these industrial workhorses, detailing every critical step from initial planning to final performance verification. We will examine the meticulous preparation required before shutdown, the precise disassembly and inspection procedures, the technical standards for component replacement, and the rigorous quality control during reassembly. The guide also covers performance validation methods, real-world case studies, and emerging technologies that are transforming maintenance approaches. Whether you're an engineering student or simply curious about industrial machinery, this resource provides valuable insights into maintaining these essential components of modern mining and construction operations.

Core Preparation Work and Risk Assessment Before Overhaul

Thorough preparation is the foundation of a successful gyratory crusher overhaul. This phase involves developing comprehensive plans, implementing safety protocols, documenting current machine conditions, and identifying potential risks. Proper preparation minimizes downtime and ensures the overhaul proceeds efficiently and safely.

A detailed overhaul plan serves as the project roadmap, typically spanning 4-6 weeks for major crushers. This plan includes a hour-by-hour schedule, personnel assignments with specific responsibilities, and a comprehensive parts list numbering over 200 individual components. Critical path items like main shaft removal and replacement often determine the overall project timeline. The safety protocol requires multiple redundant systems including electrical lockout/tagout procedures, fall protection for working at heights, and confined space entry protocols when working inside the crusher frame.

Documenting the machine's condition before shutdown provides critical baseline data for comparison after overhaul. Technicians record vibration readings at multiple bearing locations, with typical values ranging from 2-6 mm/s for crushers in acceptable condition. Temperature measurements at key points including lubrication outlets and motor bearings help identify potential problems. Production data from the last operating period reveals performance trends that might indicate underlying issues needing attention during the overhaul.

Specialized Tool Checklist and Equipment Preparation

Proper tool selection significantly impacts overhaul efficiency and safety. The essential toolkit includes hydraulic pullers capable of generating 50-100 tons of force for removing stubborn components, precision torque wrenches with accuracy within ±3% for critical fastener tightening, and laser alignment systems for precise component positioning. Specialized equipment such as bearing heaters that can uniformly heat large bearings to 110°C and induction heaters for controlled component expansion facilitate proper fitting of interference components without damage.

Additional specialized tools include hydraulic torque wrenches for large fasteners requiring precise tension, hydraulic rams for controlled component separation, and ultrasonic thickness gauges for non-destructive measurement of liner wear. The preparation phase also includes verifying all lifting equipment certifications and capacity ratings, as crusher components often weigh between 5-20 tons and require precise handling to prevent accidents and damage.

Pre-Shutdown Lubrication System Oil Sampling Analysis

Oil analysis before shutdown provides invaluable insights into the internal condition of the crusher. Samples are taken from multiple points in the lubrication system and analyzed for metal particles, viscosity changes, water contamination, and additive depletion. Elevated iron levels above 15 ppm often indicate wear on steel components, while copper levels exceeding 10 ppm may signal bearing cage wear. Silicon content above 10 ppm typically indicates seal failure allowing environmental contamination.

The analysis also measures particle counts per ISO 4406 standards, with acceptable levels typically below 18/16/13 for larger crushers. Viscosity should remain within ±10% of the original oil specification, while water content must be kept below 0.1% to prevent component corrosion and lubrication failures. These findings help prioritize inspection focus areas and determine if complete oil flushing is necessary during the overhaul process.

Workspace Layout Planning and Lifting Equipment Configuration

Efficient workspace organization is crucial for a smooth overhaul process. The layout must provide clear pathways for component removal, adequate space for disassembly areas, and proper staging for new parts. Overhead cranes with capacities of 20-50 tons are positioned for optimal coverage of the work area, with auxiliary lifting devices like hydraulic jacks and gantries placed strategically for finer positioning tasks.

The workspace is divided into specific zones: a clean assembly area for sensitive components like hydraulic systems, a designated parts cleaning station with appropriate containment, and a quarantine area for damaged components requiring further analysis. Safety barriers and signage demarcate hazardous work zones, while lighting requirements are calculated to maintain minimum 500 lux illumination in all work areas for precision tasks and safety.

Spare Parts Inventory Verification

Comprehensive parts verification prevents costly delays during the overhaul process. The inventory check includes measuring the thickness of manganese steel liners, which typically wear down from an initial 100-150mm to a replacement threshold of 30-40mm. Bearing dimensions are verified against specifications, with spherical roller bearings requiring precise clearance measurements between 0.15-0.25mm for optimal operation.

Seal kits are cross-referenced with manufacturer specifications to ensure compatibility, while fasteners are checked for proper grade and coating specifications. Critical wear components like the concave liners and mantle are measured for dimensional accuracy and material certification. The verification process also includes checking gasket materials, hydraulic hoses, and electrical components that might be needed during reassembly.

Core Component Disassembly and Condition Inspection Process

The disassembly phase requires meticulous sequencing to prevent damage and ensure efficient reassembly. This process begins with the removal of external components followed by systematic extraction of internal assemblies. Each step is documented with photographs and measurements to create a comprehensive record of component condition before cleaning and inspection.

Disassembly begins with the safe isolation and depressurization of hydraulic systems, followed by removal of lubrication and cooling system components. The upper assembly including the spider arm is then separated, allowing access to the crushing chamber. The main shaft and mantle assembly is carefully extracted using specialized lifting equipment, with attention to maintaining alignment and preventing impact damage during removal.

Each disassembled component undergoes thorough cleaning before detailed inspection. High-pressure washing removes bulk material, followed by solvent cleaning for precise measurement surfaces. Critical components are then subjected to non-destructive testing methods including magnetic particle inspection for surface cracks, ultrasonic testing for internal flaws, and dimensional verification using precision measuring instruments.

Main Shaft Verticality Inspection and Correction Methods

Main shaft alignment is critical for proper crusher operation and longevity. Verticality is measured using precision levels or laser alignment systems, with acceptable tolerance typically within 0.05 mm/m. Measurements are taken at multiple points along the shaft length to identify bending or misalignment issues that could cause premature wear or vibration problems.

Correction methods depend on the severity of misalignment. Minor deviations may be corrected through adjustment of the base mounting points, while more significant issues might require machining or specialized straightening processes. Thermal straightening techniques can address shaft bending without removing material, while severe cases may necessitate shaft replacement to restore proper operation.

Ultrasonic Thickness Testing Technology for Mantle Liner Remaining Thickness

Ultrasonic thickness testing provides accurate measurement of remaining liner thickness without destructive methods. This technology uses high-frequency sound waves that travel through the material and reflect back from the opposite surface. The time delay between transmission and reception is converted to thickness measurements with accuracy within ±0.1mm.

Testing is performed on a grid pattern across the liner surface, with measurement points typically spaced 100-150mm apart. Data is recorded and mapped to create a wear profile showing maximum, minimum, and average thickness values. This information determines if liners can be retained for further service or must be replaced based on minimum thickness standards, which is typically 30-40% of original thickness.

Hydraulic Cylinder Piston Seal Wear Assessment

Hydraulic cylinder inspection focuses on seal integrity and piston rod condition. Seal wear assessment involves examining for extrusion, nicks, cuts, or hardening that could compromise sealing ability. Piston rods are inspected for scoring, pitting, or bending that could damage new seals during installation. Surface finish is measured using profilometers, with acceptable values typically between 0.2-0.4 μm Ra.

Clearance between piston and cylinder bore is measured at multiple points along the stroke length. Acceptable clearance typically ranges between 0.05-0.15mm depending on cylinder size and operating pressure. Excessive clearance can cause seal extrusion failure, while insufficient clearance may lead to binding and accelerated wear. Dimensional inspection data determines whether components can be reused or require repair/replacement.

Gear Tooth Pitting Depth and Distribution Analysis

Gear inspection focuses on tooth surface condition, with particular attention to pitting damage. Pitting depth is measured using depth gauges or profilometers, while distribution patterns are mapped across tooth faces. Minor pitting (less than 10% of tooth area and depth under 0.5mm) may be acceptable after proper polishing, while more extensive damage typically requires gear replacement.

Analysis includes documenting pitting location relative to pitch line, as different patterns indicate different problems such as overload, misalignment, or lubrication issues. Tooth profile measurements are taken using gear inspection equipment to verify proper form and pressure angle. Backlash measurements between pinion and gear are recorded, with typical acceptable values ranging from 1.5-3.0mm depending on gear size and design.

Technical Standards for Key Component Replacement and Repair

Component replacement and repair follow strict technical standards to ensure reliability and performance. These standards encompass material specifications, dimensional tolerances, surface finish requirements, and assembly procedures. Adherence to these standards is verified through meticulous measurement and documentation at each process step.

Replacement components must match or exceed original equipment specifications for material properties and dimensional accuracy. Repair processes such as welding or machining must follow qualified procedures with proper documentation of parameters and inspections. Each repaired or replaced component undergoes verification testing before installation to confirm compliance with technical requirements.

Liner Bolt Anti-Loosening Treatments

Liner bolt security is critical for crusher safety and reliability. Multiple anti-loosening methods are employed including thread locking compounds that cure to prevent vibration-induced loosening, and specialized lock washers that maintain tension under dynamic loading. Torque values are carefully controlled during installation, with typical values ranging from 600-1200 N·m depending on bolt size and grade.

Installation sequences follow specific patterns to ensure even loading across the concave assembly. Torque values are applied in multiple steps—typically 30%, 60%, and 100% of final value—to achieve proper preload without twisting components. After initial operation, bolts are re-torqued to account for settlement and compression of gasket materials.

Main Shaft and Mantle Fitting Surface Lapping Process

The mating surfaces between main shaft and mantle require precise preparation to ensure proper fit and load distribution. Lapping processes achieve surface flatness within 0.02mm and surface finish better than 1.6μm Ra. Specialized lapping compounds with progressively finer abrasives are used to remove high spots and create uniform contact patterns.

Contact verification is performed using precision blueing compounds that transfer to high points, indicating areas requiring additional lapping. The goal is to achieve at least 80% contact area across the mating surfaces to prevent localized stress concentrations. After lapping, surfaces are thoroughly cleaned to remove all abrasive particles before assembly.

Hydraulic Line Acid Cleaning and Pressure Testing Procedures

Hydraulic system cleanliness is paramount for reliable operation. Acid cleaning processes remove scale, rust, and contamination from internal surfaces using specialized cleaning solutions circulated through the system. The process typically involves multiple stages including alkaline cleaning to remove oils, acid cleaning to dissolve mineral deposits, and neutralization to prepare surfaces for service.

After cleaning, systems undergo pressure testing at 1.3-1.5 times maximum operating pressure to verify integrity. Pressure decay tests monitor for leaks, with acceptable drop rates typically less than 5% per hour. Finally, systems are flushed with hydraulic oil to remove any remaining contaminants before being placed into service.

Gear Meshing Contact Pattern Adjustment Methodology

Proper gear meshing ensures efficient power transmission and long service life. Contact patterns are evaluated using gear marking compounds that transfer from one gear to another under light load. Patterns should be centered on tooth faces with adequate clearance from toe and heel edges. Typical acceptable contact patterns cover 70-80% of tooth height and 90-95% of tooth width.

Adjustments are made through precise positioning of gears relative to each other. Shim adjustments behind bearings or movable housings allow micron-level positioning changes to optimize contact patterns. After adjustment, gears are run under load and re-inspected to verify pattern stability under operating conditions.

Quality Control Points During Assembly and Commissioning Phase

The assembly phase transforms individual components into a functional crusher system through precise alignment, proper fastening, and systematic verification. Each assembly step includes quality checks to ensure compliance with technical specifications before proceeding to subsequent operations. This methodical approach prevents problems that might not be detectable after complete assembly.

Commissioning begins after mechanical assembly is complete and involves systematic testing of all systems under controlled conditions. The process progresses from component-level tests to full system operation, with performance measurements at each stage compared against design specifications. Any deviations are investigated and corrected before advancing to more comprehensive testing.

Documentation during assembly and commissioning provides a comprehensive record of machine condition before return to service. This includes alignment records, bolt torque values, clearance measurements, and performance test results. This documentation serves as a baseline for future maintenance and helps identify developing problems before they cause unscheduled downtime.

Liquid Nitrogen Freezing Process for Mantle and Main Shaft Assembly

The interference fit between mantle and main shaft utilizes thermal expansion principles for precise assembly. The mantle is cooled with liquid nitrogen to approximately -196°C, causing contraction that creates clearance for installation. The temperature is carefully controlled to achieve the precise dimensional change required—typically 0.3-0.6mm depending on component size.

Assembly must be completed quickly before temperature equalization occurs, typically within 3-5 minutes depending on ambient conditions. Proper safety equipment including cryogenic gloves and face protection is essential during this process. After installation, the assembly is allowed to gradually return to ambient temperature over several hours to ensure even expansion and proper stress distribution.

Hydraulic System Safety Valve Pressure Setting Standards

Hydraulic system protection devices are calibrated to precise settings based on crusher design specifications. Safety valves are typically set to open at 1.1-1.3 times maximum system operating pressure, providing protection against overload while preventing nuisance activations. Settings are verified using certified pressure gauges with accuracy within ±0.5% of full scale.

Accumulator pre-charge pressures are set to 80-90% of minimum system operating pressure to ensure proper operation. These settings are verified before system operation and rechecked after temperature stabilization. Documentation includes pre-charge pressure, set pressure, and the date of verification for future reference.

Lubrication Pump Output Pressure and Oil Temperature Control Range

Lubrication system parameters are critical for bearing life and crusher reliability. Pump output pressure is typically maintained between 150-350 kPa, with specific values determined by crusher size and design. Pressure switches monitor system performance and trigger alarms if values fall outside acceptable ranges.

Oil temperature is controlled through heat exchangers to maintain optimal viscosity for lubrication. Typical operating range is 40-50°C, with alarms triggered at 55°C and shutdown at 60°C to prevent damage. Flow indicators verify proper lubrication to each bearing point, with typical flow rates of 15-25 liters per minute for main bearings.

Crusher Vibration Velocity RMS Acceptance Criteria

Vibration levels provide valuable insight into crusher mechanical condition. Acceptance criteria specify maximum vibration velocity values, typically measured in mm/s RMS. Overall vibration levels should not exceed 4.0 mm/s for crushers in good condition, with bearing housing measurements often limited to 2.8 mm/s for optimal life expectancy.

Measurements are taken in three directions (horizontal, vertical, and axial) at each bearing location. Frequency analysis identifies specific vibration components related to rotational speed, mesh frequency, and other mechanical characteristics. Baseline vibration signatures are documented for future comparison during operation.

Performance Verification and Continuous Optimization After Overhaul

Post-overhaul performance verification ensures the crusher operates at designed capacity and efficiency. This process involves controlled testing under various load conditions while monitoring multiple parameters. The data collected provides objective evidence of overhaul success and identifies areas needing adjustment before full production resume.

Continuous optimization uses performance data to identify improvement opportunities in both operation and maintenance practices. Trend analysis reveals relationships between operating parameters and component life, enabling predictive maintenance strategies. This data-driven approach extends equipment life, reduces operating costs, and improves overall reliability.

Belt Scale Data Comparison with Pre-Overhaul Production Capacity

Production rate comparison provides the most direct measure of overhaul effectiveness. Belt scale data collected after overhaul is compared with pre-overhaul performance under similar material conditions. Successful overhauls typically achieve 95-100% of original capacity, with improvements possible through component upgrades or operational adjustments.

Data analysis includes evaluation of product gradation, power consumption per ton, and capacity consistency. Modern control systems record these parameters continuously, allowing detailed comparison of performance before and after overhaul. This information validates overhaul quality and helps justify future maintenance investments.

Liner Wear Rate Correlation with Ore Hardness Research

Liner wear represents a significant portion of crusher operating costs, making wear rate understanding economically important. Research establishes correlations between ore hardness (measured by Bond Work Index or other standard methods) and liner wear rates. Harder ores typically increase wear rates by 30-50% compared to medium hardness materials.

Wear monitoring programs measure liner thickness at regular intervals to establish wear rates under specific operating conditions. This data helps predict liner life and optimize changeout timing. Advanced operations use laser scanning to create detailed wear maps that guide liner design improvements for specific applications.

Energy Saving Modification Solutions for Hydraulic System Efficiency Improvement

Hydraulic system improvements can significantly reduce crusher energy consumption. Modernization options include variable frequency drives on hydraulic pumps that match flow to demand instead of constant flow with relief, potentially reducing energy use by 25-40%. High-efficiency motors and pumps further improve system efficiency.

Heat recovery systems capture waste heat from hydraulic systems for other plant uses. System optimization also includes proper sizing of components, elimination of unnecessary restrictions, and improved cooling system efficiency. These modifications typically achieve payback periods of 12-24 months through energy savings alone.

Integration of IoT-Based Crusher Condition Monitoring Systems

Internet of Things technology enables continuous monitoring of crusher condition through networked sensors. Vibration, temperature, pressure, and flow sensors collect data transmitted to cloud-based analysis platforms. Machine learning algorithms detect abnormal patterns indicating developing problems before they cause failures.

These systems provide real-time alerts to maintenance personnel and generate trend reports for long-term planning. Integration with enterprise maintenance systems enables automated work order generation based on actual equipment condition rather than fixed schedules. The result is increased reliability with reduced maintenance costs.

Typical Overhaul Cases and Experience Summary in Industry Applications

Industry experience provides valuable lessons for improving overhaul processes and outcomes. Documented cases illustrate successful approaches to challenging situations and common pitfalls to avoid. This collective knowledge helps standardize best practices across the industry while allowing for site-specific adaptations.

Experience shows that thorough planning and preparation consistently yield the best overhaul results, with unplanned events reduced by 60-70% compared to less structured approaches. Proper tooling and equipment investment typically returns 3-5 times its cost through reduced labor hours and improved quality. Documentation and knowledge retention between overhaul cycles significantly improves subsequent project execution.

Anti-Corrosion Treatment Solution for Crusher Bearings in Humid Environments

Humid environments present special challenges for crusher bearing protection. Effective strategies include desiccant breathers that prevent moisture ingress into lubrication systems, and regular oil analysis to detect water contamination before damage occurs. Protective coatings on bearing surfaces provide additional protection against corrosion.

Operational practices such as maintaining crusher temperature above dew point through occasional operation during extended shutdowns prevents condensation formation. These measures collectively reduce bearing failures in humid environments by 70-80% compared to unprotected operation.

Inspection Methods for Metal Foreign Object Residue During Overhaul

Foreign object damage causes significant crusher damage if not prevented. Systematic inspection protocols include magnetic plugs in lubrication systems to capture ferrous particles, and borescope examination of internal passages not directly visible. Cleaning verification uses white cloth wiping of surfaces to detect residual contamination.

Critical areas receive multiple inspections at different stages of assembly. Documentation of each inspection creates accountability and ensures thoroughness. These procedures typically add 5-10% to overhaul time but prevent potentially catastrophic damage from foreign objects.

Scheduling Strategy for Parallel Overhaul of Multiple Crushers

Multiple crusher overhauls require careful scheduling to minimize production impact while efficiently utilizing resources. Staggered scheduling allows specialized teams and equipment to move between units, improving utilization. Critical path analysis identifies scheduling constraints and opportunities for optimization.

Resource leveling ensures adequate personnel and equipment availability throughout the overhaul period. Buffer times accommodate unexpected delays without impacting overall schedule. Effective scheduling typically improves resource utilization by 20-30% compared to sequential overhaul approaches.

Operator Training and SOP Updates After Overhaul

Equipment changes during overhaul often require updated operating procedures and training. Operators need understanding of new components, modified operating parameters, and changed maintenance requirements. Effective training combines classroom instruction with hands-on familiarization with the actual equipment.

Standard Operating Procedure updates reflect changes made during overhaul and incorporate lessons learned from previous operation. Documentation includes clear operating limits, normal parameter ranges, and appropriate responses to abnormal conditions. Proper training and documentation reduce operator-induced problems by 40-50%.

Future Technology Trends and Innovation Directions

Crusher overhaul practices continue evolving with technological advancements that improve efficiency, quality, and outcomes. Emerging technologies offer opportunities to reduce downtime, extend component life, and lower operating costs. Forward-thinking operations actively explore these innovations to maintain competitive advantage.

Technology adoption follows a careful evaluation process balancing potential benefits against implementation costs and risks. Pilot projects test new approaches on less critical equipment before full implementation. The gradual adoption strategy allows refinement of methods and procedures while building organizational experience with new technologies.

Vibration Analysis Technology in Early Fault Warning Applications

Advanced vibration analysis moves beyond simple level monitoring to sophisticated fault detection and diagnosis. Wireless sensors enable continuous monitoring without cabling constraints, while cloud-based analysis provides expert evaluation without on-site specialists. Pattern recognition algorithms identify specific fault types based on vibration signatures.

Early warning systems detect problems at incipient stages, allowing planned intervention before failure occurs. Integration with maintenance systems automatically generates work orders with diagnosed fault information. These systems typically provide 2-4 weeks warning of developing bearing problems and even longer for gear issues.

Robot-Assisted Automated Disassembly Technology for Overhauls

Robotic systems bring precision and repeatability to overhaul disassembly processes. Specialized robots handle heavy components with precise positioning, reducing human injury risk and potential equipment damage. Vision systems guide robotic operations and verify completion of each process step.

Automated tool changers allow single robots to perform multiple tasks including unbolting, lifting, and cleaning. Force feedback enables adaptive control for challenging operations like stubborn component separation. Robotic assistance typically reduces disassembly time by 30-40% while improving process consistency.

Data Traceability and Blockchain Management for Overhaul Processes

Blockchain technology creates tamper-proof records of overhaul activities and component history. Each step from parts receipt through final testing is recorded in an immutable ledger that provides complete traceability. Component serial numbers link to manufacturing data, inspection results, and service history.

Smart contracts automate documentation requirements and compliance verification. Authorized parties throughout the supply chain access appropriate information while maintaining data security. This approach improves quality control and provides valuable data for lifecycle analysis and improvement initiatives.

Green Overhaul Technology Applications

Environmental considerations increasingly influence overhaul practices through waste reduction, recycling, and pollution prevention. Used oil recycling programs clean and re-refine hydraulic and lubricating oils for reuse, typically recovering 80-85% of volume. Solvent recovery systems distill and purify cleaning solvents for multiple reuse cycles.

Waste segregation programs separate metals, plastics, and other materials for recycling rather than landfill disposal. Cleaning methods transition to aqueous-based systems instead of chemical solvents where possible. These practices reduce overhaul environmental impact while often lowering costs through material recovery.
