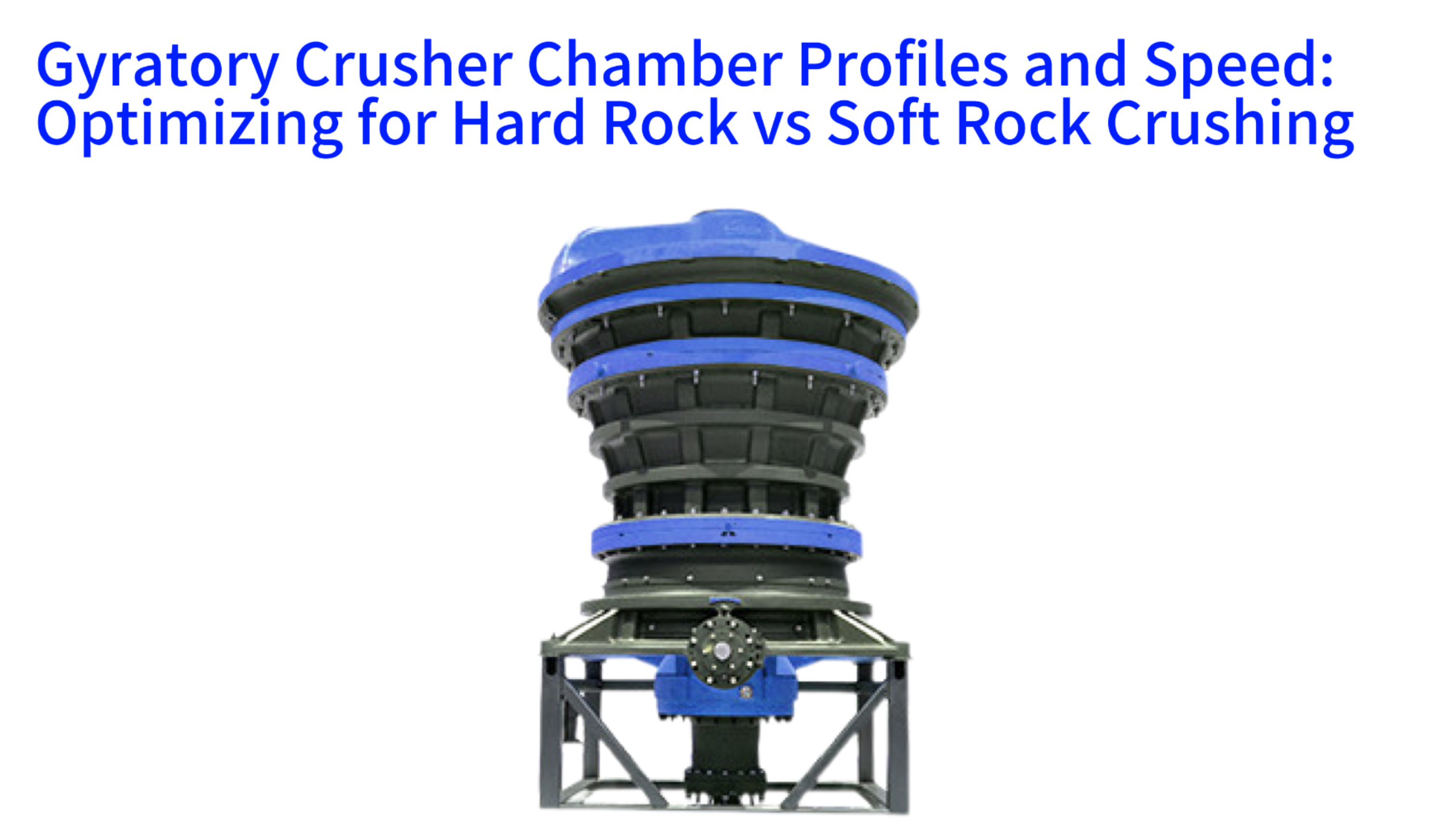

Gyratory Crusher Chamber Profiles and Speed: Optimizing for Hard Rock vs Soft Rock Crushing

Gyratory crushers are fundamental machines in the mining and aggregate industries, designed to reduce large rocks into smaller, more manageable sizes. Their efficiency, however, is not a one-size-fits-all equation. The physical characteristics of the feed material, primarily whether it is hard or soft rock, dictate the optimal mechanical configuration of the crusher. This guide provides a detailed exploration of how to maximize crusher performance by meticulously matching the chamber profile and rotational speed to the specific rock type being processed. We will delve into the science behind the crushing mechanisms, analyze design principles, and present real-world data and case studies to illustrate the significant gains in productivity, energy efficiency, and equipment longevity that can be achieved through precise optimization.

Physical Property Differences and Crushing Needs of Hard vs. Soft Rock

The journey to optimal crushing begins with understanding the raw material. Hard rocks, such as granite and basalt, possess a high compressive strength, often exceeding 150 MPa, and are highly abrasive. This means they resist being broken and cause significant wear on crusher components. In contrast, soft rocks like limestone and shale have a much lower compressive strength, typically ranging from 30 to 100 MPa, and are less abrasive but can be more friable, meaning they break apart easily. This fundamental difference dictates the type of force that should be applied and how the crushing chamber should be designed to apply it efficiently.

The hardness of the rock directly influences the pressure distribution within the crushing chamber. Hard rocks generate immense, localized pressures at the point of compression, requiring a chamber designed to withstand and focus this force. Furthermore, the energy required to comminute hard rock is substantially higher; crushing hard granite can consume up to 40% more power than crushing an equivalent volume of soft limestone for the same output size, making energy efficiency a primary concern. The feed size and desired output are critical starting points for any analysis.

Analysis of Compressive Stress Concentration Zones in Hard Rock Crushing

Hard rock crushing is predominantly a process of generating compressive stress. The chamber geometry must create a series of increasingly smaller zones where rock particles are squeezed between the mantle and concave until their internal structural integrity fails. In a well-designed chamber for hard rock, the pressure is not uniform but is concentrated in a specific area known as the crushing zone, where the parallel space between the mantle and concave is smallest. Peak pressures in this zone for hard rock can momentarily exceed 250 MPa, necessitating incredibly robust materials and a design that prevents premature wear or failure in this high-stress region.

Shear Force-Dominated Mechanism in Soft Rock Crushing

While compression is always present, the breaking of soft rock is often more efficiently achieved through a combination of compression and shear. Softer, more friable materials tend to fracture along natural cleavage planes when subjected to bending or shear forces. A crusher chamber designed for soft rock can utilize a shallower angle and a different profile to encourage this shearing action. This mechanism often requires less energy than pure compression, as the rock fails more easily under tension and shear, with effective stress requirements often 50-60% lower than those needed for pure compressive failure of hard rock.

Correction Coefficient for Rock Moisture Content on Crushing Efficiency

The presence of moisture in the feed material is a critical, often overlooked factor. Clay-bound or wet rock can lead to material packing, clogging the chamber, and drastically reducing throughput. A moisture content above 5% can reduce the effective capacity of a crusher by up to 15-20% due to clogging and reduced material flowability. Therefore, a correction factor must be applied to theoretical capacity calculations when processing damp material. This often necessitates adjustments to the discharge size setting or even chamber design to facilitate better flow.

The Relationship Between Reduction Ratio and Rock Particle Size Distribution

The reduction ratio, defined as the ratio of the feed size to the product size, is a key performance indicator. However, it is intrinsically linked to the particle size distribution (PSD) of the feed. A well-graded feed (with a variety of particle sizes) can pack more efficiently and may crush differently than a feed comprised entirely of large, uniform blocks. A higher reduction ratio, such as 8:1, places more stress on the chamber and requires more power than a lower ratio of 4:1. Achieving a consistent product PSD often involves managing the crushing ratio in stages.

Design Principles of Gyratory Crusher Chamber Profiles

The chamber profile, formed by the mantle and the concave, is the heart of a gyratory crusher. Its geometry determines how rock is captured, compressed, and eventually discharged. The two primary design considerations are the chamber's depth and the angle of the concave. A deep chamber allows for a greater volume of rock to be processed in a single cycle and is suited for high-capacity applications, while a shallow chamber may promote a faster material flow. The angle, whether steep or flat, directly controls the mechanical advantage and the type of force (compression vs. shear) applied to the rock.

Advanced design now incorporates dynamic or adjustable liners, which can be modified to alter the chamber profile in response to changing feed conditions or wear patterns. Computerized simulations are used to model the material flow path and pressure distribution within various chamber designs, allowing engineers to optimize the profile for specific materials before a single piece of steel is cast. This is a key feature in modern single-cylinder hydraulic cone crushers.

Deep Chamber with Steep Profile Design for Hard Rock Crushing

For hard, abrasive rock, the optimal chamber design is typically characterized by a deep cavity and a steep mantle angle. The depth allows for a larger volume of rock to be subjected to the crushing action, maximizing capacity. The steep angle creates a pronounced narrowing of the crushing gap, generating the extremely high compressive forces necessary to fracture tough materials. This configuration focuses the immense pressure effectively, but it also subjects the liner plates to tremendous wear, requiring materials like high-manganese steel to withstand the abrasion.

Optimized Shallow Chamber with Flat Profile for Soft Rock Crushing

Crushing soft rock prioritizes throughput and efficient flow over extreme pressure generation. A shallower chamber with a flatter profile is ideal here. This geometry reduces the amount of compressions the material undergoes before exiting, minimizing the risk of over-sizing and reducing energy consumption per ton of output. The flatter angle promotes a more free-flowing environment, reducing the chance of packing and clogging, which is particularly important if the material has any moisture content. This design is common in secondary crushing applications for aggregate production.

Wear Resistance Validation of Hadfield Steel Liners

The liners, or mantles and concaves, are the consumable components that define the chamber. For decades, the industry standard has been Austenitic Manganese Steel (Hadfield Steel), which is renowned for its work-hardening property. Upon impact and compression, its surface hardness increases from approximately 200 HB to over 500 HB, creating a hard, wear-resistant surface while maintaining a tough, shock-absorbing core. In hard rock applications, a high-quality manganese steel liner can process between 500,000 to 750,000 tons of material before requiring replacement, depending on the abrasiveness.

Real-Time Chamber Profile Adjustment Mechanism via Hydraulic System

Modern crushers leverage hydraulic systems to provide real-time control over the chamber profile and the crusher's operation. The hydraulic system can instantly adjust the vertical position of the main shaft, changing the closed-side setting (CSS) and thus the size of the discharge opening. More advanced systems can also be used to adjust the eccentric speed or even to perform a clearing stroke if a jam occurs. This hydraulic capability is central to the functionality of multi-cylinder hydraulic cone crushers, allowing for quick and precise optimization.

The Matching Logic of Rotational Speed and Rock Type

The rotational speed, or head spin, of the crusher's mantle is another critical variable. Speed directly influences the number of compression cycles per minute and the dwell time of material within the chamber. For hard rock, a lower speed (typically in the range of 100-200 rpm) is advantageous. It allows for a longer dwell time, ensuring that the tough rock is fully compressed and fractured, and it provides higher torque to power through the immense resistance. This low-speed, high-torque approach is essential for preventing stalls and managing power draw effectively.

Conversely, crushing soft rock benefits from a higher rotational speed (often 200-300 rpm). The increased number of gyrations per minute processes material more quickly, enhancing the crusher's volumetric capacity. Since the rock offers less resistance, the lower torque at higher speeds is not a limitation. Modern Variable Frequency Drive (VFD) technology allows operators to dynamically adjust the crusher's speed to perfectly match the feed characteristics, creating a synergy with the crushing capacity goals.

Case Analysis of Low Speed and High Torque in Hard Rock Crushing

A case study from a granite quarry demonstrated the importance of speed selection. By reducing the crusher speed from 235 rpm to 175 rpm, the operators noted a 15% reduction in power consumption. More importantly, the crusher was able to maintain a consistent and tighter product size distribution because the rock was subjected to a longer, more effective crushing cycle. The higher available torque also reduced the frequency of momentary overloads and the associated stress on the drive train, leading to improved mechanical reliability.

Example of Efficiency Gain from High Speed in Soft Rock Crushing

In a limestone processing plant, an experiment was conducted by incrementally increasing the crusher's speed. Raising the operational speed from 210 rpm to 270 rpm resulted in a measurable 22% increase in hourly production output. The product size remained within specification because the friable limestone fractured easily upon each compression. The energy consumption per ton of output decreased by approximately 8%, showcasing how higher speed can directly translate to higher efficiency for softer materials.

Quantitative Impact of Speed Fluctuation on Chamber Wear

Erratic speed control can have a detrimental effect on liner life. Constant and rapid changes in speed can cause the rock bed within the chamber to shift unpredictably, leading to uneven wear patterns and premature failure of the liners. Data logging has shown that crushers operating with a stable, optimized speed profile can achieve up to 20% longer liner life compared to those with frequent speed fluctuations, as consistent operation promotes a more stable and predictable wear pattern.

Application of Intelligent Control Systems in Speed Optimization

Intelligent control systems represent the pinnacle of crusher optimization. These systems use algorithms that take real-time input from sensors monitoring power draw, pressure, and sometimes even acoustics. The system can then automatically adjust the crusher's speed and the feed rate to maintain operation at its peak efficiency point. For example, if the power draw indicates a feed of harder material, the system can momentarily reduce speed to increase torque and prevent a stall, all without operator intervention.

Combination Schemes of Chamber and Speed for Typical Rock Crushing

The true art of crusher optimization lies in synergizing the chamber profile with the rotational speed. For a specific rock type, there is an ideal combination that maximizes output while minimizing cost per ton. A iron ore mine, dealing with extremely hard and abrasive magnetite, would typically employ a crusher with a deep, steep chamber paired with a low rotational speed. This configuration delivers the necessary high-pressure, high-torque crushing action while managing wear and energy costs.

Conversely, a limestone quarry would select a crusher with a shallower, flatter chamber and run it at a high speed. This setup prioritizes high-volume throughput and efficient material flow, capitalizing on the easy-to-break nature of the rock. For mining operations dealing with variable or mixed rock types, a hybrid solution is often necessary, sometimes requiring a compromise setting or, in modern plants, the ability to make dynamic adjustments to both chamber geometry and speed.

Predictive Model for Liner Replacement Cycle in Hard Rock Crushing

Predicting liner wear is crucial for maintenance planning and cost control. Advanced models now use historical data on rock abrasiveness (e.g., measured by the Bond Abrasion Index), crusher operational settings (speed, CSS), and throughput tonnage to accurately forecast liner life. For instance, a model might predict that for a specific granite with an AI of 0.45, the manganese liners will need replacement after processing 620,000 tons ± 5% when operating at a CSS of 50mm and a speed of 180 rpm. This allows for just-in-time ordering and planned downtime.

Lubrication System Optimization Strategy for Soft Rock Crushing

While hard rock crushing stresses mechanical components through high load, soft rock crushing often involves higher speeds. This places different demands on the crusher's lubrication system. The oil must be able to withstand high shear forces and maintain its viscosity at elevated operating temperatures. Optimizing the oil grade, filtration system, and cooling capacity can reduce friction and wear on bearings and gears. A well-optimized lubrication system in a high-speed application can reduce mechanical failure rates by over 30%.

Cavity Wear Monitoring Technology (e.g., Vibration Analysis)

Proactive monitoring is key to preventing unexpected failures. Vibration analysis is a powerful tool for monitoring chamber condition. As the liners wear, the geometry of the chamber changes subtly, altering the dynamics of the crushing process. Advanced vibration sensors can detect these subtle changes in the crusher's signature frequencies, providing an early warning that the liners are wearing unevenly or approaching the end of their life. This allows for planned intervention before a catastrophic failure occurs.

Ensuring Production Continuity through Preventive Maintenance

A comprehensive preventive maintenance (PM) program is the backbone of reliable crushing operation. This involves scheduled inspections, lubrication services, and component replacements based on time or usage metrics, rather than waiting for a breakdown. A well-executed PM program for a primary gyratory crusher can achieve availability rates exceeding 95%, meaning the crusher is operational and producing revenue for over 95% of the planned production time. This is far superior to a reactive maintenance approach.

Performance Comparison and Optimization in Industry Applications

The theoretical benefits of optimization are proven in real-world industrial applications. A documented case involved a hard rock mine struggling with low throughput and high liner costs. By retrofitting their primary gyratory crusher with a new chamber profile designed specifically for their ore's characteristics and optimizing the operational speed, they achieved a remarkable 30% increase in hourly production. Furthermore, the more efficient crushing action reduced liner wear, extending service life by 15%.

Similarly, a large aggregate producer processing soft limestone focused on energy efficiency. By implementing a system-wide optimization that included increasing crusher speed and fine-tuning the chamber settings, the plant reduced its overall energy consumption for crushing by 20%, significantly lowering its operating costs and environmental footprint. These cases highlight the tangible return on investment that comes from a scientific approach to crusher configuration, much like the principles applied in limestone crushing solutions.

Speed Compensation Strategy for Hard Rock Crushing at High Altitude

Crushers operating at high altitudes face a unique challenge: the lower air density reduces the cooling efficiency of air-cooled radiators and can cause electric motors to derate, losing power. For hard rock crushing that relies on high torque, this power loss can be crippling. A effective compensation strategy involves slightly reducing the crusher's operational speed to bring the power demand back within the derated capacity of the motor, ensuring the crusher can still develop the necessary force to fracture the rock without stalling.

Chamber Anti-Blocking Design for Damp Soft Rock Crushing

Damp or clay-rich soft rock is notorious for causing chamber packing or blocking. To combat this, crusher designs incorporate anti-blocking features. These can include a chamber profile with smoother transitions and fewer areas where material can become trapped. Some designs incorporate a hydraulic tramp release and clearing system that can quickly open the chamber to discharge a packed load of material, resuming operation in minutes instead of the hours required for manual clearing. This is a critical feature for construction and demolition waste recycling where material consistency is highly variable.

Application of Digital Twin Technology in Crushing Process Simulation

Digital twin technology creates a virtual, dynamic model of a physical crusher. This model is fed real-time data from the actual machine and can be used to simulate different operational scenarios without any risk to the physical equipment. An engineer can use the digital twin to test the impact of a new chamber design, a change in speed, or a different feed material on product size, power draw, and predicted wear, enabling perfect optimization in a virtual environment before implementation.

AI Optimization Algorithm for Crusher Chamber and Speed

Artificial intelligence is the next frontier in crusher optimization. Machine learning algorithms can analyze vast datasets of historical operational data to identify complex, non-obvious patterns and relationships between input parameters (feed size, hardness, moisture, speed, CSS) and output results (throughput, power, product PSD). The AI can then not only recommend but also autonomously control the crusher's settings to maintain peak performance continuously, adapting in real-time to any change in feed conditions.

Future Technology Trends and Innovation Directions

The future of crushing technology is focused on autonomy, efficiency, and sustainability. We are moving towards intelligent systems that can self-adjust to maintain optimal performance with minimal human intervention. The development of new, more durable materials will push the boundaries of wear life, while innovations in drive technology will continue to improve energy efficiency. The integration of the Internet of Things (IoT) will provide unprecedented levels of data for monitoring and analysis, making crushing plants more reliable and productive than ever before.

These innovations will be driven by the need to process lower-grade ores and complex materials more efficiently and to reduce the environmental impact of mining and quarrying operations. The goal is to do more with less: less energy, less water, and fewer consumables, all while maintaining high output and equipment availability. This aligns with the broader goals of sustainable development in the resources sector, impacting everything from mining and quarrying to aggregate production.

Predictive Maintenance of Chamber Profile Based on Machine Learning

Moving beyond vibration analysis, future predictive maintenance will rely heavily on machine learning. By feeding an AI system continuous data on operational parameters and liner wear measurements from laser scans, the system will learn to predict the exact remaining life of liner sets with extreme accuracy. It will be able to forecast not just when they will fail, but how their profile will change over time, allowing for pre-emptive planning and even suggesting operational adjustments to extend their life or correct uneven wear patterns.

Solar-Powered Crusher Speed Regulation Scheme

In remote, sunny locations, integrating solar power into crushing plant operations is becoming economically viable. A innovative scheme involves using a dedicated solar array to power the crusher's VFD and control system. During peak sunlight hours, when solar power is abundant, the system could potentially run the crusher at a higher speed to maximize production. Energy storage systems could smooth out interruptions from cloud cover. This approach significantly reduces reliance on diesel generators, cutting fuel costs and carbon emissions.

Potential of 3D Printing in Customized Liner Manufacturing

Additive manufacturing, or 3D printing, holds great potential for producing crusher liners. This technology could allow for the creation of liners with complex internal cooling channels or optimized wear patterns that are impossible to achieve with traditional casting. Furthermore, it could enable on-site or on-demand manufacturing of liners, drastically reducing lead times and inventory costs. While currently focused on prototypes, as the technology matures, 3D printing could revolutionize the supply chain for wear parts. The concept of a perfect concave is within reach.

Contribution of Crushing Chamber Airflow Optimization to Dust Control

Dust generation is a major challenge in crushing. Future chamber designs may incorporate airflow optimization features. By designing the chamber and the surrounding housing to control air movement, engineers can create negative pressure zones that suck dust into a collection point rather than allowing it to escape. This integrated approach to dust control, built into the crusher itself, would be more effective and efficient than relying solely on external dust suppression systems, leading to a cleaner and safer work environment.
