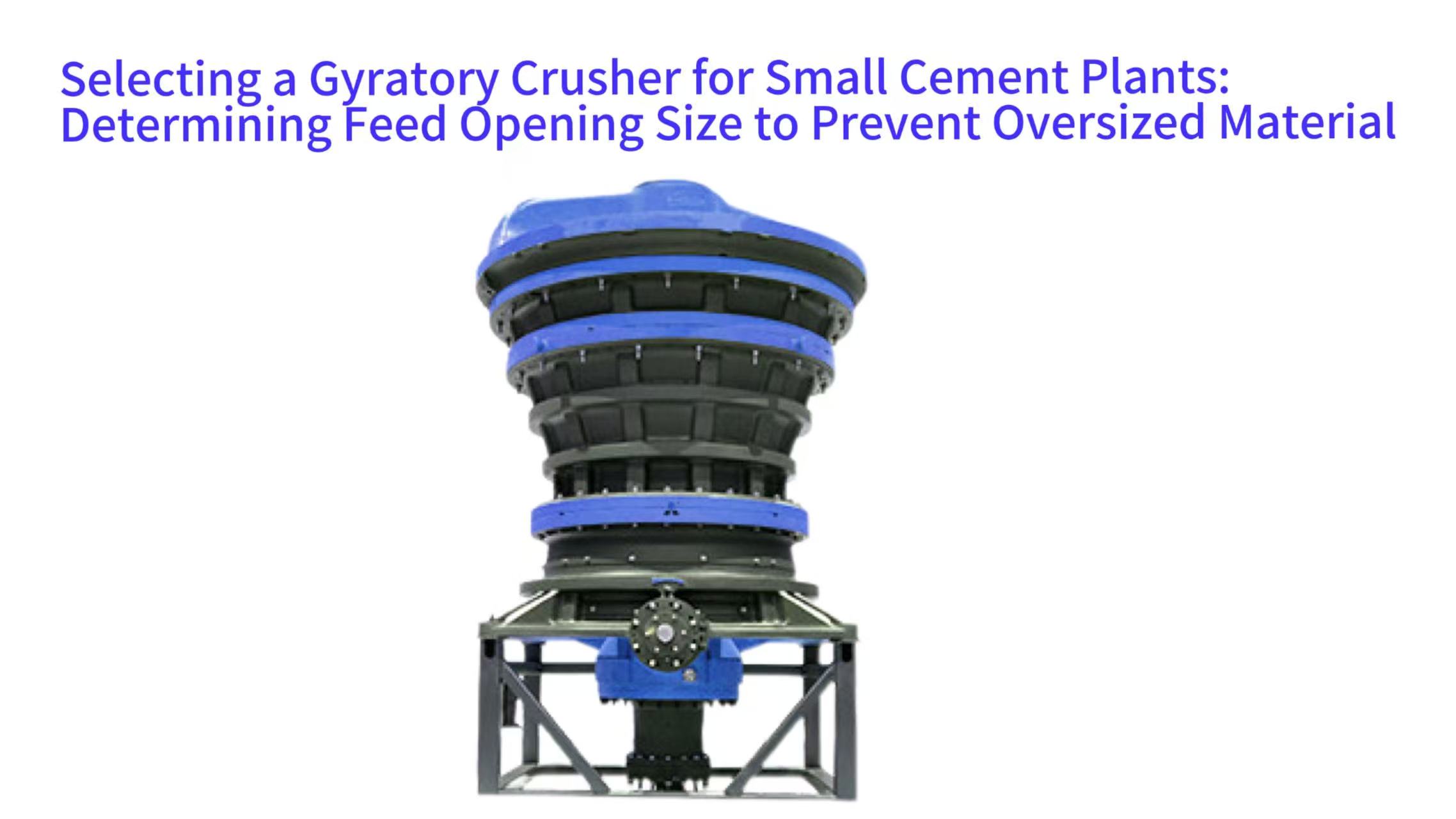

Selecting a Gyratory Crusher for Small Cement Plants: Determining Feed Opening Size to Prevent Oversized Material

Primary crushing represents the foundational stage in cement production, where raw materials like limestone undergo initial size reduction before further processing. For small-scale cement plants, selecting appropriate equipment involves careful consideration of multiple technical parameters, with the gyratory crusher feed opening dimension being particularly critical. This measurement directly influences maximum feed size acceptance, throughput capacity, and ultimately prevents the production of oversized material that can disrupt downstream operations. This comprehensive guide examines the systematic approach to determining optimal feed opening size based on specific plant requirements, material characteristics, and production targets, ensuring efficient and reliable crushing performance while minimizing operational challenges.

Understanding the Causes and Consequences of Oversized Material Problems

Improperly sized crusher feed openings represent a primary cause of oversized material issues in crushing circuits. These problems manifest as particles exceeding predetermined size specifications, creating operational inefficiencies throughout the production line. The relationship between feed opening dimensions and material size acceptance follows established engineering principles that must be properly applied during equipment selection.

Defining Oversized Material in Crushing Processes

Oversized material refers to particles that exceed the predetermined maximum acceptable dimension after passing through the crushing chamber. Industry standards typically define oversize as material larger than 1.7 times the closed side setting of the crusher. This specification ensures compatibility with downstream equipment and processes, maintaining smooth material flow through the production circuit.

The measurement of oversized material follows standardized screening procedures where particles are separated according to size fractions. Modern crushing operations employ automated monitoring systems that track the percentage of oversize material in real-time, allowing operators to make immediate adjustments to crusher settings or feed rates to maintain optimal performance.

Damaging Effects of Oversized Material on Downstream Equipment

Oversized particles create significant challenges for equipment following the primary crushing stage. Conveyor systems experience accelerated wear on belts and idlers when subjected to large, irregularly shaped material. Transfer points become clogged more frequently, requiring additional maintenance interventions that reduce overall equipment availability.

Secondary crushing equipment like cone crushers and impact crushers operate less efficiently when fed inconsistent material sizes. Oversized rocks can cause choking in crushing chambers, leading to increased power consumption and potential damage to internal components. This inefficient operation reduces the service life of wear parts and increases operational costs.

Negative Impacts on Production Efficiency and Operating Costs

The presence of oversized material directly correlates with reduced production efficiency across the entire cement manufacturing process. Unplanned downtime increases as operators must frequently stop equipment to clear blockages caused by oversized rocks. This interruption to continuous operation decreases overall plant throughput and increases labor costs associated with manual intervention.

Energy consumption rises significantly when crushing circuits process oversized material. Crushers operate less efficiently when working beyond their designed capacity, drawing more power while producing less usable product. Additionally, the increased wear on components leads to more frequent replacement of parts like mantles, concaves, and other wear surfaces, substantially raising maintenance expenses.

Fundamental Relationship Between Feed Opening and Maximum Feed Size

The gyratory crusher feed opening dimension establishes the maximum size of material that can enter the crushing chamber. Engineering standards specify that the maximum feed size should not exceed 80-85% of the feed opening width to ensure proper material intake and crushing action. This relationship ensures that rocks enter the chamber without bridging or causing feed-related problems.

Manufacturers provide detailed specifications regarding the relationship between feed opening size and acceptable feed dimensions. These guidelines consider the crusher's geometry, including the angle of nip between the mantle and concave. Proper application of these specifications prevents operational issues and maximizes the crusher's designed capacity.

Analyzing Raw Material Characteristics and Production Requirements for Small Cement Plants

Accurate assessment of raw material properties forms the foundation for proper crusher selection in small cement operations. This analysis extends beyond basic geological composition to include physical characteristics that directly influence crushing efficiency and equipment performance. Understanding these factors enables plant designers to match equipment capabilities with specific operational requirements.

Critical Raw Material Analysis: Physical Properties of Limestone

Limestone, as the primary raw material for cement production, exhibits varying physical properties that significantly impact crushing operations. Compressive strength measurements typically range from 30 to 250 MPa, influencing the energy required for size reduction. The abrasiveness index, often measured using the Bond Abrasion Index, determines wear rates on crusher components and affects maintenance intervals.

Moisture content represents another critical parameter, with levels above 5-6% potentially causing material handling issues like clogging and reduced throughput. The natural fracture characteristics of the limestone deposit influence particle shape after crushing, affecting downstream processing efficiency. Comprehensive material testing provides essential data for equipment selection and process design.

Determining Design Capacity and Operating Schedule for Small Cement Plants

Small cement plants typically operate with annual production capacities between 100,000 and 500,000 metric tons. This scale influences equipment selection, favoring crushers with capacities of 150 to 500 tons per hour depending on plant operating hours. Most small operations run single or double shifts, totaling 12-16 operating hours daily.

The crusher selection process must account for planned maintenance shutdowns, typically totaling 15-20 days annually for inspections and component replacements. Availability factors of 85-90% are realistic targets for well-maintained gyratory crushers in cement applications. These operational parameters directly influence the required crusher capacity and associated feed opening dimensions.

Establishing Final Product Size Specifications for Mill Feed

The target product size from primary crushing directly influences crusher selection and operation. For cement raw material preparation, the typical requirement is that 95% of the crushed material passes between 100 and 150 millimeters. This specification ensures efficient operation of downstream equipment like raw mills and prehomogenization systems.

The closed side setting of the crusher primarily controls the product size distribution. For gyratory crushers, the CSS typically ranges from 100 to 200 millimeters for cement raw material applications. The relationship between CSS, feed opening, and product size follows specific geometric principles that crusher manufacturers detail in their technical specifications.

Evaluating Pre-crushing Practices at the Quarry Face

Many modern quarries employ primary breaking methods at the extraction face to reduce oversize boulders before hauling to the crusher. Hydraulic hammers or rock breakers typically reduce material to sizes below 1 meter, which influences the required crusher feed opening dimensions. This practice can allow selection of smaller, more economical crushers while improving overall system efficiency.

The consistency of pre-crushed material affects crusher performance and wear patterns. Irregular size distribution from the quarry may necessitate larger feed openings to accommodate occasional larger fragments. Operations without pre-crushing typically require crushers with larger feed openings to handle the maximum boulder size encountered during mining operations.

Core Calculation Principles for Gyratory Crusher Feed Opening Size

Determining the appropriate feed opening size involves applying established engineering calculations based on material characteristics and production requirements. These calculations ensure the selected crusher can handle the maximum feed size while achieving the desired production rate and product specifications. The methodology combines theoretical principles with practical application guidelines from equipment manufacturers.

Direct Calculation Formula Based on Maximum Feed Size

The fundamental calculation for minimum feed opening size uses the formula: Minimum Feed Opening = Maximum Feed Size / 0.85. This relationship ensures that the largest anticipated rock can enter the crushing chamber without bridging or causing feed problems. The 0.85 factor represents the industry standard for gyratory crushers, accounting for the space required for proper material intake and crushing action.

For example, a quarry producing limestone with maximum fragment sizes of 800 millimeters requires a crusher with a minimum feed opening of 800 / 0.85 = 940 millimeters. This calculation would typically lead to selecting a standard crusher size with a 1000 millimeter feed opening, providing a safety margin for occasional oversize material. Manufacturers offer crushers in standard sizes, so calculations guide selection toward available models.

Nip Angle and Crushing Chamber Design Constraints on Feed Opening Selection

The nip angle, formed between the mantle and concave at the feed opening, critically influences crusher performance. This angle typically ranges from 22 to 28 degrees in gyratory crushers, affecting both capacity and product shape. Steeper nip angles provide better gripping action on slabby material but may reduce capacity, while shallower angles increase capacity but reduce fragmentation efficiency.

Crushing chamber design must complement the selected feed opening size to ensure optimal performance. The chamber profile affects material flow through the crusher and influences product gradation. Modern crusher designs incorporate computer-optimized chamber profiles that maximize capacity while producing well-shaped product particles suitable for downstream processing.

Throughput Verification: Ensuring Selected Size Meets Production Requirements

After determining the minimum feed opening size based on maximum feed dimensions, the selected crusher must be verified for capacity requirements. Crusher manufacturers provide capacity tables that indicate expected throughput at various closed side settings and feed opening configurations. These tables account for material characteristics like bulk density and crushability.

Capacity calculations consider the crusher's eccentric throw, speed, and chamber design. For a small cement plant requiring 200 tons per hour of crushed limestone, a crusher with a 1000 millimeter feed opening typically provides sufficient capacity at CSS settings between 125 and 150 millimeters. Verification ensures the selected equipment can meet production targets under actual operating conditions.

Incorporating Design Margins for Future Production Variations

Wise equipment selection includes consideration of future operational changes that may affect crushing requirements. Quarry operations may encounter harder rock formations or larger fragment sizes as mining progresses to deeper levels. Production expansion plans may require increased throughput capacity within the equipment's service life.

Selecting a crusher one size larger than immediately necessary provides operational flexibility and future-proofing. The additional capital cost is often justified by extended equipment life, reduced maintenance costs, and the ability to accommodate changing operational requirements. This approach particularly benefits small cement plants that may expand production capacity as market conditions evolve.

Special Considerations for Gyratory Crusher Selection in Small Cement Plants

Small-scale cement operations face unique constraints that influence crusher selection decisions differently than large mining operations. These considerations extend beyond basic technical specifications to encompass economic, spatial, and operational factors specific to smaller production facilities. Understanding these nuances ensures selection of the most appropriate equipment for the application.

Balancing Initial Investment Against Long-Term Operating Costs

Small cement plants typically operate with tighter capital budgets than large-scale operations, making initial equipment cost a significant consideration. However, focusing solely on purchase price without considering operating costs can lead to higher total cost of ownership. Smaller crushers with limited capacity may have lower initial costs but higher operating expenses per ton of material processed.

Lifecycle cost analysis provides a more comprehensive evaluation framework. This approach considers not only the purchase price but also installation costs, energy consumption, maintenance requirements, and expected equipment life. For gyratory crushers, the typically longer service life and higher availability often justify higher initial investment compared to alternative crusher types.

Equipment Footprint and Plant Layout Constraints

Small cement plants often have limited space available for primary crushing stations. Gyratory crushers require significant headroom for maintenance activities like mantle replacement, which can influence building design and cost. The foundation requirements for gyratory crushers are substantial, needing reinforced concrete bases that can weigh several times the crusher's operating weight.

Feed and discharge arrangements must accommodate spatial constraints while maintaining efficient material flow. The height of the crusher affects feed system design, often requiring elevated feed conveyors or ramps. Discharge systems must fit within available space while providing adequate capacity for surge storage between crushing and downstream processes.

Optimization Goals for Energy Efficiency

Energy consumption represents a significant portion of operating costs in crushing operations. Gyratory crushers typically consume between 0.5 and 1.5 kilowatt-hours per ton of processed material, depending on rock characteristics and product size requirements. Properly sized crushers operating at optimal capacity achieve the best energy efficiency.

Variable frequency drives on crusher motors can improve energy efficiency by allowing the crusher to operate at optimal speed for current feed conditions. This technology reduces energy consumption during periods of reduced feed rate or softer material. The energy savings often justify the additional investment, particularly in regions with high electricity costs.

Maintenance Accessibility and Local Technical Support Availability

Maintenance requirements significantly influence crusher selection for small cement plants. Gyratory crushers require specialized tools and training for major maintenance activities like mantle and concave replacement. Plants in remote locations must consider the availability of technical support and replacement parts when selecting equipment.

Modern crusher designs incorporate features that simplify maintenance, including hydraulic setting adjustment systems and automated lubrication systems. These features reduce maintenance time and require less specialized knowledge for routine operations. The availability of local service technicians and parts suppliers should influence the choice between different crusher manufacturers and models.

Integrated System Design to Prevent Oversized Material Production

Preventing oversized material requires a systems approach that extends beyond proper crusher selection to encompass the entire crushing circuit design. The interaction between feeding, crushing, and material handling equipment significantly influences the consistency of the final product. Proper integration of these components ensures stable operation and minimizes problems associated with oversized particles.

Designing Efficient Vibrating Feeders and Surge Bins

Vibrating feeders control the rate at which material enters the crusher, ensuring consistent feed distribution across the entire crushing chamber. Proper feeder selection considers material characteristics like density, moisture content, and particle size distribution. Electromagnetic or electromechanical vibrating feeders provide precise control over feed rates, preventing both overfeeding and underfeeding conditions.

Surge bins located ahead of the crusher provide a buffer between mining operations and the crushing circuit, ensuring continuous crusher operation despite variations in haul truck arrivals. Proper bin design prevents material bridging and ensures consistent flow to the crusher. Level indicators and control systems maintain optimal bin levels, preventing both empty and overfull conditions that disrupt crushing efficiency.

The Value of Pre-screening Processes: Grizzlies and Scalping Screens

Pre-screening removes fine material and undersized rocks before they enter the crusher, improving overall circuit efficiency. Static grizzlies with fixed openings provide a simple, maintenance-free method for removing material smaller than the crusher's closed side setting. This practice reduces crusher load and wear while increasing capacity for processing oversize material.

Scalping screens offer more precise separation than static grizzlies, with adjustable openings that can be optimized for specific material conditions. These screens remove both undersize material and deleterious elements like clay or soil that can affect crushing efficiency. The removed fines can be routed directly to downstream processes, bypassing the crusher entirely and reducing energy consumption.

Operator Training: Standardized Feeding Practices and Real-time Monitoring

Well-trained operators recognize visual and auditory cues that indicate optimal crusher operation. Unusual noises like metallic clanking may indicate tramp metal entering the crusher, while changes in motor amperage signal variations in feed rate or material hardness. Continuous monitoring of these parameters allows operators to make timely adjustments that prevent oversized material production.

Control systems provide real-time data on crusher operation, including power draw, hydraulic pressure, and CSS position. Operators use this information to maintain optimal operating conditions despite variations in feed material. Automated systems can adjust feed rates based on crusher load, maintaining consistent operation while protecting the equipment from damage due to overload conditions.

Importance of Regular Inspection and Closed Side Setting Adjustment

Regular inspection of wear parts ensures the crushing chamber maintains its designed geometry. Wear on the mantle and concave changes the chamber profile over time, affecting both capacity and product gradation. Measurements of CSS should be performed regularly using appropriate tools, with adjustments made to compensate for wear and maintain product specifications.

Wear monitoring systems using laser scanning or other technologies provide precise measurements of liner wear without requiring crusher disassembly. This data allows planning of liner replacements during scheduled maintenance periods, minimizing unplanned downtime. Proper wear management extends component life and maintains consistent product quality throughout the liner's service life.

Case Study Analysis and Selection Summary

Practical application of selection principles demonstrates how theoretical calculations translate to real-world equipment decisions. A hypothetical case study illustrates the complete selection process from initial data collection through final equipment specification. This approach validates the methodology while providing context for its application in actual plant design.

Case Background: A 600,000 Ton Per Year Cement Plant

The case study involves a cement plant with an annual production target of 600,000 metric tons of clinker. The raw material is limestone with a maximum feed size of 800 millimeters from the quarry. The primary crushing circuit must reduce this material to 95% passing 120 millimeters for efficient raw mill operation. The plant operates 16 hours daily, 300 days per year, requiring an average crushing rate of 125 tons per hour.

Material testing indicates the limestone has a compressive strength of 90 MPa and a Bond Abrasion Index of 0.25, classifying it as medium-hard and moderately abrasive. The bulk density measures 1.6 metric tons per cubic meter, influencing equipment sizing and capacity calculations. These parameters provide the foundation for crusher selection and circuit design.

Step-by-Step Selection Process Demonstration

The selection process begins with calculating the minimum feed opening required: 800 mm / 0.85 = 941 mm. This calculation points toward a crusher with a 1000 millimeter feed opening as the appropriate choice. Consultation with manufacturer data confirms that a crusher of this size can comfortably handle the required feed material while providing adequate capacity for future production increases.

Capacity verification using manufacturer tables indicates that a 1000 mm gyratory crusher operating at a 130 mm CSS can produce approximately 180 tons per hour of crushed limestone. This capacity provides a safety margin above the required 125 tph, accommodating variations in material hardness and operating conditions. The selected crusher meets both feed size and capacity requirements.

Comparative Analysis of Similar Sizes

Comparing the 1000 mm selection with the next smaller standard size of 900 mm reveals important differences. The 900 mm crusher has a maximum recommended feed size of 765 mm (900 × 0.85), which is insufficient for the 800 mm quarry run material. Attempting to process the occasional larger rock would cause feeding problems and potential damage to the crusher components.

The larger 1000 mm crusher provides additional benefits beyond simply accommodating the feed material. The increased capacity allows for future production expansion without requiring crusher replacement. The larger components typically have longer service lives between replacements, reducing maintenance frequency and associated downtime. The slightly higher initial cost is justified by these operational advantages.

Final Selection Checklist Summary

A comprehensive selection checklist ensures all critical factors receive proper consideration. This checklist includes verification of maximum feed size compatibility, production capacity requirements, energy consumption estimates, maintenance accessibility, and spare parts availability. Each factor contributes to the overall suitability of the selected equipment for the specific application.

The final selection documentation includes detailed specifications, performance guarantees, and installation requirements. This information facilitates proper integration of the crusher into the overall plant design. The systematic approach demonstrated in this case study provides a template for equipment selection decisions in small cement plant applications, ensuring optimal operational performance and reliability.
