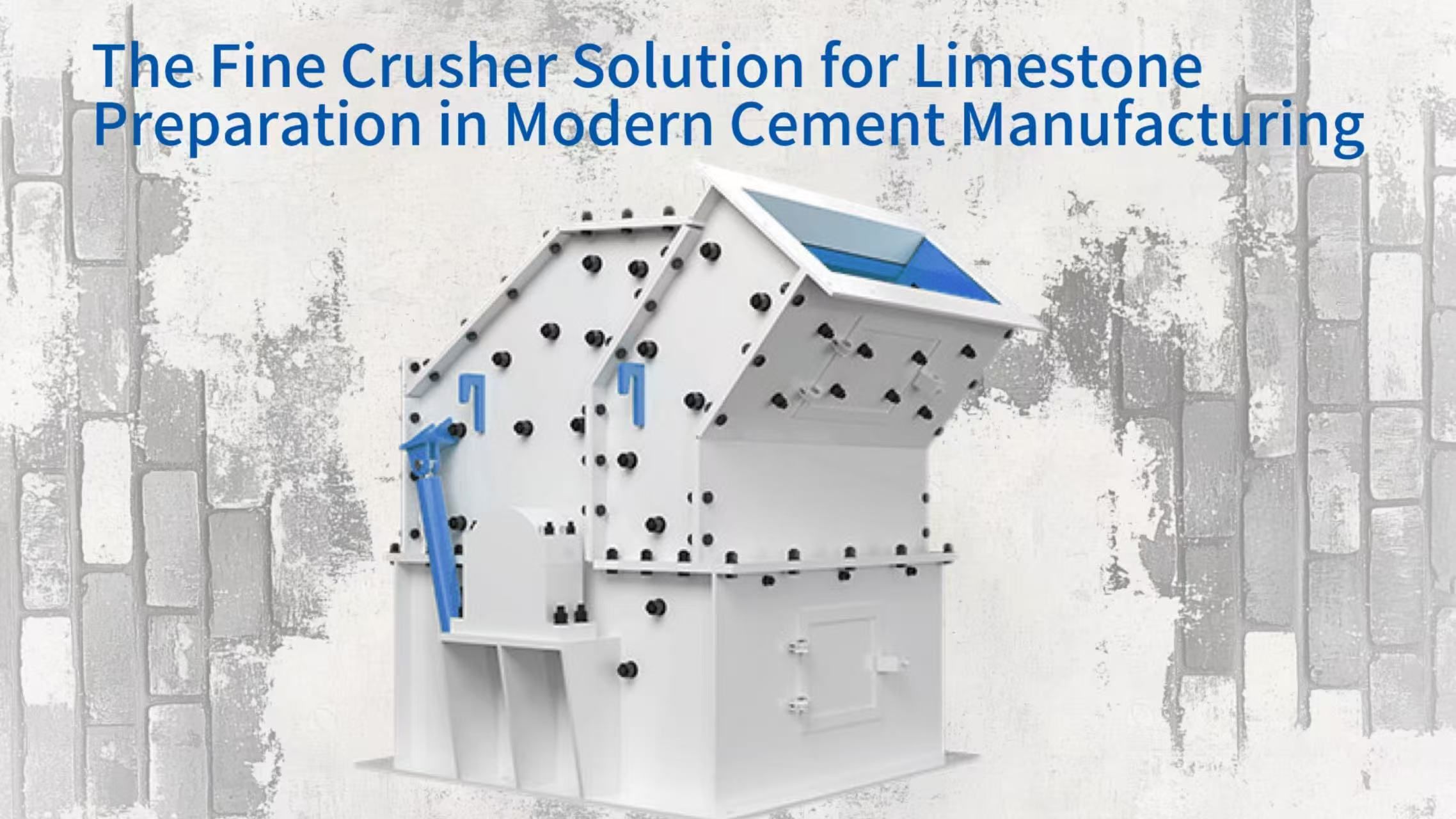

The Fine Crusher Solution for Limestone Preparation in Modern Cement Manufacturing

The production of cement begins with the extraction and processing of raw materials, with limestone being the most significant component. This sedimentary rock provides the necessary calcium oxide for the chemical reactions that occur within the cement kiln. Before limestone can enter the grinding mill, it must be reduced from large quarry-run boulders into smaller, more uniform particles. The size of these particles directly influences the efficiency of the entire manufacturing process. Traditional crushing methods often leave a gap between the output of the crusher and the ideal feed size for the mill. This gap forces the grinding mill to work harder, consuming more energy and reducing its overall throughput. The fine crusher is a machine specifically designed to bridge this gap. It applies controlled impact forces to reduce limestone to a size optimally suited for the raw mill, creating a smoother and more energy-efficient production flow from the quarry to the kiln. In the context of cement manufacturing, this optimization of raw material preparation is fundamental to plant profitability.

The Fundamental Definition and Core Position of Fine Crushers in Raw Material Preparation

A fine crusher is a type of crushing equipment engineered specifically for the tertiary or quaternary stage of a size reduction circuit. Its primary function is to take material that has already been through primary and secondary crushing and reduce it further to a finer, more consistent size. In a cement plant, this machine occupies a critical position between the secondary crusher and the raw grinding mill. It processes limestone and other corrective materials to achieve a particle size distribution that optimizes the performance of the downstream mill. The core value of a fine crusher lies in its ability to achieve a high crushing ratio with relatively low energy consumption, thereby maximizing the overall efficiency of the raw material preparation system.

The Core Power Transmission System for Stable Rotational Drive

The operation of a fine crusher begins with its drive system. A large electric motor provides the rotational force. This motor is typically connected directly to the crusher's rotor through a flexible coupling, such as a pin or fluid coupling. This direct connection is a key design feature. It allows the motor's energy to be transferred to the rotor with minimal loss. The rotor, in turn, achieves a high and stable rotational speed. This consistent speed is essential because it determines the kinetic energy of the hammer tips. For a cement plant operating continuously, this robust and efficient power transmission ensures that the machine can deliver a steady and reliable crushing performance hour after hour without significant power fluctuations or mechanical interruptions.

The Core Crushing Principle of High-Speed Impact and Attrition

The size reduction inside a fine crusher is achieved through a combination of impact and attrition. The high-speed rotor spins a series of hammers. As limestone enters the crushing chamber, it is struck by these hammers with considerable force. This initial impact hurls the rock against stationary breaker plates mounted at the top of the chamber. The collision with these plates causes the first stage of breakage. Material that is not yet fine enough ricochets back into the path of the rotating hammers or collides with other incoming rock particles. This continuous process of hammer impact, plate collision, and inter-particle collision gradually reduces the stone. This combination of forces is effective for producing a uniformly fine product from the relatively soft to medium-hard limestone used in cement making. The geometry of the crushing chamber is specifically designed to facilitate this repeated impact cycle.

The Grate Gap Control Principle for Precise Product Sizing

A defining feature of many fine crushers is the presence of a grate assembly located at the bottom of the rotor. This assembly consists of rows of wear-resistant bars with precisely machined gaps between them. The gaps, often called the grate opening, act as a final sizing mechanism. As the rotor spins, material is thrown against the grates. Particles smaller than the grate opening pass through and exit the crusher. Particles that are still too large are held back in the crushing zone, where they continue to be struck by the hammers and abraded against the grate bars until they are small enough to pass. By selecting grates with different opening sizes, the plant operator gains direct control over the maximum particle size in the final product. This allows the fine crusher to be tuned to deliver limestone with, for example, 90 percent of particles smaller than 15 or 20 millimeters, perfectly matching the requirements of the downstream raw mill. The ability to control the discharge size with such precision is a major advantage of this equipment.

The Wear-Resistant Structural Design for Extended Component Life

Crushing rock, even relatively soft limestone, is an abrasive task that wears down machine parts. The fine crusher addresses this challenge through its wear-resistant design. The hammers, which take the brunt of the impact, are often made from high-chromium cast iron or composite materials that combine extreme hardness with sufficient toughness to resist breakage. The breaker plates and the grate assembly are also manufactured from highly abrasion-resistant materials. Furthermore, the entire inner surface of the crushing chamber is lined with replaceable wear plates. These liners protect the main structural shell of the crusher from wear. This systematic approach to wear protection ensures that the machine's core structure remains intact for many years. The consumable wear parts, such as hammers and grates, are designed for relatively quick replacement, minimizing maintenance downtime and keeping the operation productive.

The Main Types of Fine Crushers and Their Applications in Cement Plants

Fine crushers are not a single, monolithic machine type. Different designs have evolved to meet the varied needs of cement plants, which can differ in scale, limestone characteristics, and process configuration. Understanding the distinctions between these main types is important for selecting the machine that will best integrate into a specific plant's flow sheet. The primary types used in the cement industry include hammer fine crushers, impact fine crushers, and reversible hammer models, each offering a different balance of crushing action, wear characteristics, and operational flexibility. The choice of machine directly affects the efficiency of the limestone crushing stage.

Hammer Fine Crushers in Large-Scale Dry Process Cement Lines

The hammer fine crusher is a common sight in large, modern dry process cement plants. Its design is relatively simple but robust, featuring a single rotor with a large number of hammers. This configuration allows it to handle high throughputs, often several hundred tons per hour, which is essential for feeding a large-scale raw mill. In a typical layout, it receives limestone that has already been reduced to a size of around 50 to 80 millimeters by a primary and secondary crusher. The hammer crusher then uses its high-speed rotor and large grate area to pulverize this material in a single pass. The goal is to maximize the proportion of fines and ensure that the product is consistently below the target size, such as 20 or 15 millimeters. This efficiency directly reduces the workload on the downstream grinding mill, a key factor in overall plant energy consumption. The PC hammer crushers are often deployed in this role.

Impact Fine Crushers for Medium-Hard and Siliceous Limestone

When the quarry limestone contains a significant amount of silica or is particularly hard, an impact fine crusher may be the preferred choice. This type of crusher relies on massive, fixed blow bars attached to the rotor rather than swinging hammers. These blow bars strike the incoming rock with great force and throw it against heavy impact aprons. The intense impact forces are effective at breaking rock along its natural cleavage planes. This can be particularly beneficial for harder materials, as it tends to produce a more cubical product shape. In a cement plant processing a tougher limestone, an impact fine crusher can provide reliable size reduction while managing the higher wear associated with abrasive materials. The design of its rotor and blow bars is critical to its performance.

Reversible Hammer Fine Crushers for Enhanced Wear Uniformity

A specialized variant of the hammer fine crusher is the reversible design. In a standard crusher, the rotor rotates in only one direction. This means that the side of the hammers facing the incoming feed wears more quickly. A reversible crusher, however, can be operated with the rotor spinning in both directions. The operator can run the machine for a set period with the rotor turning one way, and then reverse the rotation. This action presents the opposite face of the hammers to the incoming material. This significantly extends the working life of the hammers before they need to be replaced. Furthermore, reversing the rotation helps keep the hammer edges sharp, contributing to a more consistent product gradation over time. For cement plants focused on maximizing uptime and minimizing consumable costs, the reversible hammer fine crusher offers a compelling advantage.

Closed-Circuit Combinations with Screening Equipment

For applications where absolute certainty about the final product size is required, a fine crusher can be integrated into a closed-circuit system with a vibrating screen. In this configuration, the entire output from the crusher is conveyed to a screen. The screen separates the material into two streams: particles smaller than the screen's mesh size are sent directly to the raw material storage as finished product. Oversized particles, which are still too large, are diverted and returned via a conveyor back to the crusher's feed hopper for another pass. This closed-loop process guarantees that every particle leaving the circuit meets the size specification. While this adds to the initial equipment cost, it provides the highest level of assurance for protecting the efficiency of the downstream grinding mill and is a reliable strategy in many cement plants.

The Core Functions of Fine Crushers in Cement Raw Material Processing

The fine crusher earns its essential role in the cement plant by performing a set of core functions that directly benefit the entire manufacturing process. These functions go beyond simple rock breaking. They are designed to optimize the material's characteristics for the next stage of production, to maintain reliable operation under demanding conditions, and to contribute directly to the plant's economic performance. Each function addresses a specific need, from maximizing throughput to ensuring consistent quality and minimizing operational interruptions.

High Crushing Ratio and Fine Reduction Capability

The primary function of the fine crusher is its ability to take an already crushed material and reduce it significantly in size in a single pass. It can consistently accept feed with a top size of 50 to 80 millimeters and produce a product where the vast majority of particles are smaller than 15 millimeters. This represents a reduction ratio of 4:1 or more. This capability is transformative for the plant layout. It often allows the cement plant to simplify its crushing stage, potentially replacing two stages of crushing with a single fine crusher. More importantly, this significant size reduction directly lowers the mean particle size entering the raw mill. Because grinding is far more energy-intensive than crushing, any reduction in the particle size fed to the mill results in substantial energy savings for the entire plant.

Precise Discharge Size Adjustment Capability

A fine crusher is not a fixed-output machine. It gives the plant operator control over the final product's maximum size. This control is primarily exercised by changing the grate assembly. By installing grates with smaller or larger openings, the operator can dial in the desired top size for the raw mill. For instance, if the raw mill performs better with a finer feed, a grate with tighter gaps can be installed during a scheduled maintenance stop. This adjustability allows the cement plant to optimize the balance between the crusher's throughput and the mill's requirements based on current production goals and the specific characteristics of the limestone being quarried. This flexibility is a valuable tool for process optimization.

Continuous High-Load Production Capacity

A cement plant operates on a continuous basis, often running for months between scheduled shutdowns. All equipment in the process must be capable of matching this operational tempo. Fine crushers are built with this requirement in mind. Their main frame is constructed from heavy steel plate, designed to withstand the continuous dynamic loads of the rotating rotor. The main bearings are generously sized to handle both radial and thrust loads for extended periods. An integrated lubrication system ensures that these critical components receive a constant supply of clean oil, managing heat and preventing wear. This robust construction allows the fine crusher to operate reliably around the clock, day after day, providing a consistent flow of crushed material to the raw mill without becoming a source of unplanned downtime.

Blockage Resistance and Adaptive Relief

Limestone can sometimes be damp or contain sticky clay-like impurities. This can lead to material building up and blocking the flow inside a crusher. Fine crushers incorporate design features to mitigate this risk. The crushing chamber is often designed with a deeper profile to prevent packing. The shape and arrangement of the grate openings are optimized to minimize clogging. For more difficult situations, some fine crushers are equipped with a hydraulic or spring-loaded relief system on the breaker plates or the main housing. If an uncrushable object, like a piece of metal, or an excessive buildup of sticky material creates an overload, these systems allow the internal components to move, opening the gap and clearing the obstruction. After the blockage is cleared, the system automatically returns to its normal operating position, protecting the crusher from damage and ensuring production continuity. The principles used in grate assembly design are central to this anti-blocking functionality.

Comprehensive Energy Savings from Reduced Mill Feed Size

The ultimate value of the fine crusher's functions is realized in the overall energy balance of the cement plant. Grinding raw materials in a ball mill or vertical roller mill is one of the most energy-intensive steps in cement production. The energy required to grind a particle is directly related to its size. By consistently delivering a finer feed to the mill, the fine crusher directly reduces the work the mill must do. Industry data shows that even a small reduction in mill feed size, such as a few millimeters, can lead to a measurable increase in mill throughput and a corresponding decrease in specific power consumption. For a large cement plant, the cumulative electrical energy saved annually through this improved efficiency can be very substantial, providing a clear financial return on the investment in a high-performance fine crusher.

The Main Varieties of Raw Materials Processed and Process Matching

While limestone is the dominant material, the raw mix for cement production includes other components. Each of these materials has its own physical characteristics, such as hardness, abrasiveness, and moisture content. A fine crusher must be able to handle this range of materials, either separately or in combination, to prepare a consistent and suitable feed for the raw mill. The machine's design and operational parameters can be adjusted to match the specific demands of each material type, ensuring that all components of the raw mix are properly prepared for the kiln feed.

Efficient Fine Crushing of High-Calcium Limestone

High-calcium limestone is the preferred raw material for producing high-quality clinker, but it is often denser and harder than other forms of limestone. A fine crusher processes this material effectively by utilizing an appropriately high rotor speed to deliver sufficient impact energy. The hammer and liner materials must be selected to withstand the more abrasive nature of this hard rock. By carefully controlling the grate gap, the crusher can produce a fine, uniform product from this high-quality stone. This ensures that the valuable calcium carbonate is optimally prepared for the kiln feed, maximizing its reactivity in the sintering process without wasting energy by crushing it more than necessary.

The Challenge of Crushing Limestone with Siliceous Nodules

Some limestone deposits contain hard, cherty nodules rich in silica. These siliceous inclusions are far more abrasive than the surrounding limestone and pose a significant wear challenge for crushing equipment. When processing this type of material, a fine crusher requires additional protection. This can include hardfacing on critical wear areas or the use of hammers tipped with cemented carbide inserts for extreme abrasion resistance. From a process standpoint, it may also be necessary to accept a slightly coarser final product size. Allowing these hard, silica-rich particles to pass through the crusher with a larger size, and letting the more energy-intensive grinding mill handle them, can sometimes be the most economical overall strategy, balancing wear costs against energy consumption.

Processing Moist and Sticky Marl and Clay Materials

Marl is a natural mixture of calcium carbonate and clay, which makes it an excellent raw material for cement. However, it often has a high moisture content and can be sticky and difficult to handle. Processing such material in a standard fine crusher can lead to clogging of the grates and build-up within the chamber. To manage these materials, fine crushers can be equipped with specially designed grates that have a larger open area or a different profile to resist clogging. In some plant designs, the fine crusher is integrated with a drying system. Hot exhaust gases from the kiln or cooler are drawn through the crusher, partially drying the wet marl as it is being crushed. This combination of crushing and drying in a single unit is an effective way to handle these challenging but valuable raw materials.

Medium-Fine Crushing of Sandstone and Iron Ore Correctives

Smaller quantities of other materials, such as sandstone for silica and iron ore for iron, are added to the raw mix to achieve the correct chemical composition for clinker. These corrective materials are often hard and abrasive. A fine crusher can effectively reduce them to the required size. For these harder materials, the crusher's rotor speed might be lowered slightly to reduce the intensity of impact and minimize wear on the hammers. Using wear-resistant alloys, like high-chromium iron, for the hammers is essential. The goal is to produce a crushed product with a particle size that is compatible with the limestone, allowing all materials to be blended together effectively before entering the raw mill for final grinding and homogenization.

The Detailed Technical Principles Behind Precise Fine Crushing

The efficient and controlled crushing achieved by a fine crusher is not an accident. It is the result of applying fundamental engineering and scientific principles to the machine's design. From the speed of the hammer tips to the flow of air and particles within the chamber, each aspect is carefully calculated to maximize performance and minimize energy waste and wear. These principles draw from mechanics, materials science, and fluid dynamics to create a machine that is both powerful and precise.

Hammer Tip Speed Design Based on Impact Mechanics

The speed at which the hammer tips travel is one of the most critical parameters in a fine crusher's design. According to the principles of impact mechanics, the kinetic energy transferred to a rock particle is proportional to the square of the impact velocity. For crushing limestone, hammer tip speeds are typically engineered to operate in the range of 50 to 70 meters per second. This speed is a carefully chosen balance. It is high enough to provide sufficient energy to fracture the limestone effectively. However, it is not so high that it wastes energy, generates excessive heat and noise, or causes the hammers to wear out prematurely. For plants with variable limestone hardness, using a variable frequency drive to adjust the rotor speed allows the operator to fine-tune the impact energy to match the material, ensuring optimal crushing performance at all times.

Crushing Chamber Geometry Optimized with Particle Mechanics

The shape of the space where the crushing occurs is carefully designed to maximize the number of effective impacts on the material. Modern fine crusher chambers are not simple cylinders. Their profile is optimized, often with the help of computer simulation, to guide the flow of particles. In the upper part of the chamber, the geometry promotes turbulence and inter-particle collision. In the lower section, near the grates, the design ensures that material is directed effectively against the sizing bars. This optimized geometry ensures that particles have multiple opportunities to be struck by hammers and to collide with each other before they reach the discharge point. The design of the first crushing cavity is critical for this initial size reduction phase.

Gas-Solid Two-Phase Flow Control Based on Fluid Dynamics

The high-speed rotor in a fine crusher acts like a powerful fan, creating a strong airflow within the crushing chamber. This airflow is not just a side effect; it is an integral part of the separation process. Principles of fluid dynamics are applied to control this gas-solid two-phase flow. The design of the rotor, the inlet, and the housing influences how air moves through the chamber. This air current helps to transport finer particles towards the discharge. By managing the air velocity and flow path, and by carefully designing the open area and orientation of the grate slots, the system can be tuned to carry properly sized particles out of the crusher quickly. This prevents them from being over-crushed and wasting energy, while larger, heavier particles are retained in the high-impact zone for further reduction.

The Wear-Resistant Material System Based on Tribology

The science of tribology, which studies friction and wear, guides the selection of materials for the fine crusher's wear parts. Different components face different wear mechanisms. The hammer heads endure high-velocity impacts and gouging abrasion. Therefore, they are often made from materials like high-chromium iron, which has very high hardness to resist this wear. The hammer shanks, however, need to withstand bending forces without breaking, so they are made from tough, high-strength steel. The two parts are combined, often by casting the hard material around a steel core or by mechanically attaching wear tips. The grates and liners are also made from abrasion-resistant alloys. This systematic application of material science ensures that each part of the crusher is made from the material best suited to the specific wear mechanism it faces, maximizing the overall service life of the machine's components.

The Core Value and Investment Return for Cement Enterprises

For a cement plant, the decision to invest in a high-quality fine crusher is driven by a clear understanding of its return on investment. The benefits are not limited to a single department but propagate through the entire production process, from raw material unloading to the final clinker output. The value is realized in multiple forms, including direct cost savings, improved product quality, enhanced operational efficiency, and alignment with environmental goals. Companies with deep experience in this field, such as MSW Technology with over 15 years of direct involvement in crusher solutions, have consistently demonstrated these returns for their clients in the cement industry.

Cost Efficiency Through Reduced Specific Power Consumption

The most direct and measurable return from a fine crusher comes from reduced electricity consumption. By consistently delivering a finer feed to the raw mill, the crusher directly lowers the mill's specific power consumption, measured in kilowatt-hours per ton of material ground. For a large cement plant producing millions of tons of raw meal per year, a reduction of even one or two kilowatt-hours per ton translates into millions of kilowatt-hours saved annually. This directly reduces the plant's operating costs and improves its profit margin. The investment in the fine crusher is typically recovered within a short period, often one to two years, solely through these energy savings.

Quality Improvement from Stable Raw Meal Fineness

The consistency of the raw mix entering the kiln is a major factor in clinker quality. A fine crusher contributes to this consistency by providing a stable and uniform particle size distribution to the raw mill. When the mill receives feed of a consistent size, its operation becomes more stable, and the fineness of the raw meal it produces varies less. This consistent raw meal fineness allows for more precise control of the kiln feed and more stable burning conditions. The result is higher quality clinker with more consistent strength development, which in turn allows the cement plant to produce a more reliable and higher-performing final product, strengthening its reputation in the market.

Efficiency Gains from Increased System Uptime and Throughput

In many older cement plants, the raw material preparation section is a bottleneck that limits overall clinker production capacity. Installing a high-capacity fine crusher can directly address this constraint. By increasing the throughput of the crushing section and delivering more fine material to the mill, the crusher can effectively "unlock" hidden capacity in the grinding and kiln systems. Furthermore, the robust and reliable design of a modern fine crusher minimizes unplanned maintenance stops. This increased uptime, combined with higher potential throughput, allows the plant to maximize its production and better meet market demand without the capital expense of building a completely new production line.

Environmental Benefits Aligned with Low-Carbon Development Goals

The cement industry faces growing pressure to reduce its carbon footprint. A significant portion of a cement plant's indirect carbon emissions comes from the electricity it consumes. By dramatically improving the energy efficiency of the raw material preparation process, the fine crusher makes a direct and meaningful contribution to lowering these emissions. Every kilowatt-hour of electricity saved by reducing the work of the raw mill is a kilowatt-hour that does not need to be generated, often by burning fossil fuels. Investing in energy-efficient technologies like modern fine crushers is a practical and impactful way for cement companies to align their operations with global sustainability goals and demonstrate their commitment to environmental responsibility.
