Iron Ore Fine Crushing Particle Control: Strategies for Optimal Size Distribution

Stone crushers are pivotal in transforming raw materials into usable aggregates for construction, mining, and recycling. These machines apply controlled mechanical forces—compression, impact, or shear—to reduce particle sizes from bulk rock to specified ranges (5-150mm). Core components include power systems,crushing chambers, and discharge control modules. Modern designs integrate automation and durability enhancements to optimize throughput while minimizing energy consumption.

The evolution of stone crushers reflects industrial demands for precision and sustainability. Early models relied on basic mechanics, but contemporary systems employ advanced materials and digital monitoring. For instance, hydraulic adjustment mechanisms now enable real-time discharge size modifications, reducing downtime by 40% compared to manual systems. This article explores the science, engineering, and operational strategies behind these indispensable machines.

Mechanical Fundamentals of Stone Crushing

Stone crushers operate through dynamic force application. In jaw crushers, reciprocating motion between fixed and movable jaws generates compressive stress, breaking rocks along natural fractures. Impact crushers use high-speed rotors with blow bars to shatter materials through kinetic energy transfer. Each method suits specific material types—granite requires robust compression, while limestone responds better to impact forces.

The choice of crusher impacts downstream processes. Over excessive crushing increases fine particle generation, raising energy demands for subsequent grinding. Conversely, under leaves oversized particles that disrupt screening efficiency. Data from mining operations show optimal throughput occurs when 70% of feed material falls within the crusher’s designed capacity range, balancing wear and productivity.

Force Distribution in Crushing Chambers

Crushing chamber geometry dictates force application patterns. Cone crushers utilize a gyrating mantle within a concave bowl, creating a compression zone that progresses from the center outward. This design ensures particles are crushed multiple times, achieving uniform reduction. Field tests reveal properly configured cone crushers produce 15% fewer fines compared to jaw crushers for medium-hard materials.

The angle of the crushing chamber directly affects particle retention time. Steeper angles accelerate material passage but reduce crushing efficiency. Modern designs use computational modeling to optimize chamber profiles. For example, the MH-Series multi-cylinder hydraulic cone crusher employs a 22° feed angle, balancing throughput and reduction ratio while minimizing wear on manganese liners.

Energy Transfer Efficiency

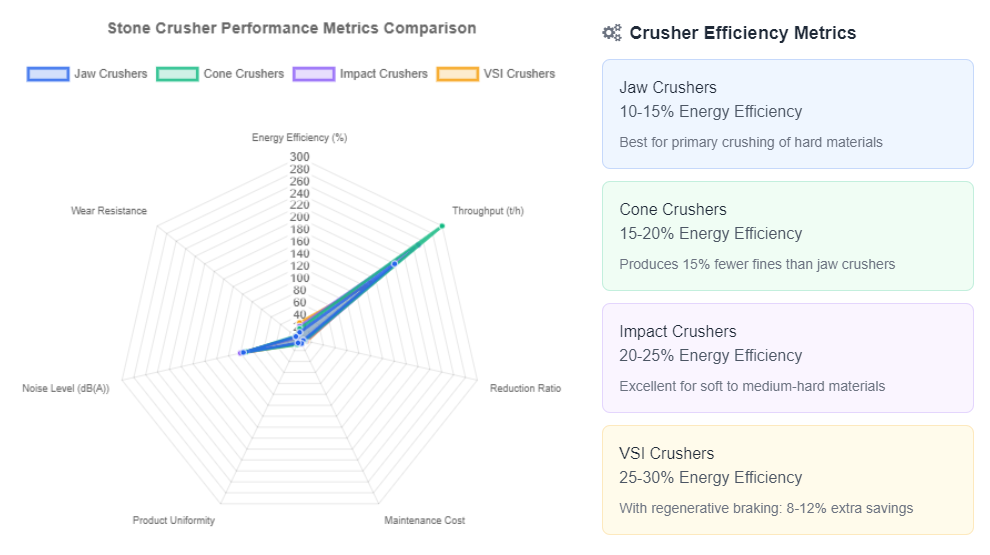

Energy conversion during crushing follows specific patterns. Only 10-20% of input energy directly fractures particles; the remainder dissipates as heat and vibration. Impact crushers exhibit higher energy efficiency (up to 30%) for soft materials due to their kinetic-based mechanism. However, hard rock applications favor compressive crushers, which waste less energy on non-productive collisions.

Recent innovations in power transmission aim to reclaim wasted energy. Some vertical shaft impact (VSI) crushers incorporate regenerative braking systems that convert rotational inertia into electricity during idle periods. Pilot installations report 8-12% net energy savings, particularly beneficial in mobile crushing plants powered by diesel generators.

Design Parameters Influencing Performance

Crusher performance hinges on precise engineering of key components. The eccentric throw in jaw crushers determines maximum particle size reduction per cycle. Larger throws increase capacity but reduce force intensity, requiring careful calibration. Similarly, rotor speed in impact crushers (typically 400-800 RPM) must align with material hardness to prevent excessive wear or incomplete fragmentation.

Material selection for wear components significantly impacts maintenance costs. High-manganese steel (Hadfield steel) remains standard for jaw plates and cone liners due to its work-hardening properties. However, ceramic composites are gaining traction in abrasive environments. A 2023 study found chromium carbide overlays extended blow bar lifespan by 300% in silica-rich applications compared to conventional alloys.

Discharge Size Control Mechanisms

Discharge size regulation ensures compatibility with downstream processes. Hydraulic adjustment systems in cone crushers enable precise gap setting between mantle and bowl. Modern units like the SH-Series single-cylinder hydraulic cone crusher achieve ±1mm adjustment accuracy, critical for producing aggregates meeting ASTM C33 standards. For jaw crushers, wedge-based toggle plates offer quicker adjustments than traditional shim methods.

Screening integration further refines particle control. Pre-screening eliminates fines before crushing, reducing unnecessary wear. Post-crushing vibrating screens with dual-deck configurations (e.g., 20mm and 40mm apertures) classify material into precise grades. Probability screens, which use non-linear vibration patterns, excel at separating near-size particles, improving overall product quality by up to 25%.

Operational Optimization Strategies

Maximizing crusher efficiency requires balancing throughput, product quality, and component life. Continuous feed systems minimize empty running, maintaining stable power draw. Automated load monitoring adjusts conveyor speeds to prevent choke feeding, which can reduce crusher capacity by 30% and increase power consumption by 50%. Real-time particle size analysis via laser diffraction sensors provides feedback for dynamic parameter adjustments.

Water injection systems mitigate dust generation in dry processing environments. However, excessive moisture (above 6%) reduces impact crusher efficiency by causing material agglomeration. Operators must balance dust control and throughput, often using humidity sensors to maintain optimal 2-4% moisture levels. In mining applications, this adjustment has reduced airborne particulates by 70% while maintaining production rates.

Preventive Maintenance Protocols

Scheduled maintenance extends component lifespan. Daily inspections of hammer crusher grates prevent blockages that reduce throughput by 40%. For cone crushers, monthly measurements of bowl liner thickness using ultrasonic sensors help predict replacements before performance degrades. Lubrication systems with automatic greasing reduce bearing failures by 65% compared to manual methods.

Remote monitoring platforms collect data from IoT sensors embedded in critical components. Machine learning algorithms analyze vibration patterns to detect impending failures. A quarry in Europe implemented such a system, reducing unplanned downtime by 80% and cutting annual maintenance costs by $250,000 through predictive part replacements.

Automation and Digital Integration

Modern crushers integrate advanced control systems for precision operation. PLC-based platforms adjust parameters like rotor speed and discharge gap in response to real-time sensor data. Expert systems encode operator knowledge to recommend optimal settings for different materials. For example, the MH-Series cone crusher uses fuzzy logic to maintain particle size distribution within 5% variance during feed composition changes.

Machine vision enhances quality control. Cameras mounted above conveyor belts capture images processed by convolutional neural networks to detect oversized particles. When detected, the system triggers secondary crushing or diverts material for reprocessing. This technology reduced product reject rates by 90% in a granite processing plant.

Digital Twin Applications

Digital twins simulate crusher performance under various scenarios. By inputting material properties, wear rates, and power consumption data, engineers predict long-term behavior without physical testing. A digital twin of a PE-Series jaw crusher identified a 20% throughput improvement by modifying the eccentric shaft design, later validated through field trials.

Cloud-based analytics platforms aggregate data from multiple crushers across sites. Cross-referencing operational parameters with maintenance records reveals performance benchmarks. One aggregate producer used this approach to standardize settings across their fleet, boosting average throughput by 18% and reducing energy use per ton by 12%.

Specialized Applications and Adaptations

Stone crushers adapt to unique operational challenges. In permafrost regions, heated hoppers prevent feed material from freezing to crusher components. Mobile crushing plants equipped with tracked chassis operate in remote mining sites, reducing material transportation costs by 60%. For construction waste recycling, magnetic separators integrated with impact crushers remove rebar, producing clean concrete aggregates.

The rise of electric vehicles spurs demand for lithium battery raw materials. Crushers used in spodumene processing require specialized liners resistant to alkaline corrosion. Recent developments in ceramic-lined chambers have extended equipment life in these harsh environments by 400% compared to standard steel components.

Noise Reduction Innovations

Urban construction sites demand quieter operation. Enclosed crusher designs with acoustic insulation reduce noise emissions to below 85 dB(A), meeting European Union standards. Hydraulic-driven systems operate more smoothly than direct diesel drives, lowering vibration-induced noise. The tracked mobile crusher range incorporates these features, enabling nighttime operation in residential areas without violating noise ordinances.

Rubber-lined discharge chutes and vibration-absorbing mounts further mitigate noise. Field measurements show these modifications reduce sound levels by 12-15 dB(A) compared to traditional setups. Municipal contractors report fewer complaints and expanded operational hours after adopting these technologies.

Future Trends and Sustainable Practices

The crushing industry moves toward circular economy principles. Used concrete crushed into recycled aggregates reduces natural resource extraction by 30% in construction projects. Advanced separation techniques recover steel reinforcement from demolished structures, with magnetic systems achieving 99% purity. These practices align with global sustainability goals, cutting CO₂ emissions by 40% per ton of material processed.

Artificial intelligence will play a growing role. Machine learning models trained on geological data predict ore hardness variations, enabling pre-emptive crusher adjustments. Autonomous mobile crushers using LiDAR and GPS navigate mine sites, optimizing material flow while minimizing fuel consumption. A pilot project in Australia demonstrated a 25% reduction in diesel use through AI-driven route planning and load optimization.

Hybrid Power Systems

Battery-electric and hybrid-drive crushers reduce fossil fuel dependence. The CV-Series VSI crusher offers a plug-in electric option with 500 kWh capacity, sufficient for 8 hours of operation. Solar-powered auxiliary systems support hydraulic functions in remote areas. A quarry in Chile combines solar panels with diesel generators, cutting fuel costs by 45% and CO₂ emissions by 60%.

Energy recovery systems capture kinetic energy during deceleration. In mobile crushers, regenerative braking recharges batteries when lowering the feed hopper or adjusting the discharge gap. Early adopters report 20-30% reductions in net energy consumption, accelerating return on investment for electric equipment despite higher initial costs.
