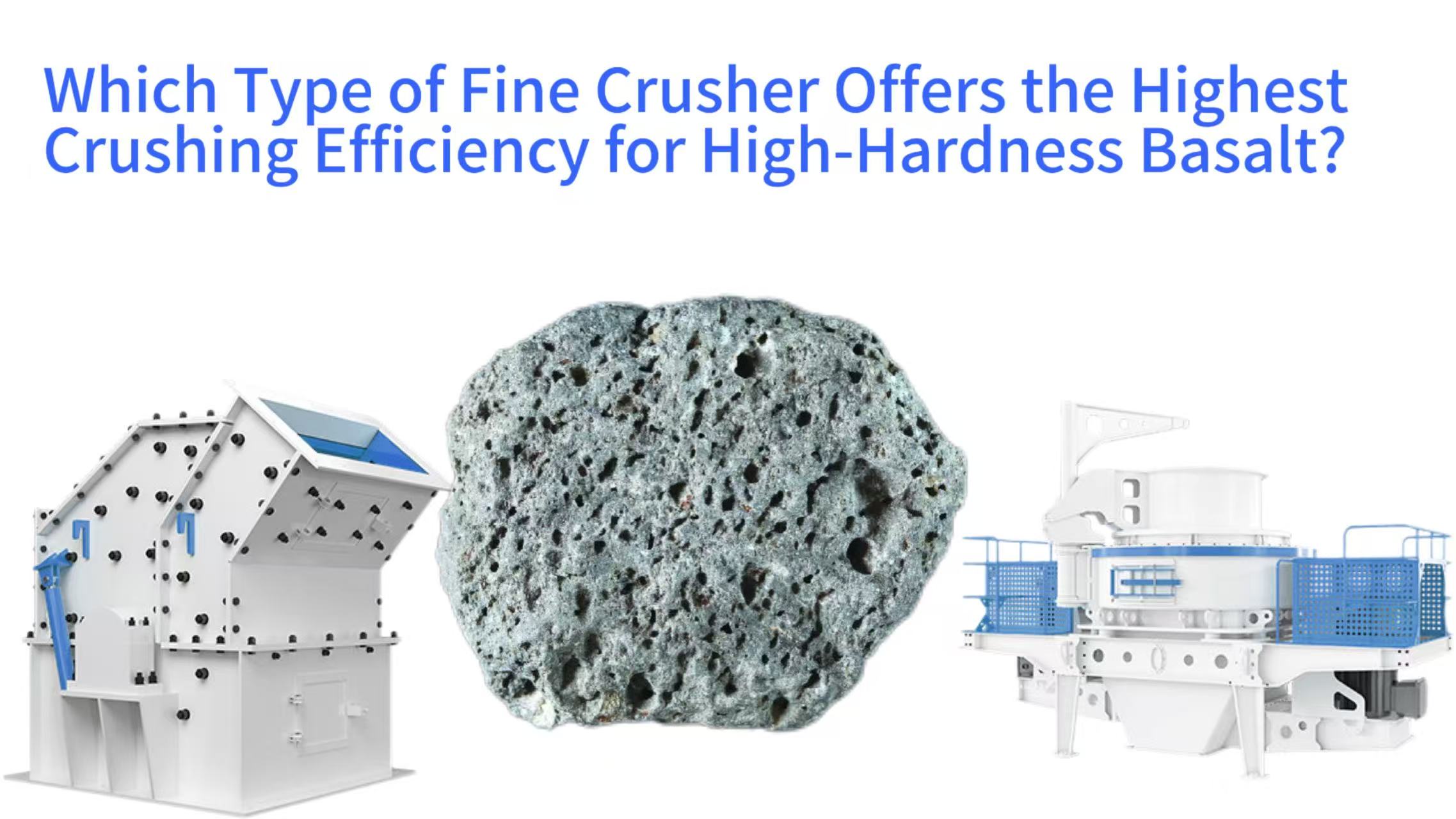

Which Type of Fine Crusher Offers the Highest Crushing Efficiency for High-Hardness Basalt?

High-hardness basalt presents significant challenges in aggregate production due to its exceptional durability and abrasive qualities. This comprehensive analysis examines two prominent fine crushing technologies specifically engineered to process this demanding material. We will explore the operational principles, efficiency metrics, wear resistance characteristics, and final product quality of both PCX and VSI fine crushers. The evaluation provides detailed technical insights to help operations managers select the most appropriate crushing solution based on their specific production requirements and economic considerations for processing high-hardness basalt formations.

Understanding the Challenge: Why High-Hardness Basalt Tests Crushing Efficiency

High-hardness basalt possesses unique geological properties that directly influence its processing characteristics and equipment selection criteria. This igneous rock typically contains substantial quartz content, creating naturally abrasive conditions that accelerate wear on conventional crushing components. The material's compact crystalline structure contributes to exceptional compressive strength, often exceeding 300 MPa, requiring specialized equipment capable of generating sufficient impact energy for effective size reduction. These inherent properties necessitate careful consideration when selecting crushing equipment to ensure optimal performance and economic viability.

The processing challenges extend beyond initial fragmentation to include final product specifications demanded by modern construction applications. Aggregate producers must achieve precise particle size distributions while minimizing flaky or elongated grains that compromise concrete strength and workability. Production efficiency becomes particularly critical when processing high-hardness materials, as improper equipment selection can lead to excessive energy consumption and rapid component deterioration. Operations targeting basalt crushing applications must balance throughput requirements with long-term operational costs to maintain competitive positioning in the aggregate marketplace.

High Quartz Content and Abrasiveness

The substantial quartz concentration within basalt compositions creates naturally abrasive conditions that significantly impact crushing equipment longevity. Quartz minerals, measuring approximately 7 on the Mohs hardness scale, act as natural abrasives that progressively wear down crushing surfaces through continuous mechanical contact. This abrasive action accelerates component deterioration, particularly in direct impact zones where particle velocities reach critical levels. The gradual wear process not only diminishes crushing efficiency but also increases operational costs through more frequent component replacement cycles.

Modern crushing equipment addresses these challenges through specialized material selections and innovative design approaches that extend service intervals. Tungsten carbide composites and specialized alloy steels provide enhanced resistance to abrasive wear, maintaining operational efficiency throughout extended production campaigns. Equipment manufacturers continue to develop advanced metallurgical solutions that balance impact resistance with wear characteristics, optimizing the economic balance between initial investment and long-term operational expenses for processing highly abrasive materials like quartz-rich basalt.

High Compressive Strength and Toughness

Basalt's exceptional compressive strength represents a fundamental challenge in efficient size reduction, requiring equipment capable of generating and transferring substantial energy to fracture the material. This igneous rock typically demonstrates compressive strength values between 200-350 MPa, necessitating crushers that can deliver concentrated impact forces exceeding these thresholds. The material's toughness further complicates fragmentation, as it absorbs significant energy before fracturing, demanding equipment designs that maximize energy transfer efficiency to minimize power consumption per ton processed.

Crushing technologies have evolved specific mechanisms to address the combined challenges of high strength and toughness exhibited by basaltic materials. Modern crushers utilize optimized kinematics to deliver impact energies that exceed the material's fracture toughness, creating efficient fragmentation while controlling particle size distribution. The equipment's ability to maintain consistent performance against these demanding material properties directly influences overall processing economics, making strength and toughness considerations paramount in equipment selection for fine crushing applications involving high-hardness basalt.

Target Product Specifications and Particle Shape Requirements

Modern construction standards impose strict requirements on aggregate particle shape characteristics, particularly for high-value applications where structural performance depends on optimal interlocking and packing density. Cubical particles with well-defined edges and minimal flakiness represent the ideal product shape for most concrete and asphalt applications, providing enhanced load distribution and reduced void spaces. Achieving these specifications becomes particularly challenging when processing high-hardness materials like basalt, where natural cleavage planes may not align with desired fracture patterns.

Particle size distribution represents another critical quality parameter, with most specifications requiring tightly controlled gradation bands to ensure consistent performance in final applications. The ability to precisely control top size while minimizing fines generation directly impacts product value and marketability. Production systems must balance these quality requirements with economic considerations, as over-processing to achieve perfect particle shapes may substantially increase production costs through reduced throughput and increased wear component consumption.

The Cost of Inefficiency: Excessive Wear and Energy Consumption

Operational inefficiencies in processing high-hardness basalt manifest primarily through accelerated component wear and excessive energy consumption, both contributing significantly to production costs. Wear part replacement represents a substantial operational expense, particularly when processing highly abrasive materials that rapidly deteriorate crushing surfaces. The economic impact extends beyond direct component costs to include production downtime during changeouts and associated labor expenses, creating compelling incentives to maximize component service life through proper equipment selection.

Energy consumption constitutes another major cost component, with inefficient crushing processes requiring disproportionate power input relative to actual size reduction achieved. This relationship becomes particularly important in high-volume operations where even minor improvements in energy efficiency translate to substantial annual savings. Operations must consider the complete economic picture, balancing capital investment against long-term operational expenses to determine the most cost-effective solution for their specific production requirements and local economic conditions.

Impact Crushing Principles: The Core Mechanism of Efficient Fine Crushing

Impact crushing technology utilizes high-velocity collisions to fracture materials through concentrated energy transfer, creating efficient size reduction for various rock types. This approach differs fundamentally from compression-based crushing methods, relying on kinetic energy rather than gradual pressure application to initiate and propagate fractures. The process begins with accelerated material particles reaching critical velocities before encountering either fixed surfaces or other particles, generating immense instantaneous forces that exceed the material's structural integrity. This mechanism proves particularly effective for brittle materials like basalt, which respond well to rapid energy application rather than slow compression.

Modern impact crushers refine this basic principle through sophisticated engineering that maximizes energy utilization while minimizing parasitic losses. Equipment designs focus on optimizing impact angles, rotational speeds, and chamber configurations to ensure that the maximum proportion of input energy contributes directly to productive fragmentation. The efficiency of this energy transfer process directly influences both throughput capacity and operational costs, making fundamental crushing principles essential considerations when evaluating equipment for specific applications involving challenging materials like high-hardness basalt.

Stone-on-Iron and Stone-on-Stone Fundamental Concepts

Impact crushing technology operates through two primary mechanisms distinguished by the nature of the impact surface encountered by accelerated material. The stone-on-iron configuration directs material against fixed metallic surfaces within the crushing chamber, creating direct impact fragmentation that generates high reduction ratios. This approach typically produces more controlled particle size distributions but may increase wear component consumption when processing highly abrasive materials. The concentrated impact forces create efficient fragmentation but require robust wear protection systems to maintain economic viability.

Stone-on-stone configurations utilize material-to-material impacts as the primary reduction mechanism, forming a protective rock lining within the crushing chamber that minimizes metal-to-stone contact. This autogenous crushing approach significantly reduces wear component consumption while producing excellent particle shape characteristics through natural attrition and impact between particles. The self-sharpening rock bed maintains crushing efficiency while protecting machine components, though it may provide slightly less control over final particle size distribution compared to direct impact configurations.

High-Speed Rotor: The Heart of Energy Conversion

The rotor assembly represents the core energy conversion component within impact crushing systems, transforming electrical input into kinetic energy for productive fragmentation. Modern designs utilize precision-balanced rotors operating at peripheral speeds exceeding 70 meters per second, generating sufficient momentum to fracture even the hardest basaltic materials. The rotor's mass and rotational velocity combine to determine available impact energy, with larger diameters and higher speeds providing increased fragmentation capacity for challenging applications.

Rotor design considerations extend beyond simple energy capacity to include material selection, bearing configurations, and accessibility for maintenance operations. Heavy-duty construction ensures dimensional stability under extreme operational conditions, maintaining precise clearances and balance throughout extended service life. The strategic placement of wear protection elements and innovative mounting systems further enhances operational reliability, particularly important when processing highly abrasive materials that accelerate component deterioration in less robust designs.

Impact and Shear: Multi-Dimensional Stress Fracturing

Effective fragmentation of high-hardness materials requires utilizing multiple stress types to initiate and propagate fractures along natural weakness planes. Impact crushing generates complex stress patterns combining direct compressive forces with secondary shear components as particles deflect following initial contact. This multi-dimensional stress application proves particularly effective for materials like basalt, which may resist simple compression but fracture readily under combined loading conditions that exploit natural cleavage characteristics.

The efficiency of this fracture mechanism depends significantly on impact angle optimization, with modern crusher designs incorporating sophisticated trajectory control to maximize productive stress application. Shallow angles typically generate higher shear components that enhance fragmentation efficiency for certain material types, while steeper angles may provide better control over particle shape characteristics. Equipment selection should consider these fundamental crushing mechanics relative to specific material properties and final product requirements to ensure optimal performance in target applications.

Optimized Crushing Chamber Design for Enhanced Energy Utilization

Crushing chamber configuration plays a crucial role in maximizing energy utilization efficiency by controlling material flow patterns and impact sequences. Modern designs incorporate computational fluid dynamics and discrete element modeling to optimize chamber geometries, ensuring that accelerated particles encounter impact surfaces at optimal angles and velocities. These sophisticated design approaches minimize energy losses through unnecessary friction and rebound effects, directing a higher proportion of input power toward productive fragmentation.

The relationship between chamber design and operational parameters extends to wear component protection and accessibility for maintenance operations. Strategic material flow patterns can distribute wear more evenly across available surfaces, extending service intervals and reducing operating costs. Additionally, well-designed chambers facilitate easier inspection and component replacement, minimizing downtime during routine maintenance activities. These considerations become increasingly important in high-volume operations where equipment availability directly influences overall production capacity and economic performance.

PCX Fine Crusher: Achieving Efficient and Stable Output for High-Hardness Basalt

The PCX fine crusher represents a specialized impact crushing solution engineered specifically for processing hard and abrasive materials like basalt. This equipment configuration utilizes a high-speed rotor combined with multiple crushing zones to achieve progressive size reduction through sequential impact events. The design philosophy emphasizes operational stability and consistent performance under demanding conditions, incorporating robust construction elements that withstand the extreme forces generated during basalt fragmentation. These characteristics make this equipment particularly suitable for high-volume production environments where reliability and minimal downtime are paramount considerations.

Operational efficiency derives from the machine's ability to maintain consistent performance throughout extended production campaigns, with specialized wear protection systems preserving critical dimensions despite abrasive conditions. The equipment's design facilitates relatively straightforward maintenance procedures, with accessible components and logical service points that reduce downtime during routine inspections and part replacements. These operational advantages combine to provide a compelling solution for operations prioritizing production consistency and predictable operating costs when processing challenging materials like high-hardness basalt.

High-Linear-Speed Rotor and Deep-Chamber Synergistic Design

The PCX crusher's operational efficiency stems from its high-linear-speed rotor configuration, which accelerates material to critical velocities before impact events. Rotor peripheral speeds typically range between 65-85 meters per second, generating sufficient kinetic energy to fracture even the most resistant basaltic materials. This high-velocity approach maximizes initial impact forces while creating secondary fragmentation through particle-to-particle collisions within the deep crushing chamber. The extended material residence time within the chamber ensures multiple impact opportunities, progressively reducing particle sizes while optimizing energy utilization.

Deep chamber designs provide additional benefits through improved material trajectory control and impact sequence optimization. The extended flow path allows for more controlled acceleration and directional management of material particles, ensuring optimal impact angles that maximize fragmentation efficiency. This configuration also contributes to more consistent product gradation by providing additional opportunities for size reduction before discharge. The combination of high rotational speeds and extended chamber residence represents a sophisticated approach to balancing throughput capacity with product quality requirements in demanding applications.

Triple Impact Plate Structure and Adjustable Discharge Control

The triple impact plate configuration represents a key innovation in optimizing fragmentation efficiency while controlling final product characteristics. This multi-stage impact approach progressively reduces material size through sequential collisions at strategically positioned plates within the crushing chamber. Each impact stage utilizes slightly different angles and clearances to address specific size reduction phases, from initial coarse fragmentation to final shaping of smaller particles. This graduated approach maximizes energy utilization while minimizing excessive fines generation through controlled, progressive size reduction.

Adjustable discharge control mechanisms provide operational flexibility to accommodate varying feed characteristics and product requirements. These systems typically incorporate hydraulic or mechanical adjustment capabilities that modify clearances between wear components, directly influencing the final product size distribution. The ability to make these modifications during operation maintains production consistency despite changing conditions, while quick adjustment capabilities minimize downtime when transitioning between different product specifications. This flexibility proves particularly valuable in operations producing multiple aggregate products from the same basaltic feed material.

Heavy-Duty Hammerhead and Stable Rotor: Ensuring Long-Term Efficiency

The hammerhead design represents a critical element in maintaining crushing efficiency throughout extended operational periods when processing abrasive materials. PCX crushers utilize heavy-duty hammerheads with specialized wear-resistant materials that withstand the extreme impact and abrasive conditions encountered during basalt processing. These components feature optimized mass distribution that maximizes impact energy transfer while maintaining structural integrity under repetitive loading cycles. The strategic use of advanced metallurgy extends service life while preserving original dimensions that maintain crushing efficiency throughout the component's operational life.

Rotor stability directly influences crushing consistency and equipment longevity, particularly under the unbalanced loading conditions that can occur with variable feed materials. PCX designs incorporate substantial rotor mass and precision balancing to maintain smooth operation despite uneven wear patterns or temporary feed variations. This operational stability minimizes vibration transmission to supporting structures and bearings, extending the service life of these critical components. The combination of robust hammer design and stable rotor construction provides the foundation for consistent long-term performance in demanding basalt processing applications.

Actual Efficiency Data in Basalt Sand Production Lines

Operational data from basalt processing installations provides compelling evidence of the PCX crusher's performance capabilities under real-world conditions. Typical production rates range between 150-350 tons per hour depending on specific machine size and configuration, with power consumption averaging 0.8-1.2 kWh per ton of processed material. These efficiency metrics reflect the equipment's ability to balance throughput capacity with economic operation, particularly important in high-volume applications where energy costs represent a significant portion of operating expenses.

Product quality metrics further demonstrate the equipment's capabilities, with cubicle particle percentages typically exceeding 90% in properly configured systems. This exceptional shape characteristic directly enhances product value in premium concrete and asphalt applications where particle geometry influences performance. Wear component consumption rates generally range between 0.8-1.5 grams per ton of processed material, reflecting the equipment's effective wear protection systems when processing highly abrasive basaltic feed. These operational parameters combine to establish a compelling economic proposition for operations prioritizing both product quality and operating cost control.

VSI Fine Crusher: Optimizing Particle Shape and Refined Products for Basalt

The VSI fine crusher utilizes a fundamentally different approach to material reduction, emphasizing particle shape optimization through controlled impact mechanisms. This equipment configuration accelerates material through a central feed system onto a high-speed rotor that redirects particles into either a rock-lined crushing chamber or onto strategically positioned anvils. The resulting fragmentation occurs primarily through stone-on-stone impact, creating natural cleavage that produces exceptionally cubical particles with minimal flakiness. This characteristic makes VSI technology particularly valuable in applications where particle shape directly influences product performance and marketability.

Operational flexibility represents another significant advantage, with many VSI configurations offering multiple crushing chamber options and rotor designs that can be optimized for specific material characteristics and product requirements. This adaptability allows operations to fine-tune performance for their particular basalt composition and production objectives. The technology's inherent wear reduction characteristics, achieved through minimal metal-to-stone contact, further enhance its economic appeal for processing highly abrasive materials where component consumption represents a major operational expense.

Central Feeding and Cascade Feeding Modes: Selection and Efficiency Impact

VSI crushers typically offer two primary feeding configurations that significantly influence operational efficiency and product characteristics. Central feeding systems introduce material directly onto the rotor center, utilizing full rotor width for acceleration and directional control. This approach maximizes throughput capacity while providing excellent particle distribution across the impact surfaces. The centralized material introduction ensures consistent feed presentation to the rotor, maintaining stable operation and predictable product gradation throughout production campaigns.

Cascade feeding configurations introduce material both centrally and externally, creating a more dense particle cloud within the crushing chamber. This approach enhances the stone-on-stone crushing action, further reducing wear component consumption while producing exceptional particle shape characteristics. The cascade method typically generates slightly lower throughput capacity compared to central feeding but offers superior wear protection and shape optimization. Selection between these feeding modes depends on specific operational priorities, whether maximizing production rates or extending component life when processing highly abrasive basaltic materials.

Crushing Chamber Rock Bed Formation and Protective Function

The autogenous rock bed that forms within VSI crushing chambers represents a key innovation in wear reduction technology for abrasive applications. This naturally accumulating layer of processed material creates a protective barrier between the accelerating rotor and fresh feed, dramatically reducing metal-to-stone contact during operation. The self-renewing nature of this protective layer maintains consistent thickness despite continuous erosion, provided proper feed characteristics and rotor speeds are maintained. This phenomenon significantly extends wear component life while preserving crushing chamber geometry throughout operational cycles.

Rock bed stability depends on careful balance between feed rate, material characteristics, and rotor velocity. Optimal formation requires sufficient feed volume to maintain the protective layer while avoiding overloading that diminishes crushing efficiency. Modern VSI designs incorporate chamber configurations that promote stable rock bed development while facilitating material ejection once sufficient size reduction occurs. This balanced approach maximizes the protective benefits while maintaining throughput capacity and product quality, particularly important when processing highly abrasive materials like quartz-rich basalt.

Precise Particle Shape Control: Producing High-Value Cubical Aggregate

VSI technology excels at producing the highly cubical particles demanded by premium construction applications where aggregate shape directly influences performance. The controlled impact mechanisms generate fractures along natural cleavage planes, creating particles with well-defined edges and minimal elongation. This shape characteristic enhances concrete workability and strength by improving particle packing density and cement paste distribution. The resulting aggregate typically demonstrates void content reductions of 15-25% compared to conventionally crushed material, translating directly to improved performance in structural applications.

Particle shape optimization extends beyond basic cubicity to include surface texture characteristics that influence binder adhesion in asphalt applications. The micro-fractures created during VSI crushing provide additional surface area for improved asphalt coating and mechanical bonding. These texture enhancements contribute to longer pavement service life through reduced stripping and raveling in demanding traffic and environmental conditions. The combination of optimal particle geometry and enhanced surface characteristics creates significant value differentiation in markets where performance specifications justify premium pricing for quality aggregate products.

The Efficiency Role in High-Quality Manufactured Sand Production

VSI crushers play an increasingly important role in manufactured sand production, where precise gradation control and particle shape optimization determine product acceptability. The technology's ability to influence multiple sand characteristics simultaneously makes it particularly valuable in markets with stringent concrete performance requirements. Modern VSI configurations can produce manufactured sand with fineness moduli between 2.3-3.0 while maintaining consistent particle shape and minimal clay contamination. This control level allows producers to meet specific concrete mix design requirements without extensive blending or processing adjustments.

The economic efficiency of VSI technology in sand production derives from its ability to replace multiple processing stages with a single operation while achieving superior product characteristics. The direct production of well-shaped particles reduces the need for additional screening and recrushing cycles that increase operational complexity and cost. This streamlined approach typically reduces overall plant footprint and capital investment while maintaining product quality standards. The combination of operational simplicity and product excellence establishes VSI technology as the preferred solution for high-quality manufactured sand production from challenging feed materials like high-hardness basalt.

Key Performance Comparison: Comprehensive Efficiency Analysis of PCX versus VSI

Direct comparison between PCX and VSI crushing technologies reveals distinct operational advantages that suit different production priorities and economic models. Both systems demonstrate capable performance when processing high-hardness basalt, though through different mechanical approaches and with varying emphasis on specific outcome parameters. The selection process requires careful consideration of multiple performance dimensions, including absolute throughput capacity, energy efficiency, wear characteristics, and product quality metrics. Operations must weight these factors according to their specific circumstances to determine the optimal solution for their basalt processing requirements.

Economic analysis should extend beyond simple equipment acquisition costs to encompass the complete operational lifecycle, including power consumption, component replacement expenses, and product value realization. The substantial differences in wear mechanisms between these technologies significantly influence long-term operating costs, particularly when processing highly abrasive materials. Similarly, variations in product characteristics directly impact market positioning and revenue potential, creating complex economic calculations that must align with specific business objectives and market conditions.

Single-Machine Throughput Capacity and Production Efficiency Comparison

Throughput capacity represents a fundamental differentiator between these crushing technologies, with each demonstrating distinct advantages under specific operational conditions. PCX configurations typically achieve higher absolute tonnage rates in comparable machine sizes, with capacity advantages of 15-30% depending on specific feed characteristics and product requirements. This throughput superiority derives from the equipment's ability to process material through multiple impact zones sequentially, maximizing reduction efficiency per machine pass. The higher capacity makes PCX technology particularly attractive for operations prioritizing production volume above other considerations.

VSI systems typically demonstrate slightly lower absolute throughput but compensate with superior product shape characteristics that may command premium pricing in certain markets. The technology's focused approach on particle optimization necessarily sacrifices some capacity potential to achieve its shape-enhancing mechanisms. However, this trade-off often proves economically favorable in applications where product differentiation creates substantial value addition opportunities. Operations must carefully evaluate their specific market dynamics to determine whether maximum tonnage or optimal product characteristics better serve their economic objectives when processing high-hardness basalt.

Energy Consumption per Ton Metric Analysis

Energy efficiency represents a critical economic consideration in high-volume crushing operations, with power costs constituting a substantial portion of operating expenses. PCX crushers typically demonstrate specific energy consumption between 0.8-1.2 kWh per ton when processing high-hardness basalt, reflecting their efficient energy transfer through direct impact mechanisms. This efficiency stems from the equipment's ability to utilize multiple impact events progressively, maximizing energy utilization before material discharge. The consistent energy profile maintains predictable operating costs despite variations in feed characteristics within normal operational parameters.

VSI configurations generally exhibit slightly higher specific energy consumption, typically ranging from 1.0-1.5 kWh per ton for similar material processing. This increased energy requirement derives from the technology's focus on particle shape optimization, which necessarily sacrifices some energy efficiency to achieve superior product characteristics. However, this additional energy investment often proves economically justified through enhanced product value realization in premium markets. Operations should consider both direct energy costs and potential revenue enhancement when evaluating the complete economic picture of these competing technologies for their specific application requirements.

Wear Parts Consumption Rate and Cost per Ton Analysis

Wear component consumption represents a major operational expense when processing highly abrasive materials like basalt, with significant differences emerging between these crushing technologies. PCX systems typically demonstrate wear costs between $0.08-0.15 per ton processed, reflecting their direct impact approach that necessarily involves more metal-to-stone contact. This consumption rate remains economically viable due to the equipment's high throughput capacity, distributing wear costs across greater production volumes. The predictable wear patterns facilitate maintenance planning and inventory management, reducing unexpected downtime through proactive component replacement scheduling.

VSI technology's stone-on-stone crushing action dramatically reduces wear component consumption, typically achieving costs between $0.03-0.08 per ton when processing similar basaltic materials. This substantial improvement derives from the protective rock bed that forms within the crushing chamber, minimizing direct metal contact with abrasive particles. The reduced consumption rate provides significant economic advantages in high-volume operations, though potentially offset by slightly lower absolute throughput capacity. Operations must balance these competing economic factors against their specific production requirements and local cost structures to determine the optimal solution.

Final Product Shape and Gradation Control Capability Comparison

Product shape characteristics demonstrate the most pronounced differentiation between these crushing technologies, with each producing distinctly different particle geometries. VSI systems consistently produce superior cubicity percentages, typically exceeding 95% in properly configured applications. This exceptional shape performance derives from the technology's controlled impact mechanisms that fracture particles along natural cleavage planes. The resulting aggregate demonstrates minimal flakiness and elongation, creating optimal packing characteristics that enhance performance in concrete and asphalt applications.

PCX crushers produce very good particle shapes, typically achieving cubicity percentages between 85-92% depending on specific configuration and operational parameters. While slightly inferior to VSI output, this performance level satisfies most conventional construction applications where premium pricing for optimal shape may not be achievable. The equipment maintains excellent control over particle size distribution, with minimal oversize production and controlled fines generation. This balanced approach provides adequate shape characteristics while maximizing throughput capacity, creating an attractive economic proposition for operations serving broad construction markets rather than specialized premium applications.

System Integration Flexibility: Secondary versus Tertiary Crushing Efficiency Considerations

Plant configuration flexibility represents another important differentiator between these crushing technologies, with each demonstrating distinct advantages in specific circuit positions. PCX crushers perform exceptionally well as secondary crushing units, processing material from primary jaw crushers to intermediate sizes before final processing. Their high reduction ratios and capacity characteristics make them ideal for this application, efficiently preparing material for further size reduction or direct sale as intermediate products. This positioning leverages the equipment's strengths while minimizing potential limitations in final product shape optimization.

VSI technology excels in tertiary crushing applications where final product shape represents the primary quality objective. Their superior particle geometry control makes them ideal finishing crushers, transforming adequately sized but poorly shaped material from earlier crushing stages into premium aggregate products. This positioning maximizes the technology's unique advantages while accommodating its typically lower reduction ratios compared to dedicated secondary crushers. Operations can optimize overall plant efficiency by strategically deploying each technology in positions that leverage their respective strengths while mitigating potential limitations.

Beyond Equipment Selection: Collaborative Strategies for Enhancing Overall Crushing Efficiency

Maximum crushing efficiency extends beyond individual equipment selection to encompass complete system optimization and operational practices. Even the most technologically advanced crusher cannot achieve its potential without proper supporting systems and disciplined operational procedures. The interrelationship between various plant components creates efficiency dependencies that must be addressed holistically rather than through isolated equipment improvements. This systems approach recognizes that overall performance represents the combined effect of multiple elements working in concert rather than the capability of any single component.

Operational consistency proves particularly important when processing challenging materials like high-hardness basalt, where variations in feed characteristics directly influence equipment performance and wear patterns. Establishing and maintaining standardized procedures for material handling, equipment operation, and preventive maintenance creates the stable conditions necessary for optimal efficiency. These practices complement technological advancements to create sustainable operational excellence that withstands the demanding conditions inherent in processing highly abrasive and resistant materials.

The Importance of Pre-Screening and Closed-Circuit Operations

Pre-screening represents a fundamental efficiency enhancement strategy that removes undersized material before crushing, reducing equipment load and unnecessary wear component consumption. This approach directs only oversized material to the crushing circuit, maximizing the productive utilization of crushing energy while minimizing abrasive processing of already-sized particles. Modern screening technology provides highly accurate separation at various size cutpoints, allowing operations to optimize crusher feed characteristics for their specific equipment and product requirements. This strategic material management typically increases overall system capacity by 15-25% while reducing specific energy consumption and wear costs.

Closed-circuit configurations further enhance efficiency by recirculating oversized material for additional processing rather than accepting substandard product quality. This approach ensures consistent compliance with product specifications while maximizing system throughput within quality constraints. The recirculating load typically ranges between 25-50% of fresh feed, depending on specific crusher characteristics and product requirements. Properly designed closed-circuit operations maintain stable material flow while preventing crusher overload conditions that diminish efficiency and accelerate component wear. This systematic approach to quality control represents a fundamental principle in modern aggregate plant design and operation.

Optimal Practices for Feed Uniformity and Rate Control

Consistent feed presentation represents perhaps the most critical operational factor influencing crushing efficiency and equipment longevity. Irregular feed rates create constantly changing load conditions that prevent crushers from operating at their design efficiency points. These fluctuations generate unnecessary stress cycles that accelerate component fatigue while producing inconsistent product gradation. Modern material handling systems incorporate sophisticated level monitoring and rate control mechanisms that maintain optimal feed conditions despite variations in upstream supply. This consistency allows crushers to operate at their designed performance parameters throughout production campaigns.

Feed characteristics beyond simple rate control also significantly influence crushing efficiency and product quality. Material segregation, moisture content variations, and particle size distribution changes all impact crusher performance despite consistent volumetric feed rates. Advanced control systems monitor these parameters and make appropriate adjustments to maintain optimal operation. The substantial efficiency improvements achievable through feed optimization typically justify investments in modern material handling and control technology, particularly in high-volume operations where small efficiency gains translate to substantial economic benefits over time.

Wear Parts Condition Monitoring and Preventive Replacement Scheduling

Systematic wear component management represents another crucial efficiency enhancement strategy that maintains crusher performance throughout operational cycles. Progressive wear gradually changes critical crushing chamber dimensions, altering material flow patterns and impact dynamics that diminish efficiency. Establishing regular inspection intervals based on processed tonnage rather than visible deterioration allows operations to replace components before efficiency degradation becomes significant. This proactive approach maintains consistent product quality while avoiding unexpected failures that create substantial production disruptions.

Modern condition monitoring technologies provide enhanced capability to track wear progression without physical inspection, utilizing vibration analysis, power monitoring, and product gradation tracking to identify performance trends. These systems can predict remaining component life with reasonable accuracy, allowing maintenance planning that minimizes production impact. The economic benefits of preventive replacement scheduling extend beyond maintained efficiency to include reduced emergency repair costs and optimized inventory management. This systematic approach to wear management represents a fundamental principle in modern aggregate plant operation.

Supporting Systems: Dust Control and Lubrication Stability

Auxiliary systems play crucial supporting roles in maintaining crushing efficiency despite their indirect relationship to the primary size reduction process. Dust control systems prevent particle accumulation on critical components while maintaining acceptable working conditions for operational personnel. Effective dust management typically utilizes a combination of containment, collection, and suppression technologies tailored to specific material characteristics and plant configurations. These systems require careful design and consistent maintenance to ensure reliable performance that supports rather than hinders primary production activities.

Lubrication systems represent another critical support element, particularly in high-speed crushing equipment where bearing reliability directly influences operational availability. Modern centralized lubrication systems provide consistent lubricant delivery to multiple points from a single reservoir, ensuring proper lubrication despite challenging environmental conditions. These systems typically incorporate monitoring capabilities that alert operators to potential issues before they escalate to equipment damage. The reliability of these supporting systems directly influences overall plant efficiency by preventing unexpected downtime and maintaining optimal operating conditions for primary production equipment.

Making the Final Decision: Selecting the Most Efficient Solution for Your Specific Conditions

The final equipment selection process requires careful consideration of multiple operational, economic, and strategic factors unique to each operation. No single technology demonstrates universal superiority across all applications, with optimal selection depending on specific circumstances and priorities. Operations must evaluate their particular requirements against the demonstrated strengths and limitations of each technology to determine the best fit for their situation. This decision process should incorporate both quantitative analysis of operational parameters and qualitative assessment of strategic objectives that may influence long-term equipment suitability.

The economic evaluation should extend beyond simple acquisition costs to encompass the complete operational lifecycle, including power consumption, component replacement expenses, maintenance requirements, and potential revenue enhancement through product quality differentiation. This comprehensive analysis typically reveals that the most economically attractive solution varies significantly between operations based on their specific circumstances and market positioning. The substantial capital investment involved justifies thorough evaluation of all relevant factors before finalizing equipment selection for processing high-hardness basalt.

Decision Framework: Selection Pathways Based on Primary Objectives

A structured decision framework helps operations navigate the complex selection process by prioritizing objectives and matching them to appropriate technology characteristics. Operations prioritizing maximum production volume typically find PCX technology better aligned with their requirements, leveraging its higher throughput capacity and robust construction. This selection pathway emphasizes quantitative production metrics over qualitative product characteristics, accepting slightly inferior particle shape in exchange for greater tonnage output. This approach proves most appropriate for operations serving high-volume, price-sensitive markets where production cost minimization represents the primary competitive advantage.

Operations targeting premium markets where product characteristics command substantial price premiums typically benefit from VSI technology selection. This pathway prioritizes product quality over absolute production volume, leveraging the technology's exceptional particle shape capabilities to access higher-value market segments. The economic justification derives from revenue enhancement rather than cost minimization, creating a fundamentally different business model that requires appropriate market conditions to achieve success. This approach proves most viable for operations located near urban centers with stringent construction specifications and willingness to pay premiums for performance-enhancing aggregate characteristics.

Comprehensive Evaluation of Initial Investment Versus Long-Term Operational Costs

Economic analysis must balance substantial initial capital investment against long-term operational expenses to determine true equipment economics. PCX crushers typically demonstrate moderate acquisition costs combined with predictable operating expenses that create attractive economics for operations prioritizing cost control and production volume. Their higher wear component consumption remains economically viable due to superior throughput capacity that distributes these costs across greater production volumes. This economic profile suits operations with consistent high-volume requirements and limited opportunities for product differentiation through quality enhancement.

VSI technology typically involves higher initial investment but demonstrates superior operating economics through reduced wear costs and potential revenue enhancement. The technology's stone-on-stone crushing action dramatically reduces component consumption, creating substantial savings in high-volume applications processing abrasive materials. Additionally, the premium product characteristics may support higher pricing in appropriate markets, further enhancing economic returns. This economic profile best suits operations with access to quality-sensitive markets and the financial capacity to support higher initial investment in exchange for improved long-term economics.

Capacity Expansion Planning and Future Adaptability Considerations

Equipment selection should incorporate forward-looking considerations regarding potential future requirements and operational evolution. Operations anticipating capacity expansion typically benefit from technologies that scale efficiently through equipment sizing rather than complete circuit duplication. Both PCX and VSI technologies offer sizing options that accommodate various production requirements, though their scalability characteristics differ significantly. Understanding these differences helps operations select technologies that support rather than constrain future growth objectives while minimizing unnecessary capital investment in oversized equipment during initial implementation.

Market adaptability represents another important consideration, particularly in dynamic economic environments where product requirements may evolve over equipment service life. Technologies offering operational flexibility through adjustable parameters or multiple configuration options provide valuable adaptability to changing market conditions. This flexibility may justify premium acquisition costs by extending equipment economic life through adaptation to new requirements rather than replacement. Operations in evolving markets should carefully evaluate each technology's capacity to accommodate potential future requirements beyond immediate operational needs.

Essential Technical Questions for Equipment Suppliers

Thorough equipment evaluation requires obtaining specific technical information from potential suppliers to validate performance claims and ensure compatibility with operational requirements. Key inquiries should address actual performance data from similar applications, particularly regarding wear component consumption rates when processing materials with comparable abrasiveness characteristics. Suppliers should provide detailed documentation supporting their efficiency claims, including power consumption measurements and product quality metrics from reference installations. This objective data provides crucial validation beyond marketing assertions and helps establish realistic performance expectations.

Additional technical questions should address maintenance requirements, component availability, and service support capabilities that influence operational reliability. Understanding mean time between failures for critical components and typical repair durations helps operations evaluate potential production impact from maintenance activities. Similarly, confirmation of component inventory availability and local service technician response times provides insight into potential operational disruptions from unexpected equipment issues. This comprehensive technical evaluation ensures informed selection decisions based on complete understanding of both performance capabilities and support requirements.
