The Critical Role of Fine Crushers in Quartz Sand Purification Processes

This article explores the indispensable function of fine crushers within quartz sand purification systems. We will examine their core operational mechanisms, seamless integration into processing lines, key technical parameters, economic value, specialized applications, and future technological trends. Understanding these aspects is crucial for optimizing purity levels, which can reach up to 99.99% SiO₂ for high-end applications, while maintaining operational efficiency and cost-effectiveness.

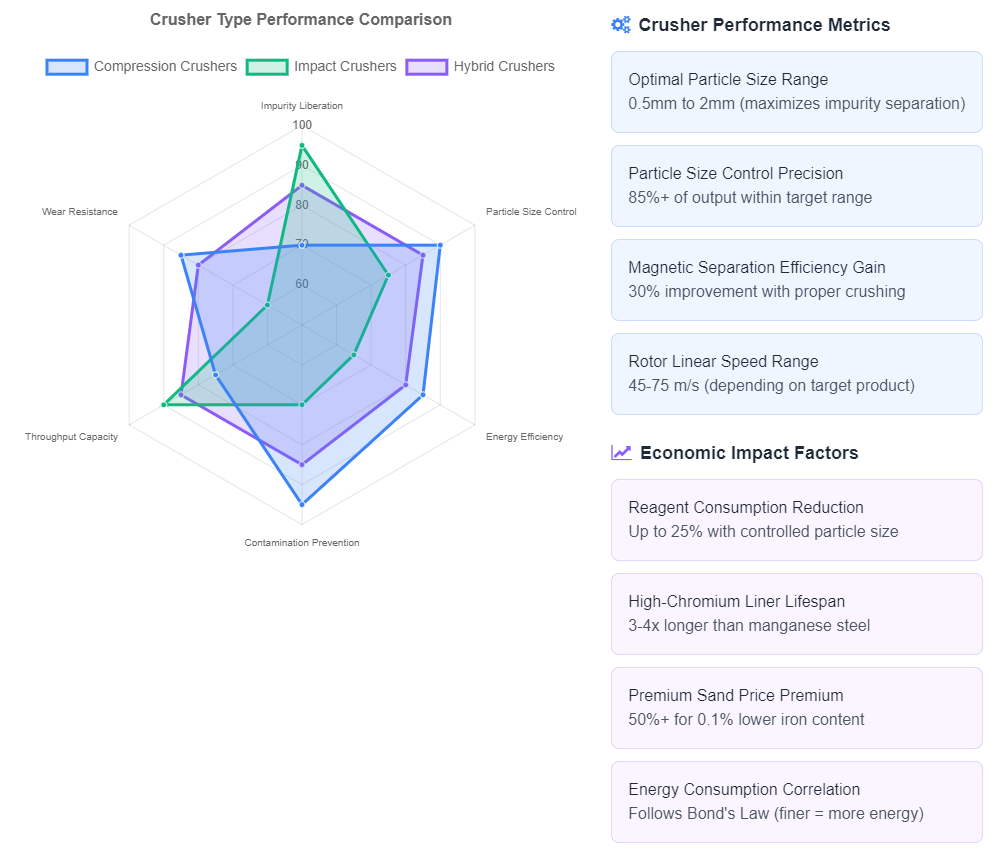

Core Mechanisms of Fine Crushers in Quartz Purification

Fine crushers perform a transformative role in the initial stage of quartz processing. Their primary function is to reduce raw quartz ore into precisely controlled particle sizes without introducing contaminants, thereby setting the stage for effective impurity removal. The specific type of mechanical force applied is a critical design choice.

Unlike primary crushers that focus on size reduction from large rocks, fine crushers operate with precision. They utilize a combination of compression, impact, and shear forces in a controlled manner. This precision directly influences the liberation of impurities locked within the quartz matrix. For instance, optimal crushing ensures that iron oxide coatings on quartz grains are effectively exposed without being ground into finer particles that are harder to remove later, a key step before processes like discharge size control.

Quantitative Relationship Between Crushing Precision and Impurity Separation Efficiency

The efficiency of separating impurities like iron and aluminum oxides is directly quantifiable based on the particle size distribution achieved by the fine crusher. Research indicates that a well-controlled crushing process that produces a high percentage of particles within the 0.5mm to 2mm range can improve subsequent magnetic separation efficiency by over 30%. This is because this specific size range offers the optimal surface area for impurity exposure while remaining large enough for efficient physical separation processes.

Crushing precision is measured by the consistency of the output. A narrow particle size distribution curve indicates high precision, which means fewer overly large particles that hide impurities and fewer ultra-fines that consume excessive reagents in flotation. Advanced crushers achieve this through adjustable rotational speeds and dynamic chamber designs, ensuring that over 85% of the output falls within the targeted size bracket, maximizing downstream recovery rates.

Impact of Particle Size Distribution on Flotation Reagent Consumption

The particle size output from the fine crusher has a profound economic impact on the flotation stage, which is used to remove mica and feldspar contaminants. A consistent and optimal size distribution directly correlates with reagent consumption. Studies have shown that a poorly graded product with an excess of fines (particles below 0.1mm) can increase fatty acid collector consumption by up to 25%, as the greater surface area of fines requires more reagent coating.

Conversely, a controlled crush that minimizes ultra-fines ensures that reagents are used more efficiently, only on the surfaces of particles that require modification. This not only reduces chemical costs but also minimizes the environmental footprint of the processing plant. The ideal crush produces liberated grains that respond predictably to flotation, enhancing the overall selectivity and purity of the final quartz concentrate.

Protection Mechanism of Compression Crushing on Quartz Crystal Integrity

Compression-style crushing, as found in certain types of cone crushers, is highly valued for its ability to preserve the integrity of quartz crystals. This method applies gradual and steady pressure to the feed material, causing it to break along its natural grain boundaries. This intergranular fracture is key to producing clean, liberated quartz particles with minimal internal micro-cracks.

Preserving crystal integrity is crucial for high-value applications. Micro-cracks can weaken the final product and trap fine impurities, making them impossible to remove through later purification steps. By primarily utilizing compression rather than high-impact shock, these crushers ensure the structural soundness of the quartz grains, which is a critical quality parameter for semiconductor and solar-grade silica production. The main shaft design is fundamental in delivering this consistent compressive force.

Application of Impact Crushing in the Liberation of Iron Inclusions

For quartz ore containing embedded iron mineral inclusions, impact crushing offers a distinct advantage. Crushers like vertical shaft impactors (VSI) or certain hammer crushers subject the feed to high-velocity impacts. This violent mechanical shock is highly effective at creating transgranular fractures, breaking the quartz matrix open to expose encapsulated impurity particles.

This liberation is the first and most critical step in removing these stubborn contaminants. Once exposed, the iron particles can be effectively removed by downstream high-gradient magnetic separators. The energy and trajectory of the impact must be carefully calibrated; sufficient to liberate the inclusions without pulverizing the entire feedstock into an unmanageable fine powder. This makes the design of the rotor and its speed a focal point of process optimization for iron-rich ores.

Optimization Effect of Dynamic Liner Adjustment on Product Gradation

Modern fine crushers often feature hydraulically adjustable liners or aprons that can be modified during operation. This dynamic adjustment allows operators to fine-tune the crushing chamber's geometry in real-time, responding to changes in feed hardness or composition. This capability is paramount for maintaining a consistent product size curve.

By adjusting the distance between the wear liners and the rotating elements, the residence time and crushing intensity can be controlled. A narrower setting produces a finer product, while a wider setting increases throughput for a coarser product. This dynamic control optimizes the entire process, ensuring that the crusher output always meets the specific feed size requirements of the subsequent purification stages, such as flotation or leaching, without the need for stopping the production line.

System Integration of Fine Crushers in the Quartz Sand Purification Flow

The performance of a fine crusher is not isolated; it is deeply integrated into a larger system. Its efficiency is heavily influenced by upstream and downstream equipment. A holistic design approach that considers the entire production line is essential for achieving optimal purity, yield, and operational cost. The crusher must be perfectly synchronized with pre-screening, magnetic separation, and classification units.

Effective integration begins with understanding the feed characteristics. A well-designed front-end pre-screening system removes already-sized material and contaminants before the crusher, preventing unnecessary wear and energy consumption. On the back end, the crusher's discharge must be seamlessly fed into magnetic separators and sizing screens, creating a closed-loop system that maximizes efficiency and minimizes manual intervention.

Influence of Pre-Screening Equipment Selection on Raw Material Adaptability

The selection of pre-screening equipment, such as vibrating or grizzly screens, directly determines the crusher's efficiency and the plant's adaptability to varying raw material quality. Effective pre-screening removes fine particles and foreign materials that would otherwise absorb crushing energy inefficiently or cause undue wear on the crusher's internals.

A plant equipped with robust pre-screening can handle a wider range of feedstock, from clean quartzite to more clay-bound ore. By ensuring that only oversize material enters the fine crusher, the system maintains a consistent feed rate and composition, which is vital for stable operation. This pre-processing step can increase the crusher's effective capacity by up to 15% and significantly extend the service life of wear parts like hammer heads or mantles.

Process Parameter Optimization of the Crushing-Magnetic Separation Closed-Loop System

In many advanced quartz plants, the fine crusher operates in a closed loop with a magnetic separator and a sizing screen. The crusher discharge is screened, with the oversize material being recycled back into the crusher feed. The correctly sized material then proceeds to magnetic separation. Optimizing this loop is critical for efficiency.

The key parameters include the crusher's closed-side setting, the screen mesh size, and the magnetic separator's intensity. For example, setting the screen mesh to match the optimal liberation size of iron impurities ensures that material is not over-crushed before magnetic removal. A well-tuned closed-loop system can achieve iron reduction rates exceeding 95% in a single pass, drastically improving the efficiency of the entire purification line and reducing the load on subsequent processing stages.

Matching Principles Between Classification Equipment and Fine Crusher Discharge Opening

The classification equipment, typically vibrating screens or hydrocyclones, must be precisely matched to the crusher's discharge settings. The crusher's discharge size determines the size of the particles entering the classifier, and the classifier's cut point determines what material is returned to the crusher for further processing.

A mismatch can cause inefficiencies. If the classifier's cut point is finer than the crusher's capability, it will continuously return material that the crusher cannot effectively break down, leading to a buildup of circulating load and reduced throughput. Conversely, a too-coarse cut point will allow unliberated particles to proceed to the next stage, compromising final purity. The goal is to achieve a balance where the crusher and classifier work in harmony, with the crusher's feed size acceptance and the classifier's sorting size being perfectly aligned.

Application of Intelligent Control Systems in Load Regulation

Modern fine crushers are increasingly equipped with smart control systems that use sensors and algorithms to regulate operation automatically. These systems monitor power draw, pressure, and feed rate in real-time. By analyzing this data, the control system can adjust the crusher's parameters to maintain optimal load and performance.

For instance, if the power draw indicates the crusher is becoming overloaded, the system can automatically reduce the feed rate from the upstream conveyor. Conversely, if the load is light, it can increase the feed to maximize throughput. This intelligent regulation not only protects the equipment from damage but also ensures that the crusher is always operating at its peak efficiency, leading to consistent product quality and reduced energy consumption per ton of material processed.

The Value of Process Flow Simulation in Equipment Selection

Before installing or upgrading a crushing circuit, process flow simulation software is an invaluable tool. Engineers can create a digital twin of the entire production line, modeling different equipment configurations and feed scenarios. This allows for the optimization of the entire system before any capital is spent.

Simulations can predict product size distribution, throughput rates, power consumption, and potential bottlenecks. For example, they can help determine whether a VSI crusher or a high-pressure grinding roll would be more effective for a specific ore type. This data-driven approach to equipment selection minimizes risk, ensures that all components are correctly sized and matched, and maximizes the return on investment for the purification plant.

Impact of Fine Crusher Technical Parameters on Purification Effectiveness

The technical specifications of a fine crusher are not merely performance metrics; they are levers that directly control the quality and efficiency of the entire purification process. Parameters like rotor speed, chamber geometry, and liner material are meticulously engineered to achieve a specific crushing outcome that aligns with the purity goals for the quartz sand.

Selecting the correct parameters involves balancing often competing objectives, such as throughput capacity versus product fineness, or liner longevity versus crushing intensity. A deep understanding of how each parameter influences the process is essential for operators to optimize their systems for either maximum yield, highest purity, or lowest operational cost, depending on production goals.

Functional Relationship Between Rotor Linear Speed and Product Grain Size

The linear speed of the crusher's rotor is a primary determinant of the resulting product size and the amount of fines generated. Higher rotor speeds impart greater kinetic energy to the hammers or impellers, resulting in more violent impacts and generally a finer product. The relationship is often exponential; a small increase in speed can lead to a significant reduction in average particle size.

However, there is an optimal range. Excessive speed can lead to over-crushing, generating a high percentage of ultra-fines that are detrimental to subsequent flotation and leaching stages. It also increases wear on the blow bars and liners, raising operational costs. Therefore, speed is carefully calibrated based on the ore's characteristics and the target size distribution, often between 45-75 m/s for effective fine crushing in quartz applications.

Optimization Model for Crushing Chamber Depth and Processing Capacity

The depth and shape of the crushing chamber define the material's trajectory and residence time inside the crusher. A deeper chamber allows for more material to be processed at once and provides more opportunities for particle-on-particle breakage, which can be beneficial for achieving a cubical product shape. This often increases the machine's capacity.

Conversely, a shallower chamber may promote a faster throughput but with less control over the final product's size distribution. Engineers use computational models to optimize chamber geometry, balancing the need for high capacity with the requirement for a precise, well-graded output. The design of the concave in cone crushers is a classic example of this optimization, guiding the material through a progressively narrower space for controlled compressive breaking.

Wear Resistance Analysis of High-Chromium Iron Liners

The abrasiveness of quartz sand is legendary, making the choice of liner material a critical economic and operational decision. High-chromium cast iron (HCCI) has become the standard for many fine crusher liners due to its exceptional hardness and wear resistance. The high chromium content forms hard chromium carbides within a martensitic matrix, providing a surface that can withstand continuous abrasion.

The service life of HCCI liners can be 3-4 times longer than that of manganese steel in quartz crushing applications. This extended lifespan reduces the frequency of shutdowns for liner replacement, thereby increasing equipment availability and production uptime. The cost savings from reduced maintenance and parts inventory often justify the higher initial investment in advanced liner materials, directly lowering the operating cost per ton of processed sand.

Influence of Hydraulic System Response Time on Equipment Protection

Fine crushers are protected from catastrophic damage from uncrushable objects (tramp iron) by hydraulic overload protection systems. The response time of this system—the speed at which it can detect a pressure spike and open the crusher to release the obstruction—is vital. A fast-response system can clear a jam in milliseconds, preventing excessive stress on the eccentric shaft, main frame, and other critical components.

A slow response can lead to stalled motors, broken drive belts, or even cracks in the crusher body. Modern systems use high-speed sensors and accumulators to provide nearly instantaneous relief, safeguarding the machinery's integrity. This reliability is crucial for continuous operation in automated plants where unplanned downtime has significant financial implications.

The Role of Discharge Opening Adjustment Precision in Size Control

The ability to make precise, micron-level adjustments to the crusher's discharge opening is fundamental for tight control over the product's top size. In cone crushers, this is achieved through hydraulic adjustment of the main shaft position. In impact crushers, adjustable aprons serve a similar function.

Precise control allows operators to quickly adapt to changes in ore hardness or to produce different product grades to meet specific customer specifications. Digital readouts and automated control systems ensure these adjustments are accurate and repeatable. This precision is the final step in ensuring the crusher's output consistently meets the narrow size bands required for high-efficiency quartz sand purification, directly influencing the success of downstream magnetic and flotation separation processes.

Economic Value of Fine Crushers in Quartz Sand Purification

Beyond their technical function, fine crushers are a significant capital investment whose value is measured through their impact on the operation's total economics. Their influence extends across energy consumption, maintenance costs, production availability, and the final market value of the purified sand. An efficient crusher is a cornerstone of a profitable quartz processing plant.

The total cost of ownership encompasses not only the purchase price but also the operating costs over the machine's entire lifespan. A crusher selected for its low initial cost but high energy consumption and short wear part life will often prove more expensive in the long run than a more sophisticated, energy-efficient model designed for durability and easy maintenance.

Analysis of the Relationship Curve Between Unit Energy Consumption and Crushing Ratio

The crushing ratio (the ratio of feed size to product size) has a direct and non-linear relationship with energy consumption. As the target product size becomes finer, the energy required per ton of material increases significantly. This is due to the greater amount of work needed to create new surface area. The relationship often follows Bond's Law, which states that energy input is proportional to the square root of the product size.

Therefore, optimizing the crushing process to avoid over-grinding is a primary method of reducing energy costs. Fine crushers that operate efficiently within their designed reduction ratio will have a much lower kWh/ton rating than those that are misapplied. This makes the selection of a crusher with the correct crushing ratio for the application a critical energy-saving decision.

Impact of Liner Replacement Cycles on Equipment Availability

The frequency of liner replacement is a major factor in plant availability. Every shutdown for maintenance represents lost production time. Therefore, the wear life of liners directly influences the crusher's operational uptime and annual output. Liners made from advanced materials like high-chromium iron, though more expensive, can last thousands of hours longer, enabling fewer changeouts.

Planning maintenance schedules around predictable liner life allows for planned downtime, which is far less disruptive than unexpected breakdowns. A crusher with a liner life of 1,000 hours has higher availability than one requiring changes every 600 hours, simply because it spends more time producing and less time being serviced. This increased availability translates directly into higher annual tonnage and revenue.

Correlation Between Hammerhead Wear and Product Size Variation

As wear parts like hammerheads or impellers degrade, the crusher's performance changes. Worn hammers lose their mass and shape, reducing the impact energy they can transfer to the material. This often leads to a gradual coarsening of the product size and a change in the particle size distribution, which can negatively affect downstream purification stages.

Monitoring wear and scheduling replacements before performance degrades beyond acceptable limits is crucial for maintaining product consistency. Some modern systems use laser scanning or weight measurements to track wear automatically, allowing for predictive maintenance. This ensures that the final quartz sand product consistently meets tight quality specifications, avoiding batch rejections and maintaining customer satisfaction.

Enhancement of Investment Return Rate by Premium Sand Price Premiums

The ultimate economic justification for investing in a high-performance fine crusher is the ability to produce premium-grade quartz sand. The market price for high-purity sand used in solar, semiconductor, and high-end glass applications is significantly higher than that for common construction sand. A difference of just 0.1% in iron content can command a price premium of 50% or more.

A fine crusher that enables higher purification efficiency by delivering an optimally liberated and sized feed directly contributes to the plant's ability to produce these high-value products. The increased revenue from selling premium sand can rapidly pay back the investment in advanced crushing technology and yield a much higher return on investment over the life of the operation.

Construction of a Total Life Cycle Cost Analysis Model

Evaluating a fine crusher based solely on purchase price is shortsighted. A comprehensive Total Life Cycle Cost (LCC) analysis model accounts for all costs from acquisition to disposal. This includes initial capital investment, installation costs, energy consumption over its lifespan, scheduled maintenance, wear part replacement costs, expected downtime, and even residual value.

Applying an LCC model often reveals that a more expensive, energy-efficient crusher with longer-lasting wear parts and higher availability offers a lower total cost per ton of sand produced over a 10-year period. This data-driven approach provides a complete financial picture, guiding operators toward the most economically sensible equipment choice for their specific quartz purification needs.

Applications of Fine Crushers in Specialized Quartz Sand Purification

The requirements for quartz sand vary dramatically across different industries, and the role of the fine crusher must be adapted accordingly. From the ultra-high purity needed for semiconductors to the specific grain shape for glassmaking, the crushing stage is tailored to meet these specialized demands, making it a versatile tool in the material scientist's arsenal.

A one-size-fits-all approach does not work. The crusher type, its operating parameters, and its position within the process flow are all customized. For example, producing sand for electronics might involve multiple crushing stages with careful inter-stage purification, while sand for construction focuses on achieving the ideal particle size distribution for concrete strength.

Process Design for Multi-Stage Crushing in High-Purity Sand Preparation

Producing high-purity quartz sand (HPQ) for applications like silicon metal requires a meticulous multi-stage crushing approach. The goal is gradual and controlled size reduction with minimal contamination at each step. The process often begins with a jaw crusher for primary reduction, followed by a cone crusher for secondary crushing, and culminates with a fine crusher for the final precise size reduction.

Between each crushing stage, magnetic separation and washing are typically employed to remove liberated impurities before the material is reduced further. This prevents the grinding of contaminants into the quartz matrix. The final fine crushing stage, perhaps using a specially lined roll crusher for low iron contamination, is critical for achieving the narrow, controlled size distribution that allows for effective subsequent chemical leaching and purification.

Influence of Photovoltaic Sand Grain Size Distribution on Melting Process

Quartz sand for photovoltaic (PV) glass substrates must have a tightly controlled particle size distribution. The melting behavior and final clarity of the glass are highly dependent on how the sand grains pack together and melt. A well-graded sand with a controlled fraction of coarse and fine particles ensures efficient melting with minimal bubbles or inclusions.

The fine crusher is responsible for creating the base gradation. An inconsistent product with an excess of fines can lead to foaming during melting, while too many coarse grains may not melt completely. Therefore, the crusher's ability to produce a consistent and predictable output is directly linked to the quality and production efficiency of the PV glass manufacturing process.

Technical Pathways for Metal Impurity Control in Semiconductor-Grade Sand

Semiconductor-grade quartz sand represents the pinnacle of purity, with requirements for certain metal impurities measured in parts per billion (ppb). The crushing process is a potential source of metallic contamination from wear of the crusher's internal components. Therefore, the technical pathway for impurity control begins with the crusher's design.

This involves using crushers with ceramic or specialized alloy liners to minimize metallic wear. The crushing process may be designed to be "clean," often involving sealed systems with inert gas environments to prevent oxidation. Any material introduced by wear is then meticulously removed in later stages through advanced techniques like high-intensity magnetic separation, hot chlorination, and acid leaching, but the crusher's role in minimizing initial contamination is paramount.

Correlation Between Construction Sand Gradation and Concrete Performance

For construction applications, the value of quartz sand is determined by its particle size distribution (gradation) and particle shape. A well-graded sand, where particles of different sizes fill the voids between each other, requires less cement paste to bind it together, resulting in stronger and more durable concrete. The particle shape, ideally cubical from a well-set VSI crusher, provides better mechanical interlocking and workability.

The fine crusher's operation is tuned to produce this ideal gradation curve. By controlling the crusher parameters, producers can create sands that meet specific ASTM or CEN standards for concrete aggregate, masonry sand, or asphalt mix. This ability to engineer the product for a specific application adds significant value to what would otherwise be a commodity material.

Differentiated Crushing Process Design for Various Application Scenarios

The design of the crushing process is fundamentally differentiated based on the end-use of the quartz sand. A flow sheet for foundry sand, which requires high thermal stability, will differ from one for filtration sand, which requires high porosity and purity. The choice of fine crusher—whether it's an impact crusher for cubical grains or a roll crusher for minimal fines—is a key differentiator.

This tailored approach ensures that the process is not just efficient but also effective in delivering a product with the exact properties the market demands. It highlights the fine crusher's role not just as a size reducer, but as a key instrument in material engineering, capable of producing a wide spectrum of specialized quartz sand products from a single raw material source.

Technology Trends and Innovation in Crusher-Enabled Purification Processes

The field of fine crushing is not static; it is driven by continuous innovation aimed at higher efficiency, lower costs, and greater precision. Emerging technologies like artificial intelligence, advanced simulation, and modular design are transforming how crushers are designed, operated, and integrated into quartz sand purification plants, paving the way for smarter and more sustainable operations.

These trends focus on maximizing value through predictive operation, minimizing energy and wear part consumption, and providing unparalleled flexibility to processing plants. The next generation of fine crushers will be more connected, more efficient, and more adaptable than ever before, serving as the intelligent heart of the mineral processing plant.

Application of Vibration Monitoring in Equipment Health Management

Vibration analysis has evolved from a basic diagnostic tool to a core component of predictive maintenance systems. Accelerometers permanently mounted on the crusher's bearings and structure continuously monitor vibration signatures. Algorithms analyze this data in real-time to detect anomalies such as imbalance, misalignment, rolling element bearing defects, or loose components.

By identifying these issues early, maintenance can be scheduled during planned downtimes, preventing unexpected failures that cause prolonged production stops. This shift from reactive to predictive maintenance drastically improves overall equipment effectiveness (OEE), reduces maintenance costs, and extends the operational life of the crusher. It represents a move towards truly intelligent and self-aware industrial machinery.

The Value of DEM Simulation in Crushing Chamber Design

Discrete Element Method (DEM) software has revolutionized crusher design. Engineers can now create a virtual model of a crushing chamber and simulate the motion and breakage of thousands of individual particles under different operating conditions. This allows for the optimization of chamber geometry, liner profiles, and rotor dynamics before a single piece of metal is cut.

DEM simulations can predict power draw, wear patterns on liners, product size distribution, and throughput capacity with remarkable accuracy. This reduces the time and cost associated with physical prototyping and enables the development of more efficient and effective crusher designs, such as those found in modern multi-cylinder hydraulic cone crushers, which are known for their high performance and efficiency.

Process Advantage Analysis of Pressure-Impact Composite Crushing

Hybrid crushing technologies that combine multiple breakage mechanisms are gaining traction. For example, some modern crushers utilize initial compression to pre-weaken the rock followed by impact to finish the breakage. This composite approach can be more efficient than using either method alone.

Compression is highly efficient at transferring energy into the rock but can produce more elongated particles. Impact creates more cubical grains but can be less energy-efficient. By combining them, these crushers can achieve a superior product shape—critical for high-quality concrete aggregate—while often reducing energy consumption and wear rates compared to pure impact crushers, offering a compelling advantage for specific applications.

Implementation Cases of Quick-Change Modular Design

Modularity in crusher design, particularly for wear parts, is a significant trend aimed at reducing downtime. Quick-change systems for liners, hammers, and other wear components allow for replacement in hours instead of days. These systems use hydraulic locking mechanisms rather than traditional bolting, making the process safer and faster.

For a quartz processing plant, this means that maintenance windows can be drastically shortened, increasing crusher availability and production flexibility. The ability to quickly swap out worn modules and have them refurbished off-site also simplifies inventory management and ensures that the plant always has ready-to-install components, minimizing the risk of extended stoppages.

Prospects of Digital Twin Technology in Process Optimization

The concept of a digital twin—a live, virtual replica of a physical crusher and its process—represents the future of optimization. The twin receives real-time data from sensors on the actual machine (speed, power, pressure, temperature) and uses this data to simulate its operation continuously.

This allows operators to run "what-if" scenarios safely in the digital realm. They can test the impact of changing a parameter like feed rate or rotor speed on product size and power consumption before implementing it on the physical machine. The digital twin can also predict future wear and recommend optimal maintenance schedules, moving beyond predictive to prescriptive maintenance and unlocking new levels of efficiency and control for the entire quartz sand purification process.
