Fine Crushers in Subzero Environments: Operation Optimization Strategies

Operating heavy machinery like fine crushers in cold climates presents a unique set of challenges that can significantly impact efficiency, component life, and safety. This comprehensive guide delves into the science behind these challenges and explores the engineering solutions and operational strategies that enable these powerful machines to function reliably even in sub-zero conditions. We will examine how extreme cold affects materials and lubricants, discuss design adaptations, review best practices for operation and maintenance, and look at emerging technologies shaping the future of cold-weather crushing. Understanding these factors is crucial for ensuring continuous operation, minimizing downtime, and protecting valuable equipment in industries ranging from mining to construction in some of the world's harshest environments.

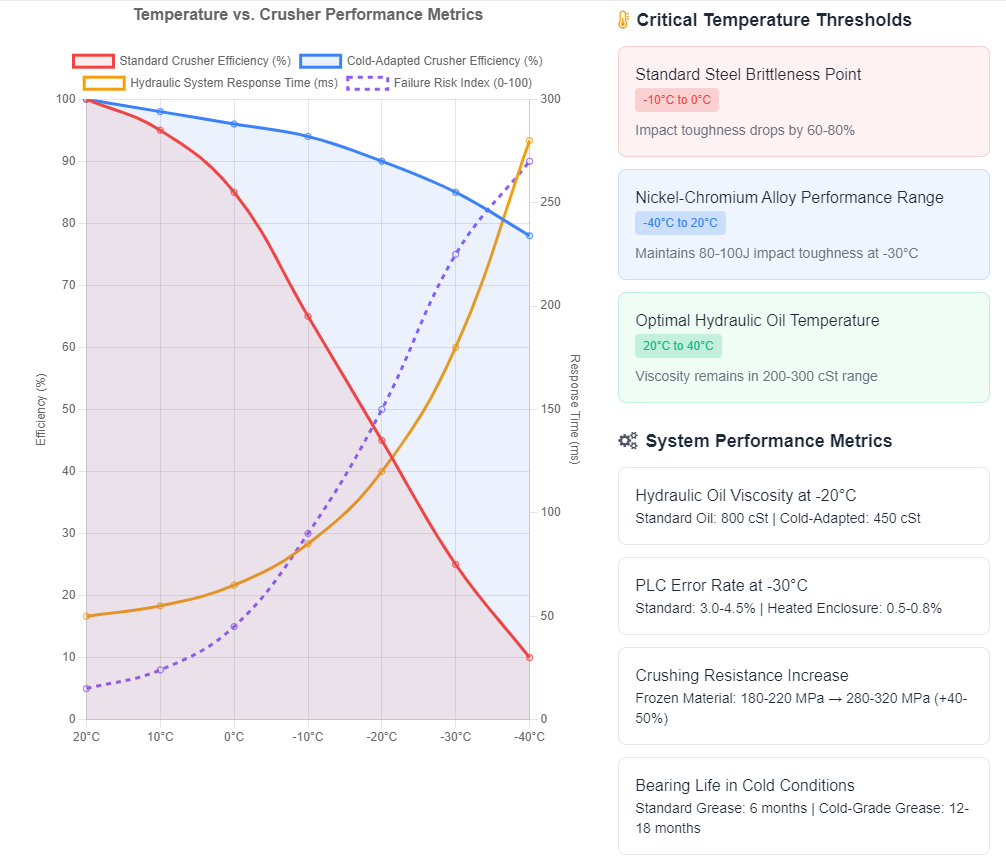

Impact Mechanisms of Low-Temperature Environments

The fundamental properties of materials undergo significant changes when temperatures drop below freezing, directly influencing the mechanical operation of a fine crusher. Metals, hydraulic fluids, lubricants, and even the raw material being processed all behave differently in the cold, creating a cascade of potential issues for an unprepared operation. A thorough understanding of these physical mechanisms is the first step toward developing effective countermeasures and ensuring operational integrity.

For instance, the hydraulic system powering the adjustment mechanisms and overload protection can become sluggish as the fluid's viscosity increases, leading to delayed response times and potential pump cavitation. Similarly, the crushing chamber itself may experience increased wear if materials become more abrasive due to freezing, or if lubrication at bearing points fails to reach critical surfaces. Electronic sensors and control systems are also susceptible to giving erroneous readings or failing altogether when their specified operating temperatures are breached.

Quantitative Changes in Steel's Low-Temperature Impact Toughness

Many standard grades of steel used in manufacturing undergo a ductile-to-brittle transition as temperatures decrease. This means a component like a hammer head or a liner plate, which is designed to absorb immense impact energy, can fracture more easily instead of deforming. The Charpy V-notch test is a standard method for measuring this property, with values often dropping dramatically. For example, a carbon steel with an impact energy of 60 Joules at 20°C might see that value fall below 20 Joules at -20°C, indicating a severely increased risk of catastrophic brittle fracture under load.

This scientific understanding dictates the selection of special low-alloy steels for crushers destined for cold climates. These alloys, often containing nickel and chromium, are designed to maintain high impact toughness values far below freezing. The use of such materials is not merely an upgrade but a fundamental necessity for preventing unexpected and dangerous component failures that could result from a single high-impact event with frozen material.

The Function Relationship Between Hydraulic Oil Viscosity Index and Temperature

Hydraulic oil is the lifeblood of a crusher's adjustment and protection systems, and its viscosity is inversely proportional to temperature. A high-quality oil with a high Viscosity Index (VI) will experience less change in viscosity for a given temperature change compared to a low-VI oil. At -25°C, a standard mineral-based hydraulic oil can become so viscous that it struggles to flow, forcing the pump to work harder and potentially leading to cavitation, which damages pump components through the formation and implosion of air bubbles.

Therefore, selecting a hydraulic fluid with a high VI and a pour point well below the expected minimum ambient temperature is critical. Synthetic oils often meet these requirements, maintaining stable flow characteristics down to -40°C or lower. This ensures that pressure is transmitted instantly when needed, for example, to retract the main shaft in a cone crusher to clear a tramp iron event, preventing serious damage to the machine.

Influence of Grease Base Oil Pour Point on Bearing Lubrication

Roller bearings supporting the high-speed rotor in a fine crusher rely on a consistent film of grease to prevent metal-on-metal contact. In cold conditions, conventional grease can become stiff and channel, meaning it pushes away from the moving parts and fails to return, leaving the bearing unprotected. The pour point of the base oil within the grease is a key indicator of its low-temperature performance; it must remain fluid enough to be distributed by the bearing's rotation.

A lithium complex or polyurea grease formulated with a synthetic base oil like polyalphaolefin (PAO) is typically recommended for these applications. These greases have extremely low pour points, often below -50°C, ensuring they stay pliable and can effectively lubricate the bearing from a cold start. This prevents the high initial torque and wear that occur when a bearing must overcome the resistance of stiff, channeled grease.

Analysis of PLC Module Error Rates in Low-Temperature Work

The Programmable Logic Controller (PLC) is the brain of the modern crusher, constantly monitoring inputs and controlling outputs. However, the integrated circuits and capacitors within a PLC module have specified operating temperature ranges, typically starting at 0°C. Exposure to colder temperatures can cause timing errors in digital circuits, reduced capacitance, and condensation that leads to short circuits. This can manifest as erratic machine behavior, uncommanded stops, or a complete failure to initiate the startup sequence.

To mitigate this, control panels are equipped with thermostatically controlled heaters that maintain an internal temperature above the dew point and the minimum operating threshold, even when the external ambient temperature is far below zero. This ensures the electronic components remain in a stable environment, guaranteeing computational reliability and the continuous, precise control required for optimizing crushing ratio and product size.

Design Optimizations for Low-Temperature Adaptation

Engineering a fine crusher for reliable cold-weather operation involves much more than just adding heaters; it requires a holistic design philosophy that integrates material science, thermal management, and structural innovation. From the selection of special alloys for critical components to the integration of active heating systems and passive insulation, every aspect of the machine must be evaluated for its performance in sub-zero conditions. The goal is to create a system that is inherently resilient to the cold, minimizing its effects on operation and longevity.

This approach extends to the electrical system, where components must meet specific ingress protection (IP) ratings to keep out moisture that can freeze, and to the structural design of the crusher itself, where features are added to prevent the buildup of frozen material. A well-designed machine for cold climates is a testament to proactive engineering, anticipating problems and solving them before they can cause downtime in the harsh reality of a winter worksite.

Mechanical Properties of Nickel-Chromium Alloys in Low-Temperature Conditions

As established, standard carbon steels become brittle in the cold. The solution lies in using low-alloy steels where elements like nickel (Ni) and chromium (Cr) are added to the iron-carbon matrix. Nickel, in particular, is highly effective in lowering the ductile-to-brittle transition temperature. A steel with 3.5% nickel content can retain excellent impact toughness down to -100°C. This makes it an ideal material for key structural components like the main frame, the adjusting rings, and the shafts that experience high dynamic loads.

Chromium contributes by enhancing hardenability and providing better resistance to wear and corrosion, which can be exacerbated by the use of de-icing salts and chemicals on site. The use of these specialized alloys, though representing a higher initial investment, is a fundamental design optimization that directly prevents the most catastrophic types of mechanical failure in low-temperature environments.

Layout Scheme for Electric Heat Tracing Tapes on Hydraulic Pipelines

To combat the increase in hydraulic oil viscosity, passive insulation alone is often insufficient. An active solution involves wrapping hydraulic reservoirs and lines with electric heat tracing tapes. These tapes are essentially electrical resistors that generate a controlled amount of heat when powered. The design of this system is critical; thermostats or RTD (Resistance Temperature Detector) sensors are placed at key points to regulate the heat output, maintaining the oil within a optimal temperature range, typically between 20°C and 40°C.

The tapes must be installed evenly along the length of the pipes, with extra focus on areas around valves and pumps that are most susceptible to blockage from congealed oil. The entire heated section is then covered with a weatherproof insulation jacket to maximize efficiency. This integrated system ensures that from a cold start, the hydraulic system can be brought up to its operational temperature within a reasonable timeframe, allowing for full machine functionality.

Applicability of IP66 Protection Rating for Frequency Converters

Frequency converters, which control motor speed for optimal processing of different materials, are packed with sensitive electronics. In cold, wet, and snowy environments, protecting these components from moisture ingress is paramount. The IP (Ingress Protection) rating system defines levels of protection. An IP66 rating, a common requirement for crushers in harsh climates, means the enclosure is "dust tight" (6) and protected against "powerful water jets" (6).

This rating ensures that blowing snow, driving rain, and airborne dust cannot penetrate the converter's enclosure. When combined with an internal heating element to control condensation and maintain a minimum ambient temperature inside the box, the IP66 rating provides a robust defensive shield for the critical electronics that manage the rotor speed and, consequently, the final product gradation.

Operational Strategies for Low-Temperature Conditions

Even the best-designed equipment requires thoughtful operation to perform reliably in the cold. Establishing and strictly adhering to a set of cold-weather procedures is essential for minimizing wear, preventing damage, and ensuring safety. These strategies cover the entire machine lifecycle, from the initial startup after a prolonged shutdown to the careful steps required for shutting down to prevent freeze-ups. Operational flexibility is also key, as machine settings that work in the summer may need to be adjusted to account for the changed behavior of materials and machinery in the winter.

These procedures are not merely suggestions but are often formalized into standard operating procedures (SOPs) for sites in northern latitudes. They include detailed protocols for pre-start checks, a phased approach to bringing systems online, continuous monitoring of key parameters, and a specific shutdown sequence designed to prepare the machine for the next cold period. Training operators on the "why" behind these procedures ensures compliance and empowers them to make smart decisions when facing unexpected conditions.

Power Control Curve for Staged Warm-Up Startup

Starting a crusher in cold conditions is not a simple matter of turning a key. A staged warm-up procedure is critical to gradually bring all systems to their operational temperatures without causing thermal shock or excessive wear. This often begins by activating panel and lubrication heaters while the machine is still off. Next, the hydraulic system might be started and circulated at low pressure for 15-20 minutes, allowing the oil to warm up and reach all components.

Only after these preliminary steps is the main drive motor engaged, initially running the crusher empty at a reduced speed for a further period. This allows the bearings, gears, and other mechanical parts to gradually expand and distribute lubricant. This careful process, governed by a predefined power and time curve, ensures that every component is ready for full-load operation, dramatically reducing the stress that causes premature failure. This is especially important for the eccentric shaft assembly in jaw and cone crushers, which operates under tremendous load.

Low-Temperature Compensation for Rotor Speed and Hydraulic Pressure

The physical properties of the feed material can change significantly when it contains moisture and freezes. Frozen feed can be harder and more cohesive, requiring different crushing dynamics. Operators may need to adjust parameters like rotor speed in an impact crusher or the hydraulic pressure controlling the closed-side setting on a cone crusher to achieve the same product size and throughput as in warmer conditions.

Running the rotor at a slightly higher speed can impart more energy to break apart tougher, frozen lumps. Similarly, a slightly wider setting might be used initially to process colder, more abrasive feed, protecting the liners from excessive wear. These compensations are not static; they require continuous observation and adjustment based on the crusher's performance and the condition of the feed material, highlighting the need for skilled, attentive operators in cold-weather mining and aggregate production.

Material Solutions and Lubrication Technology

The selection of appropriate materials and lubricants is a frontline defense against the degrading effects of cold. This extends beyond the structural metals to encompass every fluid, grease, seal, and elastomer in the system. Using products specifically formulated for low-temperature service is a non-negotiable aspect of cold-weather readiness. These specialized compounds are engineered to maintain their essential properties—such as fluidity, elasticity, and wear resistance—across a much wider temperature range than their standard counterparts.

Investing in the correct winter-grade lubricants and seals prevents a host of problems, including pump failure, bearing seizure, and hydraulic valve malfunction. Likewise, ensuring that rubber components like seals and hoses are made from cold-resistant compounds prevents them from cracking and failing, which can lead to leaks and system contamination. This proactive approach to materials selection is a cost-effective strategy that pays dividends in reduced downtime and lower maintenance costs over the life of the equipment.

Low-Temperature Fluidity of Polyalphaolefin Synthetic Oils

Polyalphaolefin (PAO) is a common type of synthetic hydrocarbon that is the foundation of many high-performance lubricants. Its molecular structure gives it several advantages over mineral oil, including a very low pour point (often below -60°C) and a high viscosity index. This means a PAO-based hydraulic oil or gear oil will flow freely at extremely low temperatures, ensuring immediate lubrication at startup, and will thin out less at high operating temperatures, maintaining a protective film.

This superior performance profile makes synthetic oils like PAO indispensable for the critical lubrication points on a crusher operating in arctic conditions. While more expensive per liter than mineral oil, their use leads to less wear during startup, longer oil life, and better overall efficiency, providing a significant return on investment by protecting expensive components like the rotor bearings.

Concentration Ratio Principles for Ethylene Glycol Antifreeze

Many crushers use water-to-air heat exchangers or jacket water systems for cooling hydraulics or engines. Pure water in these systems would freeze and expand, cracking pipes and cores. A water-antifreeze mixture is used instead. Ethylene glycol is the most common antifreeze agent. The concentration ratio of glycol to water directly determines the freeze protection level. A 50/50 mix typically provides protection down to approximately -37°C, while a 60/40 mix can protect down to -55°C.

It is crucial to measure the concentration with a refractometer rather than simply guessing the mix ratio. Too little glycol risks freeze-up, while too much glycol can reduce the coolant's heat transfer efficiency, potentially leading to overheating issues. Maintaining the correct concentration is a simple yet vital part of winterizing a crusher's cooling systems.

Intelligent Monitoring and Early Warning Systems

Modern technology provides powerful tools for managing crusher operation in harsh conditions. Integrated sensor networks and data analytics platforms allow for real-time monitoring of both environmental conditions and machine health. This shift from reactive to predictive maintenance is especially valuable in cold weather, where early detection of a developing problem can prevent a minor issue from escalating into a major failure that requires extensive repairs in difficult conditions.

These systems can track temperatures at dozens of points on the machine, monitor vibration signatures of rotating components, analyze oil condition, and even watch power consumption trends. By applying algorithms and machine learning to this data, the system can provide early warnings for issues like a bearing that is beginning to overheat due to stiff grease, or a hydraulic valve that is responding sluggishly because of cold oil. This gives maintenance teams the opportunity to schedule corrective action during a shift change or break, avoiding unplanned downtime.

Layout Plan for Fiber Bragg Grating Temperature Sensors

Accurate temperature monitoring is the cornerstone of any cold-weather operational strategy. Fiber Bragg Grating (FBG) sensors represent an advanced solution. A single optical fiber with multiple FBG sensors can be threaded through key areas of the crusher, such as along the length of the eccentric shaft housing, within the bearing assemblies, and on the outer surface of hydraulic valves. Each grating is sensitive to temperature (and strain) at a specific point.

This system provides a highly detailed thermal map of the machine in real-time, far surpassing what is possible with a handful of traditional electrical sensors. This granular data is invaluable for validating the effectiveness of heating systems, identifying cold spots that could be problematic, and ensuring that the entire machine is within safe operating temperatures before applying full load.

Industry Application Cases and Standard Regulations

The principles of cold-weather operation are proven in some of the most challenging environments on Earth. Projects in the northern reaches of Scandinavia, Canada, and Russia have served as testing grounds for technologies and strategies that have now become industry best practices. These real-world applications provide valuable case studies on what works and what doesn't, offering a blueprint for success for new projects in similar climates.

Furthermore, operating in these regions often requires compliance with stringent local and international standards that govern workplace safety and equipment performance in cold conditions. These standards, such as those related to electrical safety in wet and icy conditions or the structural integrity of equipment, provide a formalized framework for ensuring that operations are conducted safely and responsibly. Adhering to these regulations is not just a legal requirement but a key component of a sustainable and efficient winter operation.

Transformation Case of a Siberian Iron Ore Crushing Section

A major iron ore operation in Siberia faced chronic winter downtime due to frozen feed material clogging the primary and secondary crushing stages. The solution involved a comprehensive retrofit that included installing insulated and heated enclosures around the crushers and conveyors, integrating a steam injection system to pre-heat the ore before it entered the feed port, and switching all lubricants to synthetic, cold-grade formulas.

The project also involved installing a sophisticated monitoring system to track temperatures and machine health. The result was a dramatic reduction in winter-related stoppages, achieving over 95% availability even with ambient temperatures regularly dropping below -40°C. This case demonstrates that with a systematic approach, even the most extreme conditions can be overcome.

Low-Temperature Testing Requirements of the GOST Standard

For equipment destined for the Russian market, meeting the GOST standards is mandatory. These standards include rigorous low-temperature testing protocols for electrical and mechanical components. Equipment must be certified to operate reliably at the specified minimum temperature, which can be as low as -60°C for arctic applications. The tests verify the performance of materials, the functionality of lubrication systems, and the reliability of control systems under sustained cold soak conditions.

Compliance with such standards provides a clear and verified benchmark for equipment manufacturers and gives operators confidence that the machine they are purchasing is truly built for the environment in which it will operate. It moves beyond marketing claims to provide empirical evidence of cold-weather capability.
