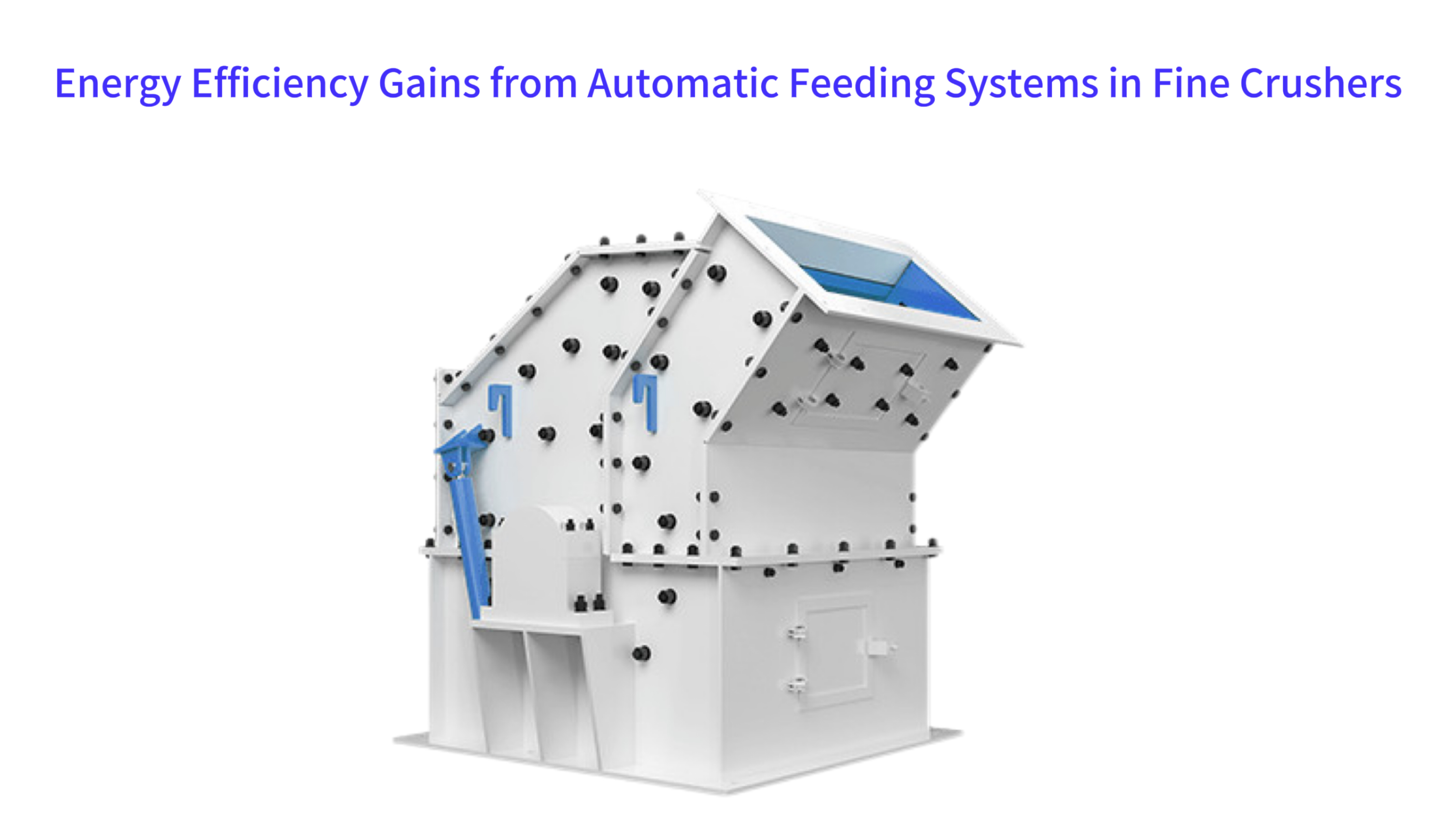

Energy Efficiency Gains from Automatic Feeding Systems in Fine Crushers
In the world of industrial crushing, efficiency is paramount. An automatic feeding system represents a significant technological leap, transforming a simple conveyor into the intelligent heart of a crushing operation. This system does more than just move rock; it precisely manages the flow of material into the crusher, ensuring it operates at its peak efficiency. This article explores how these sophisticated systems work, from the sensors that see and weigh the material to the algorithms that make real-time decisions. We will examine the direct link between consistent feeding and reduced energy consumption, the advanced control strategies that optimize crusher load, and how integrating these systems across the entire plant leads to substantial energy savings, lower operating costs, and a reduced environmental footprint.
Technical Architecture and Its Link to Energy Efficiency
The efficiency of an automatic feeding system is fundamentally rooted in its technical design. This architecture is a sophisticated network of sensors, controllers, and actuators working in perfect harmony. Each component, from the precise scales measuring material weight to the high-speed processors calculating the optimal feed rate, plays a critical role in minimizing energy waste. The system's ability to make accurate, local decisions at the edge of the network ensures that the crusher, a powerful machine with a massive crushing capacity, is never starved of material or overloaded, both states that lead to inefficient power consumption and increased wear.
At its core, the system relies on a constant stream of high-fidelity data. Sensors provide a digital representation of the material stream, while the Programmable Logic Controller (PLC) acts as the brain, processing this information thousands of times per second. It then commands the drive systems, often sophisticated variable frequency drives (VFDs), to adjust the speed of conveyor motors with extreme precision. This seamless integration of measurement, computation, and action is what transforms raw power into controlled, efficient crushing force, directly impacting the bottom line by reducing the kilowatt-hours required for each ton of processed material.
Precision Control Requirements of Dynamic Weighing Technology
Knowing exactly how much material is entering the crusher is the first step toward efficiency. Dynamic weighing technology uses load cells installed under the conveyor to continuously measure the weight of the material. For effective control, this measurement must be highly accurate, often within ±0.5% of the actual weight, even while the belt is moving and vibrating. This precision allows the control system to calculate the mass flow rate (tons per hour) in real-time.
Without this accurate weight data, the system would be operating blindly, potentially underfeeding or overfeeding the crusher. Underfeeding causes the crusher to operate with a partially empty chamber, wasting energy as the powerful main motor spins without performing meaningful work. Overfeeding risks bogging down the motor, increasing energy draw, and potentially causing an overload shutdown. Precise weighing is therefore the essential feedback needed for efficient control.
Application of Laser Point Cloud Data in Material Volume Measurement
While weight is crucial, understanding the volume and profile of the material on the belt provides an additional layer of intelligence. Laser scanners mounted above the conveyor emit a grid of laser points to create a 3D topographical map, or "point cloud," of the material. This data is used to calculate the cross-sectional area of the load on the belt.
When combined with the belt speed, the system can calculate volumetric flow. More importantly, this profile can reveal the size distribution of the material; a rough, peaked profile suggests larger, chunkier rocks, while a smooth, flat profile indicates finer, more consistent material. This information can be used to preemptively adjust crusher parameters, such as the speed of a vertical shaft impactor's rotor, to handle different feed characteristics efficiently, optimizing the energy expended for crushing.
Influence of VFD Carrier Frequency on Motor Efficiency
The Variable Frequency Drive (VFD) is the muscle that executes the feeding system's commands by regulating the speed of the conveyor motor. The VFD creates an alternating current (AC) waveform for the motor using a technique called Pulse Width Modulation (PWM). The carrier frequency is the rate at which these pulses are switched on and off. A higher carrier frequency results in a smoother waveform and quieter motor operation.
However, this comes with a trade-off. Increasing the carrier frequency also increases the switching losses within the VFD's transistors, slightly reducing its own efficiency. System engineers must therefore find an optimal carrier frequency setting that ensures smooth, precise motor control for accurate feeding without creating excessive energy losses in the VFD itself. This fine-tuning is a key detail in maximizing the overall system efficiency.
Quantifiable Impact of Uniform Feeding on Crushing Efficiency
The core mission of an automatic feeding system is to achieve uniformity. In crushing operations, consistency is synonymous with efficiency. A steady, predictable stream of material allows the crusher to settle into its optimal operating state, where the energy applied by the hammer heads or mantles is used most effectively for breaking rock rather than being wasted on vibration, noise, and heat. Fluctuations in feed rate disrupt this equilibrium, forcing the crusher to constantly adjust, which directly translates into higher energy consumption and accelerated wear on critical components.
The benefits of uniform feeding are quantifiable across several dimensions. It smooths out the power consumption profile of the crusher's main motor, preventing damaging peaks and allowing the motor to operate near its best efficiency point. It maintains a consistent bed of material within the crushing chamber, ensuring that force is applied through inter-particle compression rather than metal-to-metal contact. This not only saves energy but also protects the liners and other wear parts, extending their service life and reducing maintenance costs, which is a significant contributor to the total cost of ownership.

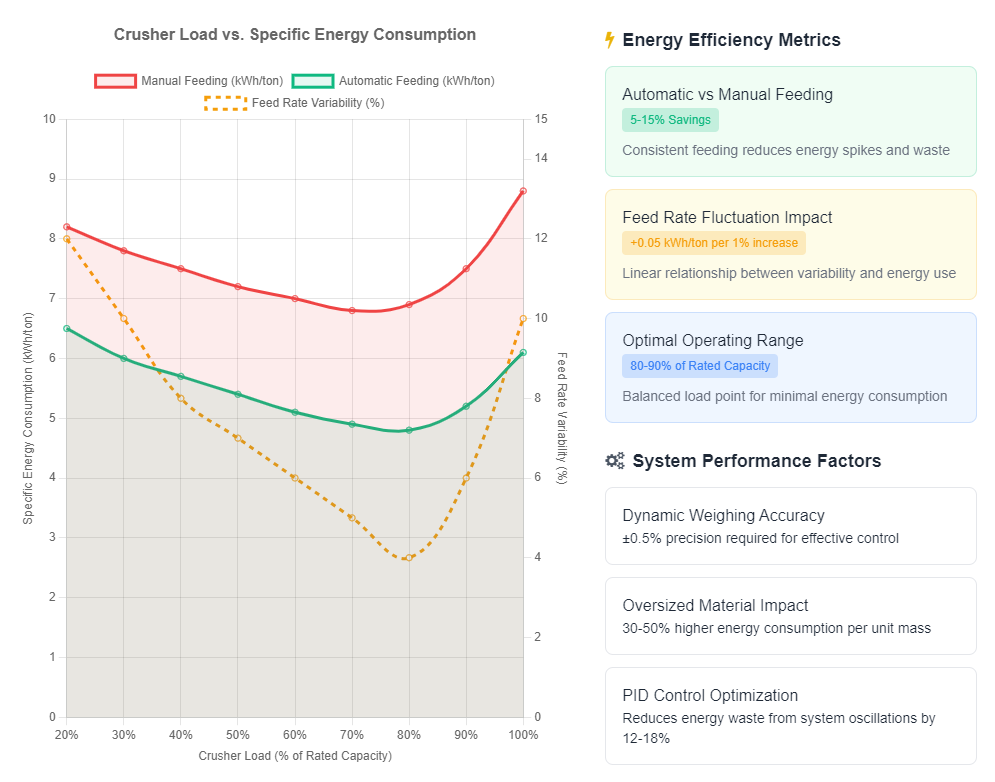

Linear Regression Analysis of Feed Rate Standard Deviation and Energy Consumption
The relationship between feeding consistency and energy use is not just theoretical; it can be measured and modeled. By collecting data on the standard deviation of the feed rate (a statistical measure of its variability) and the specific energy consumption (kWh per ton), a strong positive correlation is often revealed. A simple linear regression analysis can show that for every 1% increase in feed rate fluctuation, the energy consumption may increase by a predictable fraction of a percent.
This model provides a powerful tool for operations managers. It allows them to quantify the financial cost of an unstable feed. For example, if the model shows that poor feeding is adding 0.05 kWh/ton to the process, and the plant processes 500 tons per hour, the wasted energy and associated cost can be calculated for a shift, a week, or a year. This makes the business case for investing in a high-quality automatic feeding system clear and data-driven.
Amplification Effect of Oversized Material Percentage on Crushing Energy
Not all feed uniformity issues are about quantity; quality matters too. A sudden influx of oversized material, such as a large boulder entering a crusher designed for smaller feed, causes a significant energy spike. The crusher must exert immense force to break this single large particle, a process that is inherently less energy-efficient than breaking many smaller particles of the same total mass.
This is because the energy required to break a rock is not linearly proportional to its size; it often follows a power law, meaning the energy required per unit mass increases for larger rocks. An automatic feeding system integrated with a laser scanner or camera-based size detection system can identify these oversize threats. It can then trigger a protocol to slow the feed or even temporarily stop it, allowing the crusher to process the boulder without causing a massive, inefficient energy surge that stresses the entire mechanical and electrical system.
Load Control Strategies for Energy Efficiency Optimization
Moving beyond simple consistent feeding, the most advanced systems implement intelligent load control strategies. The goal here is to actively manage the crusher's workload in real-time to keep it operating at its most efficient point. This is a dynamic process, as the hardness and size of the feed material can change constantly. Instead of setting a fixed feed rate, these systems use the crusher itself as a sensor, monitoring its power draw and responding accordingly to maintain a target load that maximizes throughput while minimizing energy use and wear.
This approach transforms the operation from an open-loop to a closed-loop system. The power consumption of the crusher's main motor becomes the primary feedback signal. If the power drops, it indicates the crusher is under-loaded, so the system increases the feed rate. If the power spikes too high, indicating an potential overload, the system reduces the feed rate. This continuous, automatic adjustment ensures that the crusher is always working to its full potential without crossing the line into wasteful or damaging overloading, thus protecting components like the main shaft from undue stress.
Matching PID Control Parameters to Power Stability
The closed-loop control system is typically governed by a Proportional-Integral-Derivative (PID) algorithm. This algorithm determines how aggressively the system responds to changes in the crusher's power draw. The "P" (Proportional) value determines the immediate reaction to an error, the "I" (Integral) value addresses persistent, long-term error, and the "D" (Derivative) value anticipates future error based on the current rate of change.
Tuning these parameters correctly is an art and a science. If the response is too aggressive (high P and D values), the system might overcorrect, causing the feed rate to oscillate wildly, which defeats the purpose of smooth control. If the response is too sluggish (low P and I values), the system will be slow to react to changes in material hardness, leaving the crusher in an inefficient state for too long. Properly tuned PID parameters result in a stable, responsive system that gently nudges the crusher back to its optimal setpoint with minimal oscillation, ensuring steady-state efficiency.
System Integration and Coordinated Control
An automatic feeder does not operate in a vacuum. Its true potential is unlocked when it is fully integrated into the broader crushing and screening circuit. This holistic view considers the entire process as a single system, from the primary crusher discharge to the final product stockpiles. Energy efficiency is optimized by coordinating the operation of all equipment to ensure smooth material flow, minimize bottlenecks, and eliminate situations where one machine is running hard while another is sitting idle, wasting energy.
This integration requires robust communication between different system components. The feeding system must communicate with the crusher it serves, but also with upstream equipment like loaders and downstream equipment like screens and conveyors. For instance, if a downstream screen becomes blinded or a conveyor jams, the control system must quickly signal the feeder to stop, preventing a pile-up and saving energy. This level of coordination turns a collection of individual machines into a synchronized, efficient plant, where the energy input is focused squarely on the task of producing crushed stone, with minimal waste.
The Value of OPC UA Protocol in Cross-Vendor Equipment Integration
A major challenge in modern industrial plants is the presence of equipment from multiple manufacturers, each with its own proprietary communication protocols. OPC Unified Architecture (OPC UA) has emerged as a global standard for secure, reliable, and platform-independent data exchange. It provides a common language for different devices to talk to each other.
In a crushing plant, an OPC UA server can gather data from the PLC controlling the automatic feeder, the VFDs on the crusher motor, the engine controller on a mobile unit, and the control system of a screen. This data is then made available in a standardized format to a central Energy Management System (EMS) or SCADA system. This allows for plant-wide optimization strategies that would be impossible if each machine was operating on its own isolated "island" of information, enabling a truly integrated approach to energy savings.
Monitoring and Evaluation System for Energy Efficiency Improvement
You cannot manage what you do not measure. A comprehensive monitoring and evaluation system is essential for quantifying the benefits of an automatic feeding system and identifying further areas for improvement. This involves tracking key performance indicators (KPIs) in real-time, analyzing historical trends, and comparing performance against established benchmarks. The most critical KPI is Specific Energy Consumption (SEC), measured in kilowatt-hours per ton (kWh/t), which directly measures the energy efficiency of the crushing process.
Modern systems go beyond simply recording data. They use sophisticated software to visualize energy flows, create efficiency dashboards, and generate automated reports. By setting baselines and targets, operations teams can run focused campaigns to improve efficiency. Furthermore, these systems can employ machine learning algorithms to detect subtle anomalies in energy consumption that might indicate developing problems, such as a bearing beginning to fail or a liner wearing thin, allowing for proactive maintenance that prevents both inefficiency and unexpected downtime, keeping the discharge size consistent and quality high.
Real-time Calculation Method for the Unit Energy Consumption Indicator (kWh/t)
The calculation of Specific Energy Consumption (SEC) seems simple: total energy consumed divided by total tons produced. However, performing this calculation accurately and in real-time requires careful integration. Energy consumption is typically measured by a power transducer connected to the crusher motor's supply lines, providing a continuous stream of data on kilowatts (kW). Production tonnage is measured by a belt scale on the crusher's output conveyor.
The control system integrates the power signal over time to calculate total kilowatt-hours (kWh) consumed. Simultaneously, it integrates the mass flow signal from the output belt scale to calculate total tons produced. By dividing these two integrated values, the system generates a real-time, rolling SEC value. This live KPI allows operators to see immediately how changes in feed material or machine settings are impacting the plant's efficiency, empowering them to make informed decisions on the fly.
Industry Application Cases and Energy Efficiency Standards
The principles of energy-efficient automatic feeding are being successfully applied across the global mining and aggregate industries. These real-world applications provide compelling evidence of the benefits, often showing reductions in specific energy consumption of 5% to 15% after implementation. Furthermore, the push for efficiency is increasingly being shaped by international energy management standards and regional directives, which provide a framework for continuous improvement and help organizations formalize their energy-saving efforts.
Adhering to these standards is not just about compliance; it is about adopting best practices that lead to operational excellence and enhanced competitiveness. Companies that excel in energy management often find that their efforts lead to lower production costs, improved sustainability credentials, and increased resilience against rising energy prices. The experience of leading companies in this field demonstrates that investing in advanced feeding and control technology is a strategic decision with a clear and favorable return on investment.
Energy Efficiency Rating Classification for Crushing Equipment in the EED Directive
The European Energy Efficiency Directive (EED) is a key driver for improving energy efficiency across industry. It encourages, and in some cases mandates, regular energy audits for large companies. For equipment manufacturers, there is a growing focus on designing and labeling machinery according to its energy performance.
While a formal rating system like those for household appliances is not yet universal for crushers, the concept is emerging. Crushers and their feeding systems may be evaluated based on their specific energy consumption under standardized test conditions. This allows buyers to compare the expected energy performance of different models, pushing manufacturers to innovate and design more efficient machines. This regulatory environment accelerates the adoption of technologies like automatic feeding systems, as they become a key differentiator in the market for compliant, sustainable equipment.
