A Guide to Selecting Small Cone Crushers for Aggregate Production
Aggregate Production Requirements Analysis
Selecting the right crushing equipment for aggregate production begins with a thorough analysis of the project's specific needs. Unlike large-scale mining operations, aggregate plants often focus on producing precisely graded materials for construction purposes, which demands a different approach to crusher selection. This analysis forms the foundation for choosing a machine that is not only capable but also efficient and cost-effective for the intended application.
Key factors to consider include the type of raw material being processed, the exact specifications of the final products required by the market, the desired daily output to meet project timelines, and the potential need for mobility. For instance, processing relatively soft limestone is less demanding on a crusher than processing hard and abrasive granite, which influences the choice of wear materials and machine robustness. A clear understanding of these requirements ensures the selected crusher will deliver the required product gradation, such as 0-5mm sand or 5-20mm coarse aggregate, at the desired production rate of 200 to 800 tons per day.
Raw Material Type (Limestone/Granite)
The geological properties of the raw rock are the primary determinant in crusher selection. Limestone is a softer, less abrasive material, which allows for higher crushing speeds and a wider range of suitable equipment, including impact crushers. In contrast, granite is very hard and highly abrasive, necessitating a crusher designed for such conditions, typically a cone crusher with robust, wear-resistant liners. The choice of crusher must align with the material's hardness and abrasiveness to ensure economic viability through reasonable wear part life.
Finished Product Specifications (0-5mm/5-20mm)
The construction industry requires aggregates to meet strict size specifications. Commonly required products include fine aggregates like 0-5mm sand for concrete and coarse aggregates like 5-20mm chips for asphalt mixes. The crusher must be capable of producing a consistent product within these size bands. This often requires a crusher with precise discharge size control and sometimes a closed-circuit system with a screen to ensure oversize material is recirculated for further crushing.
Daily Output Capacity (200-800 tons)
The scale of the operation defines the necessary size and capacity of the crusher. For small to medium quarries or contracting businesses, a daily output between 200 and 800 tons is common. This requires a crusher with a corresponding hourly capacity, taking into account operational hours for a single shift or continuous production. The selected machine must reliably achieve this crushing capacity without being over-sized, which would lead to unnecessary capital expenditure and operating costs.
Mobile Operation Requirements
Many modern aggregate operations benefit from mobility. A requirement to move the crusher between sites or within a large quarry dictates the selection of a mobile crushing plant. These integrated systems, often mounted on tracks or wheels, offer flexibility and reduce material transportation costs. A mobile cone crusher can be quickly relocated to be closer to the feed source, significantly increasing overall operational efficiency.

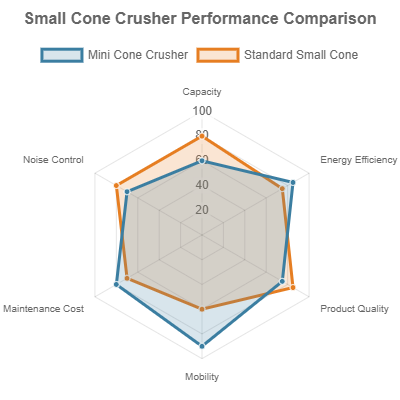

Equipment Selection Key Points
With the project requirements defined, the focus shifts to the specific technical features of the crusher that will meet those demands. For aggregate production, where product shape and size are critical, the design nuances of the crusher become exceptionally important. The goal is to select a machine that delivers a high-quality product with minimal operational hassle and maintenance.
The crushing chamber's geometry, the method for adjusting the output setting, the level of automation, and the physical footprint of the equipment are all interconnected factors. A well-considered selection balances these elements to optimize the final product's cubicity—a key quality indicator for aggregates—while ensuring the plant is easy to operate and maintain.
Crushing Chamber Selection (Fine-Crushing Type)
The shape of the crushing chamber is paramount for determining the final product's size and shape. For producing fine aggregates, a fine or extra-fine chamber design is used. These chambers have a steeper mantle and a longer parallel zone at the bottom where the final crushing and shaping occurs. This design promotes inter-particle crushing, which results in a more cubical product and a higher proportion of fine material, ideal for meeting sand specifications.
Hydraulic Adjustment System
Modern cone crushers utilize hydraulic systems for adjusting the crusher's closed-side setting (CSS), which controls the product size. This allows operators to make precise changes remotely, often while the crusher is running, to quickly adapt to different product requirements. The hydraulic system also serves as an effective overload protection mechanism, allowing the crusher to relieve pressure automatically if uncrushable material enters the crushing chamber.
Fully Automatic Control System
Automation is key to efficient and consistent operation. A fully automatic control system constantly monitors the crusher's load, power draw, and other vital parameters. It can automatically adjust the feed rate or the crusher setting to maintain optimum performance and protect the machine from damage. This results in a more consistent product, higher overall throughput, and allows the crusher to be operated by fewer personnel.
Compact Structure Design
For smaller quarries or mobile applications, the physical size of the equipment is a major consideration. A compact crusher design requires less space for installation and can be more easily integrated into existing plants or mounted on a mobile chassis. Despite their smaller footprint, these crushers are engineered to maintain high performance and durability, often through the use of high-strength materials and efficient power transmission systems.
Performance Optimization Configurations
Beyond the basic machine selection, several advanced configurations can be implemented to significantly enhance the crusher's performance, efficiency, and product quality. These optimizations represent the evolution of crushing technology, focusing on doing more with less energy and providing greater control over the process.
Investing in these technologies often leads to a lower cost per ton of produced aggregate, despite a higher initial investment. They improve the crusher's responsiveness to changing feed conditions, enhance the final product's market value, and simplify the overall setup and operation of the crushing circuit.
Frequency Conversion Drive Technology
A Variable Frequency Drive (VFD) controls the speed of the crusher's main motor. This allows the operator to precisely adjust the rotational speed of the mantle to optimize the crushing ratio and product shape for different feed materials and product requirements. It also provides a soft start function, reducing mechanical stress on the drive system during startup and potentially lowering energy consumption.
Intelligent Load Management
Sophisticated control systems can manage the crusher's load in real-time. By monitoring power draw and pressure sensors, the system can automatically regulate the feed rate to keep the crusher operating at its peak efficiency, consistently full but not overloaded. This maximizes throughput while preventing stall conditions that waste energy and cause unnecessary wear on the components.
Particle Shape Optimization Device
Some advanced crushers incorporate specific design features or optional kits to enhance particle shape. These can include cascading rock-on-rock crushing zones within the chamber or specially designed anvils. For the highest quality cubical aggregate, a VSI crusher is often used in the final crushing stage specifically for its superior particle shaping capabilities, producing material that is ideal for high-strength concrete and asphalt.
Modular Installation Scheme
To reduce installation time and cost, many modern crushers are designed with a modular approach. The crusher, its drive motor, and the feed and discharge conveyors can be pre-assembled on a single structural frame or skid. This modular scheme allows for quick setup on a prepared foundation, minimizes on-site assembly work, and can make future relocation of the entire crushing circuit a more straightforward process.
Environmental Compliance Requirements
Operating industrial equipment in today's world requires strict adherence to environmental regulations and a commitment to minimizing the operation's footprint. For crushing plants, this primarily involves controlling noise, dust, and vibration, while also improving energy efficiency.
Meeting these requirements is not just about legal compliance; it is also about being a good neighbor and reducing operational costs. Modern crushers are designed with these factors in mind, incorporating features that mitigate environmental impact from the outset, which is especially important for plants operating near urban areas.
Noise Control (<75dB)
Crushing operations can generate significant noise from rock impact and mechanical components. Regulatory limits often require noise levels at the site boundary to be below 75 decibels. Crushers designed for low noise feature sound-dampening enclosures, acoustic covers on the feed hopper, and specially designed liners that reduce the sound of impacting rock. Electric drives are also quieter than comparable diesel engines.
Dust Emission Control (<10mg/m³)
Dust is a major concern in aggregate production. Strict emission standards, often below 10mg per cubic meter, require effective suppression systems. These systems include water spray nozzles at key transfer points, well-sealed crusher cavities, and sometimes integrated dust collection systems with fabric filters. Effective dust control is crucial for protecting workers' health and minimizing the environmental impact of the operation.
Vibration Control Standards
Crushers generate vibrations that must be isolated from the foundation and the surrounding environment. This is achieved through sophisticated mounting systems with vibration isolators and the use of precision-balanced rotating assemblies within the crusher itself. Controlling vibration protects the crusher's mechanical components from premature fatigue failure and prevents the transmission of disruptive vibrations to nearby structures.
Energy Efficiency Grade
The energy required to crush rock is a major operational cost. Crusher efficiency is often measured by the net energy required per ton of output. More efficient crushers achieve a higher energy efficiency grade, which translates directly into lower electricity costs and a reduced carbon footprint. Features that contribute to high efficiency include optimized chamber designs, effective lubrication systems that reduce friction, and advanced drive systems like VFDs.
Cost-Benefit Analysis
Evaluating the financial aspects of a crusher purchase is essential for making a sound business decision. This analysis looks beyond the initial price tag to consider the total cost of ownership over the machine's operational life, balancing capital expenditure against ongoing operating and maintenance costs.
A comprehensive cost-benefit analysis provides a clear picture of the investment's return, helping to choose between different models and configurations. The most economically beneficial choice is often the machine that offers the lowest cost per ton of aggregate produced, which may not be the unit with the lowest purchase price.
Equipment Procurement Cost ($80k-$300k)
The initial capital outlay for a small to medium-sized cone crusher suitable for aggregate production can range from approximately $80,000 to $300,000. This price varies based on the crusher's size, capacity, technological features, and the level of automation. This investment covers the engineered crusher, its drive system, and often the control panel.
Wear Parts Replacement Cycle (Liner 500 hours)
The longevity of wear parts, such as mantles and concaves, is a major factor in operating costs. In abrasive applications like granite crushing, liner life may be as short as 500 operating hours. The cost and frequency of replacing these concave liners must be factored into the operational budget. Crushers that offer longer wear part life or use more cost-effective liners provide a significant economic advantage.
Labor Operation Cost
The level of automation directly influences labor costs. A fully automated crusher with remote monitoring can be managed by a single operator from a control room, potentially overseeing the entire crushing circuit. This reduces the number of personnel required on-site, leading to substantial savings in labor costs over time and improving overall safety by reducing exposure to the operating machinery.
Equipment Residual Value Assessment
Well-maintained crushing equipment from reputable manufacturers retains a significant portion of its value over time. The potential resale value or trade-in value, known as the residual value, is an important part of the investment calculation. A robust and popular model may retain 40-50% of its original value after several years of service, effectively lowering the net cost of ownership.
Innovative Technology Applications
The crushing industry is continuously evolving, adopting innovative technologies from the wider industrial sector to improve reliability, efficiency, and user experience. These advancements are transforming crushers from simple mechanical machines into intelligent, connected components of a modern processing plant.
These technologies offer predictive capabilities, enhanced visualization for maintenance, and new ways to improve the sustainability of the crushing process. Early adoption of these innovations can provide a competitive edge through reduced downtime, lower operating costs, and the ability to produce higher-value products.
IoT Monitoring Systems
Internet of Things (IoT) technology allows for the continuous remote monitoring of crusher health and performance. Sensors measure vibration, temperature, pressure, and power draw, transmitting this data to a cloud-based platform. Operators and managers can access real-time performance dashboards and historical trends from anywhere, enabling data-driven decision-making and remote troubleshooting.
Predictive Maintenance Algorithms
Moving beyond scheduled maintenance, predictive analytics use the data from IoT sensors to forecast when a component might fail. Advanced algorithms analyze trends in vibration and temperature to identify early signs of bearing wear, imbalance, or other issues. This allows maintenance to be planned at the most opportune time, preventing unplanned downtime and catastrophic failures, thus optimizing maintenance schedules and parts inventory.
Augmented Reality Assisted Maintenance
Augmented Reality (AR) technology is beginning to assist service technicians during complex repair and maintenance procedures. Using AR glasses or a tablet, a technician can overlay digital schematics, torque specifications, and step-by-step instructions directly onto the physical crusher they are working on. This reduces human error, shortens repair times, and helps less experienced technicians perform tasks correctly.
Energy Recovery Devices
Research is ongoing into systems that can capture and reuse energy within the crushing process. For example, the kinetic energy generated by the crusher's moving parts could potentially be captured during the deceleration phase and fed back into the power grid or used to power other plant equipment. While not yet commonplace, such innovations represent a future direction for sustainable crushing technology.
