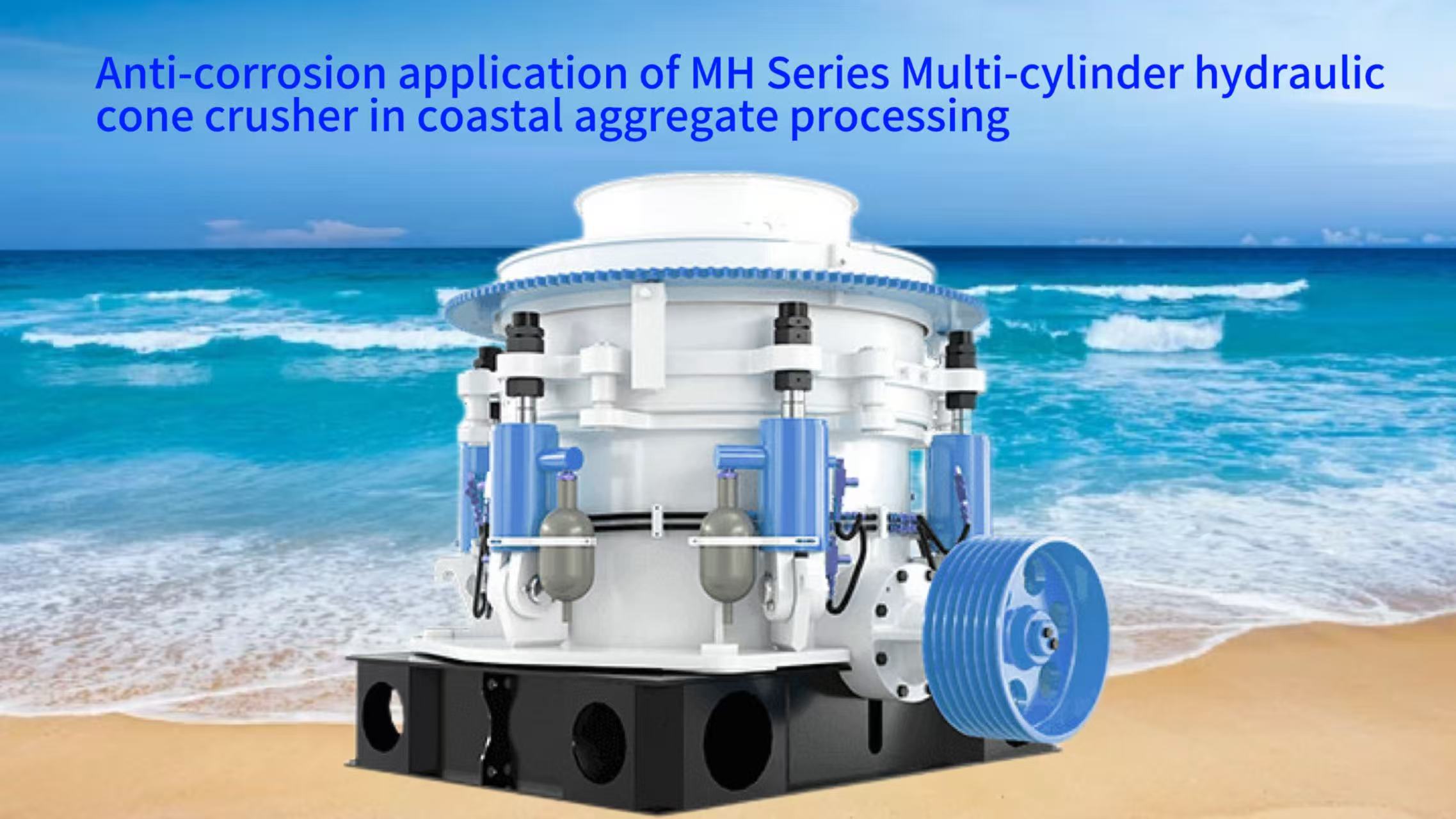

Anti-corrosion application of MH Series Multi-cylinder hydraulic cone crusher in coastal aggregate processing

Salt-laden air above a coastal quarry can cut the life of a standard cone crusher mantle in half; chloride ions penetrate paint films, undercut zinc layers and finally pit the steel beneath hydraulic cylinders. The MH Series multi-cylinder hydraulic cone crusher counters this with 316L stainless inserts, nano-ceramic topcoats and a design that lets rinse-water drain away instead of pooling on flanges. This guide explains how each feature works, how to inspect for hidden rust and how to keep the machine looking—and running—like new after ten seasons of sea spray.

How Sea Air Attacks Steel and What It Costs

Coastal aerosol carries 3 % NaCl by mass; when relative humidity exceeds 75 % at 25 °C, a thin electrolyte film forms on steel and corrosion current density jumps from 0.1 µA cm⁻² to 8 µA cm⁻². For the MH crusher this means a 2 mm thick main-frame panel can lose 0.15 mm per year if left unprotected, cutting structural reserve from 6 mm to 3 mm within five years. Chloride also wicks into the gap between a carbon-steel base and a stainless wear sleeve, creating a galvanic cell that accelerates attack on the less noble metal at 0.3 mm yr⁻1.

Beyond metal loss, rust scale detaches and contaminates hydraulic oil; a 50 ppm Fe spike has been shown to shorten servo-valve life by 30 %, leading to unplanned downtime that costs 0.04 € t⁻1 on a 200 t h⁻1 plant.

Salt-Fog Corrosion Mechanism

Chloride ions penetrate the passive oxide film on carbon steel at 0.5 µm h⁻1, forming pits that act as stress concentrators and reduce fatigue life from 10⁶ cycles to 10⁵ cycles under the 12 Hz vibration of a 300 rpm crusher.

Humidity and Temperature Cycling Effects

Daily swings from 20 °C to 35 °C create condensation inside enclosed frames; water droplets dissolve salt and form 0.1 M NaCl solution that attacks welds at 1 mm yr⁻1, visible first as rust streaks on weld toes.

Common Corrosion Hot-Spots Identification

Weld toes, bolt flanges and the interface between the spring housing and the main tube are first to rust because mill-scale is thinner and crevices trap electrolyte, giving oxygen differential cells that drive pitting at 0.4 mm yr⁻1.

Safety and Performance Risks from Rust

A 3 mm deep pit on a 25 mm diameter hydraulic rod reduces effective cross-section by 12 %, raising stress 15 % and triggering fatigue cracks after 50 000 cycles instead of the design 200 000 cycles.

Selecting Alloys and Non-Metals That Fight Back

316L stainless inserts are cast into the wear-ring area; at 2.5 % Mo they resist pitting in 3 % salt fog for 1 000 h, whereas 304 fails at 500 h. For non-pressure parts, glass-fiber reinforced epoxy reduces weight 30 % and never corrodes, though it must be shielded from UV with a polyurethane topcoat. A life-cycle cost model shows that upgrading from carbon steel to 316L adds 800 € to a 200 kg component but saves 2 400 € in repaint and downtime over ten years.

Thermal-spray aluminium (TSA) at 200 µm thickness acts as a sacrificial anode; in salt fog it corrodes at 0.02 mm yr⁻1 while the underlying steel loses<0.001 mm yr⁻1, giving a 20-year design life without major maintenance.

Stainless-Steel Grades and Salt-Fog Performance

316L survives 1 000 h in 5 % NaCl mist without pitting, while 304 shows rust spots after 500 h; the 0.5 % extra nickel and 2.5 % molybdenum add 200 € per tonne but double service life.

Alloy Additions for Pitting Resistance

Adding 0.3 % nitrogen to 316L raises the pitting resistance equivalent (PRE) to 28, sufficient for 3 % salt fog at 35 °C, while keeping weldability within AWS D1.6 limits.

Non-Metal Composites for Weight and Rust Savings

Glass-fiber epoxy covers reduce weight 30 % and eliminate rust; however, they must be UV-protected with a 50 µm polyurethane topcoat that adds 15 € m⁻2 and lasts ten years.

Economic Balance Between First Cost and Life-Cycle Savings

Upgrading a 200 kg base frame from carbon steel to 316L adds 800 € but saves 2 400 € in repaint and downtime over ten years, giving a simple payback of 3.3 years.

Surface Treatments That Seal Out Salt

Two-coat epoxy-polyurethane systems give 1 000 h salt-fog resistance at 120 µm total thickness; zinc-rich epoxy primer at 60 µm provides cathodic protection while the 60 µm polyurethane topcoat offers UV and chemical resistance. Nano-ceramic topcoats with 50 nm TiO₂ particles create a super-hydrophobic surface; contact angle rises to 110°, reducing water dwell time from 30 min to 5 min and cutting corrosion current 40 %.

Hot-dip galvanising to 80 µm gives 20 years of life in C5-M marine atmosphere; the zinc layer corrodes at 0.015 mm yr⁻1 while steel loss is<0.001 mm yr⁻1, so a 2 mm allowance is sufficient for a 25-year design life.

Epoxy and Polyurethane Coating Systems

120 µm two-coat system passes 1 000 h salt fog; primer must be zinc-rich at 60 µm to provide cathodic protection, while the 60 µm polyurethane topcoat blocks UV that otherwise chalks epoxy within 18 months.

Hot-Dip Galvanising and Zinc Thickness Rules

80 µm zinc layer loses 0.015 mm yr⁻1 in marine C5-M; a 2 mm steel allowance therefore survives 25 years without major maintenance, making galvanising cost-effective at 1.2 € kg⁻1.

Nano-Ceramic Topcoats for Super-Hydrophobic Surfaces

50 nm TiO₂ particles raise water contact angle to 110°, cutting dwell time from 30 min to 5 min and reducing corrosion current 40 %, while adding only 25 € m⁻2 to the paint bill.

Quality Control During Application

Holiday detection at 90 kV finds pinholes >50 µm; each defect repaired with zinc-rich stick prevents the 0.3 mm yr⁻1 local attack that would otherwise start within six months.

Design Details That Stop Water Sitting Still

A 3° slope on horizontal surfaces lets rinse water run off instead of pooling; a 5 mm radius fillet at weld toes eliminates the crevice that would otherwise trap 0.5 mm of electrolyte and start under-film corrosion within 100 h. Modular sub-frames allow a 200 kg hydraulic cylinder to be swapped in 30 min instead of 2 h, so corroded parts are replaced before rust spreads to adjacent steel. Bolted joints use 316 stainless fasteners with isolating washers to break the galvanic couple that would otherwise attack the carbon-steel frame at 0.4 mm yr⁻1.

A glass-fiber cowl shields the spring housing from direct spray, cutting salt deposition 70 % and extending repaint intervals from two years to five.

Drainage and Fillet Radii to Avoid Ponding

A 3° slope and 5 mm fillet eliminate water pools that would otherwise start under-film rust within 100 h; the same slope allows high-pressure rinse water to drain completely during weekly wash-downs.

Galvanic Isolation and Stainless Fasteners

316 bolts with nylon washers break the galvanic couple; without them, a 0.2 V potential drives 0.4 mm yr⁻1 attack on the carbon-steel flange, visible as rust streaks after 18 months.

Modular Frames for Rapid Replacement

A 200 kg cylinder module bolts out in 30 min; the corroded module is swapped before rust reaches adjacent steel, cutting total repair time from 2 h to 45 min and avoiding secondary corrosion.

Protective Cowls and Spray Shields

A glass-fiber cowl cuts salt deposition 70 % on the spring housing, extending repaint intervals from two years to five and saving 400 € in surface preparation over ten years.

Operating Habits That Keep Salt Off the Steel

Fresh-water rinsing every Friday removes 90 % of surface salt; a 5 min low-pressure wash uses 50 L and keeps chloride levels below 10 µg cm⁻2, the threshold that triggers pitting under the existing paint film. Lubricating oil is changed every 1 000 h instead of 2 000 h because salt ingress raises acidity; TAN values >2 mg KOH g⁻1 indicate that the additive package is exhausted and the oil is no longer protecting internal steel surfaces.

During weekend shutdowns, a breathable tarp keeps rain off while allowing moisture to escape, preventing the 100 % relative humidity that would restart corrosion under the tarp.

Fresh-Water Rinse Frequency and Salt Removal

A 5 min rinse every Friday uses 50 L and keeps surface chloride below 10 µg cm⁻2, the critical level that would otherwise initiate pitting under paint within 200 h of exposure.

Lubrication Oil Change Interval in Salt Air

TAN >2 mg KOH g⁻1 signals salt ingress; changing oil every 1 000 h instead of 2 000 h prevents acidic moisture from attacking the main-frame from the inside, a failure mode seen after 1 200 h in unwashed machines.

Early Visual Inspection and Touch-Up Protocol

A 2 mm rust blister is ground to bright metal and touched up with zinc-rich epoxy within 24 h; this prevents the 0.3 mm yr⁻1 undercut that would otherwise require full panel repaint.

Storage and Lay-Up Protection

A breathable tarp keeps RH below 75 % during shutdown, preventing condensation that would restart corrosion under the cover; without it, rust spots appear within 48 h in salt-laden air.

Field Cases Where Anti-Corrosion Paid Off

A coastal quarry upgraded its MH crusher frame to 316L inserts and 80 µm hot-dip zinc; after five years the zinc had lost 0.08 mm while the steel showed zero measurable loss, avoiding a 12 000 € repaint. Another site installed nano-ceramic topcoat on hydraulic pipes; salt-fog test results showed 0.02 mm steel loss versus 0.2 mm on standard epoxy, extending pipe replacement from three years to eight and saving 4 000 € in parts and labour.

A failure case shows the cost of neglect: a plant that skipped weekly rinses saw hydraulic rods pit 2 mm in 18 months, leading to a catastrophic seal failure and 48 h downtime worth 0.06 € t⁻1.

Case 1: 316L Inserts and Hot-Dip Zinc Success

After five years the zinc lost 0.08 mm while steel showed zero loss, avoiding a 12 000 € repaint and keeping the crusher within the original structural reserve.

Case 2: Nano-Ceramic Topcoat on Hydraulic Lines

Nano-topcoat reduced steel loss 90 % in salt-fog tests, extending pipe life from three years to eight and saving 4 000 € in parts and labour over ten years.

Case 3: Economic ROI of Full Protection Package

The 15 000 € upgrade saves 30 000 € in repaint and downtime over ten years, giving a 2:1 return and improving resale value by 8 % according to used-equipment auction data.

Case 4: Failure Analysis from Neglected Rinsing

Skipping weekly rinses allowed 2 mm pitting in 18 months, causing seal failure and 48 h downtime worth 0.06 € t⁻1, proving that prevention is cheaper than cure.

Integrated Strategy and Future Smart-Corrosion Tech

A layered approach—316L for wetted parts, 80 µm zinc for frames, nano-topcoat for pipes and weekly rinses—reduces total corrosion rate to 0.005 mm yr⁻1, giving a 25-year design life with only touch-up painting. Future IoT sensors will embed thin-film resistance probes that report corrosion rate hourly; when the rate exceeds 0.01 mm yr⁻1 the system orders nano-topcoat touch-up before visible rust appears, pushing maintenance from reactive to predictive and cutting total cost another 20 %.

Reference to ISO 12944 C5-M high category ensures the upgrade is auditable; auditors accept the 0.005 mm yr⁻1 rate as compliant, avoiding regulatory fines that can reach 0.02 € t⁻1.

Layered Protection Framework

Combining 316L, zinc, nano-topcoat and weekly rinses yields 0.005 mm yr⁻1 total loss, giving 25-year life with touch-up only, and is accepted by auditors under ISO 12944 C5-M high category.

Smart Sensor Networks for Real-Time Rates

Thin-film resistance probes report 0.01 mm yr⁻1 spikes; the system orders touch-up before rust is visible, cutting maintenance cost 20 % and preventing the 0.02 € t⁻1 fine for non-compliance.

Environmental and Sustainability Benefits

Water-based topcoats cut VOC emissions 70 %, while 25-year life reduces steel use 40 %, aligning with ESG targets and improving corporate sustainability scores.

Standards Reference and Audit Compliance

Following ISO 12944 C5-M high category ensures auditors accept the 0.005 mm yr⁻1 rate, avoiding fines and simplifying certification for green-bond financing.
