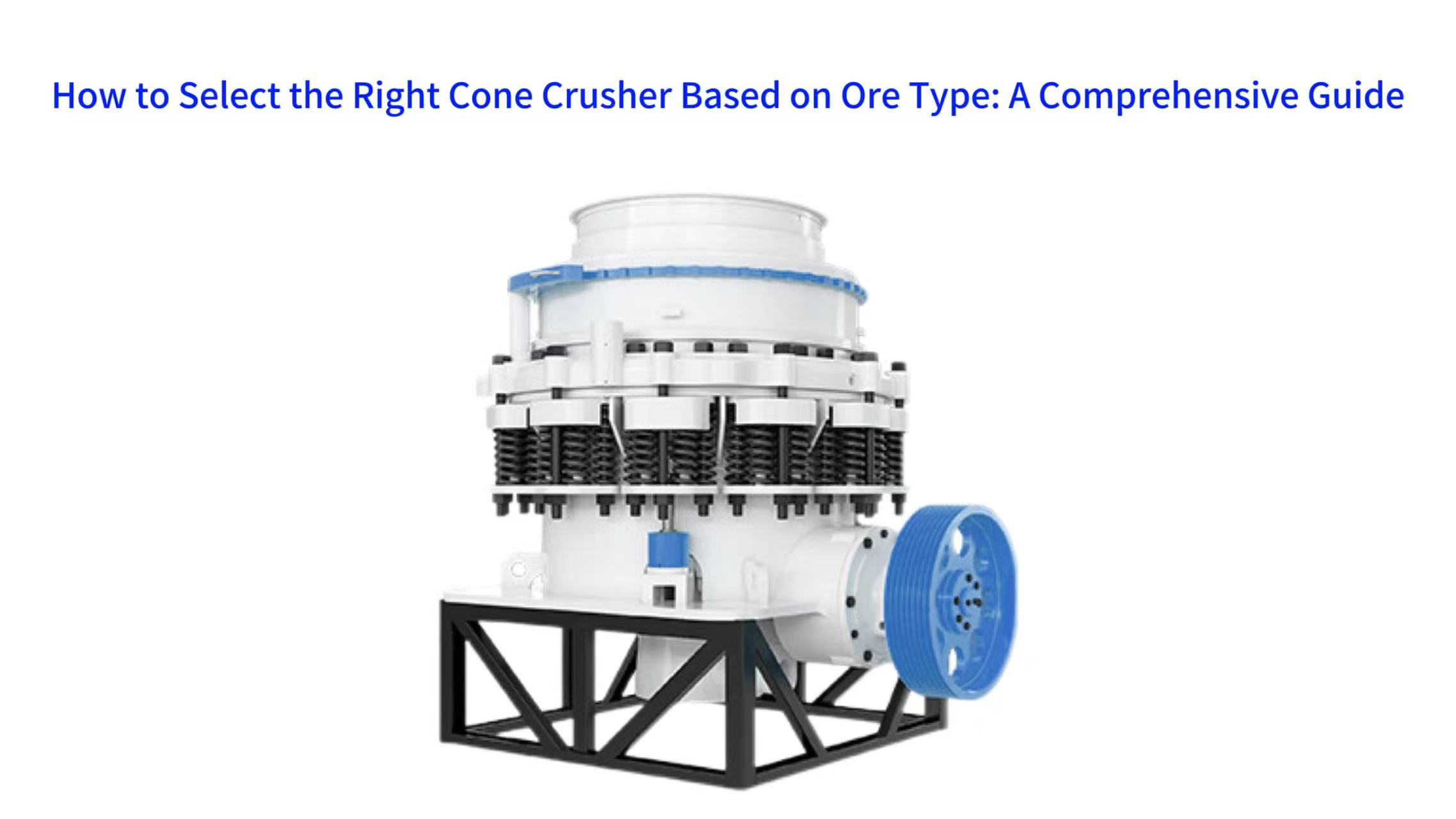

​How to Select the Right Cone Crusher Based on Ore Type: A Comprehensive Guide

Selecting the appropriate cone crusher for specific ore types is a critical decision that directly impacts operational efficiency, production costs, and overall profitability in mining and aggregate operations. This guide provides a systematic approach to matching cone crusher specifications with the unique characteristics of various ore types, from extremely hard and abrasive materials to softer, more friable deposits. Understanding the relationship between ore properties and crusher design parameters ensures optimal performance, extended equipment life, and consistent product quality. With proper selection, operations can achieve throughput increases of 15-25% while reducing wear part replacement costs by up to 30% compared to mismatched equipment configurations.

Key Selection Factors for Hard Ores

Hard ores, typically characterized by high compressive strength and abrasive qualities, present significant challenges for crushing equipment. These materials, which include granite, basalt, and certain iron ores, require crushers specifically designed to withstand extreme wear while maintaining crushing efficiency. The selection process must prioritize durability and robust construction to handle the substantial forces generated during the comminution of these resistant materials. Equipment designed for hard ores incorporates specialized features that distribute stress effectively and minimize wear on critical components.

The crushing of hard ores generates considerable heat and friction, necessitating advanced cooling systems and superior lubrication mechanisms. Crushers operating on these materials typically run at lower speeds to maximize the inter-particle compression that is most effective for fracturing hard rock. The geometric design of the crushing chamber must facilitate optimal nip angles and ensure proper material flow to prevent choke feeding while maintaining maximum reduction ratios. These considerations collectively determine the crusher's ability to process hard ores economically while minimizing downtime for maintenance.

Wear Resistance Requirements for Hard Ore Processing

Hard ores accelerate wear on crushing components, particularly mantles, concaves, and other wearing parts. Materials with high silica content can reduce the operational life of manganese steel components by up to 40% compared to less abrasive ores. Modern crushers address this challenge through advanced metallurgy and innovative design features that protect critical components from premature failure. The selection of appropriate wear materials can extend component life by 200-300% in some applications, significantly reducing operating costs.

Advanced monitoring systems track wear patterns and provide data-driven insights for predictive maintenance scheduling. These systems measure parameters such as power draw, crushing pressure, and production rates to optimize replacement intervals for wear parts. This proactive approach prevents unexpected downtime and ensures consistent product quality throughout the wear cycle, maximizing operational efficiency in hard ore applications.

Comparison Between Manganese Steel and Alloy Steel Liners

Manganese steel liners offer exceptional work-hardening properties that make them ideal for the high-impact conditions encountered in hard ore crushing. Under repeated impact, the surface hardness of manganese steel can increase from approximately 200 HB to over 500 HB, providing progressively better wear resistance throughout the component's life. This characteristic makes manganese steel particularly suitable for applications involving high compression forces and significant material sliding within the crushing chamber.

Alloy steel liners provide superior initial hardness and maintain their mechanical properties better under high-temperature conditions. These liners typically feature chromium, molybdenum, and other alloying elements that enhance wear resistance without requiring impact-induced work hardening. While generally more expensive initially, alloy steel liners can offer better economic performance in certain hard ore applications where impact forces are less pronounced but abrasion remains significant.

Impact of Crushing Chamber Design on Hard Ore Efficiency

The geometry of the crushing chamber significantly influences the efficiency of hard ore processing. Short-head chamber designs provide steeper angles and finer crushing capabilities, making them ideal for secondary and tertiary crushing stages where product size control is critical. These chambers generate higher reduction ratios and produce more cubical products, though at potentially higher wear rates in hard ore applications.

Standard chamber configurations offer a balanced approach with good capacity and acceptable reduction characteristics. The design typically features a longer parallel zone that provides more residence time for hard ores, ensuring thorough compression and better size reduction. Modern chamber designs incorporate computer-optimized profiles that maximize throughput while minimizing wear, particularly important when processing abrasive hard ores.

Relationship Between Main Shaft Speed and Hard Ore Crushing Effectiveness

Main shaft rotation speed directly influences the crushing action and product size distribution when processing hard ores. Higher speeds typically produce finer products but may increase wear rates and power consumption. For hard ores, moderate speeds often provide the best balance between production rate, product quality, and component life. The optimal speed varies based on ore characteristics and the specific crusher design parameters.

Variable speed drives allow operators to adjust crushing parameters in real-time based on ore hardness variations. This flexibility enables maintenance of optimal performance despite changing feed conditions, ensuring consistent product quality while protecting the crusher from excessive wear. Modern control systems automatically adjust speed settings based on power draw and other operational parameters, optimizing performance for hard ore processing.

Selection Considerations for Soft Ores

Soft ores, including limestone, certain phosphates, and weathered materials, require different crushing approaches compared to hard ores. These materials typically feature lower compressive strength and may contain higher moisture content, influencing crusher selection and operational parameters. Equipment for soft ores prioritizes energy efficiency and high throughput capabilities, leveraging the material's natural friability to maximize production while minimizing power consumption.

The crushing of soft ores benefits from higher speed operations and different chamber designs that capitalize on the material's reduced resistance to fragmentation. Crushers processing soft materials can operate with larger setting ranges while maintaining product quality, allowing for greater operational flexibility. The selection process must consider the potential for material packing and the crusher's ability to handle potentially sticky materials without compromising performance.

Advantages of Energy-Efficient Designs for Soft Ore Crushing

Energy efficiency becomes particularly important when processing soft ores, as these materials typically require less specific energy for comminution. Crushers designed for soft ores incorporate features that minimize power consumption while maintaining high throughput rates. These designs often utilize higher rotational speeds and optimized chamber geometries that maximize the utilization of the material's natural cleavability, reducing energy requirements by 15-25% compared to conventional designs.

Advanced hydraulic systems contribute significantly to energy efficiency in soft ore applications. These systems provide precise control over crusher settings and clearing functions while consuming minimal power during normal operation. The integration of energy recovery systems further enhances efficiency by capturing and reusing energy during the crushing cycle, particularly beneficial in high-volume soft ore processing operations.

Importance of Crushing Force Adjustment for Soft Ores

Precise control of crushing forces is essential when processing soft ores to avoid over-crushing and excessive fines generation. Modern cone crushers offer sophisticated hydraulic adjustment systems that maintain optimal crushing pressures based on material characteristics. This capability ensures efficient size reduction while minimizing energy waste and unnecessary wear on components.

Automatic setting regulation systems continuously monitor and adjust crushing parameters to maintain optimal performance as ore characteristics change. These systems measure power consumption, throughput rates, and other operational parameters to dynamically optimize crushing forces. This automated approach ensures consistent product quality while maximizing production efficiency in soft ore applications.

Relationship Between Feed Opening Size and Soft Ore Throughput

The size and design of the feed opening significantly influence the capacity of crushers processing soft ores. Larger feed openings allow for higher throughput rates by accommodating bigger feed material and reducing the risk of bridging or blockage. This is particularly important for soft ores that may exhibit variable sizing in the feed material due to their friable nature.

Optimized feed opening designs ensure efficient material entry into the crushing chamber without compromising the crusher's mechanical integrity. The geometry must guide material smoothly into the crushing zone while preventing spillage and minimizing dust generation. Proper feed arrangement contributes to uniform wear patterns and consistent performance throughout the liner life when processing soft ores.

Discharge Setting Adjustment for Product Size Control

Precise control over discharge settings is crucial for achieving the desired product size distribution when crushing soft ores. Modern cone crushers offer both manual and automated adjustment systems that enable quick changes to the closed-side setting. Hydraulic adjustment mechanisms provide the flexibility to modify product specifications rapidly in response to changing market demands or process requirements.

Automated setting control systems maintain consistent product quality despite wear progression and other operational variables. These systems continuously monitor and adjust the crusher setting to compensate for liner wear, ensuring stable product size distribution throughout the wear cycle. This capability is particularly valuable in soft ore applications where small setting changes can significantly impact product gradation.

Selection Criteria for Medium-Hard Ores

Medium-hard ores represent the most common crushing application and include materials such as typical copper porphyry ores, many gold ores, and certain limestone varieties. These materials require a balanced approach that combines robust construction for durability with efficient crushing action for economic operation. The selection process must consider the ore's abrasiveness, moisture content, and specific fragmentation characteristics to identify the optimal crusher configuration.

Crushers for medium-hard ores typically feature designs that offer good capacity while maintaining reasonable wear characteristics. The equipment must handle occasional fluctuations in ore hardness without compromising performance or requiring frequent adjustments. Modern crushers for these applications incorporate sophisticated control systems that automatically adapt to changing ore conditions, ensuring consistent performance across varying feed characteristics.

Suitability of Multi-Cylinder Hydraulic Cone Crushers

Multi-cylinder hydraulic cone crushers offer exceptional versatility for medium-hard ore processing. Their design provides superior crushing force distribution and advanced cavity clearing capabilities, making them ideal for operations requiring frequent changes in product specifications. The multiple hydraulic cylinders ensure balanced pressure application throughout the crushing chamber, promoting uniform wear and extended component life.

The hydraulic systems in these crushers provide comprehensive protection against mechanical overload and tramp iron damage. Advanced control capabilities allow for real-time adjustment of crusher parameters based on operational conditions, ensuring optimal performance when processing medium-hard ores with variable characteristics. These features make multi-cylinder designs particularly suitable for operations requiring flexibility and reliability.

Efficiency Advantages of Single-Cylinder Hydraulic Cone Crushers

Single-cylinder hydraulic cone crushers provide simplified operation and maintenance while delivering excellent crushing performance for medium-hard ores. Their streamlined design reduces the number of potential failure points while maintaining robust crushing capabilities. The single hydraulic cylinder serves multiple functions, including adjustment, clearing, and protection, contributing to the design's overall reliability and efficiency.

The structural efficiency of single-cylinder designs results in lower installation costs and reduced maintenance requirements. These crushers typically feature higher rotational speeds that capitalize on the natural cleavability of medium-hard ores, producing excellent reduction ratios with lower energy consumption. The combination of mechanical simplicity and advanced hydraulic control makes these crushers well-suited for many medium-hard ore applications.

Design Characteristics of Compound Crushing Chambers

Compound crushing chamber designs combine elements from both standard and short-head configurations to optimize performance for medium-hard ores. These chambers feature carefully engineered profiles that maximize the reduction ratio while maintaining good capacity and acceptable wear characteristics. The design typically incorporates a steeper angle in the upper section for effective initial breaking followed by a flatter parallel zone for final sizing.

Computer-optimized chamber designs ensure optimal material flow and pressure distribution throughout the crushing process. The geometry promotes inter-particle crushing, which is particularly effective for medium-hard ores, enhancing efficiency while reducing wear. These advanced chamber designs contribute significantly to the crusher's overall performance and economic operation.

Importance of Lubrication Systems for Medium-Hard Ore Crushing

Advanced lubrication systems are essential for reliable operation when processing medium-hard ores. These systems must provide adequate cooling and lubrication to all critical components while maintaining cleanliness under demanding operating conditions. Modern crushers incorporate sophisticated filtration and cooling systems that extend bearing life and maintain optimal operating temperatures.

Automated lubrication monitoring systems track oil condition, temperature, and flow rates to ensure proper lubrication under all operating conditions. These systems provide early warning of potential issues, allowing for proactive maintenance before problems develop. The reliability of the lubrication system directly influences the crusher's availability and operational costs when processing medium-hard ores.

Selection Guidelines for Special Ore Types

Special ore types present unique challenges that require specific crusher features and configurations. These materials include high-moisture ores, sticky clays, corrosive substances, and easily degradable minerals. The selection process must address these special characteristics through appropriate material choices, design features, and operational parameters to ensure reliable performance and acceptable equipment life.

Crushers for special ore types often incorporate customized solutions that address the specific challenges presented by each material. These may include special sealing arrangements, corrosion-resistant materials, or unique chamber designs that prevent material packing or uneven wear. Understanding the particular requirements of each special ore type is essential for selecting equipment that will perform reliably under challenging conditions.

Equipment Requirements for High-Moisture Ores

High-moisture ores require crushers with enhanced sealing systems and corrosion protection measures. These materials can cause packing in conventional crushing chambers and accelerate wear through abrasion combined with chemical attack. Specialized designs incorporate effective drainage systems and materials resistant to the combined effects of wear and corrosion.

The lubrication systems for crushers processing high-moisture ores must provide enhanced protection against water contamination. Advanced sealing arrangements prevent moisture ingress into critical components while allowing proper drainage of water from the crushing chamber. These features ensure reliable operation and extended component life when processing challenging high-moisture materials.

Anti-Blocking Designs for Sticky Ores

Sticky ores require crusher designs that prevent material buildup and ensure continuous operation. These designs typically incorporate special chamber geometries that minimize areas where material can accumulate. Additional features may include mechanical clearing systems or hydraulic arrangements that can quickly clear any blockages that do occur.

Advanced hydraulic systems provide rapid clearing capabilities without requiring manual intervention or extended downtime. These systems can reverse the crushing action or temporarily open the crushing chamber to discharge packed material. The ability to quickly clear blockages is essential for maintaining operational efficiency when processing sticky ores.

Material Selection for Corrosive Ores

Corrosive ores require careful material selection for all components exposed to the crushed material. Stainless steels and specialized alloys provide resistance to chemical attack while maintaining adequate mechanical properties for crushing applications. The selection process must balance initial cost against expected service life in corrosive environments.

Protective coatings and surface treatments offer additional protection for components exposed to corrosive ores. These treatments can significantly extend component life while maintaining the mechanical properties of the base material. Regular inspection and maintenance protocols are essential for identifying and addressing corrosion issues before they compromise equipment integrity.

Gentle Crushing Methods for Friable Ores

Friable ores require crushing methods that minimize over-breakage and excessive fines generation. Lower rotational speeds and modified chamber designs help achieve this by promoting more controlled breakage through compression rather than impact. The equipment must provide precise control over crushing forces to ensure effective size reduction without unnecessary degradation of valuable mineral components.

Advanced control systems monitor and adjust crushing parameters to maintain optimal performance with friable ores. These systems can detect changes in material characteristics and automatically modify operational parameters to preserve product quality. The ability to gently crush friable materials while maintaining production rates is essential for economic operation in these applications.
